[shortdesc]FortiGate 900G-DC Firewall, 1RU dual DC PSU, 4x25GE/10GE ULL, 42 Gbps IPS, including 3 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product Name | FortiGate 900G-DC |
| Model / SKU | FG-900G-DC-BDL-809-36 |
| Bundle / Subscription | FortiCare Premium + FortiGuard Enterprise Protection, 3 Year |
| Form Factor | Rack Mount, 1 RU |
| Firewall Throughput (Max) | 164 Gbps (1518 byte UDP) |
| Interfaces | 4x 25GE/10GE SFP28/SFP+ Ultra Low Latency, 4x 10GE/GE SFP+/SFP, 8x GE SFP, 17x GE RJ45 (16x switch + 1x MGMT), 1x 2.5GE/GE HA RJ45 |
| Onboard Storage | No |
| Power Input | 48–60 VDC |
| Dimensions | 1.5 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm) |
| Weight | 15.98 lbs (7.25 kg) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Certifications | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6 |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) |
| IPS Throughput | 42 Gbps |
| NGFW Throughput | 31 Gbps |
| Threat Protection Throughput | 30 Gbps |
| System Performance and Capacity |
| Firewall Throughput (Packet per Second) | 229.5 Mpps |
| Firewall Latency (64 byte UDP) | 3.78 / 2.5 μs* |
| Concurrent Sessions (TCP) | 16 Million |
| New Sessions/Second (TCP) | 720,000 |
| Firewall Policies | 50,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 10 Gbps |
| Concurrent SSL-VPN Users (Recommended Max) | 10,000 (Tunnel Mode) |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 16.7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 18,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 1.6 Million |
| Application Control Throughput (HTTP 64K) | 74.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 133 Gbps |
| Virtual Domains (Default/Maximum) | 10 / 50 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total/Tunnel) | 2048 / 1024 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Hardware and Interfaces |
| Hardware Accelerated 25 GE SFP28/10 GE SFP+ Slots | 4 |
| Hardware Accelerated 10 GE SFP+/GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Slots | 16 |
| 2.5 GE/GE HA Port | 1 |
| GE Management Port | 1 |
| USB Ports (Client/Server) | 2 / 2 |
| Console Port | 1 |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Dimensions and Power |
| Power Consumption (Average/Maximum) | 170 W / 313 W |
| Heat Dissipation | 1069 BTU/h |

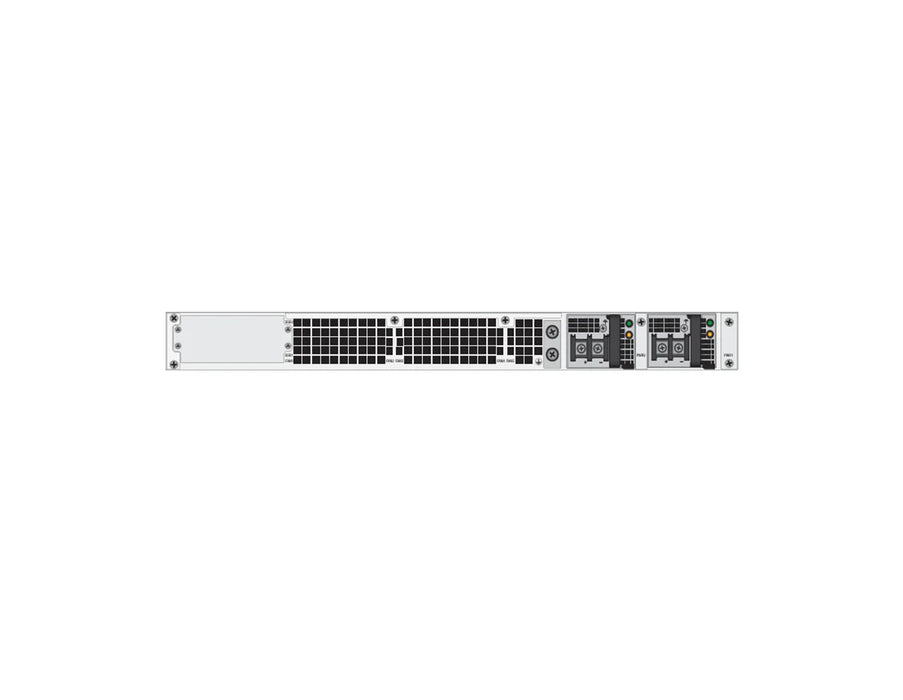

| Redundant Power Supplies | Yes (Hot swappable; comes with 2 PSUs) |
| Operating Environment and Certifications |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 58 dBA |
| Forced Airflow | Side and Front to Back |
| Operating Altitude | Up to 10,000 ft (3,048 m) |
[/specifications]
[accesories]
| Included Accessories | 2x SFP SX Transceivers, Dual hot swappable DC power supplies (2 PSUs included) |
| Optional Accessories | DC Power Supply (SP-FG400F-DC-PS), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), Direct Attach Cables (10 GE SFP+, 25 GE SFP28) |
[/accesories]
The Fortinet FortiGate 900G-DC Series Next-Generation Firewall (NGFW) utilizes advanced artificial intelligence (AI) and machine learning (ML) to provide comprehensive threat protection at scale. Driven by Fortinet’s patented Network Processor 7 (NP7) and the ninth-generation Content Processor (CP9), this appliance delivers superior performance, including up to 42 Gbps of IPS throughput and 74.8 Gbps of Application Control throughput. Featuring dual hot swappable DC power supplies, the FG-900G-DC is designed for resilient operation in DC-powered environments, ensuring continuous, high-speed security for massive traffic volumes. This bundle includes FortiCare Premium + FortiGuard Enterprise Protection for 3 Year.

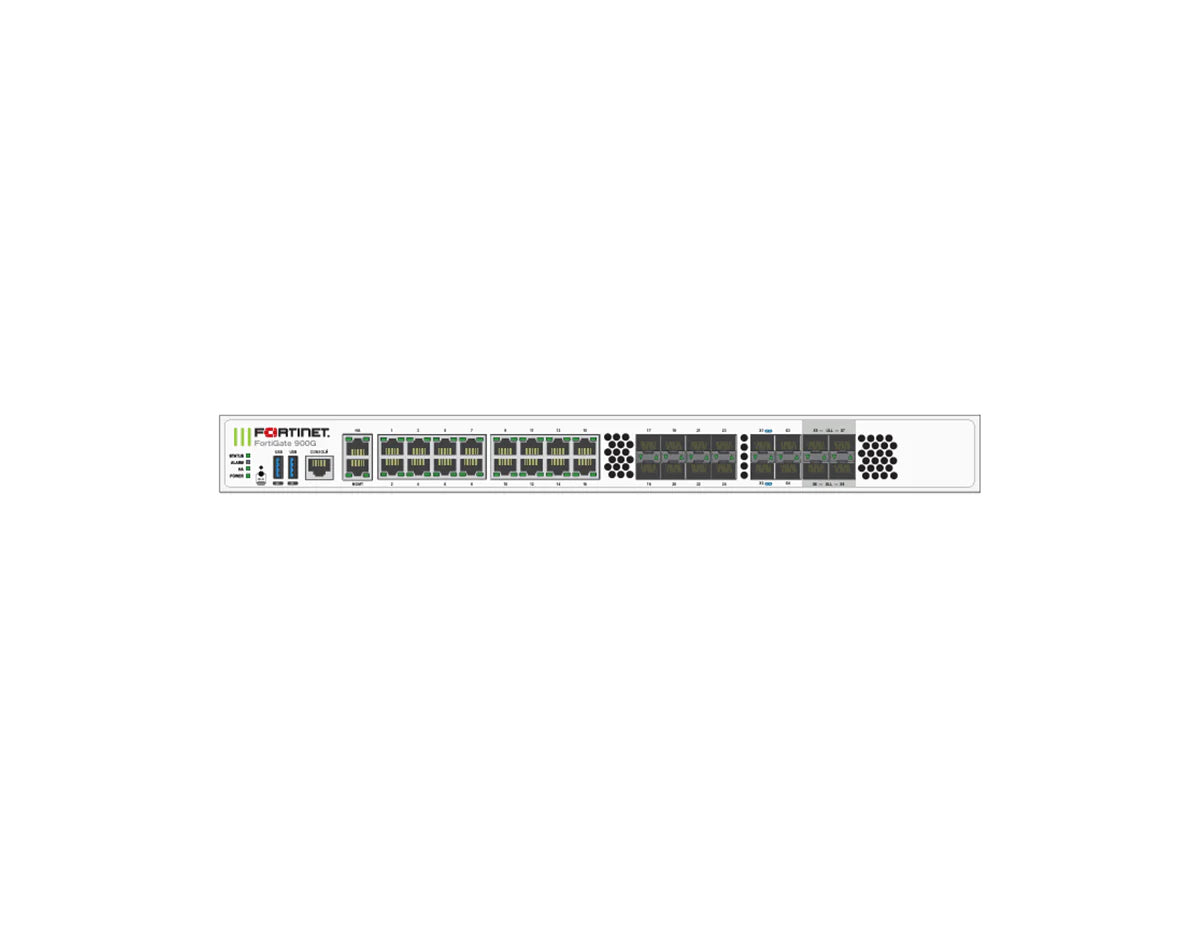

Tailored for high-bandwidth infrastructures, the FortiGate 900G-DC offers an extensive and flexible interface set, including four 25GE/10GE SFP28/SFP+ ultra-low latency slots, four 10GE/GE SFP+/SFP slots, eight GE SFP slots, 17x GE RJ45 ports (including 1x management port and 16x switch ports), and a dedicated 2.5GE/GE HA port. It incorporates a Trusted Platform Module (TPM), a dedicated module that hardens the appliance by generating, storing, and authenticating cryptographic keys. The redundant dual hot swappable DC power supplies included by default provide the mission-critical uptime and high availability required in modern enterprise networks and data center deployments.
