[shortdesc]
- FortiGate-7030E-SFP10G Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
[/shortdesc]
[properties]
| Properties |
FG-7030E-SFP10G-BDL-950-12
|
| Description |

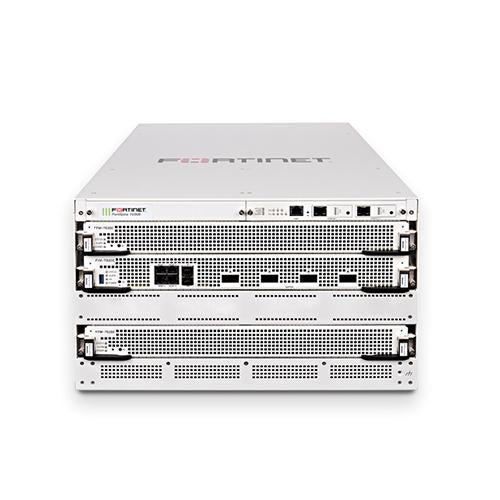

6U 3-slot chassis with 2x FPM-7620E processor modules, 1x FIM-7901E module with 32x 10 GE SFP+ slots, 1x manager module, and 3x hot swappable redundant PSU.
|
| Product Family |
Chasis Based Firewalls |
| Product Type |
Firewall |
| Fortinet Processor Module (FPM) Slots |
2 |
| Fortinet Interface Module (FIM) Slots |
1 |
| Shelf Manager |
1 |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration |
1 Years |
[/properties][specifications]
|
Firewall Throughput (1518 / 512 / 64 byte, UDP)
|
155 / 155 / 155 Gbps |
| Firewall Latency (64 byte UDP packets) |
7.00 μs |
| Firewall Throughput (Packets Per Second) |
220 Mpps |
| Concurrent Sessions (TCP) |
160 Million |
| New Sessions/Second (TCP) |
900.000 |
| Firewall Policies |
200.000 |
| IPsec VPN Throughput (512 byte packets) |
40Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
16000 |
| Client-to-Gateway IPsec VPN Tunnels |
64000 |
| SSL-VPN Throughput |
15 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) |
48000 |
| SSL Inspection Throughput |
39.9 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
32 500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
12 Million |
| Application Control Throughput |
65 Gbps |
| IPS Throughput |
60 Gbps |
| NGFW Throughput |
50 Gbps |
| Threat Protection Throughput |
35 Gbps |
| CAPWAP Throughput |
N/A |
| Virtual Domains (Default / Maximum) |
10 / 500 |
| Maximum Number of FortiSwitches Supported |
256 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
N/A |
| High Availability Configurations |
Active/Active (FGSP), Active/Passive, Clustering |
| Dimensions in. |
10.5 x 17.3 x 25.6
|
| Form Factor |
6 RU |
| Power Required |
100240V AC, 5060 Hz |
| Maximum Current |
12A@100V, 10A@240V |
| Power Consumption (Average / Maximum) |
1940 / 1390 W |
| Operating Temperature |
32104°F (040°C) |
| Certifications |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
[/specifications]
6U 3-slot chassis with 2x FPM-7620E processing modules, 1x FIM-7901E module with 32x 10GE SFP+ slots, 1x manager module, and 3x hot swappable redundant PSU, FortiGate-7030E-SFP10G Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web Filtering and Antispam Service) plus term of contract
