[shortdesc]Firewall, 1RU rack mount, 4x 25GE SFP28, 8x 5G RJ45, 38 Gbps IPS, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Product Name | FortiGate 700G |
| SKU | FG-700G-BDL-950-12 |
| Bundle / Subscription | BDL-950 (Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP)), 1 Year |
| Form Factor | Rack Mount, 1RU |
| Firewall Throughput (IPv4) | 164 Gbps (1518 byte, UDP) |
| Interfaces | 4x 25 GE SFP28, 4x 10 GE SFP+, 16x 1 GE SFP, 8x 5/2.5/GE RJ45, 1x 2.5 GE/GE HA, 1x GE Management |
| Power Input | 100-240VAC, 50/60 Hz |
| Dimensions | 1.75 x 17.0 x 13.5 inches (44.45 x 432 x 342 mm) |
| Weight | 7.72 lbs (3.5 kg) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Certifications | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6 |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) |
| IPS Throughput | 38 Gbps |
| NGFW Throughput | 29 Gbps |
| Threat Protection Throughput | 26 Gbps |
| System Performance and Capacity |
| IPv4 Firewall Throughput | 164 / 163 / 145 Gbps (1518/512/64 byte, UDP) |
| IPv6 Firewall Throughput | 164 / 163 / 145 Gbps (1518/512/86 byte, UDP) |
| Firewall Latency | 3.87 μs (64 byte, UDP) |
| Firewall Throughput (Packet per Second) | 217.5 Mpps |
| Concurrent Sessions (TCP) | 16 Million |
| New Sessions/Second (TCP) | 700,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 8 Gbps |
| Concurrent SSL-VPN Users (Recommended Max) | 10,000 (Tunnel Mode) |
| SSL Inspection Throughput | 14 Gbps (IPS, avg. HTTPS) |
| SSL Inspection CPS | 13,000 (IPS, avg. HTTPS) |
| SSL Inspection Concurrent Session | 1.6 Million (IPS, avg. HTTPS) |
| Application Control Throughput | 50 Gbps (HTTP 64K) |
| CAPWAP Throughput | 133 Gbps (HTTP 64K) |
| Virtual Domains (Default/Maximum) | 10 / 50 |
| Maximum Number of FortiSwitches Supported | 96 |
| Maximum Number of FortiAPs (Total/Tunnel) | 1024 / 512 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Hardware and Interfaces |
| Hardware Accelerated 25 GE SFP28/10 GE SFP+ Slots | 4 |
| Hardware Accelerated 10 GE SFP+/GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 16 |
| Hardware Accelerated GE RJ45 Slots | 8 (5 / 2.5 / GE) |
| 2.5 GE/GE HA Port | 1 |
| GE Management Port | 1 |
| USB Ports (Client/Server) | 2 |
| Console Port | 1 |
| Onboard Storage | No |
| Trusted Platform Module (TPM) | Yes |
| FortiSentry | Yes |
| Dimensions and Power |
| Power Consumption (Average/Maximum) | 230 W / 283 W |
| AC Current (Maximum) | 6A @ 100VAC |
| Heat Dissipation | 965 BTU/h |
| Redundant Power Supplies | Default dual non-swappable AC PSU for 1+1 Redundancy |
| Operating Environment and Certifications |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 59 dBA |
| Forced Airflow | Side and Front to Back |
| Operating Altitude | Up to 10,000 ft (3,048 m) |
[/specifications]
[accesories]
| Included Accessories | 2x SFP SX Transceivers, Default Dual Internal Power Supplies |
| Optional Accessories | 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), Direct Attach Cables (10 GE SFP+, 25 GE SFP28) |
[/accesories]

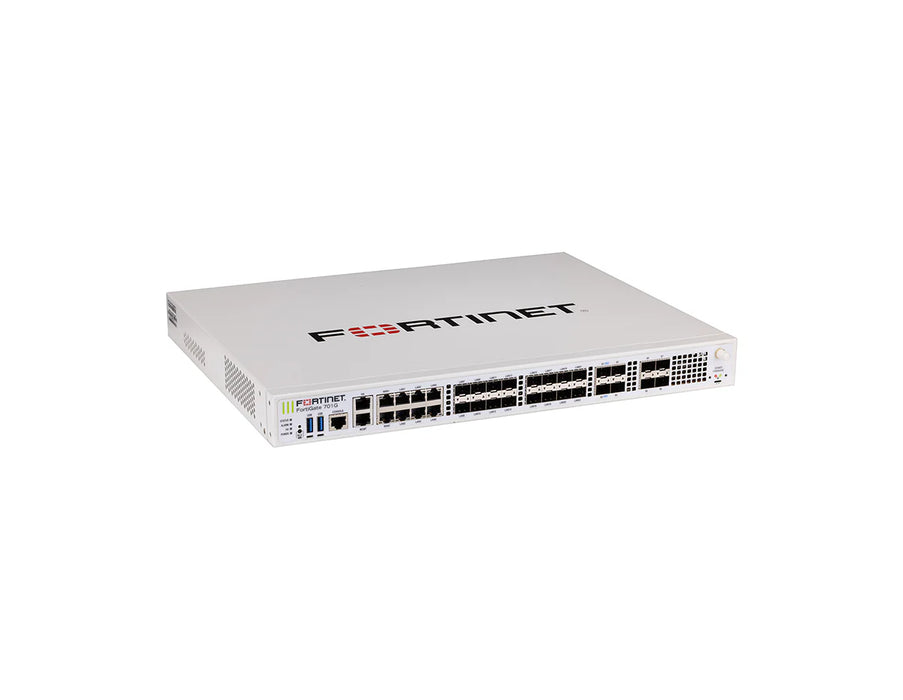

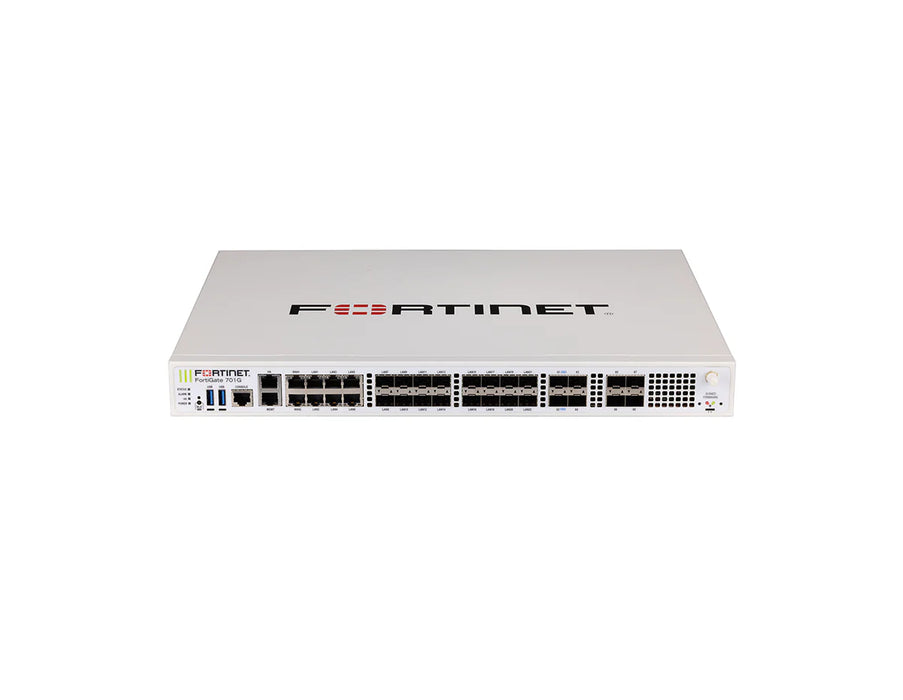

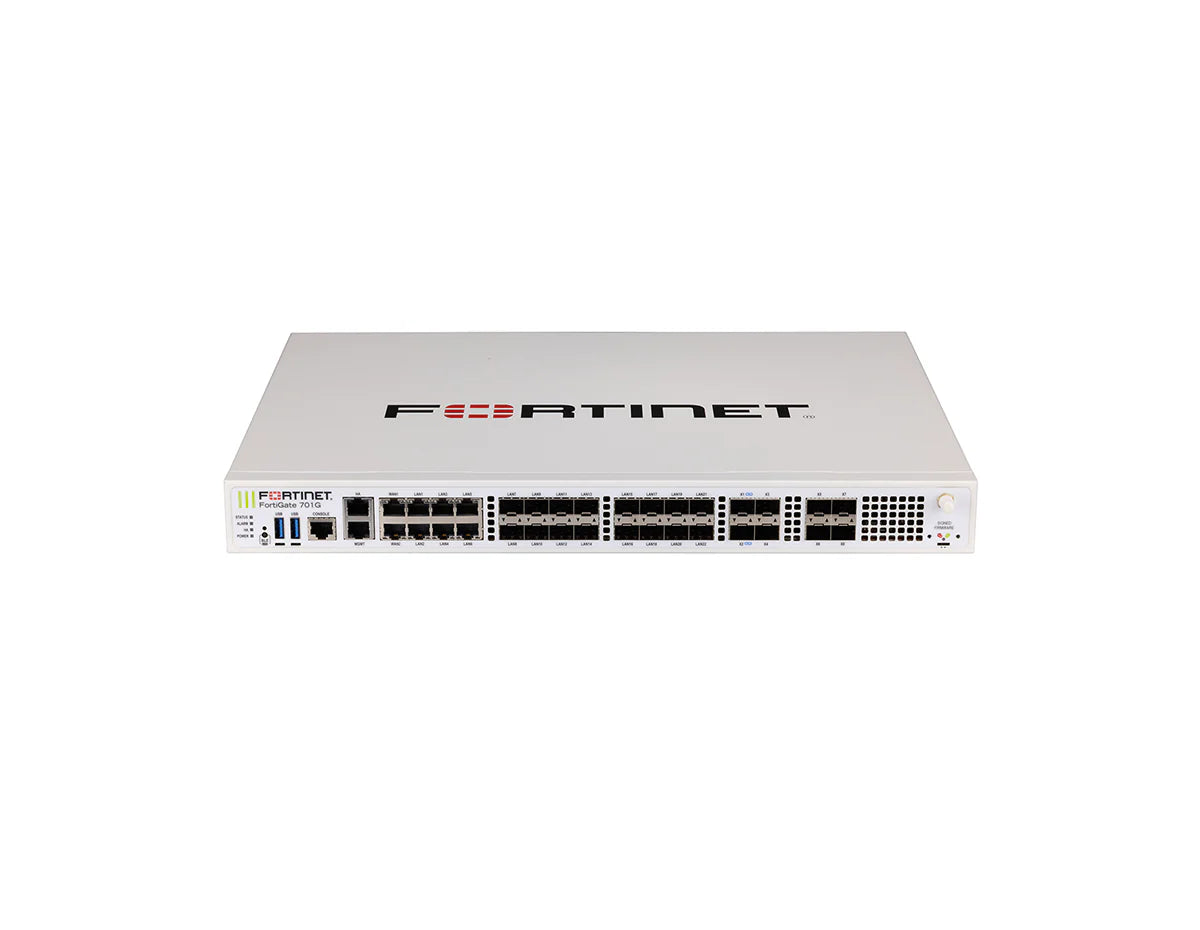

The Fortinet FortiGate 700G Series next-generation firewall (NGFW) utilizes advanced artificial intelligence (AI) and machine learning (ML) to provide scalable threat protection and deep visibility across enterprise networks. Driven by Fortinet's patented Network Processor 7 (NP7) and the new Content Processor 10 (CP10), this appliance delivers unprecedented performance, including 38 Gbps of IPS throughput and 50 Gbps of Application Control throughput. The inclusion of the CP10 processor accelerates resource-intensive security functions such as pattern matching and fast inspection of real-time traffic.

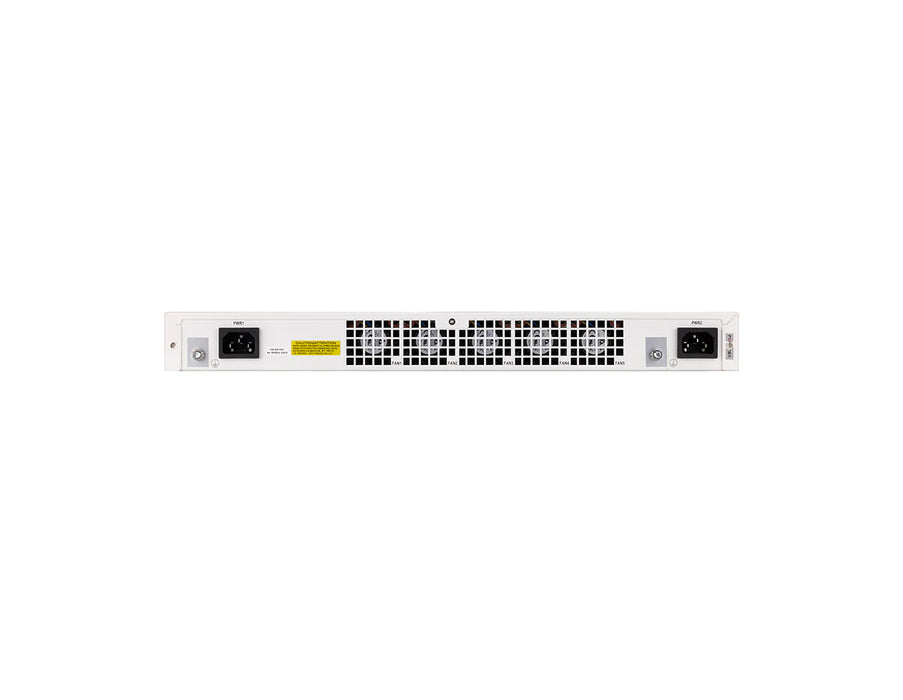

This FG-700G-BDL-950-12 bundle includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for a 1-year term, aligning support coverage with integrated security services. The FortiGate 700G is designed for connectivity and resilience, featuring a diverse range of interfaces including four 25 GE SFP28 slots, four 10 GE SFP+ slots, and eight 5 GE RJ45 ports to accommodate modern network demands. It also incorporates FortiSentry, an out-of-band hardware module that continuously monitors the integrity of the FortiOS filesystem to detect and prevent unauthorized modifications. With dual non-swappable AC power supplies included for redundancy, the FG-700G ensures mission-critical reliability for data centers, hybrid mesh firewalls, and secure SD-WAN deployments.
