- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 5Yr Bundle
[/shortdesc]
[properties]
| Properties |

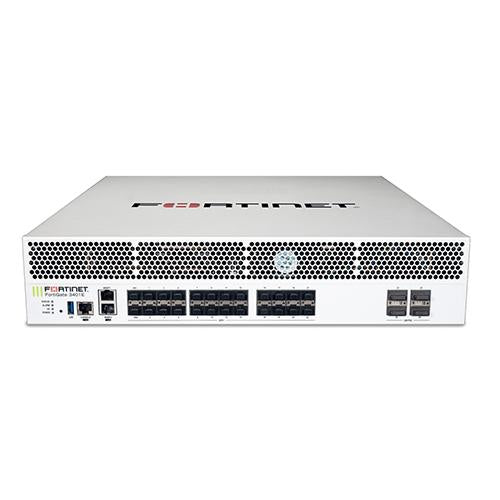

FG-3400E-BDL-950-60 |
| Description |
4x 100 GE QSFP28 slots and 24x 25 GE SFP28 slots (including 22x ports, 2x HA ports), 2x GE RJ45 Management ports, SPU NP6 and CP9 hardware accelerated, and 2 AC power supplies
|
| Product Family |
High End Firewalls |
| Product Type |
Firewall |
| GE RJ45 Ports |
- |
| GE RJ45 Management/DMZ/HA Ports |
2 |
| 100 GE QSFP28 / 40 GE QSFP+ Slots |
4 |
| 40 GE SFP+ Slots |
- |
25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots
|
- |
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots
|
24 |
| GE SFP Slots |
- |
| GE RJ45 WAN Port |
- |
| USB Port |
1/ 1 |
| Console (RJ45) |
1 |
| Internal Storage |
- |
| Included Transceivers |
2x SFP+ (SR 10GE) |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration |
5 Years |
[/properties][specifications]
|
Firewall Throughput (1518 / 512 / 64 byte, UDP)
|
240 / 238 / 150 Gbps |
| Firewall Latency (64 byte UDP packets) |
3.33 μs |
| Firewall Throughput (Packets Per Second) |
225 Mpps |
| Concurrent Sessions (TCP) |
50 Million |
| New Sessions/Second (TCP) |
850.000 |
| Firewall Policies |
200.000 |
| IPsec VPN Throughput (512 byte packets) |
140 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
40000 |
| Client-to-Gateway IPsec VPN Tunnels |
200000 |
| SSL-VPN Throughput |
11 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) |
30000 |
| SSL Inspection Throughput |
30 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
14000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
4.9 Million |
| Application Control Throughput |
86 Gbps |
| IPS Throughput |
44 Gbps |
| NGFW Throughput |
34 Gbps |
| Threat Protection Throughput |
25 Gbps |
| CAPWAP Throughput |
57 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 500 |
| Maximum Number of FortiSwitches Supported |
300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
4096 / 2048 |
| Maximum Number of FortiTokens |
20000 |
| Maximum Number of Registered FortiClients |
- |
| High Availability Configurations |
Active/Active, Active/Passive, Clustering |
| Dimensions in. |
3.5 x 17.44 x 21.89 |
| Form Factor |
Rack Mount, 2 RU |
| Power Required |
100240V AC, 5060 Hz |
| Maximum Current |
12@100V, 9A@240V |
| Power Consumption (Average / Maximum) |
513 W / 728 W |
| Operating Temperature |
32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
|
| Certifications |
USGv6/IPv6 |
[/specifications][accesories]
| SP-FG3800D-PS |
AC power supply for FG-3400/3401E, FG-3600/3601E, FG-3700D, FG-3700D-NEBS, FG-3700DX, FG-3810D and FG-3815D.
|
| SP-FG3040B-RAIL |
Rack mount sliding rails for FG-1000C/-DC, FG-1200D, FG-1500D, FG-3040B/-DC, FG-3140B/-DC, FG- 3240C/-DC, FG-3000D, FG-3100D, FG-3200D, FG-3700D/-DC, FG-3700DX, FG-3810D and FG-3950B/-DC
|
| SP-FG3800D-DC-PS |
DC power supply for FG-3400/3401E-DC. FG-3700D-DC, FG-3700D-DC-NEBS, FG-3810D-DC, FG- 3815D-DC.
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP28-SR |
25 GE SFP28 transceiver module, short range for all systems with SFP28 slots
|
| FG-TRAN-SFP28-LR |
25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
| FG-TRAN-QSFP+SR-BIDI |
40 GE QSFP+ transceiver module, short range BiDi for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-QSFP28-SR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 slots
|
| FN-TRAN-QSFP28-LR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, long range for all systems with QSFP28 slots.
|
| FN-TRAN-QSFP28-CWDM4 |
100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots.
|
[/accesories]
4x 100 GE QSFP28 slots and 24x 25 GE SFP28 slots (including 22x ports, 2x HA ports), 2x GE RJ45 Management ports, SPU NP6 and CP9 hardware accelerated, and 2 AC power supplies., Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 5Yr Bundle, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web Filtering and Antispam Service) plus term of contract.
This product has been discontinued.
