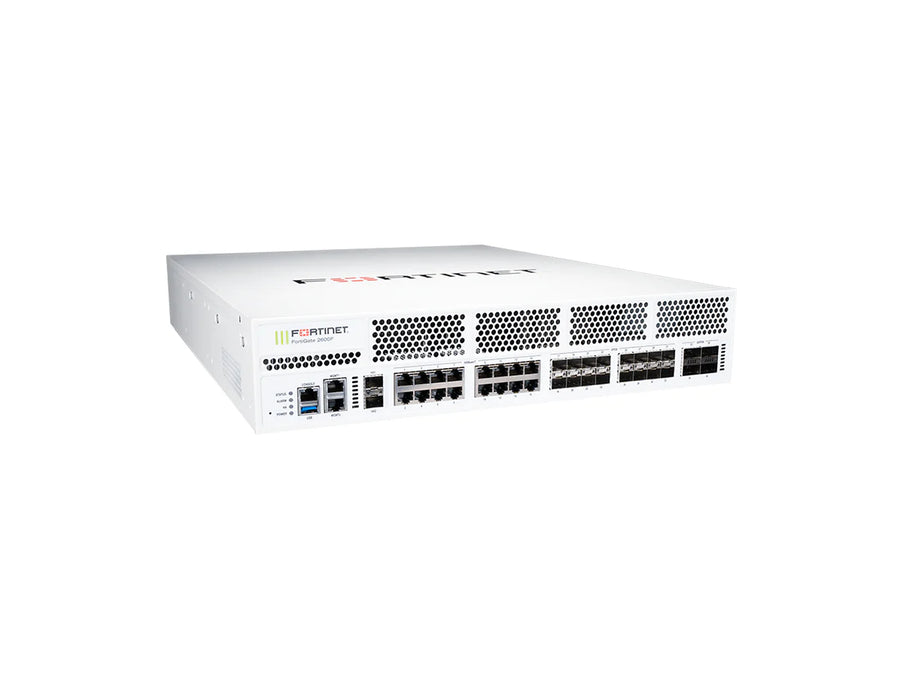

Fortinet FG-2600F-DC-BDL-950-36 Next-Generation Firewall

[shortdesc]FG-2600F-DC-BDL-950-36, Firewall, 2RU DC power, NP7/CP9 SPUs, 4x100GE, 16x25GE, including 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]

[properties]

[/properties]

[specifications]

[/specifications]

[accesories]

[/accesories]

The FortiGate 2600F-DC is engineered to provide security-driven networking for large enterprises, service providers, and data centers requiring DC power infrastructure. Powered by Fortinet’s proprietary SPU NP7 (Network Processor) and CP9 (Content Processor), this appliance delivers hyperscale performance, including 31 Gbps IPS throughput and up to 198 / 196 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP), ensuring that security never becomes a bottleneck in high-speed environments.

This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 3 Year.

With a robust set of interfaces including 100 GE QSFP28, 25 GE SFP28, and additional 10 GE SFP+ slots specific to the DC model, the FG-2600F-DC simplifies network architecture by reducing the need for additional switches or bridges. It supports consolidated security functions, integrated Zero Trust Network Access (ZTNA) enforcement, and ultra-scalable, low latency VXLAN segmentation bridging physical and virtual domains with Layer 4 firewall rules, making it an ideal solution for securing hybrid clouds, telco edges, and core networks.

• Hyperscale Performance: Leverages SPU NP7 and CP9 technology to deliver up to 198 / 196 / 140 Gbps IPv4 firewall throughput and 31 Gbps IPS throughput for massive scale.

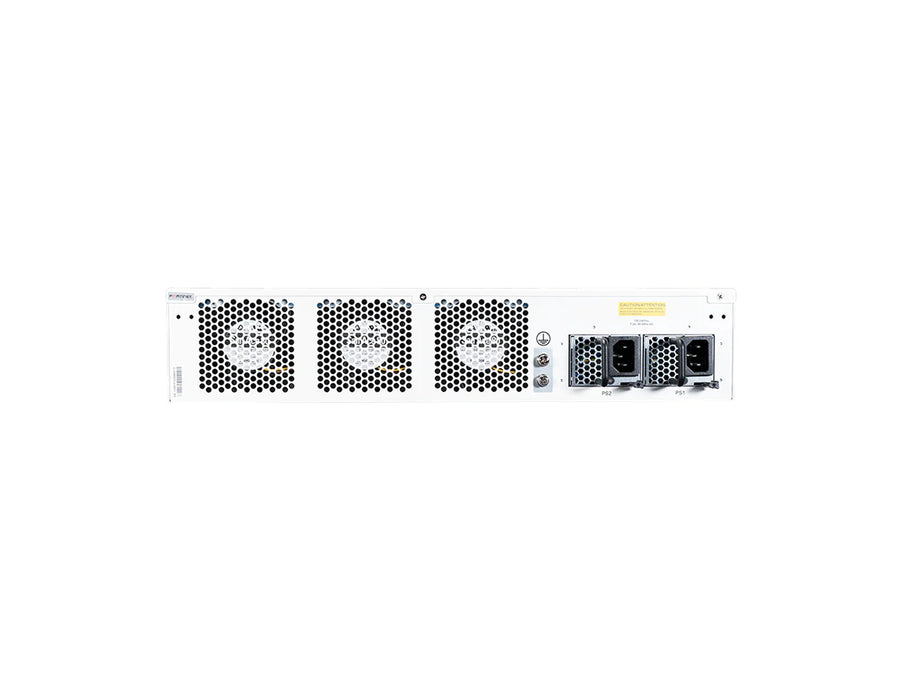

• DC Power Optimized: Equipped with dual DC power supplies (-48VDC to -60VDC) specifically designed for telecom and data center racks.

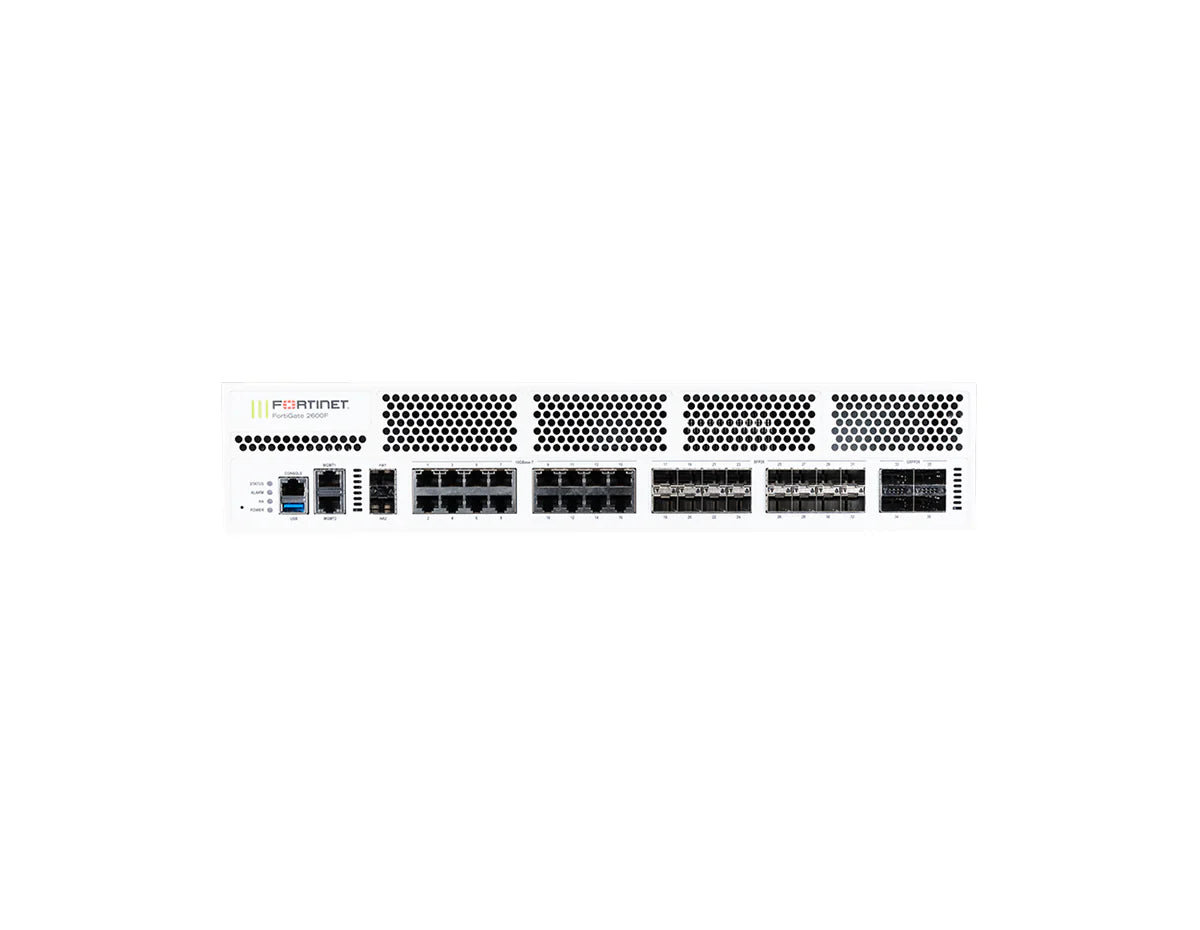

• Versatile Connectivity: Features 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, 8x 10GE SFP+ slots, and 16x 10GE RJ45 ports to support high-bandwidth segmentation.
• Integrated ZTNA: Integrated Zero Trust Network Access (ZTNA) enforcement automatically controls, verifies, and facilitates user access to applications.
• VXLAN Segmentation: Ultra-scalable, low latency VXLAN segmentation bridges physical and virtual domains with Layer 4 firewall rules.
• Real-time SSL Inspection: Provides full visibility into users, devices, and applications across the attack surface (including TLS 1.3).

• Service Provider/Telco Networks: Supports mobile security use cases for 4G, 5G, and IoT, including CGNAT and IPv6 migration options.
• Enterprise Data Centers: Provides high-speed segmentation and core security with redundant power and 100G interfaces.
• Hybrid Cloud Security: Enables dynamic segmentation and consistent policy enforcement across multi-cloud environments.
• Secure SD-WAN: Supports secure SD-WAN use cases within a unified security and management framework.
• High-Availability Clusters: Supports Active-Active, Active-Passive, and clustering configurations with dedicated HA slots.

Technical Specifications Summary

• IPv4 Firewall Throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps
• Firewall Latency (64 byte, UDP): 3.41 μs
• IPS Throughput: 31 Gbps
• NGFW Throughput: 27 Gbps
• Threat Protection Throughput: 25 Gbps
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL-VPN Throughput: 16 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 20 Gbps
• Concurrent Sessions (TCP): 24 Million / 40 Million*
• New Sessions/Second (TCP): 1 Million / 2 Million*
• Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 8x 10 GE SFP+ slots, 16x 10 GE / GE RJ45 ports, 2x HA slots, 2x MGMT ports
• Power Consumption (Average / Maximum): 416 W / 510 W

Implement the FortiGate FG-2600F-DC-BDL-950-36 for robust, hyperscale protection in your DC-powered environment.
