[shortdesc]
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle
[/shortdesc]
[properties]
| Properties |

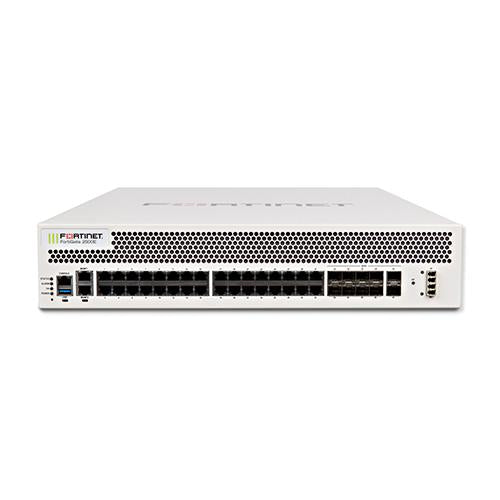

FG-2500E-BDL-950-36 |
| Description |
10x 10 GE SFP+ slots, 2x 10 GE bypass SFP+ (LC Adapter), 34x GE RJ45 ports (including 32x ports, 2x management/HA ports), SPU NP6 and CP9 hardware accelerated, 480 GB SSD onboard storage.
|
| Product Family |
High End Firewalls |
| Product Type |
Firewall |
| GE RJ45 Ports |
32 |
| GE RJ45 Management/DMZ/HA Ports |
2 |
| 40 GE SFP+ Slots |
- |
| 10 GE SFP+ Slots |
10 + 2 bypass |
| GE SFP Slots |
- |
| GE RJ45 WAN Port |
- |
| USB Port |
1 |
| Console (RJ45) |
1 |
| Internal Storage |
1x 480 GB SSD |
| Included Transceivers |
2x SFP+ (SR 10GE) |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration |
3 Years |
[/properties][specifications]
|
Firewall Throughput (1518 / 512 / 64 byte, UDP)
|
150 / 150 / 95 Gbps |
| Firewall Latency (64 byte UDP packets) |
2 μs |
| Firewall Throughput (Packets Per Second) |
145.5 Mpps |
| Concurrent Sessions (TCP) |
20 Million |
| New Sessions/Second (TCP) |
500 000 |
| Firewall Policies |
100.000 |
| IPsec VPN Throughput (512 byte packets) |
95 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
20000 |
| Client-to-Gateway IPsec VPN Tunnels |
100000 |
| SSL-VPN Throughput |
6 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) |
30000 |
| SSL Inspection Throughput |
9.4 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
5500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
2 Million |
| Application Control Throughput |
20 Gbps |
| IPS Throughput |
11.5 Gbps |
| NGFW Throughput |
9 Gbps |
| Threat Protection Throughput |
5.4 Gbps |
| CAPWAP Throughput |
21 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 500 |
| Maximum Number of FortiSwitches Supported |
196 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
4096 / 2048 |
| Maximum Number of FortiTokens |
20000 |
| Maximum Number of Registered FortiClients |
- |
| High Availability Configurations |
Active/Active, Active/Passive, Clustering |
| Dimensions in. |
3.5 x 17.4 x 21.9 |
| Form Factor |
Rack Mount, 2 RU |
| Power Required |
100240V AC, 5060 Hz |
| Maximum Current |
9A |
| Power Consumption (Average / Maximum) |
312 W / 470 W |
| Operating Temperature |
32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
|
| Certifications |
USGv6/IPv6 |
[/specifications][accesories]
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots.
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots
|
| SP-FG3040B-RAIL |
Rack mount sliding rails for FG-1000C/-DC, FG-1200D, FG-1500D/DC, FG-2000E, FG-2500E, FG-3040B/-DC, FG-3140B/-DC, FG-3240C/-DC, FG-3000D/-DC, FG-3100D/-DC, FG-3200D/-DC, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC, FG-3815D/-DC and FG-3950B/-DC
|
| SP-FG2000E-PS |
AC power supply for FG-2000E and FG-2500E.
|
[/accesories]
10 x 10GE SFP+ slots, 2 x 10GE bypass SFP+ (LC Adapter), 34 x GE RJ45 ports (including 32 x ports, 2 x management/HA ports), SPU NP6 and CP9 hardware accelerated, 480GB SSD onboard storage, dual AC power supplies, Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web Filtering and Antispam Service) plus term of contract
