[shortdesc]

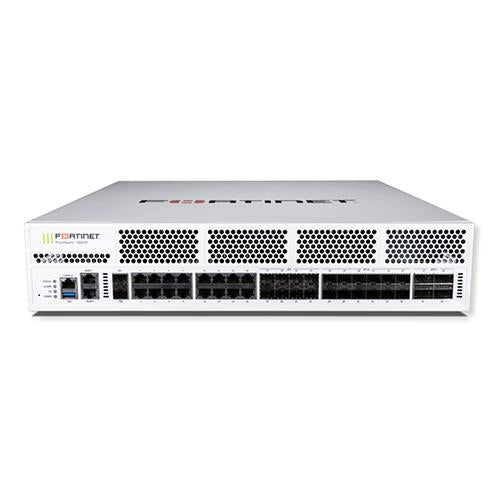

- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 1Yr Bundle
[/shortdesc]
[properties]
| Properties |
FG-1800F-BDL-950-12 |
| Description |
4 x 40GE QSFP+ slots, 12 x 25GE SFP28 /10GE SFP+ slots, 2x10GE SFP+ HA slots, 8 x GE SFP slots, 18 x GE RJ45 ports. SPU NP7 and CP9 accelerated, dual AC power supplies
|
| Product Family |
High End Firewalls |
| Product Type |
Firewall |
| GE RJ45 Ports |
16 |
| GE RJ45 Management/DMZ/HA Ports |
2 |
| 40 GE SFP+ Slots |
4 |
| 25 GE SFP+ Slots |
- |
| 10 GE SFP+ Slots |
8 |
| GE SFP Slots |
8 |
| GE RJ45 WAN Port |
- |
| USB Port |
1 (3.0) |
| Console (RJ45) |
1 |
| Internal Storage |
- |
| Included Transceivers |
2x SFP+ (SR 10GE) |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration |
1 Years |
[/properties][specifications]
|
Firewall Throughput (1518 / 512 / 64 byte, UDP)
|
198 / 197 / 140 Gbps |
| Firewall Latency (64 byte UDP packets) |
3.22 μs |
| Firewall Throughput (Packets Per Second) |
210 Mpps |
| Concurrent Sessions (TCP) |
12 Million / 40 Million |
| New Sessions/Second (TCP) |
750 000 / 2 Million* |
| Firewall Policies |
100.000 |
| IPsec VPN Throughput (512 byte packets) |
55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
20000 |
| Client-to-Gateway IPsec VPN Tunnels |
100000 |
| SSL-VPN Throughput |
11 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) |
10000 |
| SSL Inspection Throughput |
12 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
9500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
1.3 Million |
| Application Control Throughput |
34 Gbps |
| IPS Throughput |
22 Gbps |
| NGFW Throughput |
17 Gbps |
| Threat Protection Throughput |
15 Gbps |
| CAPWAP Throughput |
65 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 250 |
| Maximum Number of FortiSwitches Supported |
196 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
4096 / 2048 |
| Maximum Number of FortiTokens |
20000 |
| Maximum Number of Registered FortiClients |
- |
| High Availability Configurations |
Active/Active, Active/Passive, Clustering |
| Dimensions in. |
3.5 x 17.25 x 21.1 |
| Form Factor |
Rack Mount, 2 RU |
| Power Required |
100240V AC, 5060 Hz |
| Maximum Current |
7A@100VAC, 3A@240VAC |
| Power Consumption (Average / Maximum) |
410.9 W / 459.1 W |
| Operating Temperature |
32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
|
| Certifications |
USGv6/IPv6 |
[/specifications][accesories]
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+BD27 |
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
|
| FN-TRAN-SFP+BD33 |
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
|
| FN-TRAN-QSFP28-BIDI |
100 GE QSFP28 BIDI transceiver module, 100m MMF LC connector, for systems with QSFP28 slots
|
| FN-TRAN-SFP28-LR |
25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
|
| FN-TRAN-SFP28-SR |
25 GE/10 GE dual rate SFP28 transceiver module, short range for all systems with SFP28/SFP+ slots.
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceivers, short range for all systems with QSFP+ slots.
|
| FG-TRAN-QSFP+SR-BIDI |
40 GE QSFP+ transceivers, short range BiDi for systems with QSFP+ slots.
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceivers, long range for all systems with QSFP+ slots.
|
| FG-TRAN-QSFP-4XSFP |
40 GE QSFP+ parallel breakout MPO to 4x LC connectors, 1 m reach, transceivers not included
|
| SP-FG3040B-RAIL |
Rack mount sliding rails for FG-1000C/-DC, FG-1100/1101E, FG-1200D, FG-1500D/-DC, FG-1800F, FG-2000E, FG-2500E, FG-3040B/-DC, FG-3140B/-DC, FG-3240C/-DC, FG-3000D/- DC, FG-3100D/-DC, FG-3200D/-DC, FG-3400/3401E, FG-3600/3601E, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC and FG-3950B/-DC.
|
| SP-FG1800F-PS |
AC power supply for FG-1800/1801F
|
| SP-FG1800F-DC-PS |
DC power supply for FG-1800/1801F and FG-2600/2601.
|
| FN-CABLE-SFP28-1 |
25 GE SFP28 passive direct attach cable 1m for systems with SFP28 slots
|
| FN-CABLE-SFP28-3 |
25 GE SFP28 passive direct attach cable 3m for systems with SFP28 slots
|
| FN-CABLE-SFP28-5 |
25 GE SFP28 passive direct attach cable 5m for systems with SFP28 slots
|
| FN-CABLE-QSFP28-4SFP28-1 |
100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 1m
|
| FN-CABLE-QSFP28-4SFP28-3 |
100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 3m
|
| FN-CABLE-QSFP28-4SFP28-5 |
100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 5m
|
[/accesories]
4 x 40GE QSFP+ slots, 12 x 25GE SFP28 /10GE SFP+ slots, 2x10GE SFP+ HA slots, 8 x GE SFP slots, 18 x GE RJ45 ports. SPU NP7 and CP9 accelerated, dual AC power supplies, Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 1Yr Bundle, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web Filtering and Antispam Service) plus term of contract
