[shortdesc]
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle
[/shortdesc]
[properties]
| Properties |

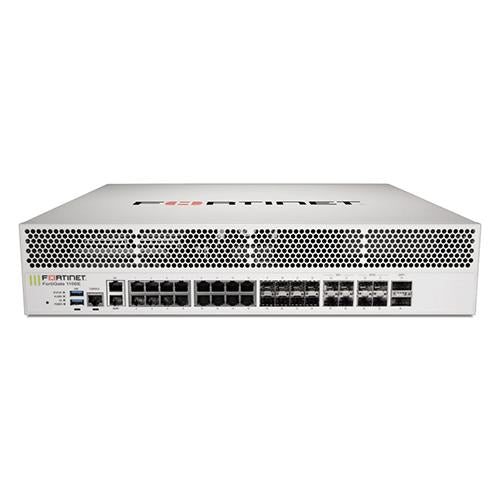

FG-1100E-BDL-950-36 |
| Description |
2x 40 GE QSFP+ slots, 4x 25 GE SFP28 slots, 4x 10 GE SFP+ slots, 8x GE SFP slots, 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) SPU NP6 and CP9 hardware accelerated, and 2 AC power supplies
|
| Product Family |
High End Firewalls |
| Product Type |
Firewall |
| GE RJ45 Ports |
16 |
| GE RJ45 Management/DMZ/HA Ports |
2 |
| 40 GE SFP+ Slots |
2 |
| 25 GE SFP+ Slots |
4 |
| 10 GE SFP+ Slots |
4 |
| GE SFP Slots |
8 |
| GE RJ45 WAN Port |
- |
| USB Port (Client / Server) |
1/ 2 |
| Console (RJ45) |
1 |
| Internal Storage |
- |
| Included Transceivers |
2x SFP+ (SR 10GE) |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration |
3 Years |
[/properties][specifications]
|
Firewall Throughput (1518 / 512 / 64 byte, UDP)
|
80 / 80 / 45 Gbps |
| Firewall Latency (64 byte UDP packets) |
2.76 μs |
| Firewall Throughput (Packets Per Second) |
67.5 Mpps |
| Concurrent Sessions (TCP) |
8 Million |
| New Sessions/Second (TCP) |
500.000 |
| Firewall Policies |
100.000 |
| IPsec VPN Throughput (512 byte packets) |
48 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
20000 |
| Client-to-Gateway IPsec VPN Tunnels |
100000 |
| SSL-VPN Throughput |
8.4 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) |
10000 |
| SSL Inspection Throughput |
10 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
6500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
780000 |
| Application Control Throughput |
26 Gbps |
| IPS Throughput |
12.5 Gbps |
| NGFW Throughput |
9.8 Gbps |
| Threat Protection Throughput |
7.11 Gbps |
| CAPWAP Throughput |
43 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 250 |
| Maximum Number of FortiSwitches Supported |
196 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
4096 / 2048 |
| Maximum Number of FortiTokens |
20000 |
| Maximum Number of Registered FortiClients |
- |
| High Availability Configurations |
Active/Active, Active/Passive, Clustering |
[/specifications][accesories]
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots.
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP28-SR |
25 GE SFP28 transceiver module, short range for all systems with SFP28 slots
|
| FG-TRAN-SFP28-LR |
25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
| FG-TRAN-QSFP+SR-BID |
40 GE QSFP+ transceivers, short range BiDi for systems with QSFP+ slots
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
| FG-TRAN-QSFP+4XSFP |
40 GE QSFP+ Parallel Breakout Active Optical Cable with 1m length for all systems with QSFP+ slots
|
| FG-TRAN-QSFP+4SFP-5 |
40 GE QSFP+ Parallel Breakout MPO to 4xLC connectors, 5m reach, transceivers not included.
|
| SP-FG3040B-RAIL |
Rack mount sliding rails for FG-1000C/-DC, FG-1100/1101E, FG-1200D, FG-1500D/-DC, FG-2000E, FG-2500E, FG-3040B/-DC, FG-3140B/-DC, FG-3240C/-DC, FG-3000D/-DC, FG-3100D/-DC, FG3200D/-DC, FG-3400/3401E, FG-3600/3601E, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC and FG-3950B/-DC.
|
| SP-FG300E-PS |
AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FG-1100/1101E, FAZ-200F/FAZ-300F/FMG-200F and FAZ-800F/FMG-300F.
|
| SP-FG300E-DC-PS |
DC power supply for FG-1100E-DC
|
[/accesories]
2x 40GE QSFP+ slots , 4x 25GE SFP28 slots, 4x 10GE SFP+ slots, 8x GE SFP slots, 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) SPU NP6 and CP9 hardware accelerated, and 2 AC power supplies, Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web Filtering and Antispam Service) plus term of contract
