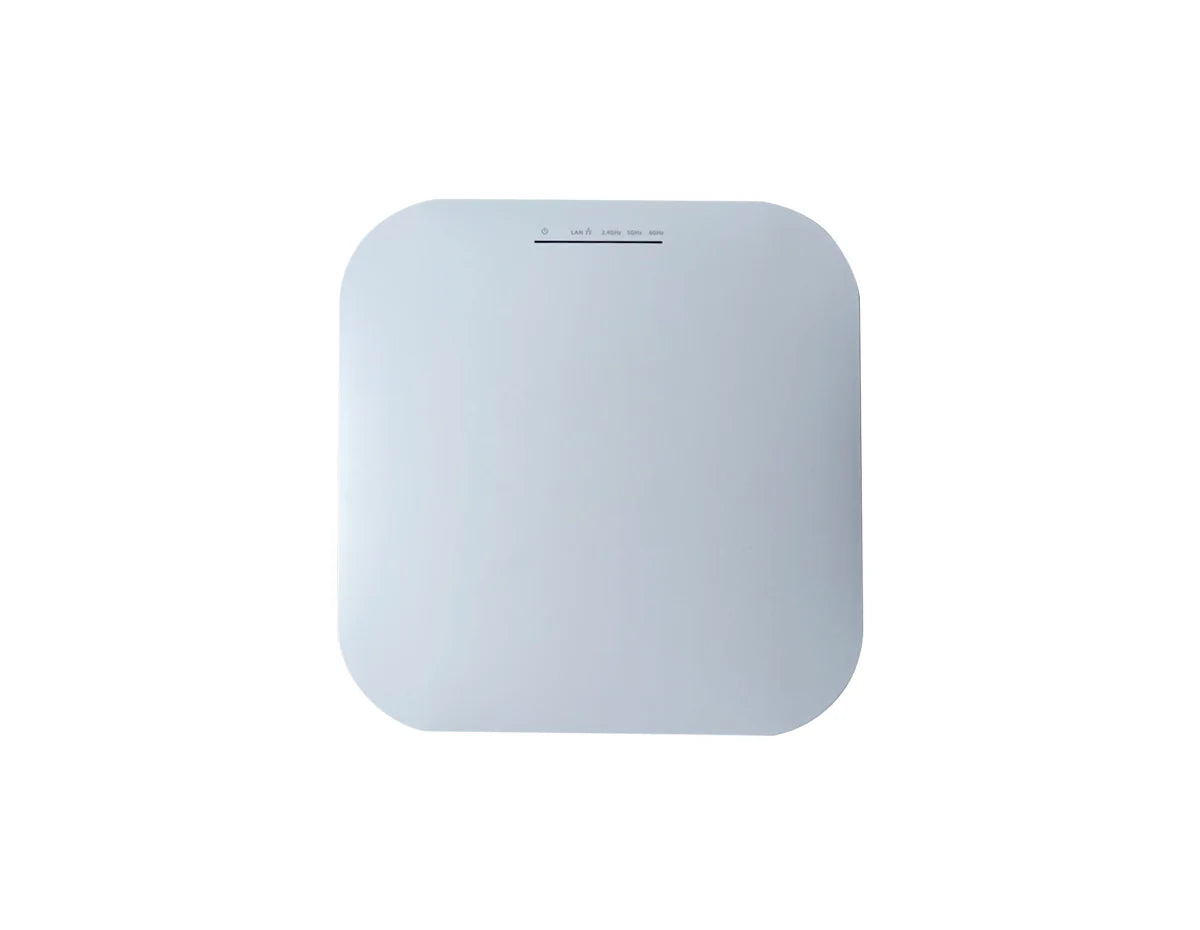

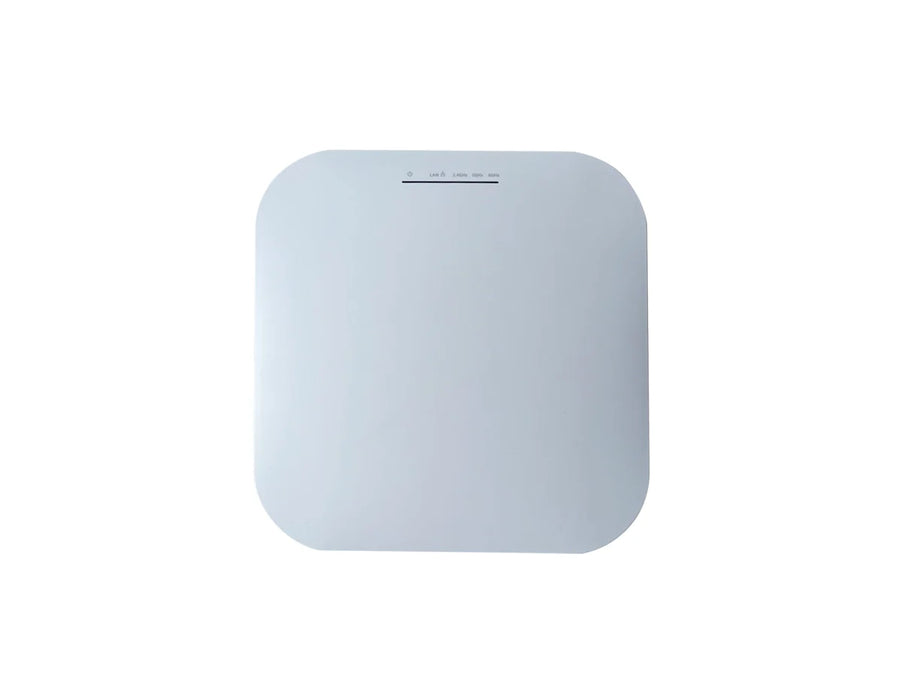

Fortinet FAP-HD-224KR-A Outdoor Wi-Fi 7 Access Point
Fortinet FAP-HD-224KR-A Outdoor Wi-Fi 7 Access Point

Fortinet FAP-HD-224KR-A Outdoor Wi-Fi 7 Access Point

por Fortinet
Desconto de 32%
R$ 151.140,00
R$ 102.780,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]Wi-Fi 7 802.11be dual 5 GHz radios, 2x2 streams, ultra-narrow fixed right beam, 10 GbE and 5 GbE ports, 802.3bt PoE [/shortdesc]

[properties]

Model FortiAP-HD-224KR
SKU FAP-HD-224KR-A
Product Type Wireless Outdoor High Density Access Point
Wireless Standard Wi-Fi 7 IEEE 802.11be
Deployment Type Outdoor
Beam Type Ultra Narrow Fixed Right Beam
Number of Radios 2
Spatial Streams 2x2 per radio
Total Streams 4
Operating Bands Dual 5 GHz
Max Channel Bandwidth 80 MHz
Ethernet Interfaces 1x 10 Gbps, 1x 5 Gbps
PoE Support 802.3bt (PoE++)
Internal Antennas Yes
Region Code A

[/properties]

[specifications]

Max Associated Devices Up to 1024
Max Concurrent Active Users 100+
Max PHY Rate Up to 3 Gbps
Max 5 GHz Antenna Gain 17 dBi
Antenna Beamwidth (Elevation x Azimuth) 15° x 17°
Coverage Range Up to 250 ft
Polarization Vertical and Horizontal
Max Power Consumption 33 W
Dimensions (L x W x H) 444 x 344 x 82 mm (18 x 14 x 3 in)
Weight 4.0 kg (8.8 lbs)
Operating Temperature -40 °C to 55 °C (-40 °F to 131 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity 5% to 95% non-condensing
Operating Altitude 3000 m
Ingress Protection IP67

[/specifications]

[accesories]

Optional External primary lightning protection (for enhanced surge protection)

[/accesories]

The Fortinet FortiAP-HD-224KR is a purpose-built outdoor high density access point designed for long-range, ultra-focused wireless coverage in demanding environments. Leveraging Wi-Fi 7 802.11be technology and a fixed ultra-narrow right-beam antenna, it delivers reliable high-capacity connectivity while minimizing co-channel interference in crowded RF conditions.

As part of the FortiAP High Density Series, the HD-224KR is optimized for overhead deployments in stadiums, arenas, transport hubs, and large outdoor venues where precision coverage and predictable performance are critical.

  • Ultra-Narrow Right Beam Antenna: Focuses RF energy toward targeted seating or zones, reducing interference and maximizing spectrum efficiency.
  • Wi-Fi 7 Dual 5 GHz Radios: Two dedicated 5 GHz radios with 2x2 streams provide consistent performance for high client density environments.
  • High-Speed Multi-Gig Backhaul: Integrated 1x 10 Gbps and 1x 5 Gbps Ethernet ports ensure the wireless edge never becomes a bottleneck.
  • Carrier-Grade Outdoor Design: Engineered for harsh outdoor conditions with an IP67-rated enclosure for dust, water, and environmental protection.
  • High-Power PoE Support: Powered via 802.3bt PoE for simplified installation and flexible mounting without local power.
  • Outdoor stadium and arena seating sections
  • Transportation hubs and open-air terminals
  • Large campuses and public venues
  • Concert halls and event spaces
  • High-density smart city deployments
  • Wireless Standard: IEEE 802.11be Wi-Fi 7
  • Radios: 2x 5 GHz radios
  • Spatial Streams: 2x2 per radio, 4 total streams
  • Channel Bandwidth: Up to 80 MHz
  • Ethernet Interfaces: 1x 10 Gbps RJ-45, 1x 5 Gbps RJ-45
  • Power: 802.3bt PoE supported
  • Antenna Type: Internal ultra-narrow fixed right beam
  • Deployment: Outdoor overhead mount

Choose the FortiAP-HD-224KR to deliver focused, high-capacity Wi-Fi 7 connectivity in the most demanding outdoor environments. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]Wi-Fi 7 802.11be dual 5 GHz radios, 2x2 streams, ultra-narrow fixed right beam, 10 GbE and 5 GbE ports, 802.3bt PoE [/shortdesc]

[properties]

Model FortiAP-HD-224KR
SKU FAP-HD-224KR-A
Product Type Wireless Outdoor High Density Access Point
Wireless Standard Wi-Fi 7 IEEE 802.11be
Deployment Type Outdoor
Beam Type Ultra Narrow Fixed Right Beam
Number of Radios 2
Spatial Streams 2x2 per radio
Total Streams 4
Operating Bands Dual 5 GHz
Max Channel Bandwidth 80 MHz
Ethernet Interfaces 1x 10 Gbps, 1x 5 Gbps
PoE Support 802.3bt (PoE++)
Internal Antennas Yes
Region Code A

[/properties]

[specifications]

Max Associated Devices Up to 1024
Max Concurrent Active Users 100+
Max PHY Rate Up to 3 Gbps
Max 5 GHz Antenna Gain 17 dBi
Antenna Beamwidth (Elevation x Azimuth) 15° x 17°
Coverage Range Up to 250 ft
Polarization Vertical and Horizontal
Max Power Consumption 33 W
Dimensions (L x W x H) 444 x 344 x 82 mm (18 x 14 x 3 in)
Weight 4.0 kg (8.8 lbs)
Operating Temperature -40 °C to 55 °C (-40 °F to 131 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity 5% to 95% non-condensing
Operating Altitude 3000 m
Ingress Protection IP67

[/specifications]

[accesories]

Optional External primary lightning protection (for enhanced surge protection)

[/accesories]

Precision Wi-Fi 7 Coverage for Ultra-Dense Outdoor Venues

The Fortinet FortiAP-HD-224KR is a purpose-built outdoor high density access point designed for long-range, ultra-focused wireless coverage in demanding environments. Leveraging Wi-Fi 7 802.11be technology and a fixed ultra-narrow right-beam antenna, it delivers reliable high-capacity connectivity while minimizing co-channel interference in crowded RF conditions.

As part of the FortiAP High Density Series, the HD-224KR is optimized for overhead deployments in stadiums, arenas, transport hubs, and large outdoor venues where precision coverage and predictable performance are critical.

Key Benefits & Features
  • Ultra-Narrow Right Beam Antenna: Focuses RF energy toward targeted seating or zones, reducing interference and maximizing spectrum efficiency.
  • Wi-Fi 7 Dual 5 GHz Radios: Two dedicated 5 GHz radios with 2x2 streams provide consistent performance for high client density environments.
  • High-Speed Multi-Gig Backhaul: Integrated 1x 10 Gbps and 1x 5 Gbps Ethernet ports ensure the wireless edge never becomes a bottleneck.
  • Carrier-Grade Outdoor Design: Engineered for harsh outdoor conditions with an IP67-rated enclosure for dust, water, and environmental protection.
  • High-Power PoE Support: Powered via 802.3bt PoE for simplified installation and flexible mounting without local power.
Ideal Use Cases
  • Outdoor stadium and arena seating sections
  • Transportation hubs and open-air terminals
  • Large campuses and public venues
  • Concert halls and event spaces
  • High-density smart city deployments
Technical Specifications
  • Wireless Standard: IEEE 802.11be Wi-Fi 7
  • Radios: 2x 5 GHz radios
  • Spatial Streams: 2x2 per radio, 4 total streams
  • Channel Bandwidth: Up to 80 MHz
  • Ethernet Interfaces: 1x 10 Gbps RJ-45, 1x 5 Gbps RJ-45
  • Power: 802.3bt PoE supported
  • Antenna Type: Internal ultra-narrow fixed right beam
  • Deployment: Outdoor overhead mount
Deploy Precision Wi-Fi Where It Matters Most

Choose the FortiAP-HD-224KR to deliver focused, high-capacity Wi-Fi 7 connectivity in the most demanding outdoor environments. Order today.
