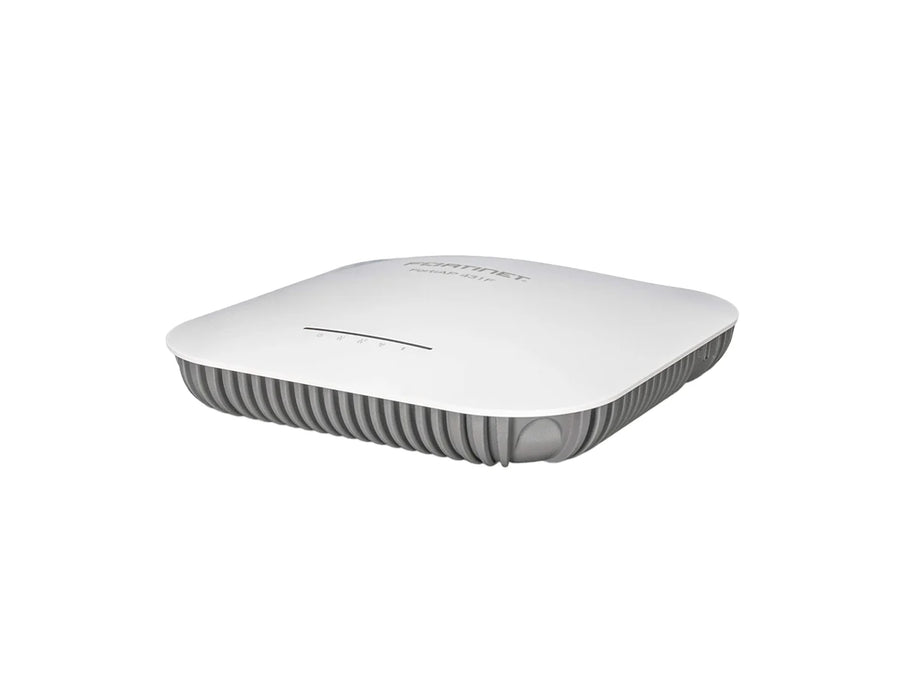

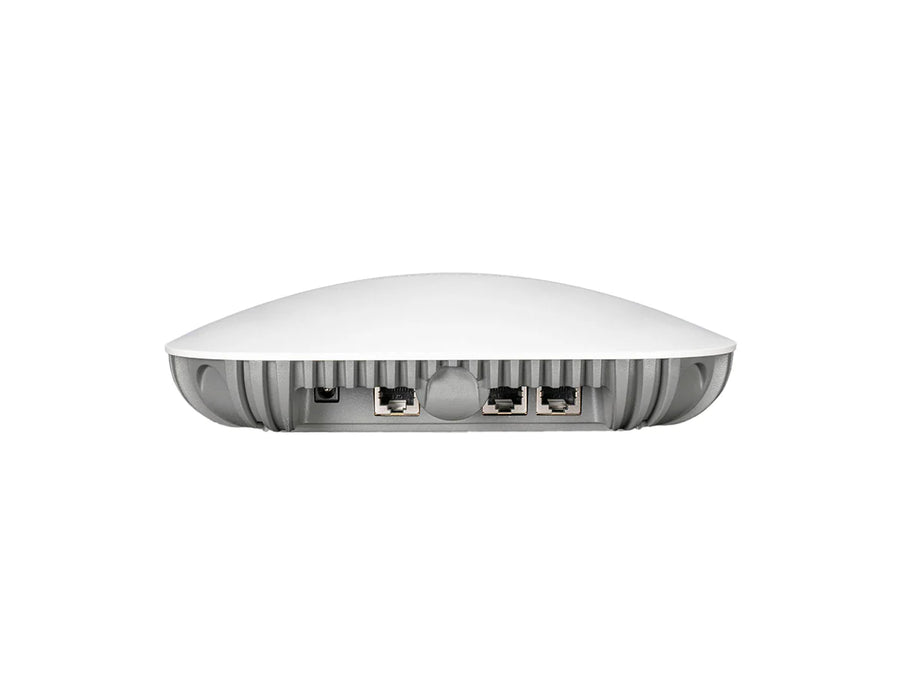

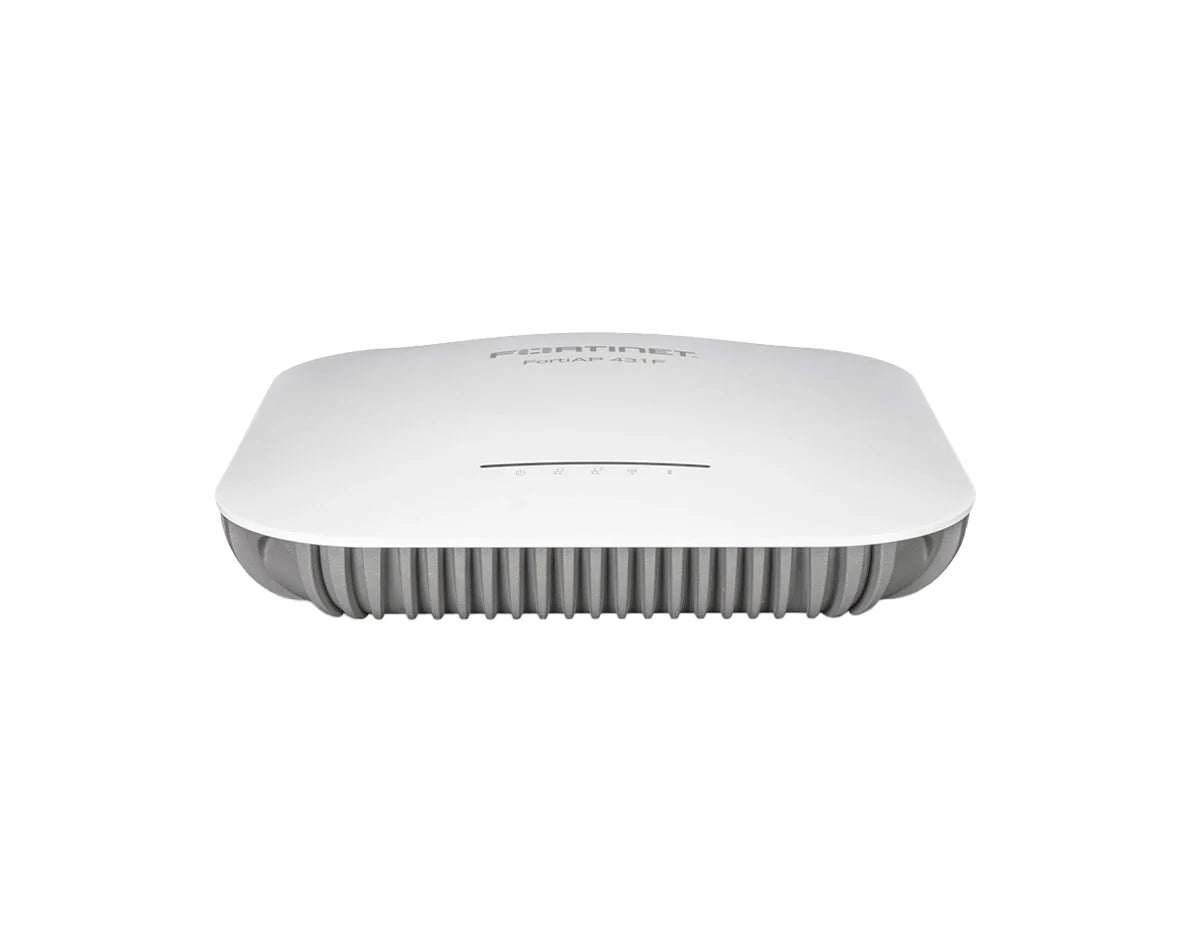

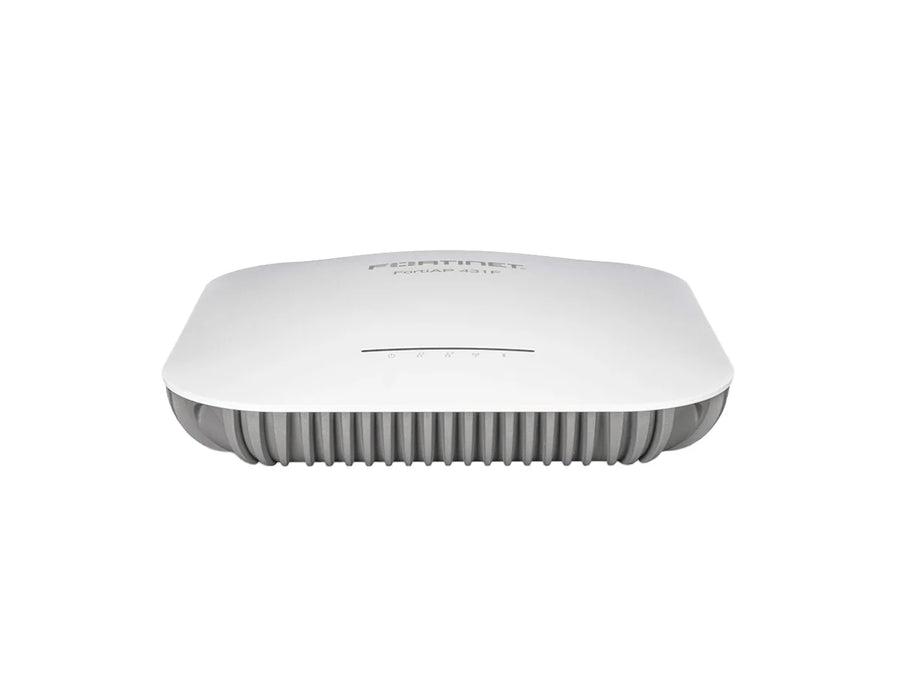

Fortinet FAP-431F-A Access Point
Clique ou role para ampliar
Toque ou belisque para ampliar
Fortinet FAP-431F-A Access Point
Clique ou role para ampliar
Toque ou belisque para ampliar
Fortinet FAP-431F-A Access Point
Fortinet FAP-431F-A Access Point

Fortinet FAP-431F-A Access Point

por Fortinet
Desconto de 15%
R$ 7.920,00
R$ 6.732,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Indoor Wireless AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 MU-MIMO), internal antennas, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA. Region Code A
[/shortdesc]


[properties]

Properties FAP-431F
Description Indoor Wireless AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 MU-MIMO), internal antennas,
1x 100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit
included. For power order 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA.
Product Family Fortinet Indoor Wireless AP
Product Type Access Points
Hardware Type Indoor AP
Number of Radios 3 + 1 BLE
Number of Antennas 5 Internal + 1 BLE Internal
Antenna Type and Peak Gain PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz)* 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities Frequency Band: 2.4 GHz Channel width: 4x4 20/40 MHz Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 MIMO chains: 4x4 service
Radio 2 Capabilities Frequency Band: 5.0 GHz Channel width: 4x4 20/40/80MHz and 2x2 160MHz contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 Mimo chains: 4x4 service
Radio 3 Capabilities Frequency band: 2.4/5.0 GHz MIMO chains: 1x1 frequency scanning
Maximum Data Rate Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only
Bluetooth Low Energy Radio Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power
Interfaces 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE) 802.3at PoE default 1 port powered by 802.3at or 2 ports powered by 802.3af - Full System functionality + USB support 1 port is connected to 802.3af - No USB support, Operate in 2x2 mode with reduced power R1/R2 17dBm(Tx power)
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication n WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist
Maximum Tx Power Radio 1: 2.4 GHz 24 dBm / 251 mW (4 chains combined)* Radio 2: 5 GHz 23 dBm / 200 mW (4 chains combined)* Radio 3: NA
Per Radio Client Capacity 512 per Radio1 and Radio2
Cellular Co-existence Yes

[/properties] [specifications]

Advanced 802.11 Features 2.4 GHz OFDMA
Spatial Reuse (BSS
Coloring)
HE-MU-MIMO
UL-MU-MIMO 802.11ax
mode
DL-MU-MIMO
Enhanced Target Wake
Time (TWT)
ZeroWait DFS /Agile DFS
Dimensions in. 8.27 x 8.27 x 2.22
Power Consumption (Max) 24.5 W
Operating Temperature 32–113°F (0–45°C)
IEEE Standards 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz
Certifications Wi-Fi Alliance Certified
DFS:FCC, IC, CE, Japan, Taiwan, Korea

[/specifications] [accesories]

Mounting Options Ceiling, T-Rail, and Wall
Included Accessories Mount kit for Ceiling, T-Rail and Wall
Power Supply SP-FAP400-PA-XX or GPI-130

[/accesories]

The FortiAP 431F enterprise-grade 802.11ax indoor access point has three radios and four spatial streams. This advanced access point offers Orthogonal Frequency Division Multiple Access (OFDMA). It features a 2.5 Gigabit Ethernet port and an additional 1 Gigabit Ethernet port to support Power over Ethernet (PoE) diversity. Additionally, this product feature zero-touch deployment and security fabric integration.

Quick Specs:

  • 4x4 MU-MIMO | up to 1147 + 2402 Mbps
  • Tri Radio 2.4 Ghz + 5 Ghz + scanning
  • 5 Internal/External Antennas
  • 1x 100/1000/2500 Base-T RJ45 port / 1x 10/100/1000 Base-T RJ45

Please see the related tabs for the FAP-431F-A datasheet and compatible accessories.

This product has been discontinued.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Indoor Wireless AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 MU-MIMO), internal antennas, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA. Region Code A
[/shortdesc]


[properties]

Properties FAP-431F
Description Indoor Wireless AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 1x1 MU-MIMO), internal antennas,
1x 100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit
included. For power order 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA.
Product Family Fortinet Indoor Wireless AP
Product Type Access Points
Hardware Type Indoor AP
Number of Radios 3 + 1 BLE
Number of Antennas 5 Internal + 1 BLE Internal
Antenna Type and Peak Gain PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz)* 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities Frequency Band: 2.4 GHz Channel width: 4x4 20/40 MHz Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 MIMO chains: 4x4 service
Radio 2 Capabilities Frequency Band: 5.0 GHz Channel width: 4x4 20/40/80MHz and 2x2 160MHz contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 Mimo chains: 4x4 service
Radio 3 Capabilities Frequency band: 2.4/5.0 GHz MIMO chains: 1x1 frequency scanning
Maximum Data Rate Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only
Bluetooth Low Energy Radio Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power
Interfaces 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE) 802.3at PoE default 1 port powered by 802.3at or 2 ports powered by 802.3af - Full System functionality + USB support 1 port is connected to 802.3af - No USB support, Operate in 2x2 mode with reduced power R1/R2 17dBm(Tx power)
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication n WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist
Maximum Tx Power Radio 1: 2.4 GHz 24 dBm / 251 mW (4 chains combined)* Radio 2: 5 GHz 23 dBm / 200 mW (4 chains combined)* Radio 3: NA
Per Radio Client Capacity 512 per Radio1 and Radio2
Cellular Co-existence Yes

[/properties] [specifications]

Advanced 802.11 Features 2.4 GHz OFDMA
Spatial Reuse (BSS
Coloring)
HE-MU-MIMO
UL-MU-MIMO 802.11ax
mode
DL-MU-MIMO
Enhanced Target Wake
Time (TWT)
ZeroWait DFS /Agile DFS
Dimensions in. 8.27 x 8.27 x 2.22
Power Consumption (Max) 24.5 W
Operating Temperature 32–113°F (0–45°C)
IEEE Standards 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz
Certifications Wi-Fi Alliance Certified
DFS:FCC, IC, CE, Japan, Taiwan, Korea

[/specifications] [accesories]

Mounting Options Ceiling, T-Rail, and Wall
Included Accessories Mount kit for Ceiling, T-Rail and Wall
Power Supply SP-FAP400-PA-XX or GPI-130

[/accesories]

Fortinet FAP-431F-A Access Point

The FortiAP 431F enterprise-grade 802.11ax indoor access point has three radios and four spatial streams. This advanced access point offers Orthogonal Frequency Division Multiple Access (OFDMA). It features a 2.5 Gigabit Ethernet port and an additional 1 Gigabit Ethernet port to support Power over Ethernet (PoE) diversity. Additionally, this product feature zero-touch deployment and security fabric integration.

Quick Specs:

  • 4x4 MU-MIMO | up to 1147 + 2402 Mbps
  • Tri Radio 2.4 Ghz + 5 Ghz + scanning
  • 5 Internal/External Antennas
  • 1x 100/1000/2500 Base-T RJ45 port / 1x 10/100/1000 Base-T RJ45

Please see the related tabs for the FAP-431F-A datasheet and compatible accessories.

This product has been discontinued.
