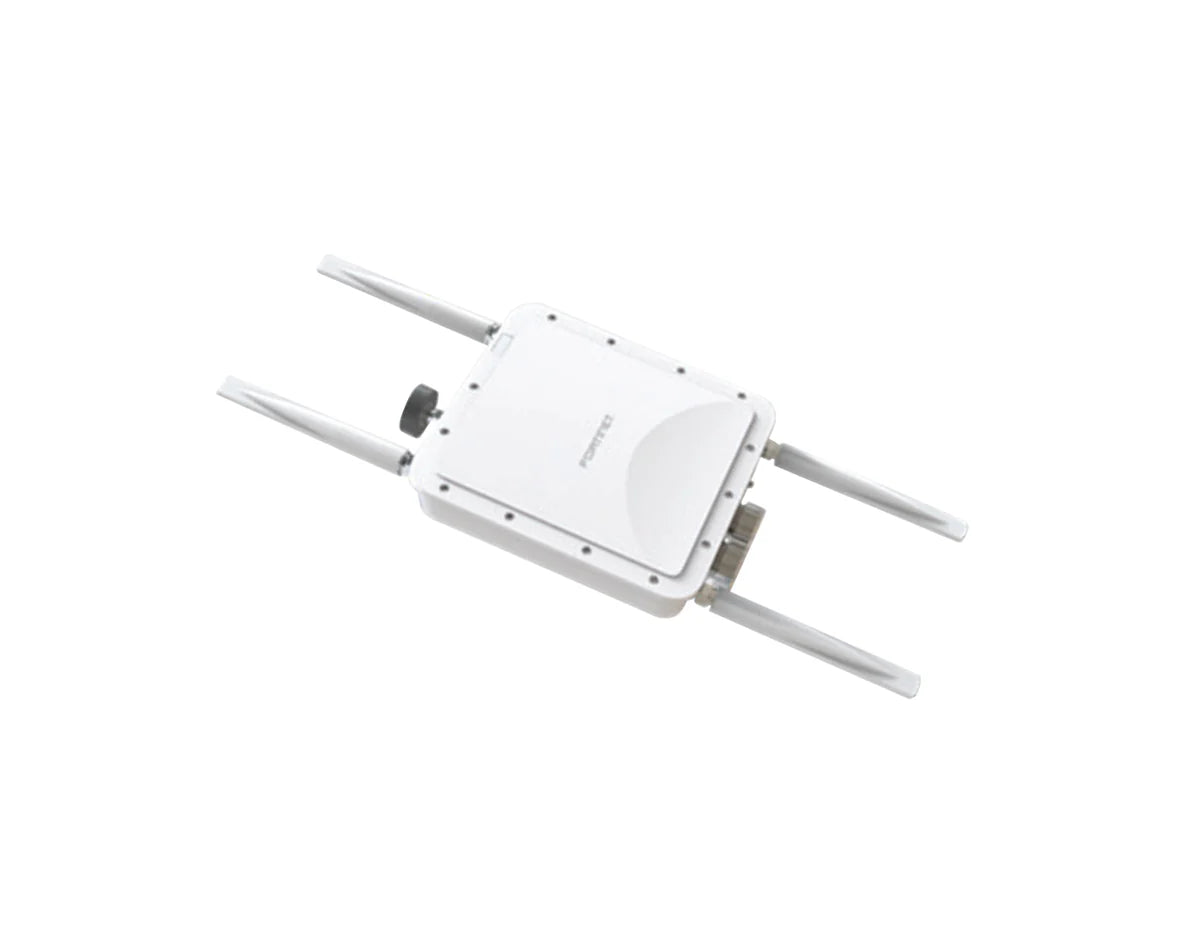

Fortinet FAP-222KL-A Outdoor LoRaWAN WiFi 7 Access Point
Fortinet FAP-222KL-A Outdoor LoRaWAN WiFi 7 Access Point

Fortinet FAP-222KL-A Outdoor LoRaWAN WiFi 7 Access Point

por Fortinet
Desconto de 15%
R$ 33.264,00
R$ 28.284,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Outdoor Wi-Fi 7 gateway, dual-radio 2.4 and 5 GHz, LoRaWAN and LTE backhaul, 2.5G RJ45 PoE, IP67 rugged design [/shortdesc]

[properties]

Model FortiAP-222KL-A
Product Type Outdoor Wireless Gateway for LoRaWAN
Wireless Standard Wi-Fi 7 (802.11be)
Radio Configuration Dual Radio (2.4 GHz + 5 GHz)
MIMO Technology 2×2 MU-MIMO
Maximum Wi-Fi Data Rate Up to 688 Mbps (2.4 GHz) + 4.32 Gbps (5 GHz)
LoRaWAN Support Yes
LTE Support LTE Cat 4 (regional availability dependent)
Ethernet Ports 1× 2.5G RJ45 PoE-IN, 1× 1G RJ45 PoE-OUT
Power over Ethernet 802.3bt PoE-IN, 802.3af PoE-OUT
Antenna Type External N-Type Antennas
Number of Antennas 6 External Antennas
GNSS Support GPS, GLONASS, BeiDou, Galileo
Mounting Options Wall and Pole Mount
IP Rating IP67
Operating Temperature -40 °C to 70 °C
Dimensions (W × D × H) 220 × 220 × 60 mm
Weight 2.7 kg
Region Code A (North America)

[/properties]

[specifications]

Frequency Bands (Wi-Fi) 2.4 GHz (2.4–2.484 GHz), 5 GHz (U-NII-1 to U-NII-4)
Channel Width 20 / 40 MHz (2.4 GHz), 20 / 40 / 80 / 160 / 240 MHz (5 GHz)
Modulation BPSK, QPSK, 64–4096 QAM
Maximum Transmit Power 2.4 GHz: 25 dBm; 5 GHz: 26 dBm (2 chains combined)
LoRaWAN Frequency 902–928 MHz
LoRaWAN RX Sensitivity -139 dBm
LTE Bands 4G LTE Bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28
LTE Data Rate Downlink: 150 Mbps, Uplink: 50 Mbps
SIM Management eSIM
Simultaneous SSIDs Up to 8 per radio
Client Capacity Up to 512 clients per radio
Authentication WPA, WPA2, WPA3, 802.1X, Captive Portal, MAC allowlist/blocklist
Management FortiGate, FortiEdge Cloud, FortiSASE
CPU / Memory Quad-core ARM Cortex-A53 1.5 GHz / 2 GB RAM
Power Consumption (Max) 26 W
Wind Resistance Up to 165 mph (266 km/h)
Operating Altitude Up to 3000 m

[/specifications]

[accesories]

Included in the Box 802.3bt PoE Injector, wall and pole mounting brackets, grounding cable

[/accesories]

The Fortinet FortiAP-222KL is a rugged outdoor wireless gateway designed to merge high-performance Wi-Fi connectivity with long-range IoT communication. Built for demanding environments, it combines enterprise-grade Wi-Fi 7, LoRaWAN support, and LTE backhaul into a single, hardened platform managed through Fortinet’s Security Fabric.

This model enables secure wireless access and IoT data aggregation at the edge, making it ideal for organizations deploying smart infrastructure, industrial sensors, or remote outdoor networks where reliability and centralized control are critical.

  • Integrated Wi-Fi and LoRaWAN: Dual Wi-Fi radios paired with LoRaWAN support enable both high-throughput client access and long-range low-power IoT communication from one device.
  • LTE Backhaul Capability: Built-in LTE Cat 4 provides cellular connectivity for remote sites where wired infrastructure is unavailable or unreliable.
  • Enterprise-Grade Security: Seamless integration with Fortinet management platforms enables consistent policy enforcement and secure wireless access.
  • Outdoor-Ready Rugged Design: IP67-rated enclosure with support for wall and pole mounting ensures reliable operation in harsh outdoor environments.
  • Flexible PoE Networking: Supports Power over Ethernet for simplified installation and reduced deployment complexity (802.3bt input required for full functionality).
  • Smart city and municipal IoT deployments
  • Industrial and utility monitoring environments
  • Outdoor campuses and remote facilities
  • Agriculture and environmental sensor networks
  • Transportation and logistics infrastructure
  • Wireless Technology: Wi-Fi 7, dual-radio 2.4 GHz and 5 GHz
  • IoT Connectivity: Integrated LoRaWAN support
  • Cellular Backhaul: LTE Cat 4 with eSIM management
  • Ethernet Ports: 1× 2.5 Gigabit Ethernet (PoE-IN), 1× Gigabit Ethernet (PoE-OUT)
  • Antenna Configuration: External antennas for Wi-Fi, LoRaWAN, and LTE
  • Mounting Options: Wall and pole mounting kit included
  • Environmental Rating: IP67 outdoor-rated enclosure

Deploy secure wireless and IoT connectivity at the edge with confidence. Order the FortiAP-222KL-A today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Outdoor Wi-Fi 7 gateway, dual-radio 2.4 and 5 GHz, LoRaWAN and LTE backhaul, 2.5G RJ45 PoE, IP67 rugged design [/shortdesc]

[properties]

Model FortiAP-222KL-A
Product Type Outdoor Wireless Gateway for LoRaWAN
Wireless Standard Wi-Fi 7 (802.11be)
Radio Configuration Dual Radio (2.4 GHz + 5 GHz)
MIMO Technology 2×2 MU-MIMO
Maximum Wi-Fi Data Rate Up to 688 Mbps (2.4 GHz) + 4.32 Gbps (5 GHz)
LoRaWAN Support Yes
LTE Support LTE Cat 4 (regional availability dependent)
Ethernet Ports 1× 2.5G RJ45 PoE-IN, 1× 1G RJ45 PoE-OUT
Power over Ethernet 802.3bt PoE-IN, 802.3af PoE-OUT
Antenna Type External N-Type Antennas
Number of Antennas 6 External Antennas
GNSS Support GPS, GLONASS, BeiDou, Galileo
Mounting Options Wall and Pole Mount
IP Rating IP67
Operating Temperature -40 °C to 70 °C
Dimensions (W × D × H) 220 × 220 × 60 mm
Weight 2.7 kg
Region Code A (North America)

[/properties]

[specifications]

Frequency Bands (Wi-Fi) 2.4 GHz (2.4–2.484 GHz), 5 GHz (U-NII-1 to U-NII-4)
Channel Width 20 / 40 MHz (2.4 GHz), 20 / 40 / 80 / 160 / 240 MHz (5 GHz)
Modulation BPSK, QPSK, 64–4096 QAM
Maximum Transmit Power 2.4 GHz: 25 dBm; 5 GHz: 26 dBm (2 chains combined)
LoRaWAN Frequency 902–928 MHz
LoRaWAN RX Sensitivity -139 dBm
LTE Bands 4G LTE Bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28
LTE Data Rate Downlink: 150 Mbps, Uplink: 50 Mbps
SIM Management eSIM
Simultaneous SSIDs Up to 8 per radio
Client Capacity Up to 512 clients per radio
Authentication WPA, WPA2, WPA3, 802.1X, Captive Portal, MAC allowlist/blocklist
Management FortiGate, FortiEdge Cloud, FortiSASE
CPU / Memory Quad-core ARM Cortex-A53 1.5 GHz / 2 GB RAM
Power Consumption (Max) 26 W
Wind Resistance Up to 165 mph (266 km/h)
Operating Altitude Up to 3000 m

[/specifications]

[accesories]

Included in the Box 802.3bt PoE Injector, wall and pole mounting brackets, grounding cable

[/accesories]

Unify Outdoor Connectivity and IoT at the Edge

The Fortinet FortiAP-222KL is a rugged outdoor wireless gateway designed to merge high-performance Wi-Fi connectivity with long-range IoT communication. Built for demanding environments, it combines enterprise-grade Wi-Fi 7, LoRaWAN support, and LTE backhaul into a single, hardened platform managed through Fortinet’s Security Fabric.

This model enables secure wireless access and IoT data aggregation at the edge, making it ideal for organizations deploying smart infrastructure, industrial sensors, or remote outdoor networks where reliability and centralized control are critical.

Key Benefits & Features
  • Integrated Wi-Fi and LoRaWAN: Dual Wi-Fi radios paired with LoRaWAN support enable both high-throughput client access and long-range low-power IoT communication from one device.
  • LTE Backhaul Capability: Built-in LTE Cat 4 provides cellular connectivity for remote sites where wired infrastructure is unavailable or unreliable.
  • Enterprise-Grade Security: Seamless integration with Fortinet management platforms enables consistent policy enforcement and secure wireless access.
  • Outdoor-Ready Rugged Design: IP67-rated enclosure with support for wall and pole mounting ensures reliable operation in harsh outdoor environments.
  • Flexible PoE Networking: Supports Power over Ethernet for simplified installation and reduced deployment complexity (802.3bt input required for full functionality).
Ideal Use Cases
  • Smart city and municipal IoT deployments
  • Industrial and utility monitoring environments
  • Outdoor campuses and remote facilities
  • Agriculture and environmental sensor networks
  • Transportation and logistics infrastructure
Technical Specifications
  • Wireless Technology: Wi-Fi 7, dual-radio 2.4 GHz and 5 GHz
  • IoT Connectivity: Integrated LoRaWAN support
  • Cellular Backhaul: LTE Cat 4 with eSIM management
  • Ethernet Ports: 1× 2.5 Gigabit Ethernet (PoE-IN), 1× Gigabit Ethernet (PoE-OUT)
  • Antenna Configuration: External antennas for Wi-Fi, LoRaWAN, and LTE
  • Mounting Options: Wall and pole mounting kit included
  • Environmental Rating: IP67 outdoor-rated enclosure
Build Smarter Outdoor Networks Today

Deploy secure wireless and IoT connectivity at the edge with confidence. Order the FortiAP-222KL-A today.
