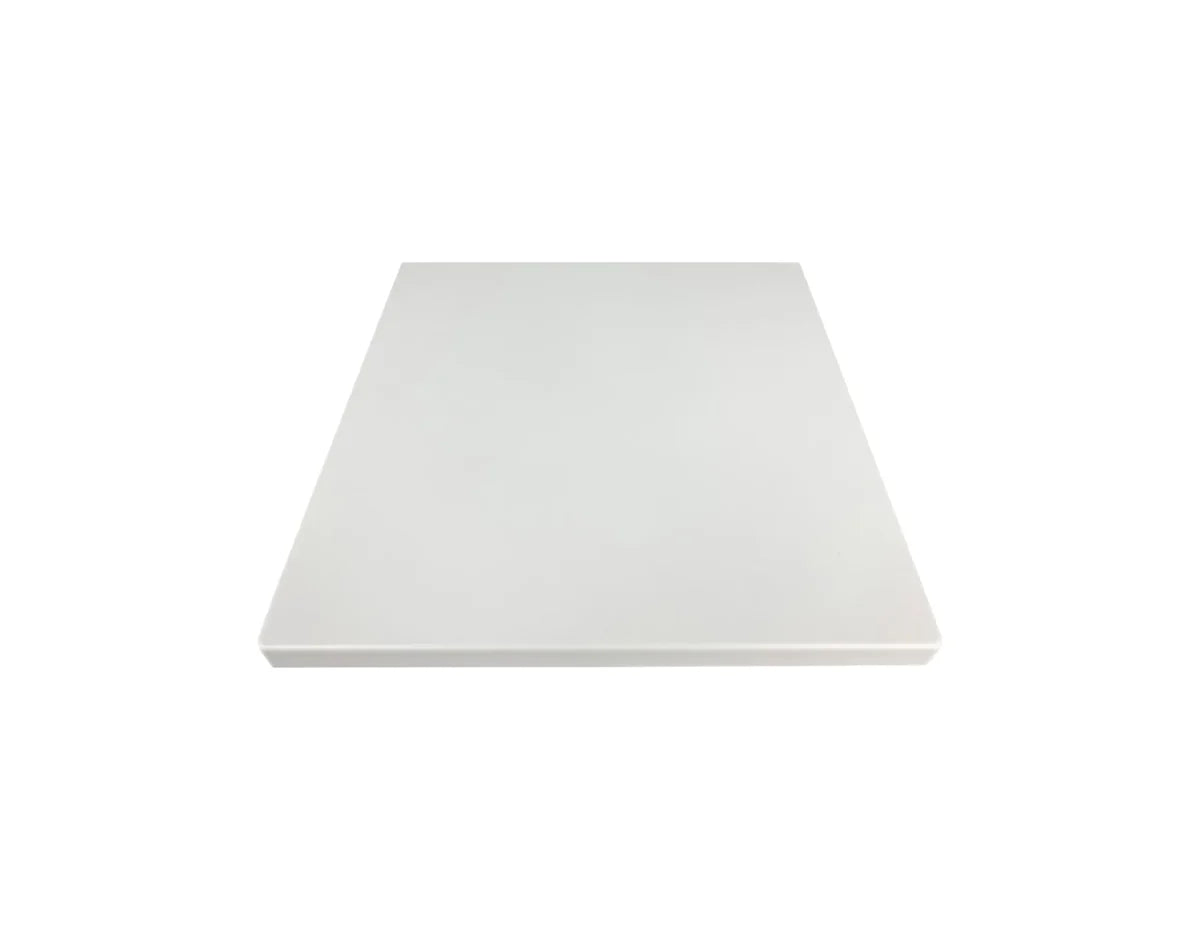

Fortinet FANT-10ACAX-1213-D-N High-Gain Directional Antenna
Fortinet FANT-10ACAX-1213-D-N High-Gain Directional Antenna

Fortinet FANT-10ACAX-1213-D-N High-Gain Directional Antenna

por Fortinet
Desconto de 15%
R$ 19.500,00
R$ 16.584,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 2.4/5 GHz dual-band, 12 dBi / 13 dBi gain, directional radiation pattern, 10 N-Type connectors, indoor and outdoor deployment [/shortdesc]

[properties]

Model FANT-10ACAX-1213-D-N
Product Type Wireless Directional Antenna
Directivity Directional
Frequency Range 2.4–2.5 GHz / 5.1–5.9 GHz
Antenna Gain 12 dBi (2.4 GHz) / 13 dBi (5 GHz)
Polarization Dual-Polarized
Connector Type 10 × N-Type Male
Cable Length 36 in. RG58 (91.4 cm)
Form Factor Wall / Mast Mount
Ingress Protection IP54
Environment Indoor / Outdoor
Color White
Dimensions (W × H × D) 14.6 × 14.6 × 1.5 in. (37.1 × 37.1 × 3.81 cm)
Weight 2.6 lb (1.18 kg)
Operating Temperature -40°C to +60°C (-40°F to +140°F)

[/properties]

[specifications]

Operating Frequency Bands 2.4–2.5 GHz; 5.1–5.9 GHz
Vertical Beamwidth 65° (2.4 GHz) / 70° (5 GHz)
Horizontal Beamwidth 60° (2.4 GHz) / 65° (5 GHz)
VSWR ≤ 2.0
Nominal Impedance 50 ohms
Front-to-Back Ratio ≤ 18 dB (2.4 GHz) / ≤ 25 dB (5 GHz)
Port-to-Port Isolation ≤ 28 dB
Maximum Input Power 50 W
Number of Ports 10
Mounting Method Mast or Wall Mount (articulating mount included)

[/specifications]

[accesories]

Included in the box Articulating mounting bracket; Integrated N-Type pigtail cables

[/accesories]

The Fortinet FANT-10ACAX-1213-D-N is a high-gain directional Wi-Fi antenna engineered for environments where coverage precision, signal strength, and interference control are critical. Designed to complement Fortinet FortiAP deployments, this antenna delivers focused RF performance across the 2.4 GHz and 5 GHz bands, making it ideal for dense client environments and long-range coverage scenarios.

With a narrow beam design and dual-band operation, the FANT-10ACAX-1213-D-N enhances signal reach while minimizing co-channel interference. Its rugged construction and articulating mount allow flexible installation in both indoor and outdoor environments, ensuring reliable wireless performance in demanding conditions.

  • High-Gain Directional Performance: Delivers 12 dBi gain at 2.4 GHz and 13 dBi gain at 5 GHz for extended coverage and improved signal quality.
  • Dual-Band Optimization: Supports 2.4–2.5 GHz and 5.1–5.9 GHz frequency ranges for modern enterprise Wi-Fi deployments.
  • Multi-Port MIMO Support: Equipped with 10 dual-band N-Type connectors to support advanced multi-radio FortiAP configurations.
  • Reduced Interference Design: Narrow beamwidth helps limit signal spillover and co-channel interference in high-density installations.
  • Flexible Installation: Includes an articulating mount for precise wall or mast positioning indoors or outdoors.
  • Warehouses and logistics centers
  • Manufacturing and industrial facilities
  • Large public venues and event spaces
  • Campus and enterprise outdoor Wi-Fi coverage
  • High-density FortiAP deployments
  • Frequency Range: 2.4–2.5 GHz and 5.1–5.9 GHz
  • Antenna Gain: 12 dBi (2.4 GHz), 13 dBi (5 GHz)
  • Directivity: Directional
  • VSWR: ≤ 2.0
  • Connector Type: 10 × N-Type Male
  • Impedance: 50 Ohms
  • Ingress Protection: IP54
  • Form Factor: Wall or mast mount
  • Dimensions: 14.6 × 14.6 × 1.5 in (37.1 × 37.1 × 3.81 cm)
  • Operating Temperature: −40°F to +140°F (−40°C to +60°C)

Deploy the Fortinet FANT-10ACAX-1213-D-N to achieve focused, high-performance Wi-Fi coverage where it matters most. Order now.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 2.4/5 GHz dual-band, 12 dBi / 13 dBi gain, directional radiation pattern, 10 N-Type connectors, indoor and outdoor deployment [/shortdesc]

[properties]

Model FANT-10ACAX-1213-D-N
Product Type Wireless Directional Antenna
Directivity Directional
Frequency Range 2.4–2.5 GHz / 5.1–5.9 GHz
Antenna Gain 12 dBi (2.4 GHz) / 13 dBi (5 GHz)
Polarization Dual-Polarized
Connector Type 10 × N-Type Male
Cable Length 36 in. RG58 (91.4 cm)
Form Factor Wall / Mast Mount
Ingress Protection IP54
Environment Indoor / Outdoor
Color White
Dimensions (W × H × D) 14.6 × 14.6 × 1.5 in. (37.1 × 37.1 × 3.81 cm)
Weight 2.6 lb (1.18 kg)
Operating Temperature -40°C to +60°C (-40°F to +140°F)

[/properties]

[specifications]

Operating Frequency Bands 2.4–2.5 GHz; 5.1–5.9 GHz
Vertical Beamwidth 65° (2.4 GHz) / 70° (5 GHz)
Horizontal Beamwidth 60° (2.4 GHz) / 65° (5 GHz)
VSWR ≤ 2.0
Nominal Impedance 50 ohms
Front-to-Back Ratio ≤ 18 dB (2.4 GHz) / ≤ 25 dB (5 GHz)
Port-to-Port Isolation ≤ 28 dB
Maximum Input Power 50 W
Number of Ports 10
Mounting Method Mast or Wall Mount (articulating mount included)

[/specifications]

[accesories]

Included in the box Articulating mounting bracket; Integrated N-Type pigtail cables

[/accesories]

High-Density Wireless Coverage with Precision Directionality

The Fortinet FANT-10ACAX-1213-D-N is a high-gain directional Wi-Fi antenna engineered for environments where coverage precision, signal strength, and interference control are critical. Designed to complement Fortinet FortiAP deployments, this antenna delivers focused RF performance across the 2.4 GHz and 5 GHz bands, making it ideal for dense client environments and long-range coverage scenarios.

With a narrow beam design and dual-band operation, the FANT-10ACAX-1213-D-N enhances signal reach while minimizing co-channel interference. Its rugged construction and articulating mount allow flexible installation in both indoor and outdoor environments, ensuring reliable wireless performance in demanding conditions.

Key Benefits & Features
  • High-Gain Directional Performance: Delivers 12 dBi gain at 2.4 GHz and 13 dBi gain at 5 GHz for extended coverage and improved signal quality.
  • Dual-Band Optimization: Supports 2.4–2.5 GHz and 5.1–5.9 GHz frequency ranges for modern enterprise Wi-Fi deployments.
  • Multi-Port MIMO Support: Equipped with 10 dual-band N-Type connectors to support advanced multi-radio FortiAP configurations.
  • Reduced Interference Design: Narrow beamwidth helps limit signal spillover and co-channel interference in high-density installations.
  • Flexible Installation: Includes an articulating mount for precise wall or mast positioning indoors or outdoors.
Ideal Use Cases
  • Warehouses and logistics centers
  • Manufacturing and industrial facilities
  • Large public venues and event spaces
  • Campus and enterprise outdoor Wi-Fi coverage
  • High-density FortiAP deployments
Technical Specifications
  • Frequency Range: 2.4–2.5 GHz and 5.1–5.9 GHz
  • Antenna Gain: 12 dBi (2.4 GHz), 13 dBi (5 GHz)
  • Directivity: Directional
  • VSWR: ≤ 2.0
  • Connector Type: 10 × N-Type Male
  • Impedance: 50 Ohms
  • Ingress Protection: IP54
  • Form Factor: Wall or mast mount
  • Dimensions: 14.6 × 14.6 × 1.5 in (37.1 × 37.1 × 3.81 cm)
  • Operating Temperature: −40°F to +140°F (−40°C to +60°C)
Strengthen Your Wireless Coverage Today

Deploy the Fortinet FANT-10ACAX-1213-D-N to achieve focused, high-performance Wi-Fi coverage where it matters most. Order now.
