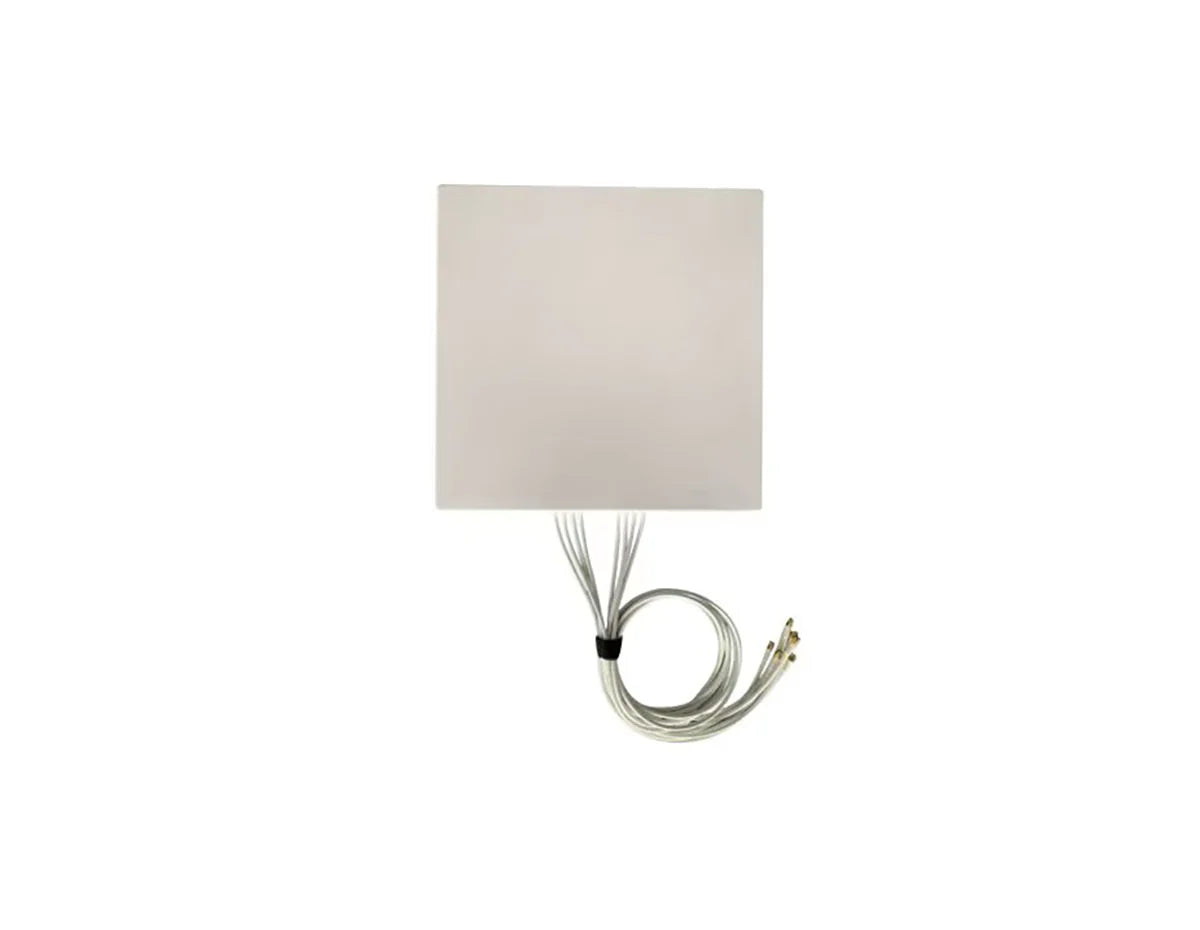

Fortinet FANT-08ABGN-1213-D-R Directional Wi-Fi Antenna
Fortinet FANT-08ABGN-1213-D-R Directional Wi-Fi Antenna

Fortinet FANT-08ABGN-1213-D-R Directional Wi-Fi Antenna

por Fortinet
Desconto de 15%
R$ 13.824,00
R$ 11.760,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Directional Wi-Fi antenna, dual-band 2.4/5 GHz operation, 12 dBi and 13 dBi gain, 8x RP-SMA connectors, indoor and outdoor rated [/shortdesc]

[properties]

Model FANT-08ABGN-1213-D-R
Brand Fortinet
Product Type Wi-Fi Directional Antenna
Antenna Type Directional
Frequency Range 2400–2500 MHz; 5150–5850 MHz
Antenna Gain 12 dBi (2.4 GHz); 13 dBi (5 GHz)
Polarization 4 × Horizontal, 4 × Vertical
Connector Type 8 × RP-SMA Male
Antenna Cable Length 36 in (91.44 cm)
Antenna Placement Indoor / Outdoor
Impedance 50 ohm
Ingress Protection IP54
Wind Load Rating 100 mph (160 km/h)
Dimensions (L × W × H) 12 × 12 × 1.5 in (30.48 × 30.48 × 3.81 cm)
Weight 2.1 lb (0.95 kg)
Operating Temperature −40°F to 140°F (−40°C to 60°C)

[/properties]

[specifications]

Bandwidth 100 MHz (2.4 GHz); 700 MHz (5 GHz)
Vertical Beamwidth 45° / 28° (Ports 1–4); 50° / 40° (Ports 5–8)
Horizontal Beamwidth 50° / 40° (Ports 1–4); 45° / 28° (Ports 5–8)
VSWR ≤ 2.25
Front-to-Back Ratio ≤ 19 dB
Port-to-Port Isolation 18 dB (2.4 GHz); 25 dB (5 GHz)
Maximum Input Power 50 W
Number of Ports 8
Signaling Type Wi-Fi
Compliance Rating IP54

[/specifications]

[accesories]

Included Directional antenna; 8 integrated RP-SMA pigtail cables; articulating mount; mounting hardware
Optional Mounting Hardware FAP-BRKT-MNT-5 wall or pole mount kit

[/accesories]

The Fortinet FANT-08ABGN-1213-D-R is a high-gain directional Wi-Fi antenna engineered for environments where precise coverage and interference control are critical. Designed for seamless integration with Fortinet FortiAP access points, this antenna delivers focused RF performance across both 2.4 GHz and 5 GHz bands, making it ideal for dense indoor and outdoor deployments.

With narrow beamwidths and dual polarization support, the FANT-08ABGN-1213-D-R enables targeted signal delivery, reduces co-channel interference, and improves overall wireless efficiency in demanding enterprise and industrial scenarios.

  • High-Gain Directional Design: Provides 12 dBi gain at 2.4 GHz and 13 dBi at 5 GHz to extend coverage in specific zones while minimizing RF spillover.
  • Dual-Band Performance: Supports 2400–2500 MHz and 5150–5850 MHz frequency ranges for flexible Wi-Fi network design.
  • 8-Port MIMO Support: Equipped with eight RP-SMA male connectors, supporting advanced multi-radio FortiAP configurations.
  • Dual Polarization: Four horizontal and four vertical polarized ports enhance signal diversity and throughput.
  • Rugged Deployment Ready: Indoor and outdoor rated with IP54 protection and wind resistance up to 100 mph.
  • High-density enterprise Wi-Fi deployments
  • Warehouses and manufacturing facilities
  • Large venues and targeted coverage zones
  • Outdoor campus and yard connectivity
  • Directional coverage for aisles and corridors
  • Frequency Range: 2400–2500 MHz, 5150–5850 MHz
  • Antenna Gain: 12 dBi (2.4 GHz), 13 dBi (5 GHz)
  • Beamwidth: Horizontal 28°–50°, Vertical 28°–50°
  • Polarization: 4x Horizontal, 4x Vertical
  • Connectors: 8 x RP-SMA Male
  • Maximum Power: 50 Watts
  • Ingress Protection: IP54 compliant
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Dimensions: 12 x 12 x 1.5 inches

Order today and optimize your Fortinet Wi-Fi deployment with targeted, high-gain coverage.
