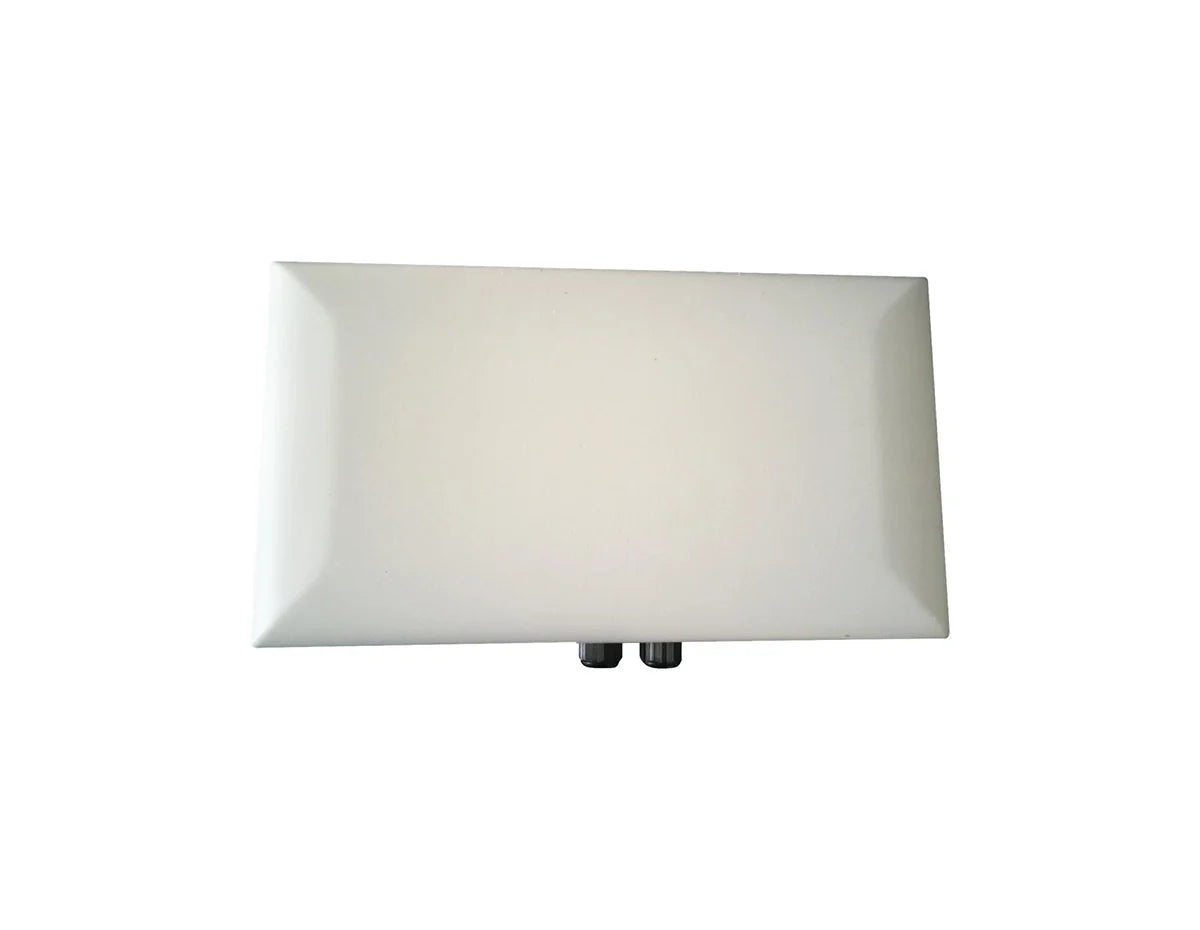

Fortinet FANT-06ACAX-8509-D-N Directional Wi Fi Antenna
Fortinet FANT-06ACAX-8509-D-N Directional Wi Fi Antenna

Fortinet FANT-06ACAX-8509-D-N Directional Wi Fi Antenna

por Fortinet
Desconto de 15%
R$ 16.260,00
R$ 13.824,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]Directional Wi-Fi antenna, 8.5 dBi at 2.4 GHz, 9 dBi at 5 GHz, dual-band design, IP65 rated housing, 6 N-Type connectors[/shortdesc]

[properties]

Brand Fortinet
Model FANT-06ACAX-8509-D-N
Product Type Directional Wi-Fi Antenna
Frequency Bands 2.4 GHz, 5 GHz
Antenna Gain 8.5 dBi (2.4 GHz), 9 dBi (5 GHz)
Polarization Vertical
Antenna Placement Indoor / Outdoor
Directivity Directional
Impedance 50 Ohm
Ingress Protection IP65
Operating Temperature -40°F to +149°F (-40°C to +65°C)
Dimensions (W × H × D) 11.8 × 11.8 × 1.77 in (300 × 300 × 45 mm)

[/properties]

[specifications]

Frequency Range 2.4–2.5 GHz, 5.15–5.875 GHz
Vertical Beamwidth 65° (2.4 GHz), 70° (5 GHz)
Horizontal Beamwidth 60° (2.4 GHz), 65° (5 GHz)
VSWR 2.0:1 max
Front-to-Back Ratio -20 dB
Port-to-Port Isolation 20 dB (2.4 GHz), 30 dB (5 GHz)
Connector Type 6 × N-Type Male
Cable Length 47.2 in (120 cm)
Maximum Input Power 10 W
Compliance IP65

[/specifications]

[accesories]

Optional Mounting Hardware FAN-M22 Adjustable Mount; FAP-BRKT-MNT-5

[/accesories]

The Fortinet FANT-06ACAX-8509-D-N is a high-performance directional Wi-Fi antenna engineered for precise coverage in challenging indoor and outdoor environments. Designed to complement Fortinet access points, this antenna delivers focused signal strength where omnidirectional coverage is inefficient or insufficient.

With dual-band support and high-gain characteristics, the FANT-06ACAX-8509-D-N helps optimize wireless performance in warehouses, manufacturing floors, and large open facilities where interference control and signal reach are critical.

  • High-Gain Directional Design: Provides 8.5 dBi gain at 2.4 GHz and 9 dBi at 5 GHz for targeted coverage and improved signal penetration.
  • Dual-Band Wi-Fi Support: Operates across 2.4–2.5 GHz and 5.15–5.875 GHz to support modern Wi-Fi deployments.
  • Six N-Type Connectors: Enables multi-stream MIMO configurations and seamless integration with compatible Fortinet access points.
  • Industrial-Grade Construction: IP65 rated enclosure protects against dust and moisture in demanding indoor and outdoor installations.
  • Interference Control: Directional beam pattern helps reduce co-channel interference in dense wireless environments.
  • Warehouses and logistics centers requiring focused aisle coverage
  • Manufacturing facilities with high RF interference
  • Outdoor Wi-Fi deployments exposed to dust and moisture
  • High-ceiling indoor environments needing directional signal control
  • Enterprise Wi-Fi expansions using Fortinet access points
  • Frequency Range: 2.4–2.5 GHz and 5.15–5.875 GHz
  • Antenna Gain: 8.5 dBi at 2.4 GHz, 9 dBi at 5 GHz
  • Polarization: Vertical
  • Horizontal Beamwidth: 60° at 2.4 GHz, 65° at 5 GHz
  • Vertical Beamwidth: 65° at 2.4 GHz, 70° at 5 GHz
  • Connectors: 6 x N-Type Male
  • Impedance: 50 ohm
  • Ingress Protection: IP65
  • Operating Temperature: -40°F to 149°F
  • Deployment: Indoor and outdoor

Enhance coverage accuracy and signal performance with the Fortinet FANT-06ACAX-8509-D-N. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]Directional Wi-Fi antenna, 8.5 dBi at 2.4 GHz, 9 dBi at 5 GHz, dual-band design, IP65 rated housing, 6 N-Type connectors[/shortdesc]

[properties]

Brand Fortinet
Model FANT-06ACAX-8509-D-N
Product Type Directional Wi-Fi Antenna
Frequency Bands 2.4 GHz, 5 GHz
Antenna Gain 8.5 dBi (2.4 GHz), 9 dBi (5 GHz)
Polarization Vertical
Antenna Placement Indoor / Outdoor
Directivity Directional
Impedance 50 Ohm
Ingress Protection IP65
Operating Temperature -40°F to +149°F (-40°C to +65°C)
Dimensions (W × H × D) 11.8 × 11.8 × 1.77 in (300 × 300 × 45 mm)

[/properties]

[specifications]

Frequency Range 2.4–2.5 GHz, 5.15–5.875 GHz
Vertical Beamwidth 65° (2.4 GHz), 70° (5 GHz)
Horizontal Beamwidth 60° (2.4 GHz), 65° (5 GHz)
VSWR 2.0:1 max
Front-to-Back Ratio -20 dB
Port-to-Port Isolation 20 dB (2.4 GHz), 30 dB (5 GHz)
Connector Type 6 × N-Type Male
Cable Length 47.2 in (120 cm)
Maximum Input Power 10 W
Compliance IP65

[/specifications]

[accesories]

Optional Mounting Hardware FAN-M22 Adjustable Mount; FAP-BRKT-MNT-5

[/accesories]

Focused High-Gain Coverage for Demanding Wireless Environments

The Fortinet FANT-06ACAX-8509-D-N is a high-performance directional Wi-Fi antenna engineered for precise coverage in challenging indoor and outdoor environments. Designed to complement Fortinet access points, this antenna delivers focused signal strength where omnidirectional coverage is inefficient or insufficient.

With dual-band support and high-gain characteristics, the FANT-06ACAX-8509-D-N helps optimize wireless performance in warehouses, manufacturing floors, and large open facilities where interference control and signal reach are critical.

Key Benefits & Features
  • High-Gain Directional Design: Provides 8.5 dBi gain at 2.4 GHz and 9 dBi at 5 GHz for targeted coverage and improved signal penetration.
  • Dual-Band Wi-Fi Support: Operates across 2.4–2.5 GHz and 5.15–5.875 GHz to support modern Wi-Fi deployments.
  • Six N-Type Connectors: Enables multi-stream MIMO configurations and seamless integration with compatible Fortinet access points.
  • Industrial-Grade Construction: IP65 rated enclosure protects against dust and moisture in demanding indoor and outdoor installations.
  • Interference Control: Directional beam pattern helps reduce co-channel interference in dense wireless environments.
Ideal Use Cases
  • Warehouses and logistics centers requiring focused aisle coverage
  • Manufacturing facilities with high RF interference
  • Outdoor Wi-Fi deployments exposed to dust and moisture
  • High-ceiling indoor environments needing directional signal control
  • Enterprise Wi-Fi expansions using Fortinet access points
Technical Specifications
  • Frequency Range: 2.4–2.5 GHz and 5.15–5.875 GHz
  • Antenna Gain: 8.5 dBi at 2.4 GHz, 9 dBi at 5 GHz
  • Polarization: Vertical
  • Horizontal Beamwidth: 60° at 2.4 GHz, 65° at 5 GHz
  • Vertical Beamwidth: 65° at 2.4 GHz, 70° at 5 GHz
  • Connectors: 6 x N-Type Male
  • Impedance: 50 ohm
  • Ingress Protection: IP65
  • Operating Temperature: -40°F to 149°F
  • Deployment: Indoor and outdoor
Upgrade Wireless Precision Today

Enhance coverage accuracy and signal performance with the Fortinet FANT-06ACAX-8509-D-N. Order today.
