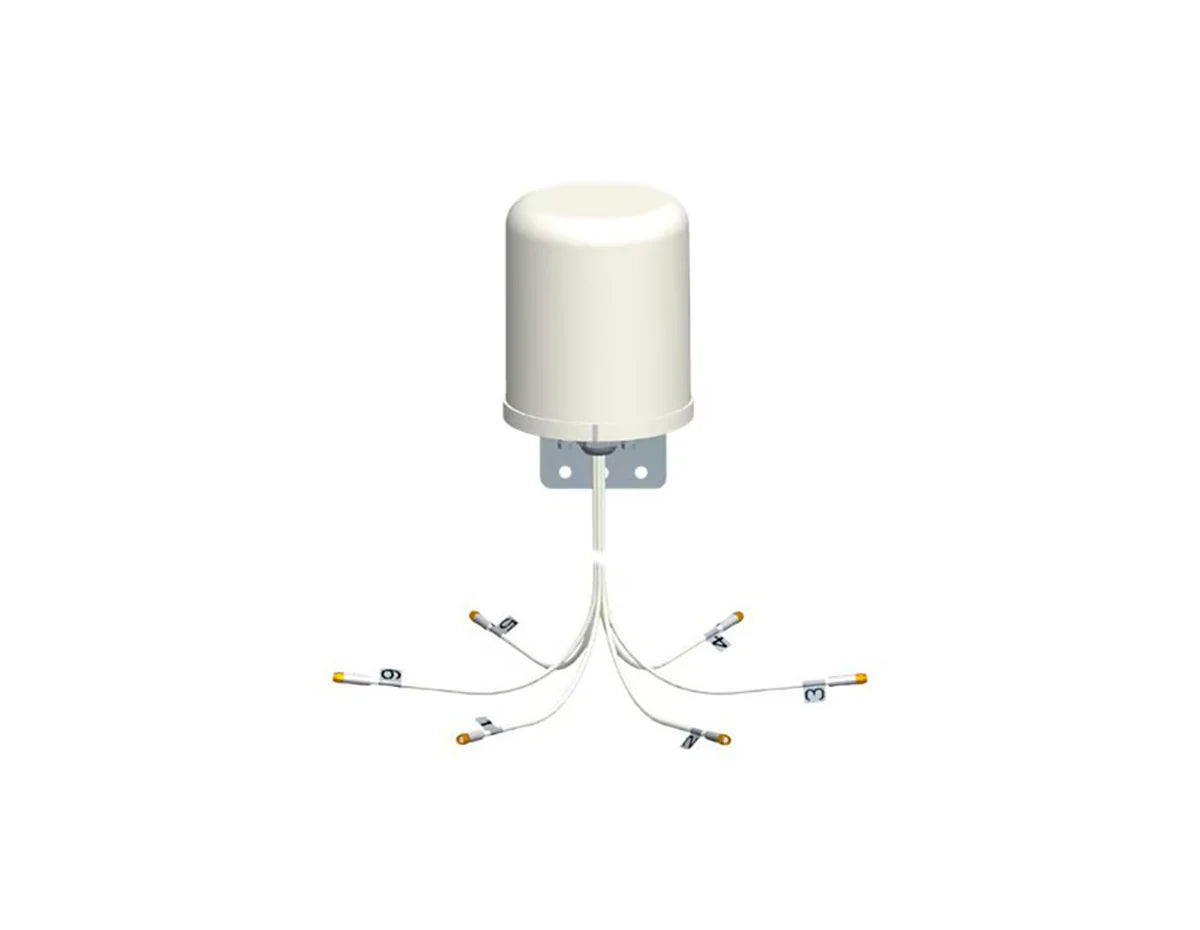

Fortinet FANT-06ABGN-0606-O-N 6 dBi Dual-Band Omni Antenna
Fortinet FANT-06ABGN-0606-O-N 6 dBi Dual-Band Omni Antenna

Fortinet FANT-06ABGN-0606-O-N 6 dBi Dual-Band Omni Antenna

por Fortinet
Desconto de 15%
R$ 6.900,00
R$ 5.868,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 6 dBi omnidirectional gain, dual-band 2.4 GHz and 5 GHz support, six N-Type connectors, indoor and outdoor rated, mast or wall mounting [/shortdesc]

[properties]

Model FANT-06ABGN-0606-O-N
Product Type Wi-Fi Omni Antenna
Antenna Type Omnidirectional
Frequency Range 2400–2500 MHz; 5150–5850 MHz
Gain 6 dBi (2.4 GHz); 6 dBi (5 GHz)
Polarization Vertical
Connector Type 6 × N-Type Male
Number of Leads 6 Dual-Band Pigtails
Nominal Impedance 50 Ohms
Max Power 10 Watts
Environment Indoor / Outdoor
Mounting Method Mast and/or Wall Mounting
Dimensions 5.9 × 7 in. (14.99 × 17.78 cm)
Weight 3.15 lbs (1.43 kg)
Operating Temperature -40°F to +158°F (-40°C to +70°C)
Wind Load 134 mph (216 km/h)

[/properties]

[specifications]

Bandwidth 100 MHz (2.4 GHz); 100 MHz (5 GHz)
Vertical Beamwidth 35° (2.4 GHz); 25° (5 GHz)
Horizontal Beamwidth 360° (2.4 GHz & 5 GHz)
VSWR Typical ≤1.5 to 2.0
Isolation ≤ -15 dB
Lightning Protection Not DC Grounded
Mast Diameter Support 1.37–1.97 in. (3.48–5.0 cm)

[/specifications]

[accesories]

Included FANT-06ABGN-0606-O-N Antenna; L-Bracket (included in the box)
Optional Mounting Hardware FAN-M22; FAP-BRKT-MNT-5
Compatible Cables CABL-3FT-N-NType; CABL-3FT-N-RPSMA

[/accesories]

The Fortinet FANT-06ABGN-0606-O-N is a rugged dual-band omnidirectional antenna engineered to extend and stabilize wireless coverage in challenging environments. Designed for seamless compatibility with Fortinet FortiAP access points, this antenna delivers consistent 6 dBi gain across both 2.4 GHz and 5 GHz bands, making it ideal for high-density and mission-critical wireless networks.

Built for durability, the FANT-06ABGN-0606-O-N withstands exposure to moisture, dust, and harsh temperatures while maintaining predictable radiation patterns. With six integrated N-Type connectors and included mounting hardware, it enables flexible installation and optimized signal distribution for enterprise-grade Wi-Fi deployments.

  • 6 dBi Omnidirectional Gain: Provides uniform 360-degree horizontal coverage for reliable signal distribution across large areas.
  • Dual-Band 2.4 GHz and 5 GHz Support: Optimized for modern Wi-Fi networks requiring balanced performance across both frequency bands.
  • Six N-Type Connectors: Supports multi-radio and MIMO configurations when paired with compatible Fortinet access points.
  • Industrial-Grade Construction: Designed to operate in indoor and outdoor environments exposed to dust, moisture, and temperature extremes.
  • Flexible Mounting Options: Includes L-bracket for secure mast or wall installation in diverse deployment scenarios.
  • Outdoor enterprise Wi-Fi coverage expansion
  • Warehouses and logistics facilities
  • Manufacturing and industrial environments
  • Large indoor spaces requiring even signal distribution
  • Fortinet FortiAP deployments with external antenna support
  • Antenna Type: Omnidirectional
  • Frequency Range: 2400–2500 MHz and 5150–5875 MHz
  • Gain: 6 dBi
  • Polarization: Vertical
  • VSWR: Typical ≤1.5 to 2.0
  • Impedance: 50 ohms
  • Connectors: Six N-Type male connectors
  • Mounting: Mast or wall mount with included L-bracket
  • Operating Temperature: -40°C to +70°C
  • Environment: Indoor and outdoor rated

Deploy enterprise-grade wireless performance with the Fortinet FANT-06ABGN-0606-O-N. Order today and build a stronger, more reliable Wi-Fi network.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 6 dBi omnidirectional gain, dual-band 2.4 GHz and 5 GHz support, six N-Type connectors, indoor and outdoor rated, mast or wall mounting [/shortdesc]

[properties]

Model FANT-06ABGN-0606-O-N
Product Type Wi-Fi Omni Antenna
Antenna Type Omnidirectional
Frequency Range 2400–2500 MHz; 5150–5850 MHz
Gain 6 dBi (2.4 GHz); 6 dBi (5 GHz)
Polarization Vertical
Connector Type 6 × N-Type Male
Number of Leads 6 Dual-Band Pigtails
Nominal Impedance 50 Ohms
Max Power 10 Watts
Environment Indoor / Outdoor
Mounting Method Mast and/or Wall Mounting
Dimensions 5.9 × 7 in. (14.99 × 17.78 cm)
Weight 3.15 lbs (1.43 kg)
Operating Temperature -40°F to +158°F (-40°C to +70°C)
Wind Load 134 mph (216 km/h)

[/properties]

[specifications]

Bandwidth 100 MHz (2.4 GHz); 100 MHz (5 GHz)
Vertical Beamwidth 35° (2.4 GHz); 25° (5 GHz)
Horizontal Beamwidth 360° (2.4 GHz & 5 GHz)
VSWR Typical ≤1.5 to 2.0
Isolation ≤ -15 dB
Lightning Protection Not DC Grounded
Mast Diameter Support 1.37–1.97 in. (3.48–5.0 cm)

[/specifications]

[accesories]

Included FANT-06ABGN-0606-O-N Antenna; L-Bracket (included in the box)
Optional Mounting Hardware FAN-M22; FAP-BRKT-MNT-5
Compatible Cables CABL-3FT-N-NType; CABL-3FT-N-RPSMA

[/accesories]

Reliable Omnidirectional Coverage for Demanding Wi-Fi Deployments

The Fortinet FANT-06ABGN-0606-O-N is a rugged dual-band omnidirectional antenna engineered to extend and stabilize wireless coverage in challenging environments. Designed for seamless compatibility with Fortinet FortiAP access points, this antenna delivers consistent 6 dBi gain across both 2.4 GHz and 5 GHz bands, making it ideal for high-density and mission-critical wireless networks.

Built for durability, the FANT-06ABGN-0606-O-N withstands exposure to moisture, dust, and harsh temperatures while maintaining predictable radiation patterns. With six integrated N-Type connectors and included mounting hardware, it enables flexible installation and optimized signal distribution for enterprise-grade Wi-Fi deployments.

Key Benefits & Features
  • 6 dBi Omnidirectional Gain: Provides uniform 360-degree horizontal coverage for reliable signal distribution across large areas.
  • Dual-Band 2.4 GHz and 5 GHz Support: Optimized for modern Wi-Fi networks requiring balanced performance across both frequency bands.
  • Six N-Type Connectors: Supports multi-radio and MIMO configurations when paired with compatible Fortinet access points.
  • Industrial-Grade Construction: Designed to operate in indoor and outdoor environments exposed to dust, moisture, and temperature extremes.
  • Flexible Mounting Options: Includes L-bracket for secure mast or wall installation in diverse deployment scenarios.
Ideal Use Cases
  • Outdoor enterprise Wi-Fi coverage expansion
  • Warehouses and logistics facilities
  • Manufacturing and industrial environments
  • Large indoor spaces requiring even signal distribution
  • Fortinet FortiAP deployments with external antenna support
Technical Specifications
  • Antenna Type: Omnidirectional
  • Frequency Range: 2400–2500 MHz and 5150–5875 MHz
  • Gain: 6 dBi
  • Polarization: Vertical
  • VSWR: Typical ≤1.5 to 2.0
  • Impedance: 50 ohms
  • Connectors: Six N-Type male connectors
  • Mounting: Mast or wall mount with included L-bracket
  • Operating Temperature: -40°C to +70°C
  • Environment: Indoor and outdoor rated
Extend Coverage with Confidence

Deploy enterprise-grade wireless performance with the Fortinet FANT-06ABGN-0606-O-N. Order today and build a stronger, more reliable Wi-Fi network.
