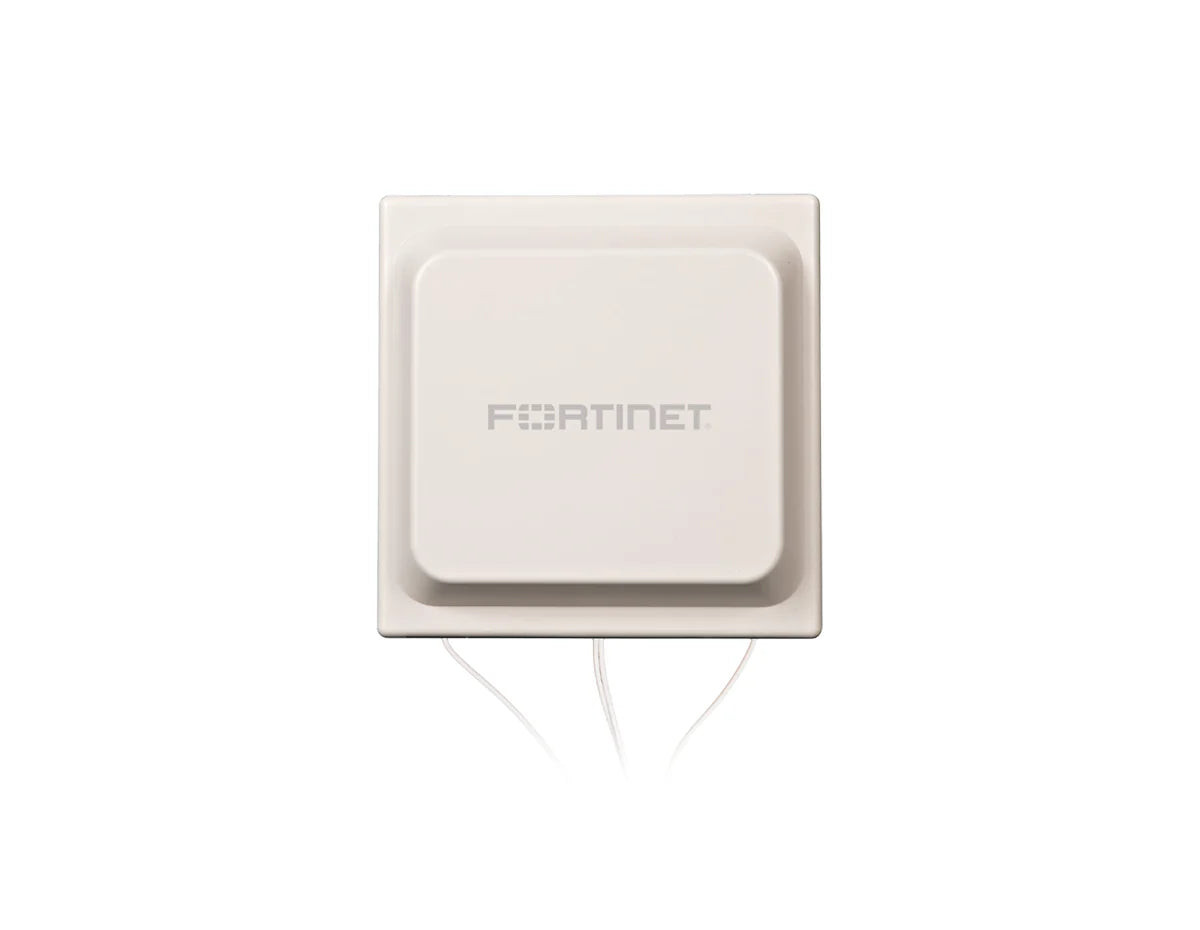

Fortinet FANT-04ACAX-0606-D-R 6 dBi Dual Band Antenna
Fortinet FANT-04ACAX-0606-D-R 6 dBi Dual Band Antenna

Fortinet FANT-04ACAX-0606-D-R 6 dBi Dual Band Antenna

por Fortinet
Desconto de 15%
R$ 5.112,00
R$ 4.356,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Dual band 2.4 and 5 GHz operation, 6 dBi gain, 4x4 MIMO sector panel design, 60 degree directional coverage, four RP-SMA connectors [/shortdesc]

[properties]

Model FANT-04ACAX-0606-D-R
Product Type Directional Sector Panel Antenna
Antenna Type Sector Panel
Directivity Directional
Frequency Range 2.4–2.5 GHz / 5.15–5.875 GHz
Gain 6 dBi (2.4 GHz) / 6 dBi (5 GHz)
MIMO Configuration 4x4 MIMO
Beamwidth 60°
Polarization Dual Slant ±45°
Connector Type 4 × RP-SMA Male
Cable Length 75 cm
Nominal Impedance 50 Ohms
Max Input Power 20 W
Ingress Protection IP67
Environment Outdoor
Mounting Method Wall Mount

[/properties]

[specifications]

Operating Frequency Bands 2.4–2.5 GHz and 5.15–5.875 GHz
Bandwidth 100 MHz (2.4 GHz) / 725 MHz (5 GHz)
Vertical Beamwidth 60° / 60°
Horizontal Beamwidth 60° / 60°
VSWR ≤2.0
Front-to-Back Ratio ≤25 dB
Port-to-Port Isolation ≤25 dB
Operating Temperature −40°F to +158°F (−40°C to +70°C)
Wind Load 220 km/h

[/specifications]

[accesories]

Included Integrated mounting hardware
Optional Mounts FAN-M22Z-5; FAP-BRKT-MNT-5

[/accesories]

The Fortinet FANT-04ACAX-0606-D-R is a high performance dual band sector antenna designed to deliver controlled and reliable wireless coverage in outdoor and semi outdoor environments. Engineered for seamless compatibility with Fortinet FortiAP platforms, this antenna enables precise RF planning while minimizing co channel interference.

With its narrow 60 degree radiation pattern and integrated 4x4 MIMO architecture, the FANT-04ACAX-0606-D-R is ideal for targeted coverage areas where signal focus and stability are critical. It combines professional grade construction with optimized RF characteristics to support demanding enterprise Wi Fi deployments.

  • Directional sector coverage: 60 degree beamwidth delivers focused signal distribution for aisles, perimeters, and controlled outdoor zones.
  • 4x4 MIMO architecture: Supports modern Fortinet access points to improve throughput, reliability, and client capacity.
  • Dual band performance: Operates across 2.4 to 2.5 GHz and 5.15 to 5.875 GHz within a single antenna radome.
  • 6 dBi gain optimization: Balances coverage reach and signal clarity for medium range directional deployments.
  • Professional mounting flexibility: Compatible with optional wall and pole mounting accessories for precise positioning.
  • Outdoor enterprise Wi Fi coverage zones
  • Warehouse aisles and logistics facilities
  • Campus walkways and building perimeters
  • Industrial environments requiring directional RF control
  • High density areas where interference reduction is critical
  • Product Model: FANT-04ACAX-0606-D-R
  • Antenna Type: Directional sector panel antenna
  • Frequency Range: 2.4 to 2.5 GHz and 5.15 to 5.875 GHz
  • Antenna Gain: 6 dBi
  • MIMO Configuration: 4x4
  • Beamwidth: 60 degrees
  • Connector Type: Four RP-SMA connectors
  • Cable Length: 75 cm integrated leads
  • Form Factor: Sector panel
  • Deployment: Outdoor wireless data networks

Choose the Fortinet FANT-04ACAX-0606-D-R to achieve targeted, high efficiency Wi Fi coverage built for enterprise and industrial environments. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Dual band 2.4 and 5 GHz operation, 6 dBi gain, 4x4 MIMO sector panel design, 60 degree directional coverage, four RP-SMA connectors [/shortdesc]

[properties]

Model FANT-04ACAX-0606-D-R
Product Type Directional Sector Panel Antenna
Antenna Type Sector Panel
Directivity Directional
Frequency Range 2.4–2.5 GHz / 5.15–5.875 GHz
Gain 6 dBi (2.4 GHz) / 6 dBi (5 GHz)
MIMO Configuration 4x4 MIMO
Beamwidth 60°
Polarization Dual Slant ±45°
Connector Type 4 × RP-SMA Male
Cable Length 75 cm
Nominal Impedance 50 Ohms
Max Input Power 20 W
Ingress Protection IP67
Environment Outdoor
Mounting Method Wall Mount

[/properties]

[specifications]

Operating Frequency Bands 2.4–2.5 GHz and 5.15–5.875 GHz
Bandwidth 100 MHz (2.4 GHz) / 725 MHz (5 GHz)
Vertical Beamwidth 60° / 60°
Horizontal Beamwidth 60° / 60°
VSWR ≤2.0
Front-to-Back Ratio ≤25 dB
Port-to-Port Isolation ≤25 dB
Operating Temperature −40°F to +158°F (−40°C to +70°C)
Wind Load 220 km/h

[/specifications]

[accesories]

Included Integrated mounting hardware
Optional Mounts FAN-M22Z-5; FAP-BRKT-MNT-5

[/accesories]

Focused Wi Fi Coverage for High Density Outdoor Deployments

The Fortinet FANT-04ACAX-0606-D-R is a high performance dual band sector antenna designed to deliver controlled and reliable wireless coverage in outdoor and semi outdoor environments. Engineered for seamless compatibility with Fortinet FortiAP platforms, this antenna enables precise RF planning while minimizing co channel interference.

With its narrow 60 degree radiation pattern and integrated 4x4 MIMO architecture, the FANT-04ACAX-0606-D-R is ideal for targeted coverage areas where signal focus and stability are critical. It combines professional grade construction with optimized RF characteristics to support demanding enterprise Wi Fi deployments.

Key Benefits & Features
  • Directional sector coverage: 60 degree beamwidth delivers focused signal distribution for aisles, perimeters, and controlled outdoor zones.
  • 4x4 MIMO architecture: Supports modern Fortinet access points to improve throughput, reliability, and client capacity.
  • Dual band performance: Operates across 2.4 to 2.5 GHz and 5.15 to 5.875 GHz within a single antenna radome.
  • 6 dBi gain optimization: Balances coverage reach and signal clarity for medium range directional deployments.
  • Professional mounting flexibility: Compatible with optional wall and pole mounting accessories for precise positioning.
Ideal Use Cases
  • Outdoor enterprise Wi Fi coverage zones
  • Warehouse aisles and logistics facilities
  • Campus walkways and building perimeters
  • Industrial environments requiring directional RF control
  • High density areas where interference reduction is critical
Technical Specifications
  • Product Model: FANT-04ACAX-0606-D-R
  • Antenna Type: Directional sector panel antenna
  • Frequency Range: 2.4 to 2.5 GHz and 5.15 to 5.875 GHz
  • Antenna Gain: 6 dBi
  • MIMO Configuration: 4x4
  • Beamwidth: 60 degrees
  • Connector Type: Four RP-SMA connectors
  • Cable Length: 75 cm integrated leads
  • Form Factor: Sector panel
  • Deployment: Outdoor wireless data networks
Upgrade Your Wireless Coverage with Precision

Choose the Fortinet FANT-04ACAX-0606-D-R to achieve targeted, high efficiency Wi Fi coverage built for enterprise and industrial environments. Order today.
