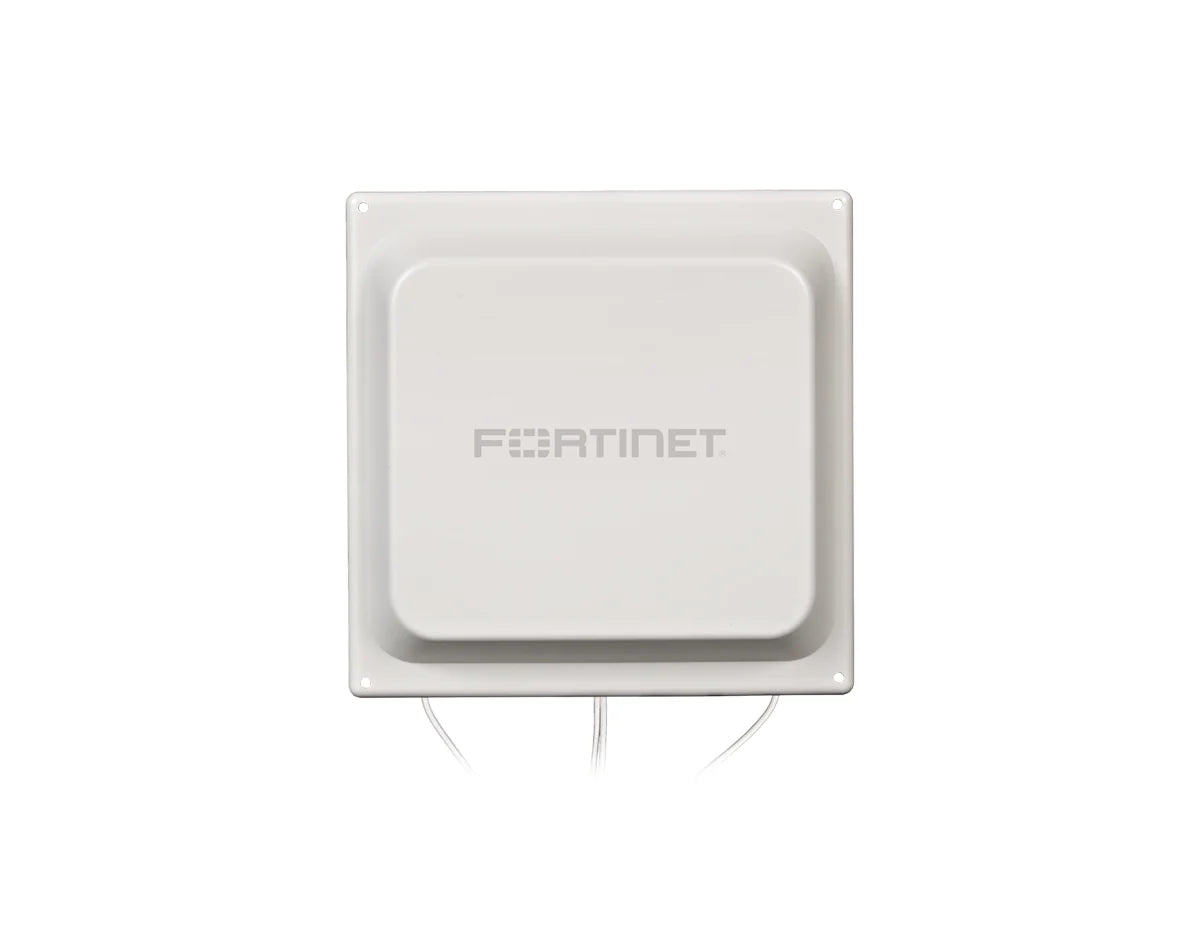

Fortinet FANT-04ACAX-0505-D-R Directional WiFi Antenna
Fortinet FANT-04ACAX-0505-D-R Directional WiFi Antenna

Fortinet FANT-04ACAX-0505-D-R Directional WiFi Antenna

por Fortinet
Desconto de 15%
R$ 3.648,00
R$ 3.108,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Dual-band 2.4/5 GHz, 5 dBi directional gain, 4× RP-SMA connectors, 4x4 MIMO, indoor and outdoor use [/shortdesc]

[properties]

Brand Fortinet
Model FANT-04ACAX-0505-D-R
Product Type Directional Sector Antenna
Antenna Type 4x4 MIMO Sector Panel Antenna
Frequency Bands 2.4 GHz / 5 GHz
Coverage Angle 120° Sector
Antenna Gain 5 dBi (2.4 GHz), 5 dBi (5 GHz)
Directivity Directional
Polarization Dual Slant ±45°
Connector Type 4 × RP-SMA Male
Cable Length 1.2 m attached cables
Environment Indoor / Outdoor
Ingress Protection IP67
Mounting Type Wall Mount

[/properties]

[specifications]

Operating Frequency Range 2400–2500 MHz; 4900–5900 MHz
Bandwidth 100 MHz (2.4 GHz); 1000 MHz (5 GHz)
Vertical Beamwidth 70° (2.4 GHz); 70° (5 GHz)
Horizontal Beamwidth 120° (2.4 GHz); 120° (5 GHz)
VSWR ≤ 2.0
Front-to-Back Ratio ≤ 17 dB (2.4 GHz); ≤ 20 dB (5 GHz)
Port-to-Port Isolation ≤ 20 dB
Nominal Impedance 50 ohms
Maximum Input Power 20 W
Operating Temperature -40 °F to +158 °F (-40 °C to +70 °C)
Mounting Method Wall

[/specifications]

[accesories]

Included in the Box 4 × RP-SMA male cables attached to antenna (1.2 m each)
Optional Mounting Hardware FAN-M22Z-5 adjustable mount

[/accesories]

The Fortinet FANT-04ACAX-0505-D-R is a 120-degree directional sector antenna designed to extend and control wireless coverage in FortiAP environments. Built for 4x4 MIMO operation, it delivers consistent dual-band performance across both 2.4 GHz and 5 GHz frequencies, making it ideal for targeted WiFi deployments where precision and signal efficiency matter.

By concentrating RF energy into a defined coverage area, this antenna helps reduce co-channel interference, improve signal quality, and optimize client connectivity in demanding enterprise and industrial environments.

  • Directional 120° radiation pattern: Enables precise coverage control for corridors, zones, and defined service areas.
  • 5 dBi dual-band gain: Balanced signal strength for reliable 2.4 GHz and 5 GHz performance.
  • 4x4 MIMO design: Supports advanced FortiAP radios for higher throughput and improved client capacity.
  • Four RP-SMA connectors: Seamless integration with compatible Fortinet FortiAP access points.
  • Indoor and outdoor rated enclosure: Suitable for flexible deployment across multiple environments.
  • Enterprise WiFi coverage in hallways and corridors
  • Warehouses and logistics facilities requiring directional coverage
  • Retail aisles and shopping center zones
  • Industrial environments with controlled RF planning
  • Targeted FortiAP expansions without adding additional access points
  • Frequency bands: 2.4–2.5 GHz and 4.9–6.1 GHz
  • Antenna gain: 5 dBi
  • Radiation pattern: 120° directional sector
  • MIMO configuration: 4x4
  • Connectors: 4 × RP-SMA male
  • Cable length: Integrated 1.2 m cables
  • Placement: Indoor and outdoor
  • Compatibility: Fortinet FortiAP series access points

Enhance signal control and maximize FortiAP performance with the Fortinet FANT-04ACAX-0505-D-R. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Dual-band 2.4/5 GHz, 5 dBi directional gain, 4× RP-SMA connectors, 4x4 MIMO, indoor and outdoor use [/shortdesc]

[properties]

Brand Fortinet
Model FANT-04ACAX-0505-D-R
Product Type Directional Sector Antenna
Antenna Type 4x4 MIMO Sector Panel Antenna
Frequency Bands 2.4 GHz / 5 GHz
Coverage Angle 120° Sector
Antenna Gain 5 dBi (2.4 GHz), 5 dBi (5 GHz)
Directivity Directional
Polarization Dual Slant ±45°
Connector Type 4 × RP-SMA Male
Cable Length 1.2 m attached cables
Environment Indoor / Outdoor
Ingress Protection IP67
Mounting Type Wall Mount

[/properties]

[specifications]

Operating Frequency Range 2400–2500 MHz; 4900–5900 MHz
Bandwidth 100 MHz (2.4 GHz); 1000 MHz (5 GHz)
Vertical Beamwidth 70° (2.4 GHz); 70° (5 GHz)
Horizontal Beamwidth 120° (2.4 GHz); 120° (5 GHz)
VSWR ≤ 2.0
Front-to-Back Ratio ≤ 17 dB (2.4 GHz); ≤ 20 dB (5 GHz)
Port-to-Port Isolation ≤ 20 dB
Nominal Impedance 50 ohms
Maximum Input Power 20 W
Operating Temperature -40 °F to +158 °F (-40 °C to +70 °C)
Mounting Method Wall

[/specifications]

[accesories]

Included in the Box 4 × RP-SMA male cables attached to antenna (1.2 m each)
Optional Mounting Hardware FAN-M22Z-5 adjustable mount

[/accesories]

Focused Sector Coverage for High-Performance FortiAP Deployments

The Fortinet FANT-04ACAX-0505-D-R is a 120-degree directional sector antenna designed to extend and control wireless coverage in FortiAP environments. Built for 4x4 MIMO operation, it delivers consistent dual-band performance across both 2.4 GHz and 5 GHz frequencies, making it ideal for targeted WiFi deployments where precision and signal efficiency matter.

By concentrating RF energy into a defined coverage area, this antenna helps reduce co-channel interference, improve signal quality, and optimize client connectivity in demanding enterprise and industrial environments.

Key Benefits & Features
  • Directional 120° radiation pattern: Enables precise coverage control for corridors, zones, and defined service areas.
  • 5 dBi dual-band gain: Balanced signal strength for reliable 2.4 GHz and 5 GHz performance.
  • 4x4 MIMO design: Supports advanced FortiAP radios for higher throughput and improved client capacity.
  • Four RP-SMA connectors: Seamless integration with compatible Fortinet FortiAP access points.
  • Indoor and outdoor rated enclosure: Suitable for flexible deployment across multiple environments.
Ideal Use Cases
  • Enterprise WiFi coverage in hallways and corridors
  • Warehouses and logistics facilities requiring directional coverage
  • Retail aisles and shopping center zones
  • Industrial environments with controlled RF planning
  • Targeted FortiAP expansions without adding additional access points
Technical Specifications
  • Frequency bands: 2.4–2.5 GHz and 4.9–6.1 GHz
  • Antenna gain: 5 dBi
  • Radiation pattern: 120° directional sector
  • MIMO configuration: 4x4
  • Connectors: 4 × RP-SMA male
  • Cable length: Integrated 1.2 m cables
  • Placement: Indoor and outdoor
  • Compatibility: Fortinet FortiAP series access points
Upgrade Your Wireless Coverage with Precision

Enhance signal control and maximize FortiAP performance with the Fortinet FANT-04ACAX-0505-D-R. Order today.
