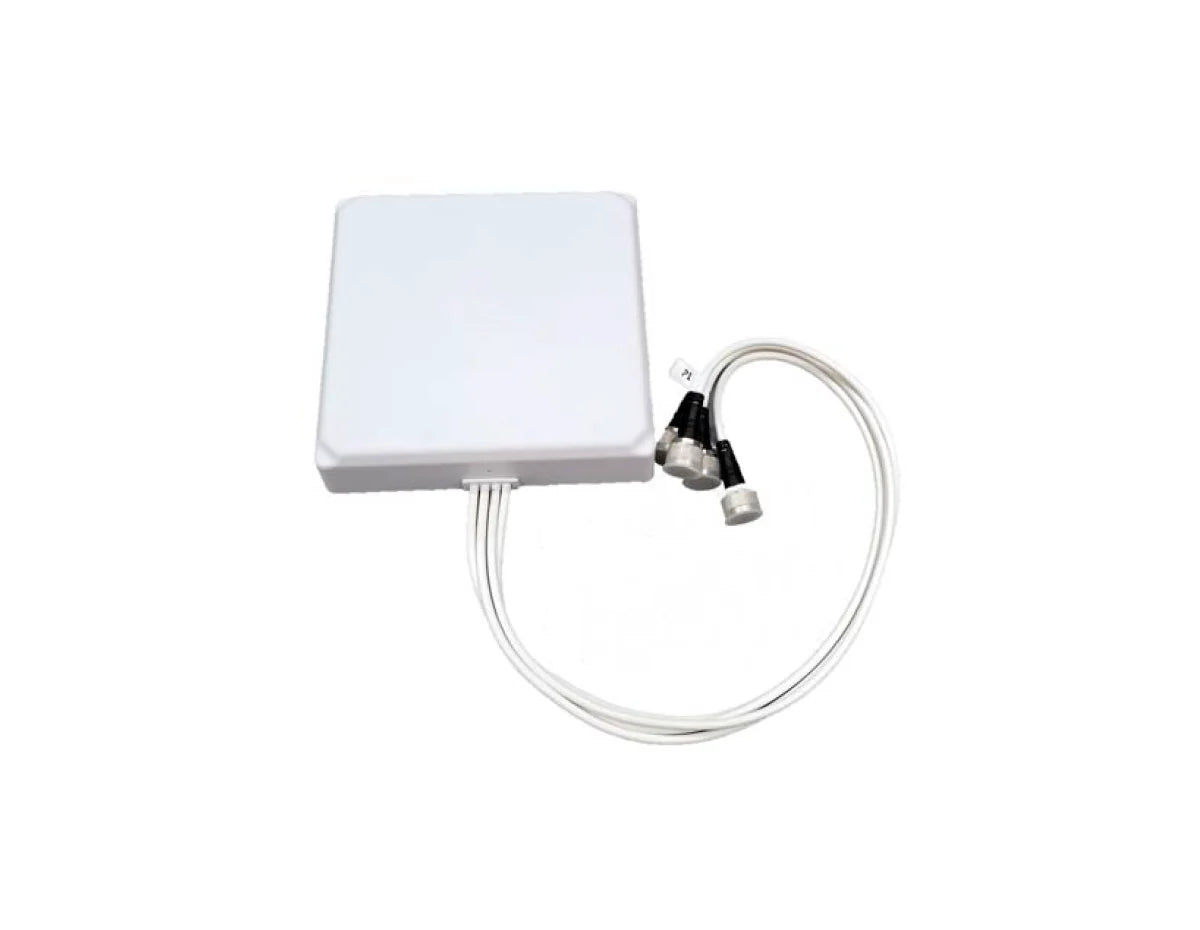

Fortinet FANT-04ABGN-8065-P-N Dual-Band Wi-Fi Patch Antenna
Fortinet FANT-04ABGN-8065-P-N Dual-Band Wi-Fi Patch Antenna

Fortinet FANT-04ABGN-8065-P-N Dual-Band Wi-Fi Patch Antenna

por Fortinet
Desconto de 15%
R$ 10.584,00
R$ 9.000,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Dual-band 2.4–2.5 GHz and 5.1–5.9 GHz operation, 8 dBi and 6.5 dBi gain, directional patch design, 4 x N-Type male connectors, IP66-rated indoor and outdoor use [/shortdesc]

[properties]

Model FANT-04ABGN-8065-P-N
Brand Fortinet
Product Type Wi-Fi Patch Antenna
Antenna Form Type Patch
Frequency Range 2.4–2.5 GHz, 5.1–5.9 GHz
Antenna Gain 8 dBi (2.4 GHz), 6.5 dBi (5 GHz)
Polarization Dual Polarized (Vertical and Horizontal)
Antenna Placement Indoor / Outdoor
Connector Type 4 × N-Type Male
Cable Length 24 in (60.96 cm)
Impedance 50 ohm
Ingress Protection IP66
Mounting Method Universal Articulating Mount
Dimensions (H × W × D) 7.5 × 7.5 × 1.5 in (19.05 × 19.05 × 3.81 cm)
Weight 2.5 lb (1.13 kg)
Operating Temperature −40 °F to +140 °F (−40 °C to +60 °C)

[/properties]

[specifications]

Vertical Beamwidth 65° (2.4 GHz), 70° (5 GHz)
Horizontal Beamwidth 60° (2.4 GHz), 65° (5 GHz)
VSWR < 2.0
Front-to-Back Ratio >13 dB (2.4 GHz), >15 dB (5 GHz)
Port-to-Port Isolation >25 dB (2.4 GHz), >30 dB (5 GHz)
Number of Ports 4
Signaling Type Wi-Fi
Environment Rating Indoor / Outdoor
Compliance Standard IP66

[/specifications]

[accesories]

Included Universal articulating mounting bracket
Optional Mounting FAP-BRKT-MNT-5 compatible mount

[/accesories]

The Fortinet FANT-04ABGN-8065-P-N is a high-performance dual-band patch antenna engineered for controlled Wi-Fi coverage in challenging indoor and outdoor deployments. Designed to complement Fortinet FortiAP access points, this antenna delivers focused signal distribution that improves coverage efficiency while reducing interference in dense or industrial environments.

With optimized beamwidths and a dual-polarized design, the FANT-04ABGN-8065-P-N enables accurate RF planning for warehouses, manufacturing floors, and outdoor installations where predictable signal behavior is critical.

  • Directional patch antenna design: Enables targeted Wi-Fi coverage, ideal for aisles, zones, and controlled coverage areas.
  • Dual-band performance: Supports 2.4 GHz and 5 GHz bands with 8 dBi gain at 2.4 GHz and 6.5 dBi gain at 5 GHz for balanced coverage.
  • Optimized beamwidth: Horizontal beamwidths of 60° and 65° with vertical beamwidths of 65° and 70° simplify RF coverage planning.
  • Industrial-grade construction: IP66-rated enclosure protects against dust and moisture in demanding indoor or outdoor environments.
  • Professional connectivity: Four N-Type male connectors with integrated pigtails support reliable multi-antenna access point configurations.
  • Warehouses and logistics centers requiring focused aisle coverage
  • Manufacturing facilities with controlled Wi-Fi zones
  • Outdoor Wi-Fi deployments exposed to dust and moisture
  • High-density enterprise wireless networks using FortiAP access points
  • Installations where precise RF control and reduced co-channel interference are required
  • Frequency range: 2.4–2.5 GHz and 5.1–5.9 GHz
  • Antenna gain: 8 dBi at 2.4 GHz, 6.5 dBi at 5 GHz
  • Antenna type: Directional patch
  • Beamwidth (horizontal): 60° at 2.4 GHz, 65° at 5 GHz
  • Beamwidth (vertical): 65° at 2.4 GHz, 70° at 5 GHz
  • Connectors: 4 x N-Type male
  • Impedance: 50 ohms
  • Ingress protection: IP66 compliant
  • Operating temperature: -40°F to 140°F (-40°C to 60°C)
  • Dimensions: 7.5 x 7.5 x 1.5 inches

Enhance wireless performance with controlled coverage using the Fortinet FANT-04ABGN-8065-P-N. Order today and optimize your Wi-Fi deployment with confidence.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Dual-band 2.4–2.5 GHz and 5.1–5.9 GHz operation, 8 dBi and 6.5 dBi gain, directional patch design, 4 x N-Type male connectors, IP66-rated indoor and outdoor use [/shortdesc]

[properties]

Model FANT-04ABGN-8065-P-N
Brand Fortinet
Product Type Wi-Fi Patch Antenna
Antenna Form Type Patch
Frequency Range 2.4–2.5 GHz, 5.1–5.9 GHz
Antenna Gain 8 dBi (2.4 GHz), 6.5 dBi (5 GHz)
Polarization Dual Polarized (Vertical and Horizontal)
Antenna Placement Indoor / Outdoor
Connector Type 4 × N-Type Male
Cable Length 24 in (60.96 cm)
Impedance 50 ohm
Ingress Protection IP66
Mounting Method Universal Articulating Mount
Dimensions (H × W × D) 7.5 × 7.5 × 1.5 in (19.05 × 19.05 × 3.81 cm)
Weight 2.5 lb (1.13 kg)
Operating Temperature −40 °F to +140 °F (−40 °C to +60 °C)

[/properties]

[specifications]

Vertical Beamwidth 65° (2.4 GHz), 70° (5 GHz)
Horizontal Beamwidth 60° (2.4 GHz), 65° (5 GHz)
VSWR < 2.0
Front-to-Back Ratio >13 dB (2.4 GHz), >15 dB (5 GHz)
Port-to-Port Isolation >25 dB (2.4 GHz), >30 dB (5 GHz)
Number of Ports 4
Signaling Type Wi-Fi
Environment Rating Indoor / Outdoor
Compliance Standard IP66

[/specifications]

[accesories]

Included Universal articulating mounting bracket
Optional Mounting FAP-BRKT-MNT-5 compatible mount

[/accesories]

Precision Wi-Fi Coverage for Demanding Environments

The Fortinet FANT-04ABGN-8065-P-N is a high-performance dual-band patch antenna engineered for controlled Wi-Fi coverage in challenging indoor and outdoor deployments. Designed to complement Fortinet FortiAP access points, this antenna delivers focused signal distribution that improves coverage efficiency while reducing interference in dense or industrial environments.

With optimized beamwidths and a dual-polarized design, the FANT-04ABGN-8065-P-N enables accurate RF planning for warehouses, manufacturing floors, and outdoor installations where predictable signal behavior is critical.

Key Benefits & Features
  • Directional patch antenna design: Enables targeted Wi-Fi coverage, ideal for aisles, zones, and controlled coverage areas.
  • Dual-band performance: Supports 2.4 GHz and 5 GHz bands with 8 dBi gain at 2.4 GHz and 6.5 dBi gain at 5 GHz for balanced coverage.
  • Optimized beamwidth: Horizontal beamwidths of 60° and 65° with vertical beamwidths of 65° and 70° simplify RF coverage planning.
  • Industrial-grade construction: IP66-rated enclosure protects against dust and moisture in demanding indoor or outdoor environments.
  • Professional connectivity: Four N-Type male connectors with integrated pigtails support reliable multi-antenna access point configurations.
Ideal Use Cases
  • Warehouses and logistics centers requiring focused aisle coverage
  • Manufacturing facilities with controlled Wi-Fi zones
  • Outdoor Wi-Fi deployments exposed to dust and moisture
  • High-density enterprise wireless networks using FortiAP access points
  • Installations where precise RF control and reduced co-channel interference are required
Technical Specifications
  • Frequency range: 2.4–2.5 GHz and 5.1–5.9 GHz
  • Antenna gain: 8 dBi at 2.4 GHz, 6.5 dBi at 5 GHz
  • Antenna type: Directional patch
  • Beamwidth (horizontal): 60° at 2.4 GHz, 65° at 5 GHz
  • Beamwidth (vertical): 65° at 2.4 GHz, 70° at 5 GHz
  • Connectors: 4 x N-Type male
  • Impedance: 50 ohms
  • Ingress protection: IP66 compliant
  • Operating temperature: -40°F to 140°F (-40°C to 60°C)
  • Dimensions: 7.5 x 7.5 x 1.5 inches
Deploy Smarter Wi-Fi Coverage Today

Enhance wireless performance with controlled coverage using the Fortinet FANT-04ABGN-8065-P-N. Order today and optimize your Wi-Fi deployment with confidence.
