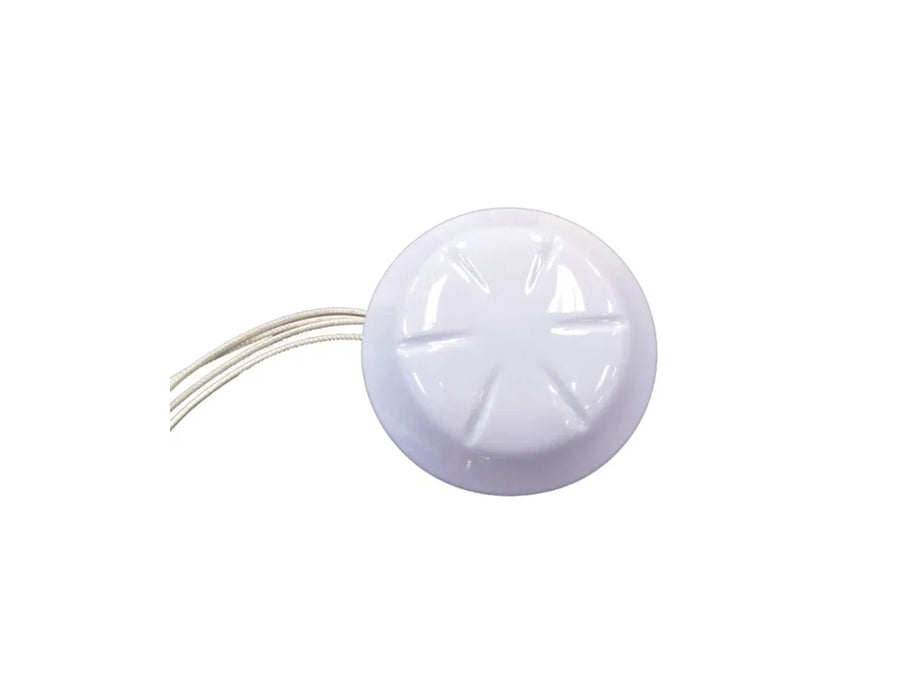

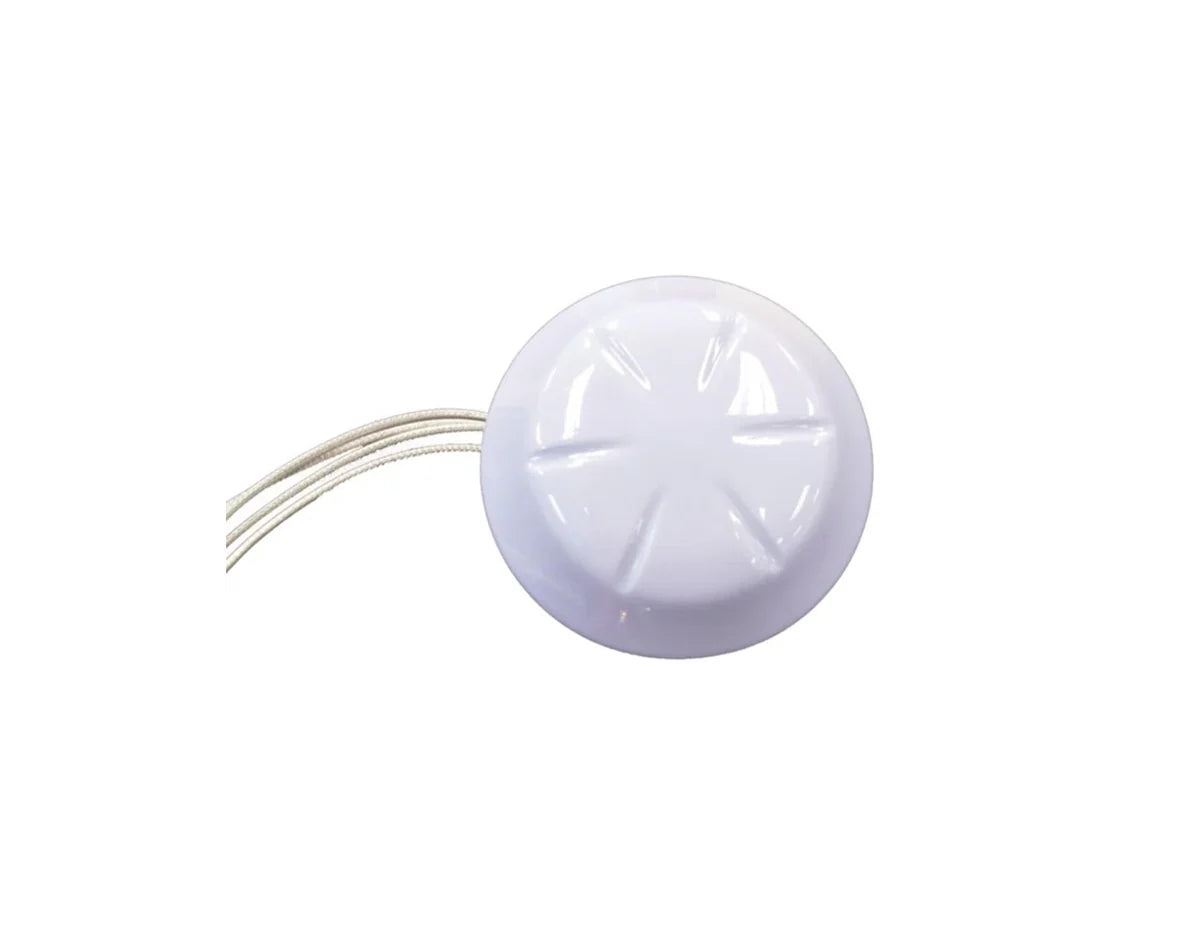

Fortinet FANT-04ABGN-2504-O-R 2.4/5 GHz Omni Micro Wi-Fi Antenna
Fortinet FANT-04ABGN-2504-O-R 2.4/5 GHz Omni Micro Wi-Fi Antenna

Fortinet FANT-04ABGN-2504-O-R 2.4/5 GHz Omni Micro Wi-Fi Antenna

por Fortinet
Desconto de 15%
R$ 4.080,00
R$ 3.468,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]2.4 and 5 GHz dual band, omni-directional radiation, 2.5/4 dBi gain, 4 RP-SMA connectors, compact micro form factor, indoor and outdoor use[/shortdesc]

[properties]

Model FANT-04ABGN-2504-O-R
Product Type Wireless Omni Micro Antenna
Antenna Pattern Omni-directional
Frequency Range 2400–2500 MHz; 4900–5850 MHz
Gain 2.5 dBi (2.4 GHz); 4 dBi (5 GHz)
Polarization Vertical
Connectors 4 × RP-SMA Male
Pigtail Length 36 in. (91.44 cm) with connector
Nominal Impedance 50 ohms
Maximum Power 50 Watts
Mounting Method Surface Mount
Environment Indoor / Outdoor
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Dimensions 3.54 × 1.57 in. (9.0 × 4.0 cm)
Weight 0.27 lbs (124.7 g)

[/properties]

[specifications]

Bandwidth 100 MHz (2.4 GHz); 950 MHz (5 GHz)
Horizontal Beamwidth 360° (2.4 GHz); 360° (5 GHz)
VSWR ≤ 2
Radiation Pattern Omnidirectional

[/specifications]

The Fortinet FANT-04ABGN-2504-O-R is a low-profile dual-band omni-directional Wi-Fi antenna designed for installations where appearance, size, and reliable coverage matter. Engineered for seamless integration with Fortinet access points, this micro antenna delivers consistent 360-degree signal distribution across both 2.4 GHz and 5 GHz bands.

With four integrated dual-band pigtails and RP-SMA male connectors, the antenna supports modern multi-radio FortiAP deployments while maintaining a clean, unobtrusive footprint. Its durable enclosure and wide operating temperature range allow dependable performance in both indoor and outdoor environments.

  • Dual-Band Wi-Fi Support: Operates across 2400–2500 MHz and 4900–5850 MHz to support mixed 2.4 GHz and 5 GHz wireless networks.
  • Omni-Directional Radiation: 360-degree horizontal beamwidth ensures even signal distribution for consistent client connectivity.
  • Compact Micro Design: Aesthetically pleasing form factor ideal for offices, vehicles, and visually sensitive installations.
  • Four RP-SMA Leads: Supports multi-chain MIMO access points with integrated 36-inch pigtail cables.
  • Indoor and Outdoor Rated: Built to operate reliably across a wide temperature range in diverse environments.
  • Enterprise indoor Wi-Fi deployments with aesthetic requirements
  • Vehicle-based wireless communication systems
  • Fleet management and presence detection solutions
  • Retail, office, and hospitality wireless networks
  • Compact Fortinet FortiAP installations
  • Frequency Range: 2400–2500 MHz and 4900–5850 MHz
  • Antenna Gain: 2.5 dBi at 2.4 GHz, 4 dBi at 5 GHz
  • Radiation Pattern: Omni-directional, 360° horizontal beamwidth
  • Polarization: Vertical
  • Connectors: 4 × RP-SMA male
  • Pigtail Length: 36 inches (91.44 cm)
  • Form Factor: Surface mount micro antenna
  • Operating Temperature: -40°C to +70°C
  • Maximum Input Power: 50 W

Choose the Fortinet FANT-04ABGN-2504-O-R for reliable omni-directional coverage in compact, professional deployments. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]2.4 and 5 GHz dual band, omni-directional radiation, 2.5/4 dBi gain, 4 RP-SMA connectors, compact micro form factor, indoor and outdoor use[/shortdesc]

[properties]

Model FANT-04ABGN-2504-O-R
Product Type Wireless Omni Micro Antenna
Antenna Pattern Omni-directional
Frequency Range 2400–2500 MHz; 4900–5850 MHz
Gain 2.5 dBi (2.4 GHz); 4 dBi (5 GHz)
Polarization Vertical
Connectors 4 × RP-SMA Male
Pigtail Length 36 in. (91.44 cm) with connector
Nominal Impedance 50 ohms
Maximum Power 50 Watts
Mounting Method Surface Mount
Environment Indoor / Outdoor
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Dimensions 3.54 × 1.57 in. (9.0 × 4.0 cm)
Weight 0.27 lbs (124.7 g)

[/properties]

[specifications]

Bandwidth 100 MHz (2.4 GHz); 950 MHz (5 GHz)
Horizontal Beamwidth 360° (2.4 GHz); 360° (5 GHz)
VSWR ≤ 2
Radiation Pattern Omnidirectional

[/specifications]

Discreet Omni Coverage for Space-Conscious Wi-Fi Deployments

The Fortinet FANT-04ABGN-2504-O-R is a low-profile dual-band omni-directional Wi-Fi antenna designed for installations where appearance, size, and reliable coverage matter. Engineered for seamless integration with Fortinet access points, this micro antenna delivers consistent 360-degree signal distribution across both 2.4 GHz and 5 GHz bands.

With four integrated dual-band pigtails and RP-SMA male connectors, the antenna supports modern multi-radio FortiAP deployments while maintaining a clean, unobtrusive footprint. Its durable enclosure and wide operating temperature range allow dependable performance in both indoor and outdoor environments.

Key Benefits & Features
  • Dual-Band Wi-Fi Support: Operates across 2400–2500 MHz and 4900–5850 MHz to support mixed 2.4 GHz and 5 GHz wireless networks.
  • Omni-Directional Radiation: 360-degree horizontal beamwidth ensures even signal distribution for consistent client connectivity.
  • Compact Micro Design: Aesthetically pleasing form factor ideal for offices, vehicles, and visually sensitive installations.
  • Four RP-SMA Leads: Supports multi-chain MIMO access points with integrated 36-inch pigtail cables.
  • Indoor and Outdoor Rated: Built to operate reliably across a wide temperature range in diverse environments.
Ideal Use Cases
  • Enterprise indoor Wi-Fi deployments with aesthetic requirements
  • Vehicle-based wireless communication systems
  • Fleet management and presence detection solutions
  • Retail, office, and hospitality wireless networks
  • Compact Fortinet FortiAP installations
Technical Specifications
  • Frequency Range: 2400–2500 MHz and 4900–5850 MHz
  • Antenna Gain: 2.5 dBi at 2.4 GHz, 4 dBi at 5 GHz
  • Radiation Pattern: Omni-directional, 360° horizontal beamwidth
  • Polarization: Vertical
  • Connectors: 4 × RP-SMA male
  • Pigtail Length: 36 inches (91.44 cm)
  • Form Factor: Surface mount micro antenna
  • Operating Temperature: -40°C to +70°C
  • Maximum Input Power: 50 W
Upgrade Your Wi-Fi Coverage with Precision

Choose the Fortinet FANT-04ABGN-2504-O-R for reliable omni-directional coverage in compact, professional deployments. Order today.
