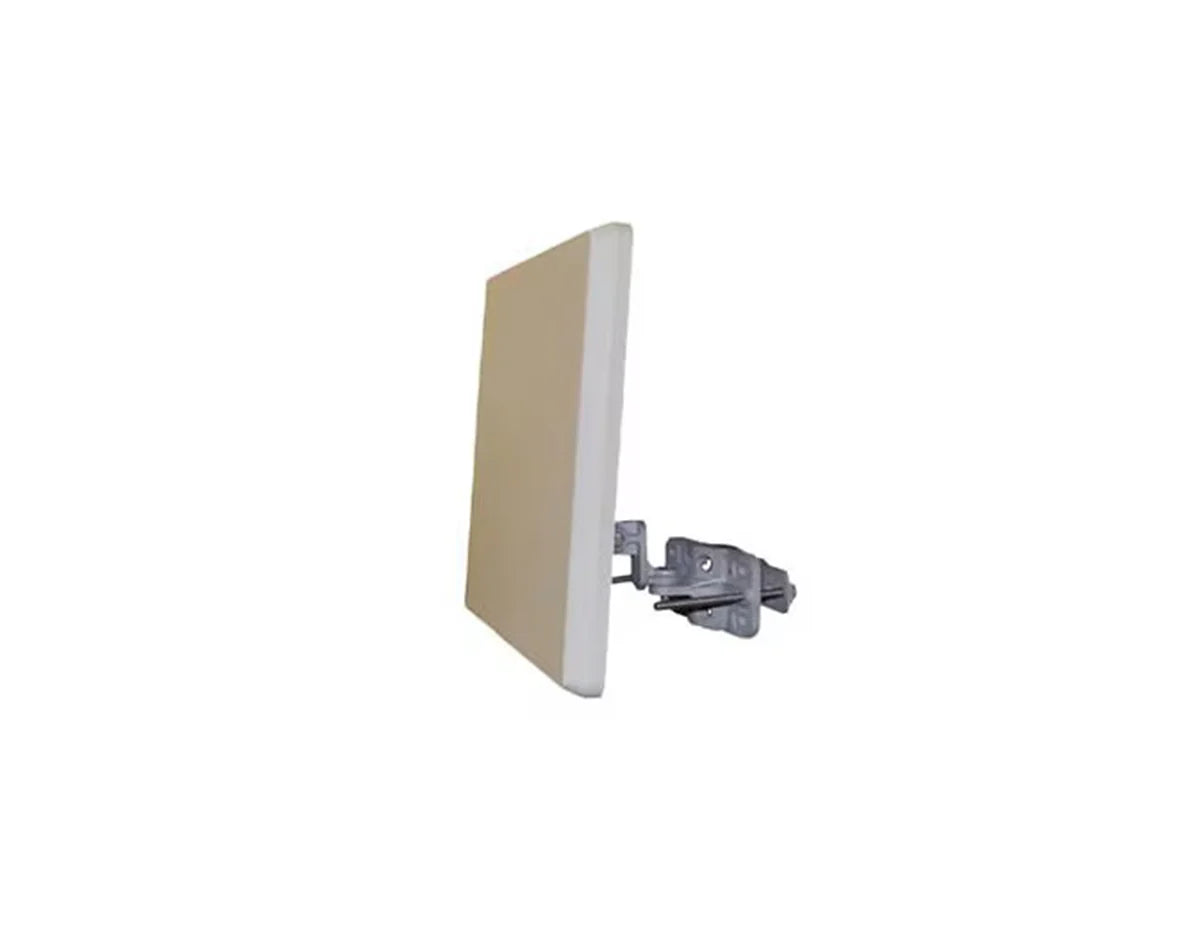

Fortinet FANT-04ABGN-1414-P-N 14dBi Dual-Band Patch Antenna
Fortinet FANT-04ABGN-1414-P-N 14dBi Dual-Band Patch Antenna

Fortinet FANT-04ABGN-1414-P-N 14dBi Dual-Band Patch Antenna

por Fortinet
Desconto de 15%
R$ 9.756,00
R$ 8.304,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 2.4/5GHz dual-band operation, 14 dBi high-gain patch design, 35° directional beamwidth, four N-Type connectors, indoor and outdoor rated [/shortdesc]

[properties]

Model FANT-04ABGN-1414-P-N
Product Type Wireless Patch Antenna
Antenna Type Directional Patch
Frequency Bands 2.4 GHz / 5 GHz
Operating Frequency Range 2400–2500 MHz; 5150–5850 MHz
Antenna Gain 14 dBi (2.4 GHz); 14 dBi (5 GHz)
Polarization Vertical / Linear
Connector Type N-Type Female
Number of Ports 4
Nominal Impedance 50 Ohms
Maximum Input Power 50 W
Environment Indoor / Outdoor
Mounting Method Mast Mounting
Dimensions (H × W × D) 38 × 38 × 3.3 cm (14.96 × 14.96 × 1.3 in)
Weight 3.4 kg (7.5 lb)
Operating Temperature −30 °C to +70 °C (−22 °F to +158 °F)

[/properties]

[specifications]

Bandwidth 100 MHz (2.4 GHz); 700 MHz (5 GHz)
Vertical Beamwidth 35° (2.4 GHz); 35° (5 GHz)
Horizontal Beamwidth 35° (2.4 GHz); 35° (5 GHz)
VSWR ≤ 2
Isolation 28 dB
Pigtail Length Need to order separately
Pole Diameter Compatibility 5 cm to 11.94 cm (1.97 in to 4.7 in)

[/specifications]

[accesories]

Included Industrial Articulating Mount
Optional Cables CABL-3FT-N-NType; CABL-3FT-N-RPSMA

[/accesories]

The Fortinet FANT-04ABGN-1414-P-N is a high-density, dual-band Wi-Fi patch antenna engineered for environments where controlled coverage and interference reduction are critical. Designed to operate across both 2.4 GHz and 5 GHz bands, this antenna delivers a powerful 14 dBi gain with a focused 35-degree beamwidth, making it ideal for targeted wireless coverage.

Built for compatibility with Fortinet FortiAP access points and other enterprise Wi-Fi platforms using N-Type connectors, this antenna enables precise RF planning in challenging indoor and outdoor environments such as warehouses, factories, and large industrial spaces.

  • 14 dBi High-Gain Performance: Extends wireless reach while maintaining signal integrity in dense or reflective environments.
  • Narrow 35° Beamwidth: Minimizes co-channel interference and enables accurate directional coverage planning.
  • Dual-Band 2.4/5 GHz Support: Optimized for modern enterprise Wi-Fi networks requiring flexibility and performance.
  • N-Type Female Connectors: Four rear-mounted connectors support professional-grade RF cabling and installations.
  • Industrial-Grade Construction: Rated for indoor and outdoor use with wide operating temperature tolerance.
  • Warehouse and logistics facility Wi-Fi coverage
  • Manufacturing floors and industrial environments
  • High-density enterprise wireless deployments
  • Targeted aisle or zone-based coverage designs
  • Outdoor point-to-area Wi-Fi extensions
  • Frequency Range: 2400–2500 MHz and 5150–5850 MHz
  • Antenna Gain: 14 dBi (2.4 GHz and 5 GHz)
  • Beamwidth: 35° horizontal and vertical
  • Polarization: Vertical / Linear
  • Impedance: 50 Ohms
  • Maximum Input Power: 50 W
  • Connectors: Four N-Type female connectors
  • Mounting Method: Mast mounting
  • Dimensions: 14.96 × 14.96 × 1.3 inches
  • Operating Temperature: -30°C to +70°C

Engineer precise, high-performance Wi-Fi coverage with the Fortinet FANT-04ABGN-1414-P-N. Order today and optimize your wireless deployment with enterprise-grade accuracy.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 2.4/5GHz dual-band operation, 14 dBi high-gain patch design, 35° directional beamwidth, four N-Type connectors, indoor and outdoor rated [/shortdesc]

[properties]

Model FANT-04ABGN-1414-P-N
Product Type Wireless Patch Antenna
Antenna Type Directional Patch
Frequency Bands 2.4 GHz / 5 GHz
Operating Frequency Range 2400–2500 MHz; 5150–5850 MHz
Antenna Gain 14 dBi (2.4 GHz); 14 dBi (5 GHz)
Polarization Vertical / Linear
Connector Type N-Type Female
Number of Ports 4
Nominal Impedance 50 Ohms
Maximum Input Power 50 W
Environment Indoor / Outdoor
Mounting Method Mast Mounting
Dimensions (H × W × D) 38 × 38 × 3.3 cm (14.96 × 14.96 × 1.3 in)
Weight 3.4 kg (7.5 lb)
Operating Temperature −30 °C to +70 °C (−22 °F to +158 °F)

[/properties]

[specifications]

Bandwidth 100 MHz (2.4 GHz); 700 MHz (5 GHz)
Vertical Beamwidth 35° (2.4 GHz); 35° (5 GHz)
Horizontal Beamwidth 35° (2.4 GHz); 35° (5 GHz)
VSWR ≤ 2
Isolation 28 dB
Pigtail Length Need to order separately
Pole Diameter Compatibility 5 cm to 11.94 cm (1.97 in to 4.7 in)

[/specifications]

[accesories]

Included Industrial Articulating Mount
Optional Cables CABL-3FT-N-NType; CABL-3FT-N-RPSMA

[/accesories]

High-Precision Directional Coverage for Demanding Wi-Fi Deployments

The Fortinet FANT-04ABGN-1414-P-N is a high-density, dual-band Wi-Fi patch antenna engineered for environments where controlled coverage and interference reduction are critical. Designed to operate across both 2.4 GHz and 5 GHz bands, this antenna delivers a powerful 14 dBi gain with a focused 35-degree beamwidth, making it ideal for targeted wireless coverage.

Built for compatibility with Fortinet FortiAP access points and other enterprise Wi-Fi platforms using N-Type connectors, this antenna enables precise RF planning in challenging indoor and outdoor environments such as warehouses, factories, and large industrial spaces.

Key Benefits & Features
  • 14 dBi High-Gain Performance: Extends wireless reach while maintaining signal integrity in dense or reflective environments.
  • Narrow 35° Beamwidth: Minimizes co-channel interference and enables accurate directional coverage planning.
  • Dual-Band 2.4/5 GHz Support: Optimized for modern enterprise Wi-Fi networks requiring flexibility and performance.
  • N-Type Female Connectors: Four rear-mounted connectors support professional-grade RF cabling and installations.
  • Industrial-Grade Construction: Rated for indoor and outdoor use with wide operating temperature tolerance.
Ideal Use Cases
  • Warehouse and logistics facility Wi-Fi coverage
  • Manufacturing floors and industrial environments
  • High-density enterprise wireless deployments
  • Targeted aisle or zone-based coverage designs
  • Outdoor point-to-area Wi-Fi extensions
Technical Specifications
  • Frequency Range: 2400–2500 MHz and 5150–5850 MHz
  • Antenna Gain: 14 dBi (2.4 GHz and 5 GHz)
  • Beamwidth: 35° horizontal and vertical
  • Polarization: Vertical / Linear
  • Impedance: 50 Ohms
  • Maximum Input Power: 50 W
  • Connectors: Four N-Type female connectors
  • Mounting Method: Mast mounting
  • Dimensions: 14.96 × 14.96 × 1.3 inches
  • Operating Temperature: -30°C to +70°C
Upgrade Your Wireless Coverage with Confidence

Engineer precise, high-performance Wi-Fi coverage with the Fortinet FANT-04ABGN-1414-P-N. Order today and optimize your wireless deployment with enterprise-grade accuracy.
