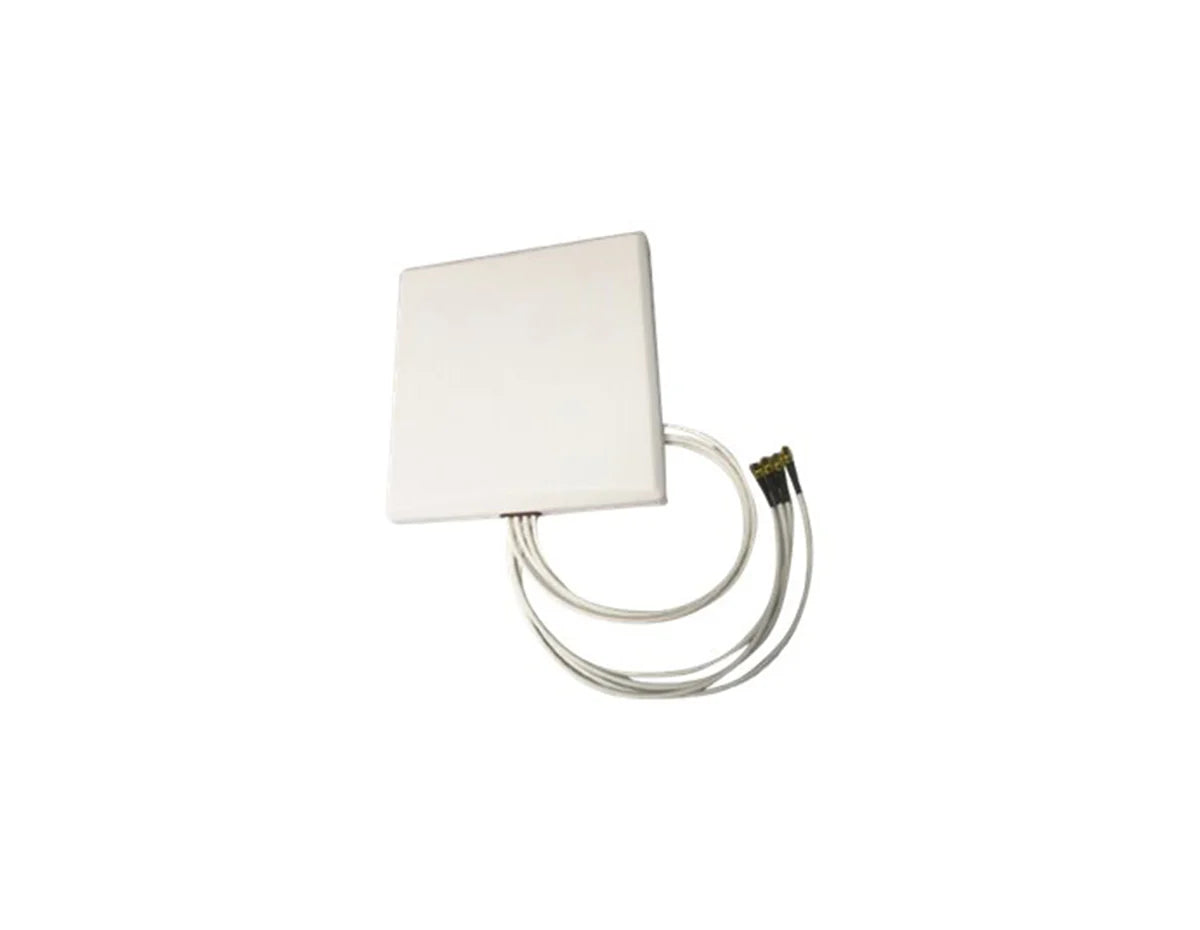

Fortinet FANT-04ABGN-0606-P-R 6 dBi Dual-Band Wi-Fi Patch Antenna
Fortinet FANT-04ABGN-0606-P-R 6 dBi Dual-Band Wi-Fi Patch Antenna

Fortinet FANT-04ABGN-0606-P-R 6 dBi Dual-Band Wi-Fi Patch Antenna

por Fortinet
Desconto de 15%
R$ 8.136,00
R$ 6.924,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 6 dBi directional Wi-Fi patch antenna, dual-band 2.4 and 5 GHz support, four RP-SMA connectors, indoor and outdoor use, articulating wall or mast mount included. [/shortdesc]

[properties]

Model FANT-04ABGN-0606-P-R
Brand Fortinet
Product Type Wi-Fi Patch Antenna
Antenna Pattern Directional (Patch)
Frequency Range 2400–2500 MHz, 5150–5850 MHz
Antenna Gain 6 dBi (2.4 GHz), 6 dBi (5 GHz)
Polarization Vertical
Connector Type 4 × RP-SMA Male
Antenna Placement Indoor / Outdoor
Mounting Style Wall or Mast/Pole
Included Mount Universal Articulating Mount
Nominal Impedance 50 ohms

[/properties]

[specifications]

Vertical Beamwidth 80±20° (2.4 GHz) / 45±20° (5 GHz)
Horizontal Beamwidth 80±20° (2.4 GHz) / 45±20° (5 GHz)
VSWR ≤2.5 (2.4 GHz), ≤2.0 (5 GHz)
Front-to-Back Ratio ≤18 dB
Maximum Input Power 100 Watts
Pigtail Length 36 in. (91.44 cm) with connector
Dimensions (W × D × H) 9.2 × 9.0 × 1.1 in. (23.37 × 22.86 × 2.79 cm)
Weight 2.65 lbs (1.2 kg)
Operating Temperature -40°F to +140°F (-40°C to +60°C)
Environment Rating Indoor / Outdoor

[/specifications]

[accesories]

Included in the Box Universal articulating mount

[/accesories]

The Fortinet FANT-04ABGN-0606-P-R is a high-performance 6 dBi dual-band Wi-Fi patch antenna designed to deliver focused, reliable coverage in environments where signal control matters. Built for compatibility with Fortinet FortiAP platforms, this directional antenna helps optimize RF performance while minimizing co-channel interference in both indoor and outdoor deployments.

With a rugged design rated for harsh conditions and an included articulating mount, the FANT-04ABGN-0606-P-R allows precise antenna alignment for warehouses, manufacturing floors, and outdoor installations that demand consistent wireless coverage.

  • Directional 6 dBi gain: Concentrates RF energy to extend coverage and improve signal quality in targeted areas.
  • Dual-band operation: Supports both 2.4 GHz and 5 GHz frequencies for modern Wi-Fi deployments.
  • Four RP-SMA connectors: Designed for multi-radio FortiAP access points with dual-band antenna leads.
  • Indoor and outdoor rated: Built to withstand moisture, dust, and temperature extremes.
  • Articulating mount included: Enables flexible wall or mast installation with precise positioning.
  • Warehouses requiring focused aisle or zone coverage
  • Manufacturing facilities with challenging RF conditions
  • Outdoor Wi-Fi extensions for yards or loading areas
  • High-interference environments needing controlled signal patterns
  • Fortinet FortiAP deployments requiring directional antennas
  • Frequency range: 2400–2500 MHz and 5150–5850 MHz
  • Antenna gain: 6 dBi at 2.4 GHz and 5 GHz
  • Directivity: Directional patch antenna
  • Polarization: Vertical
  • Connectors: 4 × RP-SMA male
  • Pigtail length: 36 inches (91.44 cm)
  • Impedance: 50 ohms
  • Maximum power: 100 W
  • Operating temperature: −40°F to +140°F (−40°C to +60°C)
  • Mounting: Wall or mast/pole mounting

Deploy the Fortinet FANT-04ABGN-0606-P-R to achieve precise, high-performance Wi-Fi coverage where it matters most. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 6 dBi directional Wi-Fi patch antenna, dual-band 2.4 and 5 GHz support, four RP-SMA connectors, indoor and outdoor use, articulating wall or mast mount included. [/shortdesc]

[properties]

Model FANT-04ABGN-0606-P-R
Brand Fortinet
Product Type Wi-Fi Patch Antenna
Antenna Pattern Directional (Patch)
Frequency Range 2400–2500 MHz, 5150–5850 MHz
Antenna Gain 6 dBi (2.4 GHz), 6 dBi (5 GHz)
Polarization Vertical
Connector Type 4 × RP-SMA Male
Antenna Placement Indoor / Outdoor
Mounting Style Wall or Mast/Pole
Included Mount Universal Articulating Mount
Nominal Impedance 50 ohms

[/properties]

[specifications]

Vertical Beamwidth 80±20° (2.4 GHz) / 45±20° (5 GHz)
Horizontal Beamwidth 80±20° (2.4 GHz) / 45±20° (5 GHz)
VSWR ≤2.5 (2.4 GHz), ≤2.0 (5 GHz)
Front-to-Back Ratio ≤18 dB
Maximum Input Power 100 Watts
Pigtail Length 36 in. (91.44 cm) with connector
Dimensions (W × D × H) 9.2 × 9.0 × 1.1 in. (23.37 × 22.86 × 2.79 cm)
Weight 2.65 lbs (1.2 kg)
Operating Temperature -40°F to +140°F (-40°C to +60°C)
Environment Rating Indoor / Outdoor

[/specifications]

[accesories]

Included in the Box Universal articulating mount

[/accesories]

Targeted Dual-Band Coverage for Demanding Wireless Environments

The Fortinet FANT-04ABGN-0606-P-R is a high-performance 6 dBi dual-band Wi-Fi patch antenna designed to deliver focused, reliable coverage in environments where signal control matters. Built for compatibility with Fortinet FortiAP platforms, this directional antenna helps optimize RF performance while minimizing co-channel interference in both indoor and outdoor deployments.

With a rugged design rated for harsh conditions and an included articulating mount, the FANT-04ABGN-0606-P-R allows precise antenna alignment for warehouses, manufacturing floors, and outdoor installations that demand consistent wireless coverage.

Key Benefits & Features
  • Directional 6 dBi gain: Concentrates RF energy to extend coverage and improve signal quality in targeted areas.
  • Dual-band operation: Supports both 2.4 GHz and 5 GHz frequencies for modern Wi-Fi deployments.
  • Four RP-SMA connectors: Designed for multi-radio FortiAP access points with dual-band antenna leads.
  • Indoor and outdoor rated: Built to withstand moisture, dust, and temperature extremes.
  • Articulating mount included: Enables flexible wall or mast installation with precise positioning.
Ideal Use Cases
  • Warehouses requiring focused aisle or zone coverage
  • Manufacturing facilities with challenging RF conditions
  • Outdoor Wi-Fi extensions for yards or loading areas
  • High-interference environments needing controlled signal patterns
  • Fortinet FortiAP deployments requiring directional antennas
Technical Specifications
  • Frequency range: 2400–2500 MHz and 5150–5850 MHz
  • Antenna gain: 6 dBi at 2.4 GHz and 5 GHz
  • Directivity: Directional patch antenna
  • Polarization: Vertical
  • Connectors: 4 × RP-SMA male
  • Pigtail length: 36 inches (91.44 cm)
  • Impedance: 50 ohms
  • Maximum power: 100 W
  • Operating temperature: −40°F to +140°F (−40°C to +60°C)
  • Mounting: Wall or mast/pole mounting
Upgrade Your Wireless Coverage with Confidence

Deploy the Fortinet FANT-04ABGN-0606-P-R to achieve precise, high-performance Wi-Fi coverage where it matters most. Order today.
