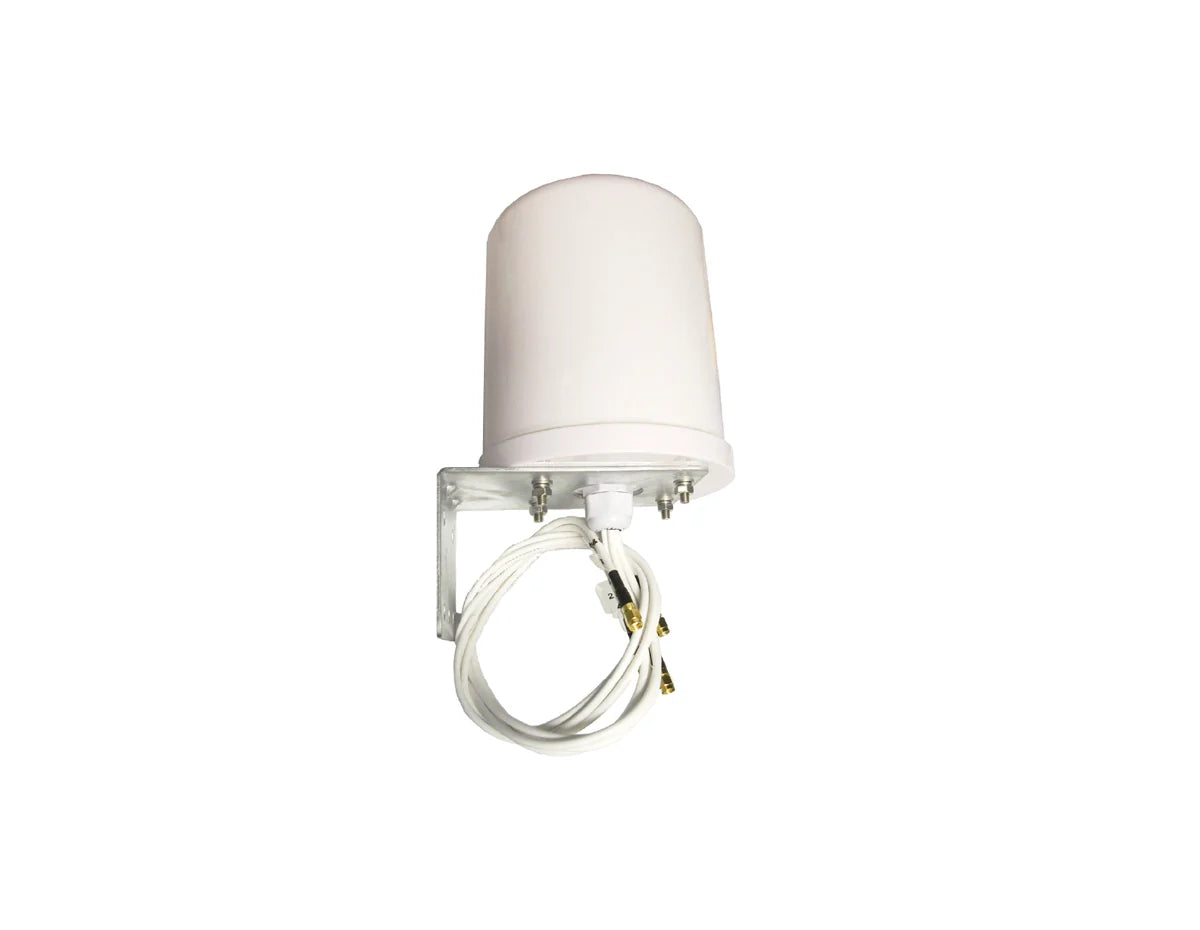

Fortinet FANT-04ABGN-0606-O-R 6 dBi Dual Band Wi-Fi Omni Antenna
Fortinet FANT-04ABGN-0606-O-R 6 dBi Dual Band Wi-Fi Omni Antenna

Fortinet FANT-04ABGN-0606-O-R 6 dBi Dual Band Wi-Fi Omni Antenna

por Fortinet
Desconto de 15%
R$ 8.952,00
R$ 7.620,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]6 dBi gain, dual band 2.4 and 5 GHz, omnidirectional coverage, indoor and outdoor use, 4 RP-SMA connectors[/shortdesc]

[properties]

Model FANT-04ABGN-0606-O-R
Brand Fortinet
Product Type Wi-Fi Omni-Directional Antenna
Frequency Range 2400–2500 MHz, 5150–5850 MHz
Antenna Gain 6 dBi (2.4 GHz), 6 dBi (5 GHz)
Directivity Omni-directional
Polarization Vertical
Connector Type 4 × RP-SMA Male
Impedance 50 ohms
Environment Indoor / Outdoor
Mounting Method Mast or Wall Mount
Operating Temperature −40°F to +158°F (−40°C to +70°C)
Dimensions (W × H) 5.9 in × 7 in (14.99 cm × 17.78 cm)
Weight 2.64 lbs (1.2 kg)

[/properties]

[specifications]

Bandwidth 100 MHz (2.4 GHz), 700 MHz (5 GHz)
Horizontal Beamwidth 360° (2.4 GHz / 5 GHz)
Vertical Beamwidth 20° (2.4 GHz), 45° (5 GHz)
VSWR ≤ 2.0 (2.4 GHz), ≤ 2.0 (5 GHz)
Isolation ≤ −15 dB
Maximum Input Power 10 Watts
Lightning Protection Not DC Grounded
Wind Load Rating 134 mph (216 km/h)
Pigtail Length 36 in (91.44 cm) with connector
Mast Diameter Support 1.37 in – 1.97 in (3.48 cm – 5.0 cm)

[/specifications]

[accesories]

Included in the Box L-Bracket for Mast and Wall Mounting (included in the box)

[/accesories]

The Fortinet FANT-04ABGN-0606-O-R is a ruggedized dual band Wi-Fi omnidirectional antenna designed to extend and stabilize wireless coverage in challenging indoor and outdoor environments. Optimized for Fortinet FortiAP access points, this antenna delivers uniform 360 degree signal distribution while maintaining strong performance in areas exposed to dust, moisture, and temperature extremes.

With a 6 dBi gain across both 2.4 GHz and 5 GHz bands, the FANT-04ABGN-0606-O-R improves signal reach and reliability for warehouses, manufacturing floors, campuses, and outdoor installations where standard internal antennas fall short.

  • 6 dBi Omnidirectional Gain: Enhances Wi-Fi coverage radius while maintaining even signal distribution across large open spaces.
  • Dual Band Operation: Supports both 2.4 GHz and 5 GHz frequencies for modern enterprise wireless networks.
  • Industrial Grade Design: Built to withstand harsh environments including dust, moisture, and wide temperature ranges.
  • Four RP-SMA Connectors: Designed for multi-radio FortiAP deployments with flexible port mapping.
  • Flexible Mounting Options: Includes L-bracket for mast or wall mounting to support diverse installation scenarios.
  • Warehouses and logistics centers
  • Manufacturing and industrial facilities
  • Outdoor Wi-Fi coverage zones
  • Large open indoor spaces
  • Enterprise FortiAP deployments requiring external antennas
  • Frequency Range: 2400–2500 MHz and 5150–5850 MHz
  • Antenna Gain: 6 dBi
  • Polarization: Vertical
  • Horizontal Beamwidth: 360 degrees
  • Vertical Beamwidth: 20 degrees at 2.4 GHz, 45 degrees at 5 GHz
  • Connectors: 4 × RP-SMA male
  • Pigtail Length: 36 inches
  • Operating Temperature: −40°F to 158°F (−40°C to 70°C)
  • Mounting: Mast or wall mount with included L-bracket

Deploy reliable enterprise Wi-Fi with the Fortinet FANT-04ABGN-0606-O-R. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]6 dBi gain, dual band 2.4 and 5 GHz, omnidirectional coverage, indoor and outdoor use, 4 RP-SMA connectors[/shortdesc]

[properties]

Model FANT-04ABGN-0606-O-R
Brand Fortinet
Product Type Wi-Fi Omni-Directional Antenna
Frequency Range 2400–2500 MHz, 5150–5850 MHz
Antenna Gain 6 dBi (2.4 GHz), 6 dBi (5 GHz)
Directivity Omni-directional
Polarization Vertical
Connector Type 4 × RP-SMA Male
Impedance 50 ohms
Environment Indoor / Outdoor
Mounting Method Mast or Wall Mount
Operating Temperature −40°F to +158°F (−40°C to +70°C)
Dimensions (W × H) 5.9 in × 7 in (14.99 cm × 17.78 cm)
Weight 2.64 lbs (1.2 kg)

[/properties]

[specifications]

Bandwidth 100 MHz (2.4 GHz), 700 MHz (5 GHz)
Horizontal Beamwidth 360° (2.4 GHz / 5 GHz)
Vertical Beamwidth 20° (2.4 GHz), 45° (5 GHz)
VSWR ≤ 2.0 (2.4 GHz), ≤ 2.0 (5 GHz)
Isolation ≤ −15 dB
Maximum Input Power 10 Watts
Lightning Protection Not DC Grounded
Wind Load Rating 134 mph (216 km/h)
Pigtail Length 36 in (91.44 cm) with connector
Mast Diameter Support 1.37 in – 1.97 in (3.48 cm – 5.0 cm)

[/specifications]

[accesories]

Included in the Box L-Bracket for Mast and Wall Mounting (included in the box)

[/accesories]

Consistent Omnidirectional Coverage for Demanding Environments

The Fortinet FANT-04ABGN-0606-O-R is a ruggedized dual band Wi-Fi omnidirectional antenna designed to extend and stabilize wireless coverage in challenging indoor and outdoor environments. Optimized for Fortinet FortiAP access points, this antenna delivers uniform 360 degree signal distribution while maintaining strong performance in areas exposed to dust, moisture, and temperature extremes.

With a 6 dBi gain across both 2.4 GHz and 5 GHz bands, the FANT-04ABGN-0606-O-R improves signal reach and reliability for warehouses, manufacturing floors, campuses, and outdoor installations where standard internal antennas fall short.

Key Benefits & Features
  • 6 dBi Omnidirectional Gain: Enhances Wi-Fi coverage radius while maintaining even signal distribution across large open spaces.
  • Dual Band Operation: Supports both 2.4 GHz and 5 GHz frequencies for modern enterprise wireless networks.
  • Industrial Grade Design: Built to withstand harsh environments including dust, moisture, and wide temperature ranges.
  • Four RP-SMA Connectors: Designed for multi-radio FortiAP deployments with flexible port mapping.
  • Flexible Mounting Options: Includes L-bracket for mast or wall mounting to support diverse installation scenarios.
Ideal Use Cases
  • Warehouses and logistics centers
  • Manufacturing and industrial facilities
  • Outdoor Wi-Fi coverage zones
  • Large open indoor spaces
  • Enterprise FortiAP deployments requiring external antennas
Technical Specifications
  • Frequency Range: 2400–2500 MHz and 5150–5850 MHz
  • Antenna Gain: 6 dBi
  • Polarization: Vertical
  • Horizontal Beamwidth: 360 degrees
  • Vertical Beamwidth: 20 degrees at 2.4 GHz, 45 degrees at 5 GHz
  • Connectors: 4 × RP-SMA male
  • Pigtail Length: 36 inches
  • Operating Temperature: −40°F to 158°F (−40°C to 70°C)
  • Mounting: Mast or wall mount with included L-bracket
Upgrade Your Wireless Coverage Today

Deploy reliable enterprise Wi-Fi with the Fortinet FANT-04ABGN-0606-O-R. Order today.
