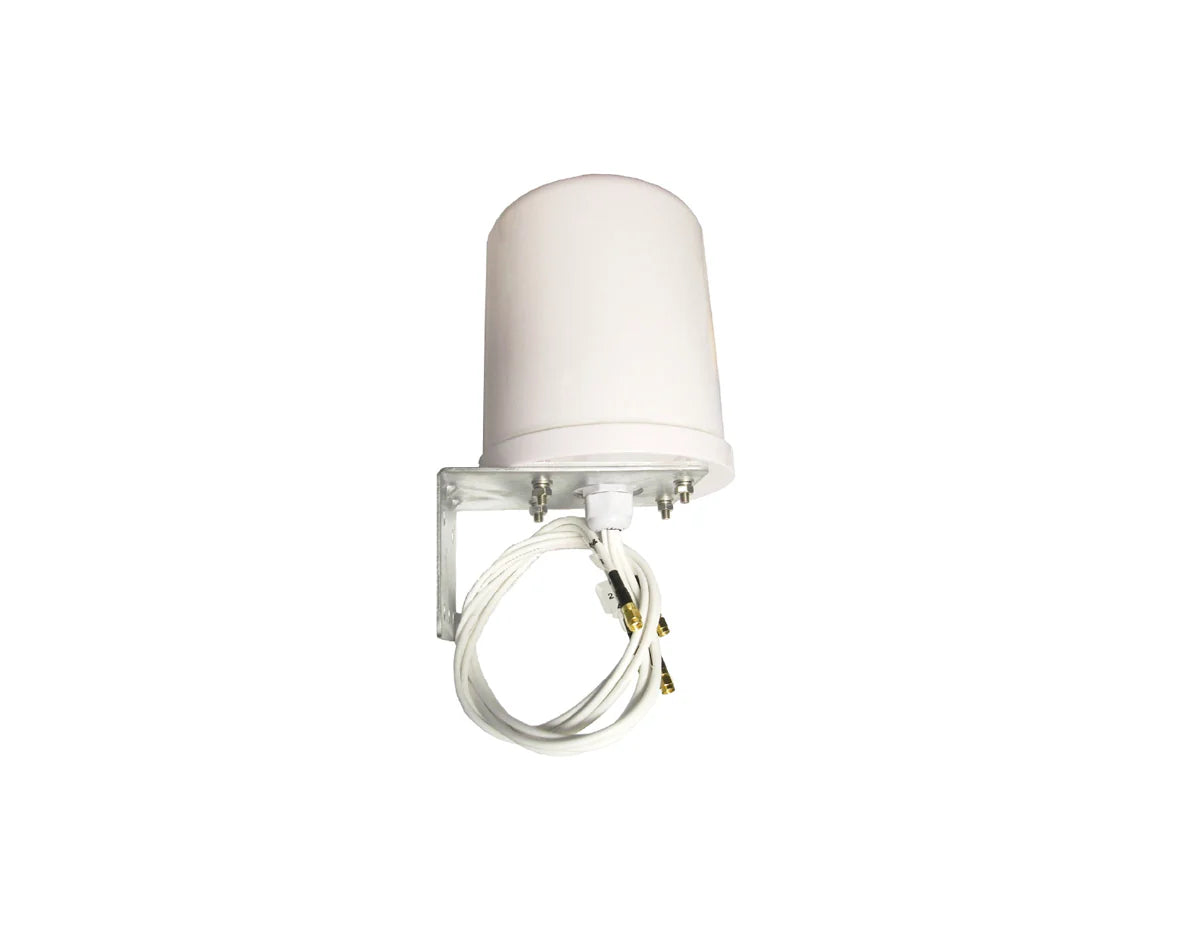

Fortinet FANT-04ABGN-0606-O-N 6 dBi Omnidirectional Antenna
Fortinet FANT-04ABGN-0606-O-N 6 dBi Omnidirectional Antenna

Fortinet FANT-04ABGN-0606-O-N 6 dBi Omnidirectional Antenna

por Fortinet
Desconto de 15%
R$ 8.952,00
R$ 7.620,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]6 dBi gain, dual-band Wi-Fi, omnidirectional coverage, outdoor rated design, wall or mast mounting, N-type connectors[/shortdesc]

[properties]

Brand Fortinet
Model FANT-04ABGN-0606-O-N
Product Type Wi-Fi Omni-Directional Antenna
Frequency Range 2400–2500 MHz; 5150–5850 MHz
Antenna Gain 6 dBi (2.4 GHz); 6 dBi (5 GHz)
Directivity Omni-directional
Polarization Vertical
Connector Type 4 × N-Type Male
Cable Length 36 in (91.44 cm)
Nominal Impedance 50 Ohm
Maximum Power 10 W
Mounting Method Mast or Wall Mount
Environment Indoor / Outdoor
Operating Temperature -40°F to +158°F (-40°C to +70°C)
Wind Load Rating 134 mph (216 km/h)
Dimensions (W × H) 5.9 in × 7 in (14.99 cm × 17.78 cm)
Weight 2.64 lbs (1.2 kg)

[/properties]

[specifications]

Frequency Bands 2.4 GHz / 5 GHz
Bandwidth 100 MHz (2.4 GHz); 700 MHz (5 GHz)
Vertical Beamwidth 20° (2.4 GHz); 45° (5 GHz)
Horizontal Beamwidth 360°
VSWR ≤ 2.2 (2.4 GHz); ≤ 2.0 (5 GHz)
Isolation ≤ -15 dB
Lightning Protection Not DC Grounded
Ingress Protection Not specified (Ruggedized for Dust/Moisture)

[/specifications]

[accesories]

Included L-Bracket for Mast and Wall Mounting (included in the box)

[/accesories]

The Fortinet FANT-04ABGN-0606-O-N is a ruggedized omnidirectional antenna designed to enhance wireless coverage for FortiAP deployments in indoor and outdoor environments. Built for reliability in harsh conditions, it delivers consistent signal performance across large areas such as warehouses, manufacturing floors, campuses, and outdoor facilities.

With dual-band support and a 6 dBi gain, this antenna improves signal reach and stability while maintaining full compatibility with a wide range of Fortinet FortiAP and FortiAP Universal Series access points.

  • 6 dBi Omnidirectional Gain: Provides uniform 360-degree horizontal coverage, ideal for broad-area wireless deployments.
  • Dual-Band Frequency Support: Operates across 2.4 GHz and 5 GHz bands for flexible Wi-Fi network design.
  • Outdoor-Ready Construction: Engineered to withstand moisture, dust, temperature extremes, and high wind conditions.
  • Flexible Mounting Options: Includes an L-bracket for secure wall or mast installation.
  • Enterprise FortiAP Compatibility: Designed specifically for Fortinet access points and Universal Series models.
  • Warehouses and logistics centers
  • Manufacturing and industrial facilities
  • Outdoor campus or yard coverage
  • Large indoor open spaces
  • Enterprise FortiAP wireless expansions
  • Antenna Type: Omnidirectional
  • Antenna Gain: 6 dBi
  • Frequency Range: 2400–2500 MHz, 5150–5850 MHz
  • Connectors: 4 × N-Type Male
  • Cable Length: 36 inches
  • Polarization: Vertical
  • Operating Temperature: -40°F to 158°F
  • Mounting: Wall or mast mount

Designed for performance and durability, the Fortinet FANT-04ABGN-0606-O-N is the ideal antenna upgrade for professional FortiAP deployments. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]6 dBi gain, dual-band Wi-Fi, omnidirectional coverage, outdoor rated design, wall or mast mounting, N-type connectors[/shortdesc]

[properties]

Brand Fortinet
Model FANT-04ABGN-0606-O-N
Product Type Wi-Fi Omni-Directional Antenna
Frequency Range 2400–2500 MHz; 5150–5850 MHz
Antenna Gain 6 dBi (2.4 GHz); 6 dBi (5 GHz)
Directivity Omni-directional
Polarization Vertical
Connector Type 4 × N-Type Male
Cable Length 36 in (91.44 cm)
Nominal Impedance 50 Ohm
Maximum Power 10 W
Mounting Method Mast or Wall Mount
Environment Indoor / Outdoor
Operating Temperature -40°F to +158°F (-40°C to +70°C)
Wind Load Rating 134 mph (216 km/h)
Dimensions (W × H) 5.9 in × 7 in (14.99 cm × 17.78 cm)
Weight 2.64 lbs (1.2 kg)

[/properties]

[specifications]

Frequency Bands 2.4 GHz / 5 GHz
Bandwidth 100 MHz (2.4 GHz); 700 MHz (5 GHz)
Vertical Beamwidth 20° (2.4 GHz); 45° (5 GHz)
Horizontal Beamwidth 360°
VSWR ≤ 2.2 (2.4 GHz); ≤ 2.0 (5 GHz)
Isolation ≤ -15 dB
Lightning Protection Not DC Grounded
Ingress Protection Not specified (Ruggedized for Dust/Moisture)

[/specifications]

[accesories]

Included L-Bracket for Mast and Wall Mounting (included in the box)

[/accesories]

Extend FortiAP Wireless Coverage in Demanding Environments

The Fortinet FANT-04ABGN-0606-O-N is a ruggedized omnidirectional antenna designed to enhance wireless coverage for FortiAP deployments in indoor and outdoor environments. Built for reliability in harsh conditions, it delivers consistent signal performance across large areas such as warehouses, manufacturing floors, campuses, and outdoor facilities.

With dual-band support and a 6 dBi gain, this antenna improves signal reach and stability while maintaining full compatibility with a wide range of Fortinet FortiAP and FortiAP Universal Series access points.

Key Benefits & Features
  • 6 dBi Omnidirectional Gain: Provides uniform 360-degree horizontal coverage, ideal for broad-area wireless deployments.
  • Dual-Band Frequency Support: Operates across 2.4 GHz and 5 GHz bands for flexible Wi-Fi network design.
  • Outdoor-Ready Construction: Engineered to withstand moisture, dust, temperature extremes, and high wind conditions.
  • Flexible Mounting Options: Includes an L-bracket for secure wall or mast installation.
  • Enterprise FortiAP Compatibility: Designed specifically for Fortinet access points and Universal Series models.
Ideal Use Cases
  • Warehouses and logistics centers
  • Manufacturing and industrial facilities
  • Outdoor campus or yard coverage
  • Large indoor open spaces
  • Enterprise FortiAP wireless expansions
Technical Specifications
  • Antenna Type: Omnidirectional
  • Antenna Gain: 6 dBi
  • Frequency Range: 2400–2500 MHz, 5150–5850 MHz
  • Connectors: 4 × N-Type Male
  • Cable Length: 36 inches
  • Polarization: Vertical
  • Operating Temperature: -40°F to 158°F
  • Mounting: Wall or mast mount
Upgrade Your Wireless Reach Today

Designed for performance and durability, the Fortinet FANT-04ABGN-0606-O-N is the ideal antenna upgrade for professional FortiAP deployments. Order today.
