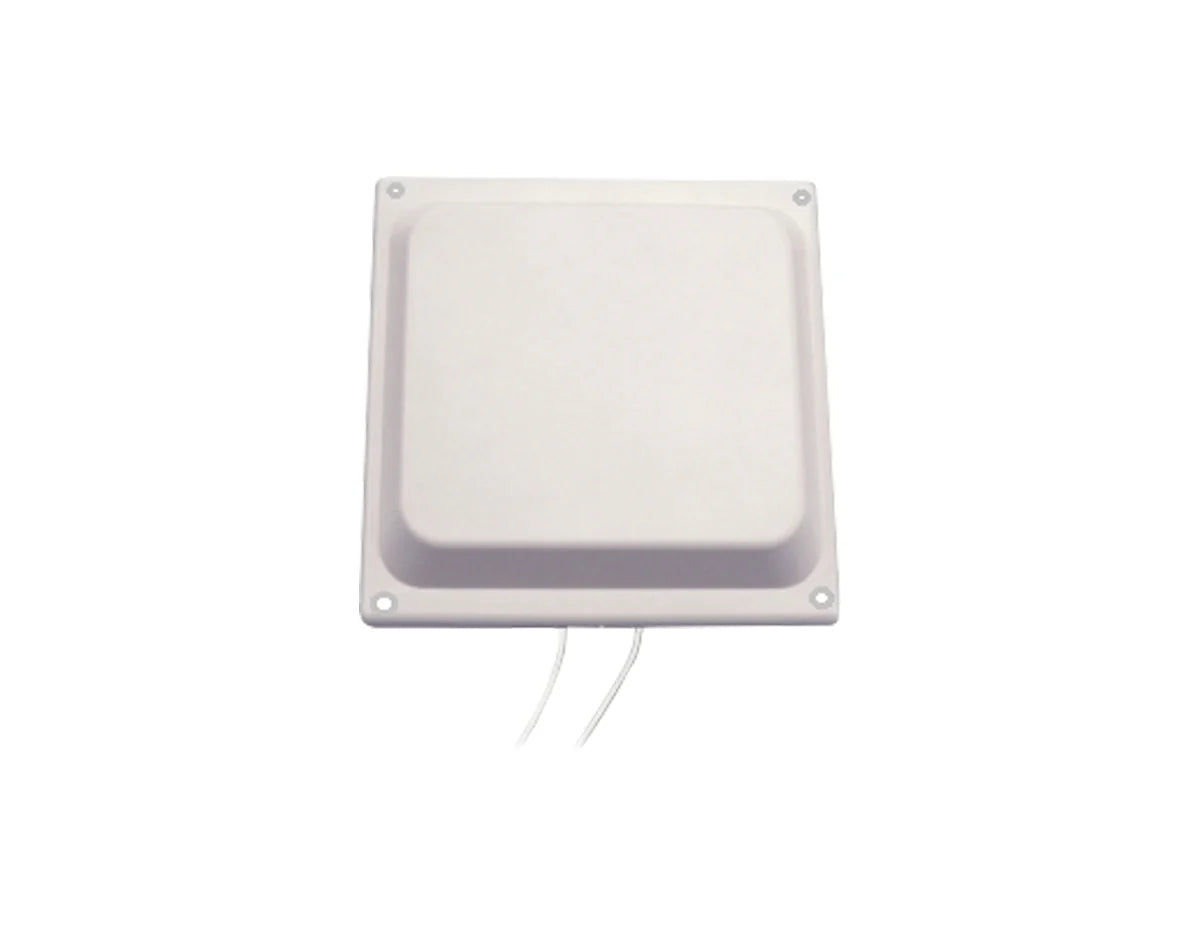

Fortinet FANT-02ACAX-0505-D-R 5 dBi Directional WiFi Antenna
Fortinet FANT-02ACAX-0505-D-R 5 dBi Directional WiFi Antenna

Fortinet FANT-02ACAX-0505-D-R 5 dBi Directional WiFi Antenna

por Fortinet
Desconto de 15%
R$ 2.832,00
R$ 2.412,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 5 dBi directional sector antenna, dual band 2.4 and 5 GHz, 2x2 MIMO support, RP-SMA connectors, indoor and outdoor installation [/shortdesc]

[properties]

Model FANT-02ACAX-0505-D-R
Brand Fortinet
Product Type Directional Wi-Fi Sector Antenna
Antenna Pattern Directional Sector (120°)
Gain 5 dBi (2.4 GHz), 5 dBi (5 GHz)
Frequency Range 2.4–2.5 GHz, 4.9–5.9 GHz
Polarization Dual Slant ±45°
Connector Type 2 × RP-SMA Male
Number of Elements 2-element (2×2 MIMO)
Environment Indoor / Outdoor
Ingress Protection IP67
Mounting Wall Mount
Compatibility FortiAP models with 2 × RP-SMA connectors

[/properties]

[specifications]

Horizontal Beamwidth 120° (2.4 GHz / 5 GHz)
Vertical Beamwidth 70° (2.4 GHz / 5 GHz)
VSWR ≤ 2.0
Front-to-Back Ratio ≤ 17 dB (2.4 GHz), ≤ 20 dB (5 GHz)
Port-to-Port Isolation ≤ 20 dB
Nominal Impedance 50 Ohms
Maximum Input Power 20 W
Cable Length 24 in. RG-316
Operating Temperature −40 °C to +70 °C (−40 °F to +158 °F)
Wind Load 220 km/h

[/specifications]

[accesories]

Optional Mounting Hardware FAN-M22Z-5 Adjustable Mount

[/accesories]

The Fortinet FANT-02ACAX-0505-D-R is a dual-band directional sector antenna designed to deliver controlled, predictable WiFi coverage in targeted areas. Built for 2x2 MIMO deployments, this antenna enhances signal focus and reduces co-channel interference, making it ideal for structured wireless designs using Fortinet FortiAP access points.

With a 120-degree sector radiation pattern and 5 dBi gain, the antenna concentrates RF energy where it is needed most. Its lightweight, UV-protected radome supports reliable operation in both indoor and outdoor environments, ensuring consistent performance across a wide range of enterprise and commercial deployments.

  • 5 dBi directional gain: Improves signal reach and stability while minimizing unnecessary RF spill into adjacent areas.
  • Dual-band operation: Supports both 2.4 GHz and 5 GHz bands for flexible WiFi planning and device compatibility.
  • 2x2 MIMO optimized: Designed specifically for modern FortiAP access points requiring dual-element antenna configurations.
  • 120-degree sector pattern: Ideal for covering hallways, courtyards, aisles, and rectangular spaces with precision.
  • RP-SMA connectivity: Two RP-SMA male connectors ensure direct compatibility with supported Fortinet FortiAP models.
  • Retail stores and shopping centers
  • Office corridors and long hallways
  • Warehouses and logistics facilities
  • Educational campuses and courtyards
  • Targeted indoor or outdoor WiFi zones
  • Antenna type: Directional sector antenna
  • Gain: 5 dBi
  • Frequency range: 2.4 to 2.5 GHz and 4.9 to 5.9 GHz
  • MIMO configuration: 2x2
  • Beamwidth: 120-degree sector
  • Connectors: 2 x RP-SMA male
  • Mounting: Indoor or outdoor installation
  • Construction: Lightweight, UV-protected plastic radome

Deploy precise, interference-controlled WiFi coverage with the Fortinet FANT-02ACAX-0505-D-R. Order today and optimize your FortiAP deployment.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 5 dBi directional sector antenna, dual band 2.4 and 5 GHz, 2x2 MIMO support, RP-SMA connectors, indoor and outdoor installation [/shortdesc]

[properties]

Model FANT-02ACAX-0505-D-R
Brand Fortinet
Product Type Directional Wi-Fi Sector Antenna
Antenna Pattern Directional Sector (120°)
Gain 5 dBi (2.4 GHz), 5 dBi (5 GHz)
Frequency Range 2.4–2.5 GHz, 4.9–5.9 GHz
Polarization Dual Slant ±45°
Connector Type 2 × RP-SMA Male
Number of Elements 2-element (2×2 MIMO)
Environment Indoor / Outdoor
Ingress Protection IP67
Mounting Wall Mount
Compatibility FortiAP models with 2 × RP-SMA connectors

[/properties]

[specifications]

Horizontal Beamwidth 120° (2.4 GHz / 5 GHz)
Vertical Beamwidth 70° (2.4 GHz / 5 GHz)
VSWR ≤ 2.0
Front-to-Back Ratio ≤ 17 dB (2.4 GHz), ≤ 20 dB (5 GHz)
Port-to-Port Isolation ≤ 20 dB
Nominal Impedance 50 Ohms
Maximum Input Power 20 W
Cable Length 24 in. RG-316
Operating Temperature −40 °C to +70 °C (−40 °F to +158 °F)
Wind Load 220 km/h

[/specifications]

[accesories]

Optional Mounting Hardware FAN-M22Z-5 Adjustable Mount

[/accesories]

Focused WiFi Coverage for Controlled Environments

The Fortinet FANT-02ACAX-0505-D-R is a dual-band directional sector antenna designed to deliver controlled, predictable WiFi coverage in targeted areas. Built for 2x2 MIMO deployments, this antenna enhances signal focus and reduces co-channel interference, making it ideal for structured wireless designs using Fortinet FortiAP access points.

With a 120-degree sector radiation pattern and 5 dBi gain, the antenna concentrates RF energy where it is needed most. Its lightweight, UV-protected radome supports reliable operation in both indoor and outdoor environments, ensuring consistent performance across a wide range of enterprise and commercial deployments.

Key Benefits & Features
  • 5 dBi directional gain: Improves signal reach and stability while minimizing unnecessary RF spill into adjacent areas.
  • Dual-band operation: Supports both 2.4 GHz and 5 GHz bands for flexible WiFi planning and device compatibility.
  • 2x2 MIMO optimized: Designed specifically for modern FortiAP access points requiring dual-element antenna configurations.
  • 120-degree sector pattern: Ideal for covering hallways, courtyards, aisles, and rectangular spaces with precision.
  • RP-SMA connectivity: Two RP-SMA male connectors ensure direct compatibility with supported Fortinet FortiAP models.
Ideal Use Cases
  • Retail stores and shopping centers
  • Office corridors and long hallways
  • Warehouses and logistics facilities
  • Educational campuses and courtyards
  • Targeted indoor or outdoor WiFi zones
Technical Specifications
  • Antenna type: Directional sector antenna
  • Gain: 5 dBi
  • Frequency range: 2.4 to 2.5 GHz and 4.9 to 5.9 GHz
  • MIMO configuration: 2x2
  • Beamwidth: 120-degree sector
  • Connectors: 2 x RP-SMA male
  • Mounting: Indoor or outdoor installation
  • Construction: Lightweight, UV-protected plastic radome
Upgrade Your Wireless Coverage Today

Deploy precise, interference-controlled WiFi coverage with the Fortinet FANT-02ACAX-0505-D-R. Order today and optimize your FortiAP deployment.
