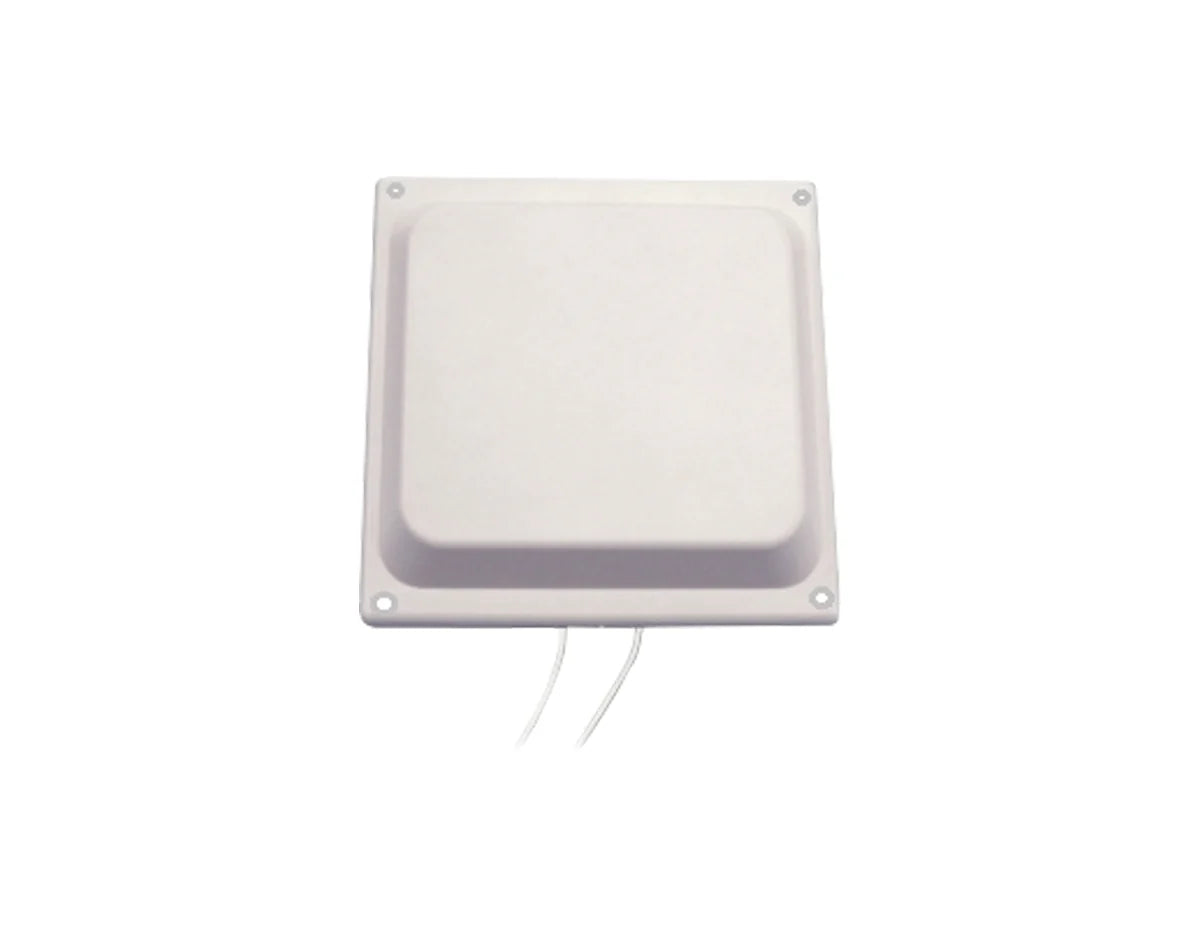

Fortinet FANT-02ACAX-0505-D-N Dual Band Directional Antenna
Fortinet FANT-02ACAX-0505-D-N Dual Band Directional Antenna

Fortinet FANT-02ACAX-0505-D-N Dual Band Directional Antenna

por Fortinet
Desconto de 15%
R$ 2.928,00
R$ 2.496,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Dual band 2.4 and 5 GHz operation, 5 dBi directional gain, 120 degree sector pattern, 2x2 MIMO support, N Type connectors [/shortdesc]

[properties]

Model FANT-02ACAX-0505-D-N
Product Type Directional Sector Antenna
Antenna Type Dual-band 2x2 MIMO Sector Antenna
Frequency Range 2.4–2.5 GHz / 4.9–5.9 GHz
Antenna Gain 5 dBi (2.4 GHz) / 5 dBi (5 GHz)
Beamwidth 120° sector
Directivity Directional
Polarization Dual Slant ±45°
Connector Type 2 × N-Type Male
Number of Ports 2
Application Indoor / Outdoor
Installation Type Wall Mount / Pole Mount

[/properties]

[specifications]

Operating Frequency 2.4–2.5 GHz and 4.9–5.9 GHz
Gain 5 dBi / 5 dBi
Vertical Beamwidth 70° (2.4 GHz) / 70° (5 GHz)
Horizontal Beamwidth 120° (2.4 GHz) / 120° (5 GHz)
VSWR ≤ 2.0
Nominal Impedance 50 Ohms
Front-to-Back Ratio ≤ 17 dB (2.4 GHz) / ≤ 20 dB (5 GHz)
Port-to-Port Isolation ≤ 20 dB
Maximum Input Power 20 W
Ingress Protection IP67
Operating Temperature -40°F to 158°F (-40°C to +70°C)
Environment Indoor / Outdoor

[/specifications]

[accesories]

Optional Mounting Hardware FAN-M22Z-5 Adjustable Mount
Compatible Cables CABL-3FT-N-NType; CABL-3FT-N-RPSMA

[/accesories]

The Fortinet FANT-02ACAX-0505-D-N is a dual band directional sector antenna designed to deliver controlled and efficient Wi Fi coverage in targeted environments. Engineered for 2x2 MIMO applications, this antenna enhances signal focus and minimizes interference across both 2.4 GHz and 5 GHz bands. Its compact and lightweight construction makes it suitable for professional indoor and outdoor installations where predictable coverage patterns are critical.

  • Directional 120 Degree Coverage: Optimized sector radiation pattern provides focused signal distribution for large rectangular spaces such as corridors and open halls.
  • Dual Band Performance: Supports 2.4 to 2.5 GHz and 4.9 to 5.9 GHz frequencies within a single radome for flexible network planning.
  • 5 dBi Gain Design: Balanced gain level improves coverage consistency while reducing co channel interference in dense deployments.
  • 2x2 MIMO Support: Two antenna elements enable spatial diversity for improved throughput and reliability with compatible access points.
  • N Type Connector Interface: Provides secure and low loss connectivity for professional grade wireless infrastructure.
  • Shopping malls and retail corridors
  • Indoor courtyards and atriums
  • Warehouses with directional aisle coverage
  • Enterprise hallways and campus walkways
  • Targeted indoor or outdoor Wi Fi zones
  • Frequency Range: 2.4 to 2.5 GHz and 4.9 to 5.9 GHz
  • Antenna Gain: 5 dBi
  • Directivity: Directional sector
  • Coverage Pattern: 120 degree sector
  • MIMO Support: 2x2
  • Connector Type: 2 x N Type
  • Form Factor: Wall or pole mount
  • Installation Environment: Indoor and outdoor

Deploy precise and reliable wireless coverage with the Fortinet FANT-02ACAX-0505-D-N. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Dual band 2.4 and 5 GHz operation, 5 dBi directional gain, 120 degree sector pattern, 2x2 MIMO support, N Type connectors [/shortdesc]

[properties]

Model FANT-02ACAX-0505-D-N
Product Type Directional Sector Antenna
Antenna Type Dual-band 2x2 MIMO Sector Antenna
Frequency Range 2.4–2.5 GHz / 4.9–5.9 GHz
Antenna Gain 5 dBi (2.4 GHz) / 5 dBi (5 GHz)
Beamwidth 120° sector
Directivity Directional
Polarization Dual Slant ±45°
Connector Type 2 × N-Type Male
Number of Ports 2
Application Indoor / Outdoor
Installation Type Wall Mount / Pole Mount

[/properties]

[specifications]

Operating Frequency 2.4–2.5 GHz and 4.9–5.9 GHz
Gain 5 dBi / 5 dBi
Vertical Beamwidth 70° (2.4 GHz) / 70° (5 GHz)
Horizontal Beamwidth 120° (2.4 GHz) / 120° (5 GHz)
VSWR ≤ 2.0
Nominal Impedance 50 Ohms
Front-to-Back Ratio ≤ 17 dB (2.4 GHz) / ≤ 20 dB (5 GHz)
Port-to-Port Isolation ≤ 20 dB
Maximum Input Power 20 W
Ingress Protection IP67
Operating Temperature -40°F to 158°F (-40°C to +70°C)
Environment Indoor / Outdoor

[/specifications]

[accesories]

Optional Mounting Hardware FAN-M22Z-5 Adjustable Mount
Compatible Cables CABL-3FT-N-NType; CABL-3FT-N-RPSMA

[/accesories]

Focused Wireless Coverage for High Precision Deployments

The Fortinet FANT-02ACAX-0505-D-N is a dual band directional sector antenna designed to deliver controlled and efficient Wi Fi coverage in targeted environments. Engineered for 2x2 MIMO applications, this antenna enhances signal focus and minimizes interference across both 2.4 GHz and 5 GHz bands. Its compact and lightweight construction makes it suitable for professional indoor and outdoor installations where predictable coverage patterns are critical.

Key Benefits & Features
  • Directional 120 Degree Coverage: Optimized sector radiation pattern provides focused signal distribution for large rectangular spaces such as corridors and open halls.
  • Dual Band Performance: Supports 2.4 to 2.5 GHz and 4.9 to 5.9 GHz frequencies within a single radome for flexible network planning.
  • 5 dBi Gain Design: Balanced gain level improves coverage consistency while reducing co channel interference in dense deployments.
  • 2x2 MIMO Support: Two antenna elements enable spatial diversity for improved throughput and reliability with compatible access points.
  • N Type Connector Interface: Provides secure and low loss connectivity for professional grade wireless infrastructure.
Ideal Use Cases
  • Shopping malls and retail corridors
  • Indoor courtyards and atriums
  • Warehouses with directional aisle coverage
  • Enterprise hallways and campus walkways
  • Targeted indoor or outdoor Wi Fi zones
Technical Specifications
  • Frequency Range: 2.4 to 2.5 GHz and 4.9 to 5.9 GHz
  • Antenna Gain: 5 dBi
  • Directivity: Directional sector
  • Coverage Pattern: 120 degree sector
  • MIMO Support: 2x2
  • Connector Type: 2 x N Type
  • Form Factor: Wall or pole mount
  • Installation Environment: Indoor and outdoor
Build Smarter Wi Fi Coverage Today

Deploy precise and reliable wireless coverage with the Fortinet FANT-02ACAX-0505-D-N. Order today.
