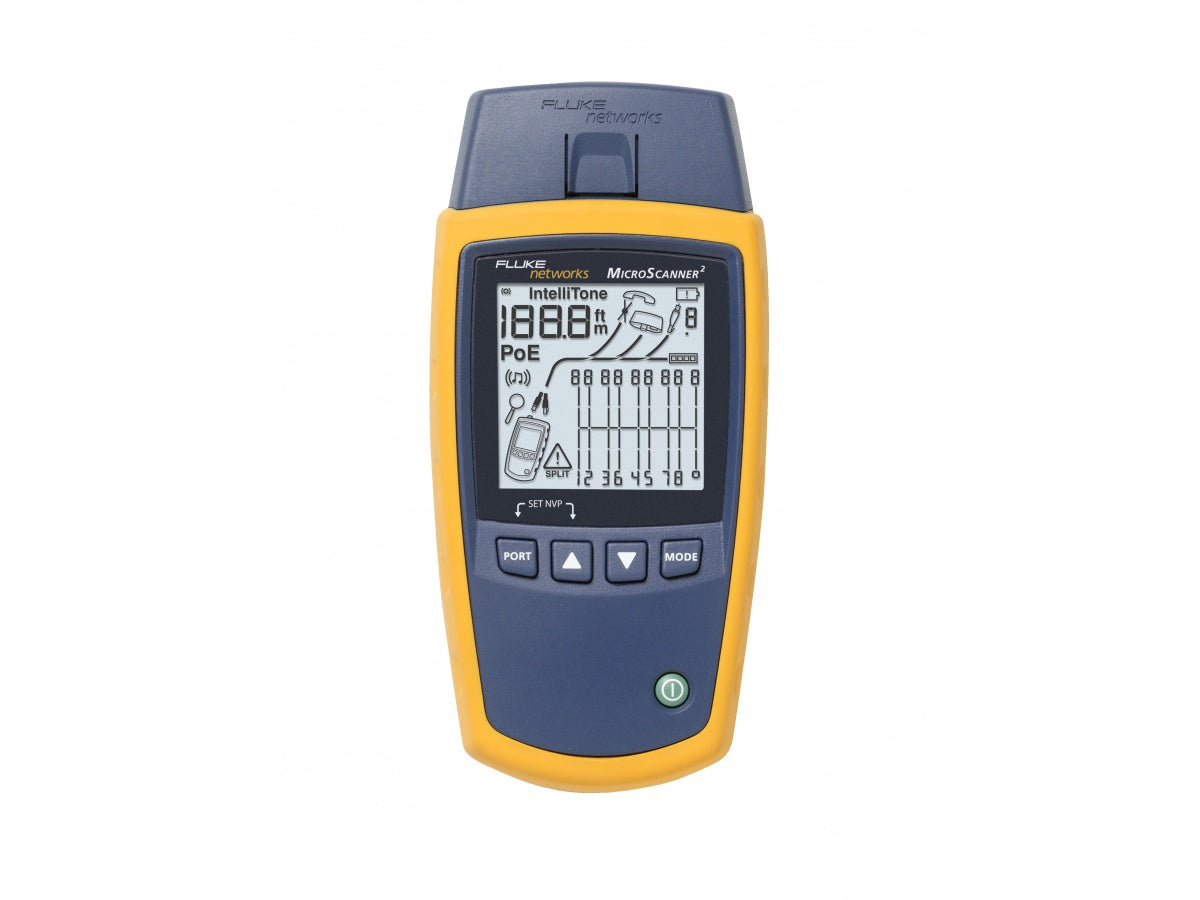

FLUKE-MS2-100 MicroScanner2 MS2-100 Cable Verifier
FLUKE-MS2-100 MicroScanner2 MS2-100 Cable Verifier

FLUKE-MS2-100 MicroScanner2 MS2-100 Cable Verifier

por Fluke
R$ 7.740,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Wiremap, pair length and distance to fault, IntelliTone digital and analog, 10/100/1G port detect, coax testing via adapter, backlit LCD [/shortdesc]

[properties]

Model Fluke Networks MicroScanner² / MicroScanner PoE
Product Type Cable Verifier (Copper; PoE diagnostics on MicroScanner PoE)
Display Monochrome LCD with backlight
Test Connectors 8-pin modular jack (RJ45) and 4-pin modular (RJ11); MicroScanner² also supports F-connector for coax
Power 2× AA (NEDA 15A, IEC LR6) alkaline; also supports 2× AA photo lithium, NiMH, NiCad
Battery Life ~20 hours (typical use)
Dimensions (W × H × D) 3 × 6.4 × 1.4 in (7.6 × 16.3 × 3.6 cm)
Weight MicroScanner²: 13.5 oz (385 g); MicroScanner PoE: 10.6 oz (247 g)
Operating Temperature 32 °F to 113 °F (0 °C to 45 °C)
Storage Temperature −4 °F to 140 °F (−20 °C to 60 °C)
Operating Relative Humidity 90% (50 °F to 95 °F / 10 °C to 35 °C); 75% (95 °F to 113 °F / 35 °C to 45 °C) non-condensing
Shock & Vibration Random 2 g, 5 Hz–500 Hz (Class 2); 1 m drop test (with or without wiremap adapter)
Safety IEC 61010-1, 3rd Edition
Altitude Operation: 4,000 m; Storage: 12,000 m
EMC IEC 61326-1

[/properties]

[specifications]

Cable Types Tested Twisted pair: UTP, FTP, STP; Coax (MicroScanner² only): 75 Ω, 50 Ω, 93 Ω
Length Test Range 460 m (1500 ft); Resolution 0.3 m (1 ft); Typical accuracy ±(1% + 0.6 m / 2 ft) whichever is greater; NVP uncertainty is an additional error; User-settable NVP (twisted pair & coax)
Wiremap Detects opens, shorts, miswires, split pairs; shows proportional length to fault; identifies up to seven far-end adapter IDs
Ethernet Port Detection MicroScanner²: Advertised speeds of 10/100/1000BASE-T; MicroScanner PoE: Advertised speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps
PoE / Power over Ethernet MicroScanner²: Detects 802.3af presence; MicroScanner PoE: Reports class & power for 802.3af/at/bt and shows voltage from passive PoE sources
Tone Generator Supports digital IntelliTone™ and analog tones; SmartTone™ for positive cable identification; compatible with typical analog probes
Test Modes (displayed) Length, distance-to-fault, wiremap, pair lengths, Ethernet port detection; MicroScanner PoE additionally indicates HIGH Ω on cable resistance & PoE details

[/specifications]

[accesories]

Included MicroScanner² or MicroScanner PoE main unit; Main wiremap adapter; AA alkaline batteries; Getting Started Guide; Soft carrying case (included in the box)
Optional – Remote Identifiers MS2-IDK27 (Remote Identifier Kit #2–7); REMOTED-KIT (Remote ID kits for MicroScanner PoE)
Optional – Probes MT-8200-63A IntelliTone™ Pro 200 Probe
Optional – Adapters CIQ-RJA RJ45/11 Modular Adapter; CIQ-COAX Coax Adapter Kit (RCA, BNC)
Optional – Cases / Mounts MICRO-DIT Soft Carry Duffel; MS2-MAG-KIT Magnetic Strap Attachment & Spare Holster
Optional – Kits MS-POE-KIT; MS2-KIT; MS2-TTK; MS2-FTK (see kit contents in datasheet)

[/accesories]

Fluke Networks’ MicroScanner2 MS2-100 speeds copper troubleshooting by showing wiremap, pair lengths, distance to fault, service presence, and far-end IDs on one screen. Built-in IntelliTone provides both digital and analog toning to locate cables precisely, while the unit verifies Ethernet port speeds up to 1 Gbps to confirm service availability. Rugged design and a soft case keep the tester ready for the toughest jobs.

  • One-screen results: View wiremap, pair length, distance to fault, cable ID, and services simultaneously to cut test time.
  • IntelliTone toning: Digital and analog tone modes help pinpoint active data cables and trace voice or coax runs in noisy environments.
  • Gigabit service identification: Detects advertised 10/100/1000 Mbps Ethernet port speeds to validate links before handoff.
  • Coax and voice support: Test RJ45, RJ11, and coax with the MicroScanner2 F-connector adapter for broader site coverage.
  • Rugged, field-ready: Backlit LCD, rubber holster, and soft carry case improve visibility and durability on site.
  • Network installers verifying twisted-pair terminations and service availability
  • Desk moves, adds, and changes across campus or branch networks
  • Field technicians tracing and labeling unknown copper drops
  • Facilities teams maintaining voice, data, and coax distribution
  • Cable types: Twisted pair UTP/FTP/STP; coax with adapter
  • Length test: Range 460 m (1500 ft), resolution 0.3 m (1 ft), accuracy ±(1% + 0.6 m)
  • Wiremap: Detects opens, shorts, splits, and up to seven far-end IDs
  • Ethernet port detect: Advertised speeds of 10/100/1000 Mbps
  • Tone generator: IntelliTone digital and compatible analog tones
  • Display: Monochrome LCD with backlight
  • Power: 2 × AA alkaline, about 20 hours typical use
  • Dimensions/Weight: ~3 in × 6.4 in × 1.4 in; ~13 oz with batteries

Equip your team with MicroScanner2 MS2-100 for faster, clearer copper diagnostics. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Wiremap, pair length and distance to fault, IntelliTone digital and analog, 10/100/1G port detect, coax testing via adapter, backlit LCD [/shortdesc]

[properties]

Model Fluke Networks MicroScanner² / MicroScanner PoE
Product Type Cable Verifier (Copper; PoE diagnostics on MicroScanner PoE)
Display Monochrome LCD with backlight
Test Connectors 8-pin modular jack (RJ45) and 4-pin modular (RJ11); MicroScanner² also supports F-connector for coax
Power 2× AA (NEDA 15A, IEC LR6) alkaline; also supports 2× AA photo lithium, NiMH, NiCad
Battery Life ~20 hours (typical use)
Dimensions (W × H × D) 3 × 6.4 × 1.4 in (7.6 × 16.3 × 3.6 cm)
Weight MicroScanner²: 13.5 oz (385 g); MicroScanner PoE: 10.6 oz (247 g)
Operating Temperature 32 °F to 113 °F (0 °C to 45 °C)
Storage Temperature −4 °F to 140 °F (−20 °C to 60 °C)
Operating Relative Humidity 90% (50 °F to 95 °F / 10 °C to 35 °C); 75% (95 °F to 113 °F / 35 °C to 45 °C) non-condensing
Shock & Vibration Random 2 g, 5 Hz–500 Hz (Class 2); 1 m drop test (with or without wiremap adapter)
Safety IEC 61010-1, 3rd Edition
Altitude Operation: 4,000 m; Storage: 12,000 m
EMC IEC 61326-1

[/properties]

[specifications]

Cable Types Tested Twisted pair: UTP, FTP, STP; Coax (MicroScanner² only): 75 Ω, 50 Ω, 93 Ω
Length Test Range 460 m (1500 ft); Resolution 0.3 m (1 ft); Typical accuracy ±(1% + 0.6 m / 2 ft) whichever is greater; NVP uncertainty is an additional error; User-settable NVP (twisted pair & coax)
Wiremap Detects opens, shorts, miswires, split pairs; shows proportional length to fault; identifies up to seven far-end adapter IDs
Ethernet Port Detection MicroScanner²: Advertised speeds of 10/100/1000BASE-T; MicroScanner PoE: Advertised speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps
PoE / Power over Ethernet MicroScanner²: Detects 802.3af presence; MicroScanner PoE: Reports class & power for 802.3af/at/bt and shows voltage from passive PoE sources
Tone Generator Supports digital IntelliTone™ and analog tones; SmartTone™ for positive cable identification; compatible with typical analog probes
Test Modes (displayed) Length, distance-to-fault, wiremap, pair lengths, Ethernet port detection; MicroScanner PoE additionally indicates HIGH Ω on cable resistance & PoE details

[/specifications]

[accesories]

Included MicroScanner² or MicroScanner PoE main unit; Main wiremap adapter; AA alkaline batteries; Getting Started Guide; Soft carrying case (included in the box)
Optional – Remote Identifiers MS2-IDK27 (Remote Identifier Kit #2–7); REMOTED-KIT (Remote ID kits for MicroScanner PoE)
Optional – Probes MT-8200-63A IntelliTone™ Pro 200 Probe
Optional – Adapters CIQ-RJA RJ45/11 Modular Adapter; CIQ-COAX Coax Adapter Kit (RCA, BNC)
Optional – Cases / Mounts MICRO-DIT Soft Carry Duffel; MS2-MAG-KIT Magnetic Strap Attachment & Spare Holster
Optional – Kits MS-POE-KIT; MS2-KIT; MS2-TTK; MS2-FTK (see kit contents in datasheet)

[/accesories]

Find Cable Faults Faster with MicroScanner2 Accuracy

Fluke Networks’ MicroScanner2 MS2-100 speeds copper troubleshooting by showing wiremap, pair lengths, distance to fault, service presence, and far-end IDs on one screen. Built-in IntelliTone provides both digital and analog toning to locate cables precisely, while the unit verifies Ethernet port speeds up to 1 Gbps to confirm service availability. Rugged design and a soft case keep the tester ready for the toughest jobs.

Key Benefits & Features
  • One-screen results: View wiremap, pair length, distance to fault, cable ID, and services simultaneously to cut test time.
  • IntelliTone toning: Digital and analog tone modes help pinpoint active data cables and trace voice or coax runs in noisy environments.
  • Gigabit service identification: Detects advertised 10/100/1000 Mbps Ethernet port speeds to validate links before handoff.
  • Coax and voice support: Test RJ45, RJ11, and coax with the MicroScanner2 F-connector adapter for broader site coverage.
  • Rugged, field-ready: Backlit LCD, rubber holster, and soft carry case improve visibility and durability on site.
Ideal Use Cases
  • Network installers verifying twisted-pair terminations and service availability
  • Desk moves, adds, and changes across campus or branch networks
  • Field technicians tracing and labeling unknown copper drops
  • Facilities teams maintaining voice, data, and coax distribution
Technical Specifications
  • Cable types: Twisted pair UTP/FTP/STP; coax with adapter
  • Length test: Range 460 m (1500 ft), resolution 0.3 m (1 ft), accuracy ±(1% + 0.6 m)
  • Wiremap: Detects opens, shorts, splits, and up to seven far-end IDs
  • Ethernet port detect: Advertised speeds of 10/100/1000 Mbps
  • Tone generator: IntelliTone digital and compatible analog tones
  • Display: Monochrome LCD with backlight
  • Power: 2 × AA alkaline, about 20 hours typical use
  • Dimensions/Weight: ~3 in × 6.4 in × 1.4 in; ~13 oz with batteries
Ready to troubleshoot like a pro

Equip your team with MicroScanner2 MS2-100 for faster, clearer copper diagnostics. Order today.
