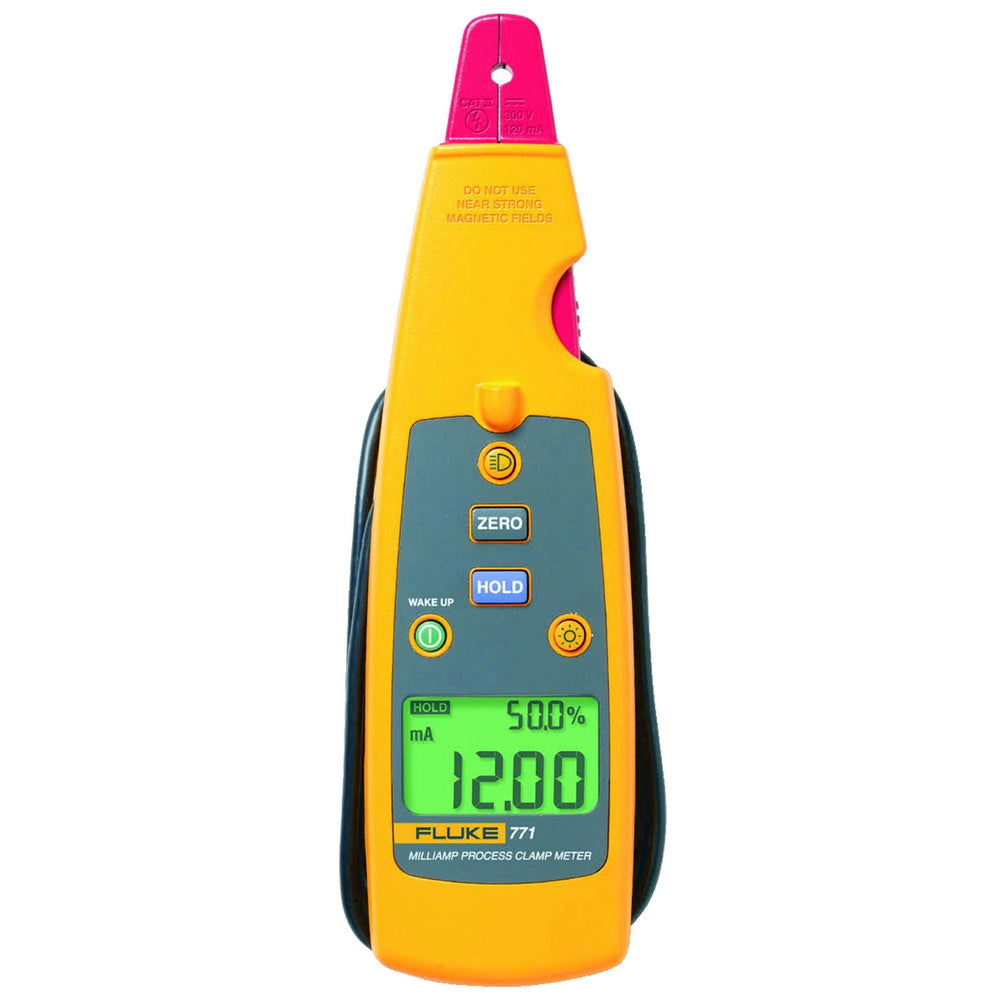

Fluke 771 Milliamp Process Clamp Meter

The Fluke 771 Milliamp Process Clamp Meter is an essential tool for measuring and troubleshooting 4-20 mA signals in control system analog I/O without breaking the loop. With best-in-class 0.2% accuracy, a dual backlit display, and a detachable clamp, the 771 offers precision and flexibility, making it ideal for industrial and process applications where mA measurements are crucial.

• Non-Invasive Measurement: Measures 4-20 mA output signals without breaking the loop, saving time and increasing efficiency.
• High Accuracy: Delivers 0.2% accuracy with a resolution of 0.01 mA, ideal for precise measurements.
• Dual Backlit Display: Shows both mA measurement and percentage of 4-20 mA span for quick data interpretation.
• Measurement Spotlight: Illuminates hard-to-see wires in dark enclosures, enhancing visibility in challenging environments.
• Detachable Clamp: Includes an extension cable for measurements in tight locations.
• Automatic Battery Saving: Features automatic power-off, backlight, and spotlight timeout options to preserve battery life.

• Measurement Range: -20.99 mA to +20.99 mA with 0.2% accuracy; ±99.9 mA for older systems
• Resolution: 0.01 mA
• Operating Temperature: -10 °C to 55 °C
• Storage Temperature: -25 °C to 70 °C
• Humidity: <95% at <30 °C, <75% at 30-55 °C
• Altitude: 0 to 2000 meters
• IP Rating: IP 40
• Battery Life: 40 hours typical (2 AA batteries)
• Dimensions: 59 mm x 38 mm x 212 mm (2.32 in x 1.5 in x 8.35 in)
• Weight: 260 g (9.1 oz)

• Technicians and engineers measuring 4-20 mA signals in process control systems.
• Industrial environments where accurate, non-invasive mA measurements are required.
