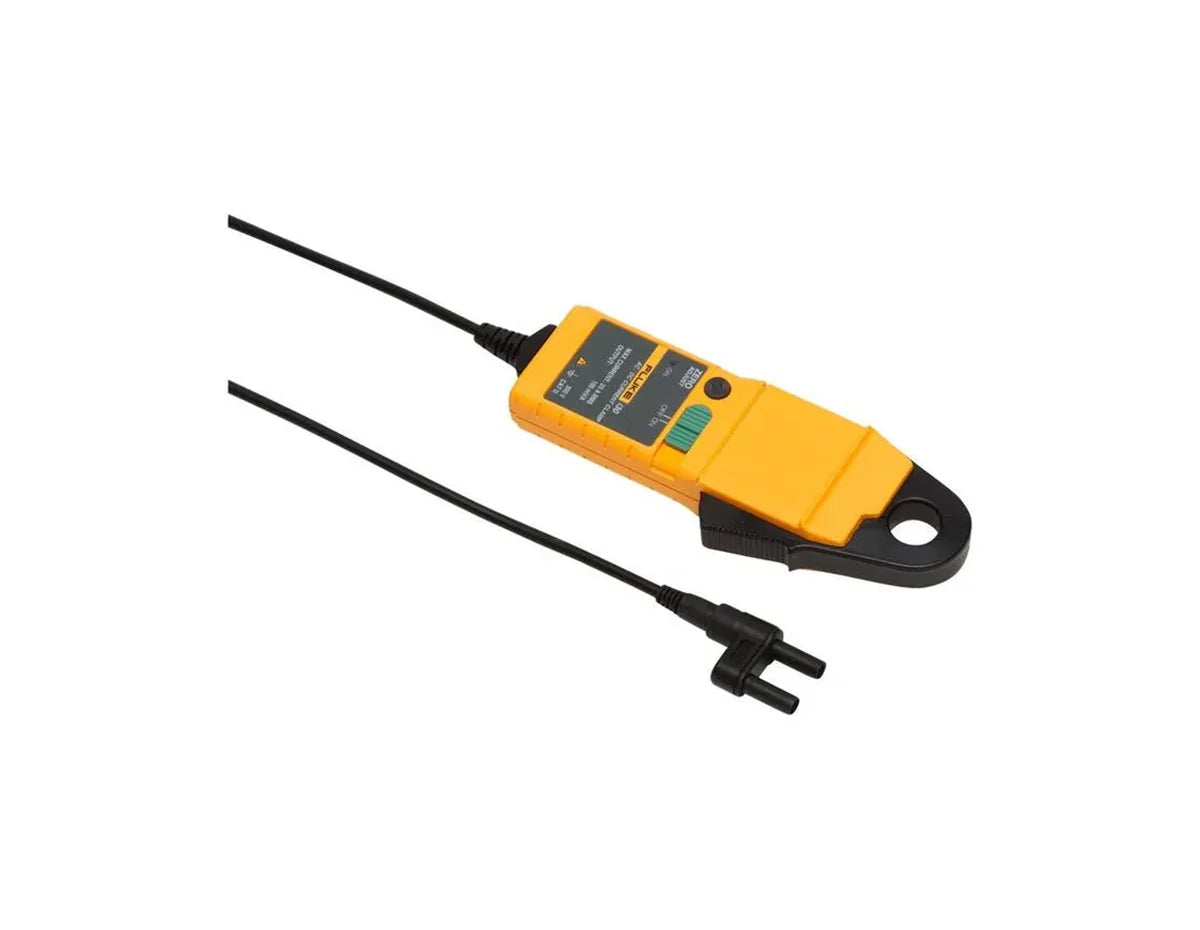

Fluke i30 AC/DC Current Clamp 30A Hall Effect Probe
Fluke i30 AC/DC Current Clamp 30A Hall Effect Probe

Fluke i30 AC/DC Current Clamp 30A Hall Effect Probe

por Fluke
R$ 6.828,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Professional Hall effect AC/DC current clamp with 30A DC / 20A AC range, 100mV/A output sensitivity, and CAT III 300V safety rating for non-intrusive circuit testing.[/shortdesc]

[properties]

Model Fluke i30
Product Type AC/DC Current Clamp
Measurement Technology Hall Effect
Current Range (DC) 30 mA to 30 A
Current Range (AC) 30 mA to 20 A rms
Usable Current Range 5 mA to 30 A DC; 30 mA to 20 A AC rms
Frequency Range DC to 20 kHz (0.5 dB)
Output Sensitivity 100 mV/A
Output Connection 4 mm safety banana connector
Maximum Conductor Size 19 mm diameter
Safety Rating CAT III 300 V
Power Supply 9 V Alkaline battery (IEC 6LR61)
Battery Life 30 hours with low battery indicator
Cable Length 1.5 m
Dimensions (HxWxD) 183 mm x 71 mm x 25 mm
Weight 250 g
Operating Temperature 0 °C to +50 °C
Storage Temperature -20 °C to +85 °C
Operating Humidity 15% to 85% (non-condensing)

[/properties]

[specifications]

Accuracy (at +25 °C) DC: +/-1% of reading +/- 2 mA; AC: +/-0.5% of reading +/- 2 mA
Resolution +/-1 mA
Crest Factor 1.4
Load Impedance > 100 k Ohms and ≤ 100 pF
Conductor Position Sensitivity +/-1% relative to center reading
Temperature Coefficient +/-0.01% of reading per °C
Working Voltage 300 V AC rms or DC
Safety Standards BS EN 61010-1: 2001; BS EN 61010-2-032: 2002; BS EN 61010-031: 2002
EMC Standards EN 61326: 1998 +A1, A2, and A3
Output Zero Adjustment Manual adjust via thumbwheel
Pollution Degree 2

[/specifications]

The Fluke i30 AC/DC Current Clamp is engineered for professionals who require accurate, non-intrusive current measurement in demanding environments. Utilizing advanced Hall effect technology, this clamp enables precise readings of both AC and DC currents without breaking the circuit. Designed for seamless integration with digital multimeters and recording instruments, it delivers reliable performance for electrical diagnostics, maintenance, and troubleshooting tasks.

  • Hall Effect Sensing Technology: Accurately measures both AC and DC current with high sensitivity, ensuring reliable diagnostics across a wide range of electrical systems.
  • Wide Measurement Range: Supports 30 mA to 30 A DC and 30 mA to 20 A AC rms, making it suitable for low and high current applications.
  • Non-Intrusive Operation: Clamp design allows safe current measurement without interrupting circuits, reducing downtime and risk during testing.
  • Broad Frequency Response: Covers DC to 20 kHz bandwidth, enabling accurate analysis of both steady-state and dynamic signals.
  • Universal Compatibility: Equipped with 4 mm banana plug connectors for direct use with multimeters, recorders, and other recording devices.
  • Electrical maintenance and troubleshooting in commercial facilities
  • Industrial equipment diagnostics and current monitoring
  • HVAC system testing and performance verification
  • Field service engineers requiring portable measurement tools
  • Laboratory and test bench current analysis

Upgrade your diagnostic toolkit with the Fluke i30 for precise, reliable current measurements. Order today and improve your testing efficiency.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Professional Hall effect AC/DC current clamp with 30A DC / 20A AC range, 100mV/A output sensitivity, and CAT III 300V safety rating for non-intrusive circuit testing.[/shortdesc]

[properties]

Model Fluke i30
Product Type AC/DC Current Clamp
Measurement Technology Hall Effect
Current Range (DC) 30 mA to 30 A
Current Range (AC) 30 mA to 20 A rms
Usable Current Range 5 mA to 30 A DC; 30 mA to 20 A AC rms
Frequency Range DC to 20 kHz (0.5 dB)
Output Sensitivity 100 mV/A
Output Connection 4 mm safety banana connector
Maximum Conductor Size 19 mm diameter
Safety Rating CAT III 300 V
Power Supply 9 V Alkaline battery (IEC 6LR61)
Battery Life 30 hours with low battery indicator
Cable Length 1.5 m
Dimensions (HxWxD) 183 mm x 71 mm x 25 mm
Weight 250 g
Operating Temperature 0 °C to +50 °C
Storage Temperature -20 °C to +85 °C
Operating Humidity 15% to 85% (non-condensing)

[/properties]

[specifications]

Accuracy (at +25 °C) DC: +/-1% of reading +/- 2 mA; AC: +/-0.5% of reading +/- 2 mA
Resolution +/-1 mA
Crest Factor 1.4
Load Impedance > 100 k Ohms and ≤ 100 pF
Conductor Position Sensitivity +/-1% relative to center reading
Temperature Coefficient +/-0.01% of reading per °C
Working Voltage 300 V AC rms or DC
Safety Standards BS EN 61010-1: 2001; BS EN 61010-2-032: 2002; BS EN 61010-031: 2002
EMC Standards EN 61326: 1998 +A1, A2, and A3
Output Zero Adjustment Manual adjust via thumbwheel
Pollution Degree 2

[/specifications]

Precision AC/DC Current Measurement Without Circuit Interruption

The Fluke i30 AC/DC Current Clamp is engineered for professionals who require accurate, non-intrusive current measurement in demanding environments. Utilizing advanced Hall effect technology, this clamp enables precise readings of both AC and DC currents without breaking the circuit. Designed for seamless integration with digital multimeters and recording instruments, it delivers reliable performance for electrical diagnostics, maintenance, and troubleshooting tasks.

Key Benefits & Features
  • Hall Effect Sensing Technology: Accurately measures both AC and DC current with high sensitivity, ensuring reliable diagnostics across a wide range of electrical systems.
  • Wide Measurement Range: Supports 30 mA to 30 A DC and 30 mA to 20 A AC rms, making it suitable for low and high current applications.
  • Non-Intrusive Operation: Clamp design allows safe current measurement without interrupting circuits, reducing downtime and risk during testing.
  • Broad Frequency Response: Covers DC to 20 kHz bandwidth, enabling accurate analysis of both steady-state and dynamic signals.
  • Universal Compatibility: Equipped with 4 mm banana plug connectors for direct use with multimeters, recorders, and other recording devices.
Ideal Use Cases
  • Electrical maintenance and troubleshooting in commercial facilities
  • Industrial equipment diagnostics and current monitoring
  • HVAC system testing and performance verification
  • Field service engineers requiring portable measurement tools
  • Laboratory and test bench current analysis
Measure Current Safely and Accurately Today

Upgrade your diagnostic toolkit with the Fluke i30 for precise, reliable current measurements. Order today and improve your testing efficiency.
