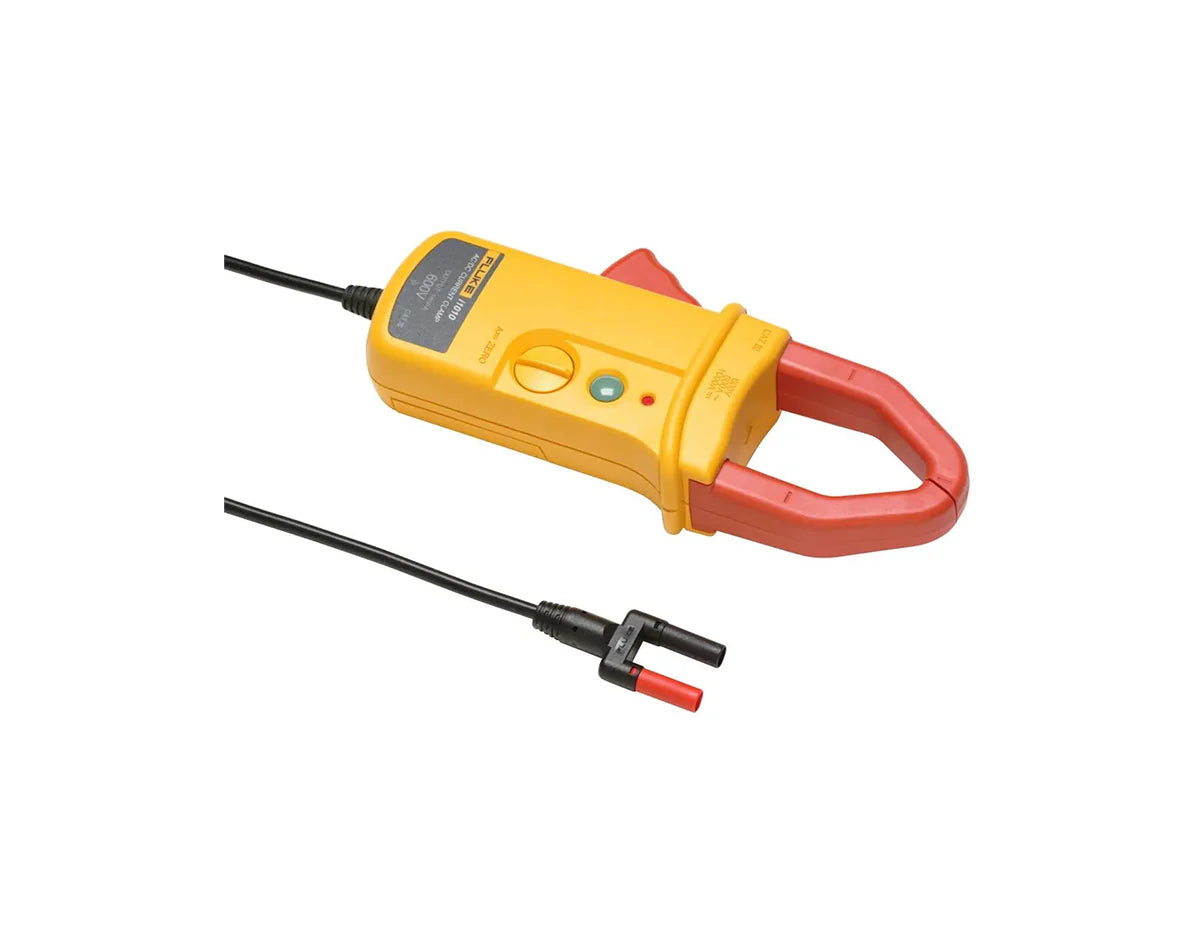

Fluke i1010 AC/DC Current Clamp 1000A Hall Effect Probe
Fluke i1010 AC/DC Current Clamp 1000A Hall Effect Probe

Fluke i1010 AC/DC Current Clamp 1000A Hall Effect Probe

por Fluke
R$ 5.220,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Professional AC/DC current clamp with Hall-effect sensor. Measures DC current up to 1000A and AC up to 600A. CAT III 600V safety rated with 1 mV/A output.[/shortdesc]

[properties]

Model Fluke i1010
Product Type AC/DC Current Clamp
Measurement Type Hall sensor
AC Current Range 1 A to 600 A
DC Current Range 1 A to 1000 A
Output Level 1 mV/A
Frequency Range DC to 10 kHz
Safety Rating CAT III 600 V
Maximum Conductor Diameter 30 mm
Battery Life 9 V, 60 hours

[/properties]

[specifications]

Nominal Current Range 600 A AC; 1000 A DC
Continuous Current Range 1 A to 600 A AC; 1 A to 1000 A DC
Maximum Non-destructive Current 1000 A
Lowest Measurable Current 0.5 A
Basic Accuracy 2% + 0.5 A (% reading + floorspec)
Usable Frequency DC to 10 kHz
Output Sensitivity 1 mV/A
Zero Adjustment Yes
Safety Category CAT III 600 V
Maximum Voltage 600 V
Maximum Conductor Diameter 30 mm; 2 x 25 mm
Output Cable Length 1.6 m
Connector Type Shrouded banana plugs

[/specifications]

The Fluke i1010 AC/DC Current Clamp is designed for professionals who need precise, non-intrusive current measurements in demanding environments. Built with Hall-effect technology, this clamp extends the capabilities of Fluke multimeters, enabling accurate AC and DC current readings up to 1000A without interrupting the circuit. Its robust design and wide measurement range make it an essential diagnostic tool for electrical maintenance and troubleshooting.

  • Wide Current Measurement Range: Measures from 1A up to 1000A DC and 600A AC, making it suitable for both low and high current applications across industrial systems.
  • Hall-Effect Sensor Technology: Ensures accurate AC and DC readings with a stable 1 mV/A output for precise analysis and diagnostics.
  • Non-Intrusive Testing: Allows current measurement without breaking the circuit, improving safety and minimizing downtime during maintenance.
  • Broad Compatibility: Works seamlessly with most Fluke digital multimeters, extending their measurement capabilities.
  • Large Jaw Design: Accommodates conductors up to 30 mm diameter, enabling access to cables in tight or hard-to-reach areas.
  • Electrical maintenance and troubleshooting in industrial facilities
  • Power distribution system diagnostics
  • HVAC system current monitoring
  • Field service testing with Fluke multimeters
  • Inspection of high-current circuits without system shutdown
  • Measurement Type: Hall sensor
  • AC Current Range: 1A to 600A
  • DC Current Range: 1A to 1000A
  • Maximum Current: 1000A non-destructive
  • Accuracy: 2% + 0.5 A
  • Frequency Range: DC to 10 kHz
  • Output Signal: 1 mV/A
  • Safety Rating: CAT III 600V
  • Maximum Conductor Diameter: 30 mm
  • Output Cable Length: 1.6 m

Enhance your measurement capabilities with the Fluke i1010 current clamp. Order today for reliable, high-accuracy current diagnostics.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Professional AC/DC current clamp with Hall-effect sensor. Measures DC current up to 1000A and AC up to 600A. CAT III 600V safety rated with 1 mV/A output.[/shortdesc]

[properties]

Model Fluke i1010
Product Type AC/DC Current Clamp
Measurement Type Hall sensor
AC Current Range 1 A to 600 A
DC Current Range 1 A to 1000 A
Output Level 1 mV/A
Frequency Range DC to 10 kHz
Safety Rating CAT III 600 V
Maximum Conductor Diameter 30 mm
Battery Life 9 V, 60 hours

[/properties]

[specifications]

Nominal Current Range 600 A AC; 1000 A DC
Continuous Current Range 1 A to 600 A AC; 1 A to 1000 A DC
Maximum Non-destructive Current 1000 A
Lowest Measurable Current 0.5 A
Basic Accuracy 2% + 0.5 A (% reading + floorspec)
Usable Frequency DC to 10 kHz
Output Sensitivity 1 mV/A
Zero Adjustment Yes
Safety Category CAT III 600 V
Maximum Voltage 600 V
Maximum Conductor Diameter 30 mm; 2 x 25 mm
Output Cable Length 1.6 m
Connector Type Shrouded banana plugs

[/specifications]

Measure High Currents Safely Without Breaking the Circuit

The Fluke i1010 AC/DC Current Clamp is designed for professionals who need precise, non-intrusive current measurements in demanding environments. Built with Hall-effect technology, this clamp extends the capabilities of Fluke multimeters, enabling accurate AC and DC current readings up to 1000A without interrupting the circuit. Its robust design and wide measurement range make it an essential diagnostic tool for electrical maintenance and troubleshooting.

Key Benefits & Features
  • Wide Current Measurement Range: Measures from 1A up to 1000A DC and 600A AC, making it suitable for both low and high current applications across industrial systems.
  • Hall-Effect Sensor Technology: Ensures accurate AC and DC readings with a stable 1 mV/A output for precise analysis and diagnostics.
  • Non-Intrusive Testing: Allows current measurement without breaking the circuit, improving safety and minimizing downtime during maintenance.
  • Broad Compatibility: Works seamlessly with most Fluke digital multimeters, extending their measurement capabilities.
  • Large Jaw Design: Accommodates conductors up to 30 mm diameter, enabling access to cables in tight or hard-to-reach areas.
Ideal Use Cases
  • Electrical maintenance and troubleshooting in industrial facilities
  • Power distribution system diagnostics
  • HVAC system current monitoring
  • Field service testing with Fluke multimeters
  • Inspection of high-current circuits without system shutdown
Technical Specifications
  • Measurement Type: Hall sensor
  • AC Current Range: 1A to 600A
  • DC Current Range: 1A to 1000A
  • Maximum Current: 1000A non-destructive
  • Accuracy: 2% + 0.5 A
  • Frequency Range: DC to 10 kHz
  • Output Signal: 1 mV/A
  • Safety Rating: CAT III 600V
  • Maximum Conductor Diameter: 30 mm
  • Output Cable Length: 1.6 m
Upgrade Your Electrical Testing Precision Today

Enhance your measurement capabilities with the Fluke i1010 current clamp. Order today for reliable, high-accuracy current diagnostics.
