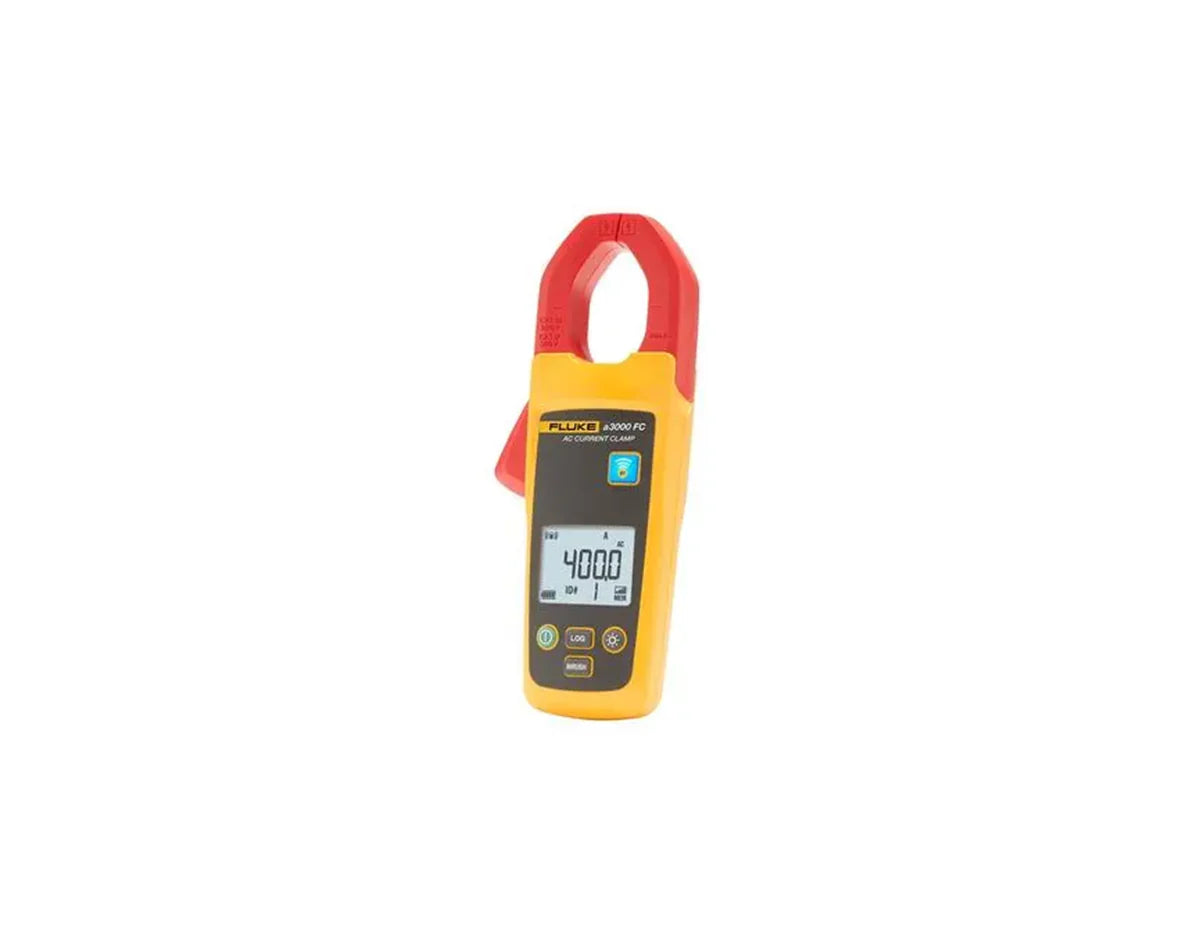

FLUKE-A3000FC Wireless AC Current Clamp Module
FLUKE-A3000FC Wireless AC Current Clamp Module

FLUKE-A3000FC Wireless AC Current Clamp Module

por Fluke
R$ 3.000,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] True-RMS AC clamp module, 0.5 A to 400 A range, wireless 2.4 GHz communication, logs 65,000 readings, and captures inrush current. [/shortdesc]

[properties]

Model Fluke a3000 FC
Product Type Wireless AC Current Clamp Module
Measurement Type True-RMS AC Current Clamp Meter
Current Measurement Range 0.5 A to 400.0 A
Resolution 0.1 A
Inrush Function Yes
Max Inrush Display 999.9 A
Logging Function Yes
Memory Record up to 65,000 readings
RF Communications 2.4 GHZ ISM Band
RF Communication Range (Open Air) Up to 20 m
RF Communication Range (Sheetrock Wall) Up to 6.5 m
RF Communication Range (Concrete Wall / Steel Enclosure) Up to 3.5 m
Compatible Master Units Fluke 3000 FC DMM; Fluke Ti200/300/400 Infrared Camera; PC via optional pc3000 FC Adapter; Fluke Connect Mobile app
Not Compatible With Fluke CNX test tools
Jaw Opening 34 mm (1.33 in)
Display LCD w/backlight, 3.5 digits
Log Rate / Interval 1 sec minimum (adjustable by PC)
Battery Type 2 AA, NEDA 15 A, IEC LR6
Battery Life 400 hours
Operating Temperature -10 C to +50 C
Storage Temperature -40 C to +60 C
Operating Humidity 90% at 35 C; 75% at 40 C; 45% at 50 C
Altitude (Operating) 2,000 m
Altitude (Storage) 12,000 m
Safety Rating CAT III 600 V
Ingress Protection (IP) Rating IP30
Pollution Degree 2
Size (H x W x D) 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
Weight 0.22 kg (8 oz)

[/properties]

[specifications]

Current Range 0.5 A to 400.0 A
Resolution 0.1 A
Accuracy (10 Hz to 100 Hz) 2% +/- 5 digits (at 400.0 A)
Accuracy (100 Hz to 500 Hz) 2.5% +/- 5 digits (at 400.0 A)
Inrush Max displayed reading 999.9 A
Crest Factor (50 Hz / 60 Hz) 3 at 500 A; 2.5 at 600 A; 1.42 at 1000 A; Add 2% for C.F. > 2
Log Rate / Interval 1 sec minimum (adjustable by PC)
Temperature Coefficient Add 0.1 x (specified accuracy) / C (< 18 C or > 28 C)
EMC EN 61326-1
Safety Compliance IEC 61010-1, 600 V CAT III, 3rd edition, Pollution Degree 2
Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE

[/specifications]

[accesories]

Included True-RMS AC Clamp Meter
Optional pc3000 FC Adapter

[/accesories]

The Fluke a3000 FC Wireless AC Current Clamp Module delivers precise True-RMS current measurements up to 400 A while allowing technicians to monitor readings remotely through the Fluke Connect system. Designed for industrial electricians and maintenance professionals, it enhances safety by enabling measurement collection outside hazardous panels. With wireless data transfer, logging, and inrush capture, it streamlines troubleshooting and preventive maintenance workflows.

  • True-RMS AC Measurement: Accurately measures non-linear loads from 0.5 A to 400 A, ensuring reliable readings in real-world industrial environments.
  • Wireless Fluke Connect Integration: Transmits live measurements via 2.4 GHz ISM band to compatible Fluke Connect devices, PCs, and mobile apps for remote visibility.
  • Advanced Logging Capability: Records and stores up to 65,000 time-stamped readings with adjustable intervals starting at 1 second for long-term trend analysis.
  • Inrush Current Function: Captures startup surge currents up to 999.9 A to diagnose motor and transformer performance issues.
  • Standalone or System Operation: Operates independently as a clamp meter or as part of a scalable Fluke Connect wireless test system.
  • Three-phase panel diagnostics with remote viewing
  • Motor startup and inrush current analysis
  • Preventive maintenance logging and load trending
  • Electrical troubleshooting in industrial facilities
  • Arc flash risk reduction environments
  • Current Range: 0.5 A to 400.0 A AC
  • Resolution: 0.1 A
  • Accuracy: 2% +/- 5 digits (10 Hz to 100 Hz), 2.5% +/- 5 digits (100 Hz to 500 Hz)
  • Inrush: Max displayed reading 999.9 A
  • Memory: Up to 65,000 readings
  • Wireless Frequency: 2.4 GHz ISM band
  • Wireless Range: Up to 20 m unobstructed
  • Safety Rating: CAT III 600 V
  • Jaw Opening: 34 mm
  • Battery: 2 AA, up to 400 hours operation

Reduce exposure to live panels while capturing precise AC current data with the Fluke a3000 FC. Designed for connected maintenance environments. Order today to upgrade your electrical troubleshooting workflow.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] True-RMS AC clamp module, 0.5 A to 400 A range, wireless 2.4 GHz communication, logs 65,000 readings, and captures inrush current. [/shortdesc]

[properties]

Model Fluke a3000 FC
Product Type Wireless AC Current Clamp Module
Measurement Type True-RMS AC Current Clamp Meter
Current Measurement Range 0.5 A to 400.0 A
Resolution 0.1 A
Inrush Function Yes
Max Inrush Display 999.9 A
Logging Function Yes
Memory Record up to 65,000 readings
RF Communications 2.4 GHZ ISM Band
RF Communication Range (Open Air) Up to 20 m
RF Communication Range (Sheetrock Wall) Up to 6.5 m
RF Communication Range (Concrete Wall / Steel Enclosure) Up to 3.5 m
Compatible Master Units Fluke 3000 FC DMM; Fluke Ti200/300/400 Infrared Camera; PC via optional pc3000 FC Adapter; Fluke Connect Mobile app
Not Compatible With Fluke CNX test tools
Jaw Opening 34 mm (1.33 in)
Display LCD w/backlight, 3.5 digits
Log Rate / Interval 1 sec minimum (adjustable by PC)
Battery Type 2 AA, NEDA 15 A, IEC LR6
Battery Life 400 hours
Operating Temperature -10 C to +50 C
Storage Temperature -40 C to +60 C
Operating Humidity 90% at 35 C; 75% at 40 C; 45% at 50 C
Altitude (Operating) 2,000 m
Altitude (Storage) 12,000 m
Safety Rating CAT III 600 V
Ingress Protection (IP) Rating IP30
Pollution Degree 2
Size (H x W x D) 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
Weight 0.22 kg (8 oz)

[/properties]

[specifications]

Current Range 0.5 A to 400.0 A
Resolution 0.1 A
Accuracy (10 Hz to 100 Hz) 2% +/- 5 digits (at 400.0 A)
Accuracy (100 Hz to 500 Hz) 2.5% +/- 5 digits (at 400.0 A)
Inrush Max displayed reading 999.9 A
Crest Factor (50 Hz / 60 Hz) 3 at 500 A; 2.5 at 600 A; 1.42 at 1000 A; Add 2% for C.F. > 2
Log Rate / Interval 1 sec minimum (adjustable by PC)
Temperature Coefficient Add 0.1 x (specified accuracy) / C (< 18 C or > 28 C)
EMC EN 61326-1
Safety Compliance IEC 61010-1, 600 V CAT III, 3rd edition, Pollution Degree 2
Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE

[/specifications]

[accesories]

Included True-RMS AC Clamp Meter
Optional pc3000 FC Adapter

[/accesories]

Wireless True-RMS Current Measurement with Safer Remote Monitoring

The Fluke a3000 FC Wireless AC Current Clamp Module delivers precise True-RMS current measurements up to 400 A while allowing technicians to monitor readings remotely through the Fluke Connect system. Designed for industrial electricians and maintenance professionals, it enhances safety by enabling measurement collection outside hazardous panels. With wireless data transfer, logging, and inrush capture, it streamlines troubleshooting and preventive maintenance workflows.

Key Benefits & Features
  • True-RMS AC Measurement: Accurately measures non-linear loads from 0.5 A to 400 A, ensuring reliable readings in real-world industrial environments.
  • Wireless Fluke Connect Integration: Transmits live measurements via 2.4 GHz ISM band to compatible Fluke Connect devices, PCs, and mobile apps for remote visibility.
  • Advanced Logging Capability: Records and stores up to 65,000 time-stamped readings with adjustable intervals starting at 1 second for long-term trend analysis.
  • Inrush Current Function: Captures startup surge currents up to 999.9 A to diagnose motor and transformer performance issues.
  • Standalone or System Operation: Operates independently as a clamp meter or as part of a scalable Fluke Connect wireless test system.
Ideal Use Cases
  • Three-phase panel diagnostics with remote viewing
  • Motor startup and inrush current analysis
  • Preventive maintenance logging and load trending
  • Electrical troubleshooting in industrial facilities
  • Arc flash risk reduction environments
Technical Specifications
  • Current Range: 0.5 A to 400.0 A AC
  • Resolution: 0.1 A
  • Accuracy: 2% +/- 5 digits (10 Hz to 100 Hz), 2.5% +/- 5 digits (100 Hz to 500 Hz)
  • Inrush: Max displayed reading 999.9 A
  • Memory: Up to 65,000 readings
  • Wireless Frequency: 2.4 GHz ISM band
  • Wireless Range: Up to 20 m unobstructed
  • Safety Rating: CAT III 600 V
  • Jaw Opening: 34 mm
  • Battery: 2 AA, up to 400 hours operation
Improve Safety and Speed in Electrical Diagnostics

Reduce exposure to live panels while capturing precise AC current data with the Fluke a3000 FC. Designed for connected maintenance environments. Order today to upgrade your electrical troubleshooting workflow.
