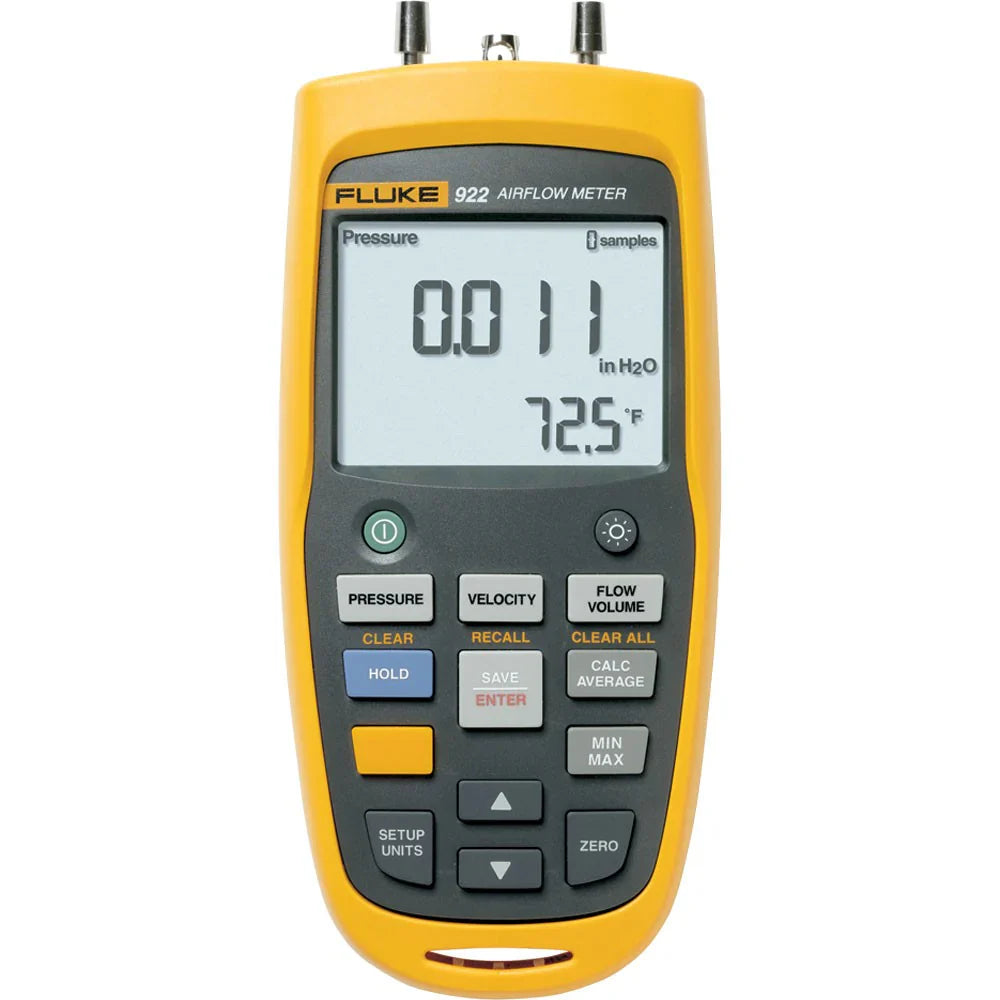

Fluke 922 Airflow Meter/Micromanometer (FLUKE-922)
Fluke 922 Airflow Meter/Micromanometer (FLUKE-922)

Fluke 922 Airflow Meter/Micromanometer (FLUKE-922)

por Fluke
R$ 10.980,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Fluke 922 Airflow Meter/Micromanometer is a rugged and versatile tool for diagnosing HVAC ventilation issues, measuring air pressure, velocity, and airflow with high precision

[/shortdesc]

[properties]
Property
Model Fluke 922
Product Type Airflow Meter / Micromanometer
Measurement Functions Differential and static pressure, air velocity, airflow
Display Backlit digital display
Duct Configuration User-defined shape and size
Measurement Units Pascals, inH₂O, mmH₂O, mbar, PSI, fpm, m/s, cfm, m³/hr, l/s
Data Storage 99 readings
Power Supply 4 x AA (1.5V Alkaline) batteries
Battery Life ~375 hours (no backlight), ~80 hours (with backlight)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Relative Humidity 0% to 90% (non-condensing)
IP Rating IP40
Altitude (Operating / Storage) 2000 m / 12000 m
EMC Compliance EN61326-1
Vibration Standard MIL-PREF-28800F, Class 3
Max Pressure per Port 10 PSI

[/properties]

[specifications]


Specification
Air Pressure ±4000 Pa / ±16 inH₂O / ±400 mmH₂O / ±40 mbar / ±0.6 PSI
Air Velocity 250 to 16,000 fpm / 1 to 80 m/s
Air Flow (Volume) 0 to 99,999 cfm / m³/hr / l/s
Temperature Measurement 0°C to 50°C (32°F to 122°F)
Resolution - Pressure 1 Pa / 0.001 inH₂O / 0.1 mmH₂O / 0.01 mbar / 0.0001 PSI
Resolution - Velocity 1 fpm / 0.001 m/s
Resolution - Volume 1 cfm / 1 m³/hr / 1 l/s
Resolution - Temperature 0.1°C / 0.1°F
Accuracy - Pressure ±1% + 1 Pa (or unit equivalent)
Accuracy - Velocity ±2.5% of reading at 2000 fpm (10.00 m/s)
Accuracy - Temperature ±1% + 2°C / ±1% + 4°F



[/specifications]
[accesories]

Accessory
Rubber Hoses 2 included with Fluke 922
Wrist Strap Included
AA Batteries 4x AA (1.5V Alkaline) included
User Manual Included
Soft Carrying Case Included with standard Fluke 922

[/accesories]

Fluke 922 Airflow Meter/Micromanometer (FLUKE-922)

The Fluke 922 is a professional-grade airflow meter designed for HVAC technicians and industrial applications. Combining differential and static pressure, air velocity, and airflow readings into a single device, it enables accurate troubleshooting of ventilation systems. The meter allows users to enter duct shape and dimensions for maximum measurement accuracy, ensuring proper airflow balance and indoor air quality. Its rugged design is built for field use, and a bright backlit display provides clear visibility in all environments.

  • All-in-One Measurement: Simultaneously measures differential and static pressure, air velocity, and airflow.
  • Rugged & Portable: Durable construction for field use with a soft carrying case.
  • High Accuracy: Compatible with most pitot tubes for reliable duct traversals.
  • Backlit Display: Ensures visibility in all working conditions.
  • Data Storage: Stores up to 99 readings for easy reference.
  • Auto Power Off: Extends battery life for long-term use.
  • Air Pressure Measurement: ±4000 Pascals, ±16 in H2O, ±400 mm H2O, ±40 mbar, ±0.6 PSI
  • Air Velocity Range: 250 to 16,000 fpm (1 to 80 m/s)
  • Air Flow Measurement: 0 to 99,999 cfm, 0 to 99,999 m³/hr, 0 to 99,999 l/s
  • Temperature Range: 0°C to 50°C (32°F to 122°F)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity: 0% to 90% RH, non-condensing
  • IP Rating: IP40
  • Operating Altitude: Up to 2000m
  • Storage Altitude: Up to 12,000m
  • Maximum Pressure at Each Port: 10 PSI
  • Data Storage: 99 readings
  • Battery Life: 375 hours (without backlight), 80 hours (with backlight)
  • Power Supply: 4 AA batteries
  • Compliance: Meets EN61326-1 standards
  • Dimensions: Portable and lightweight for convenient use

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Fluke 922 Airflow Meter/Micromanometer is a rugged and versatile tool for diagnosing HVAC ventilation issues, measuring air pressure, velocity, and airflow with high precision

[/shortdesc]

[properties]
Property
Model Fluke 922
Product Type Airflow Meter / Micromanometer
Measurement Functions Differential and static pressure, air velocity, airflow
Display Backlit digital display
Duct Configuration User-defined shape and size
Measurement Units Pascals, inH₂O, mmH₂O, mbar, PSI, fpm, m/s, cfm, m³/hr, l/s
Data Storage 99 readings
Power Supply 4 x AA (1.5V Alkaline) batteries
Battery Life ~375 hours (no backlight), ~80 hours (with backlight)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Relative Humidity 0% to 90% (non-condensing)
IP Rating IP40
Altitude (Operating / Storage) 2000 m / 12000 m
EMC Compliance EN61326-1
Vibration Standard MIL-PREF-28800F, Class 3
Max Pressure per Port 10 PSI

[/properties]

[specifications]


Specification
Air Pressure ±4000 Pa / ±16 inH₂O / ±400 mmH₂O / ±40 mbar / ±0.6 PSI
Air Velocity 250 to 16,000 fpm / 1 to 80 m/s
Air Flow (Volume) 0 to 99,999 cfm / m³/hr / l/s
Temperature Measurement 0°C to 50°C (32°F to 122°F)
Resolution - Pressure 1 Pa / 0.001 inH₂O / 0.1 mmH₂O / 0.01 mbar / 0.0001 PSI
Resolution - Velocity 1 fpm / 0.001 m/s
Resolution - Volume 1 cfm / 1 m³/hr / 1 l/s
Resolution - Temperature 0.1°C / 0.1°F
Accuracy - Pressure ±1% + 1 Pa (or unit equivalent)
Accuracy - Velocity ±2.5% of reading at 2000 fpm (10.00 m/s)
Accuracy - Temperature ±1% + 2°C / ±1% + 4°F



[/specifications]
[accesories]

Accessory
Rubber Hoses 2 included with Fluke 922
Wrist Strap Included
AA Batteries 4x AA (1.5V Alkaline) included
User Manual Included
Soft Carrying Case Included with standard Fluke 922

[/accesories]

Fluke 922 Airflow Meter/Micromanometer (FLUKE-922)

The Fluke 922 is a professional-grade airflow meter designed for HVAC technicians and industrial applications. Combining differential and static pressure, air velocity, and airflow readings into a single device, it enables accurate troubleshooting of ventilation systems. The meter allows users to enter duct shape and dimensions for maximum measurement accuracy, ensuring proper airflow balance and indoor air quality. Its rugged design is built for field use, and a bright backlit display provides clear visibility in all environments.

Key Features:
  • All-in-One Measurement: Simultaneously measures differential and static pressure, air velocity, and airflow.
  • Rugged & Portable: Durable construction for field use with a soft carrying case.
  • High Accuracy: Compatible with most pitot tubes for reliable duct traversals.
  • Backlit Display: Ensures visibility in all working conditions.
  • Data Storage: Stores up to 99 readings for easy reference.
  • Auto Power Off: Extends battery life for long-term use.
Technical Specifications:
  • Air Pressure Measurement: ±4000 Pascals, ±16 in H2O, ±400 mm H2O, ±40 mbar, ±0.6 PSI
  • Air Velocity Range: 250 to 16,000 fpm (1 to 80 m/s)
  • Air Flow Measurement: 0 to 99,999 cfm, 0 to 99,999 m³/hr, 0 to 99,999 l/s
  • Temperature Range: 0°C to 50°C (32°F to 122°F)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity: 0% to 90% RH, non-condensing
  • IP Rating: IP40
  • Operating Altitude: Up to 2000m
  • Storage Altitude: Up to 12,000m
  • Maximum Pressure at Each Port: 10 PSI
  • Data Storage: 99 readings
  • Battery Life: 375 hours (without backlight), 80 hours (with backlight)
  • Power Supply: 4 AA batteries
  • Compliance: Meets EN61326-1 standards
  • Dimensions: Portable and lightweight for convenient use
