• The FLUKE-9062 is a compact and reliable motor and phase rotation tester supporting 3-phase detection and non-contact motor rotation direction checks, ideal for maintenance and troubleshooting in commercial and industrial systems

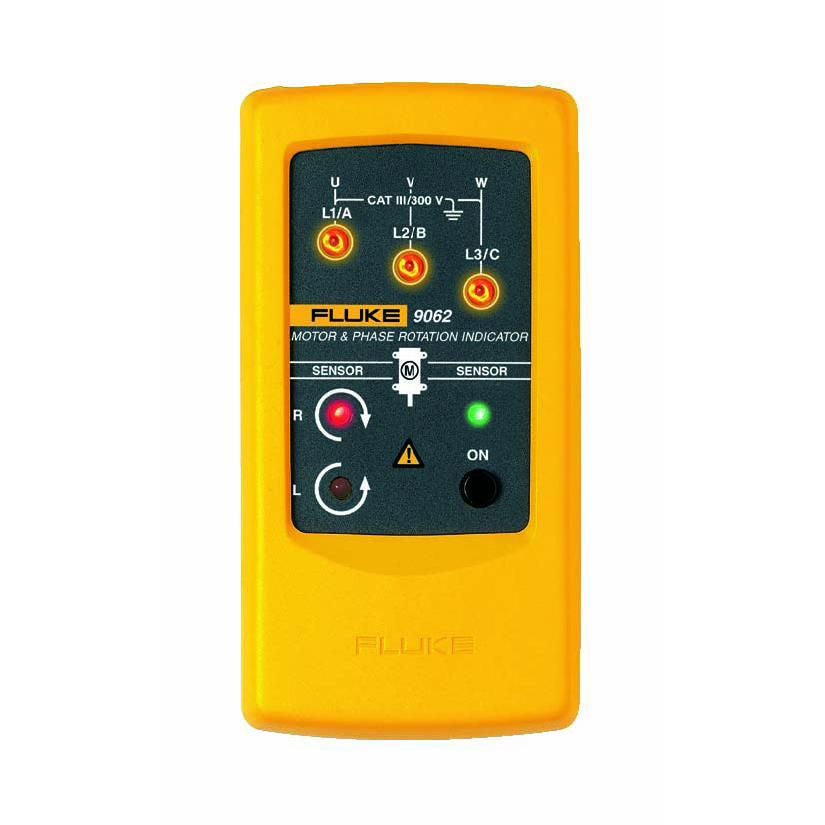

FLUKE-9062 Motor and Phase Rotation Indicator

The Fluke 9062 Motor and Phase Rotation Indicator is a versatile, handheld diagnostic tool designed for detecting phase sequence and motor rotation direction. It enables contact-free detection of the running direction of motors and features clearly labeled LED indicators for fast and intuitive operation. Operating across a wide voltage range up to 400V and frequencies between 2 to 400 Hz, it’s ideal for HVAC, electrical, and automation technicians. Its compact build, safety certifications, and IP40 rating make it suitable for demanding environments.

• Three-Phase Indication: Displays all three phases with clear LED feedback
• Phase Rotation Detection: Determines the correct phase sequence to prevent wiring faults
• Non-Contact Motor Direction Testing: Identifies motor shaft direction without connecting directly
• Wide Voltage & Frequency Range: Supports 120–400 V AC and 2–400 Hz systems
• Rugged Design: Operates reliably between 0°C to 40°C and up to 2000m altitude
• Certified Safety: EN 61010, EN 61557-7, CAT III 300 V rated
• Compact & Portable: Lightweight form factor with one 9V battery operation

• Model: Fluke 9062
• Phase Display Range: 120 to 400 V AC
• Voltage Range: Up to 400 V
• Frequency Range: 2 to 400 Hz
• Operating Timer: Continuous
• Operating Temperature: 0°C to 40°C
• Operating Altitude: Up to 2000 m
• Humidity: 15% to 80% (non-condensing)
• Ingress Protection: IP40
• Overvoltage Category: CAT III, 300 V
• Standards: EN 61010, EN 61557-7
• Power Supply: 1 x 9V battery
• Dimensions: 124 x 61 x 27 mm
• Weight: Approx. 130 g
