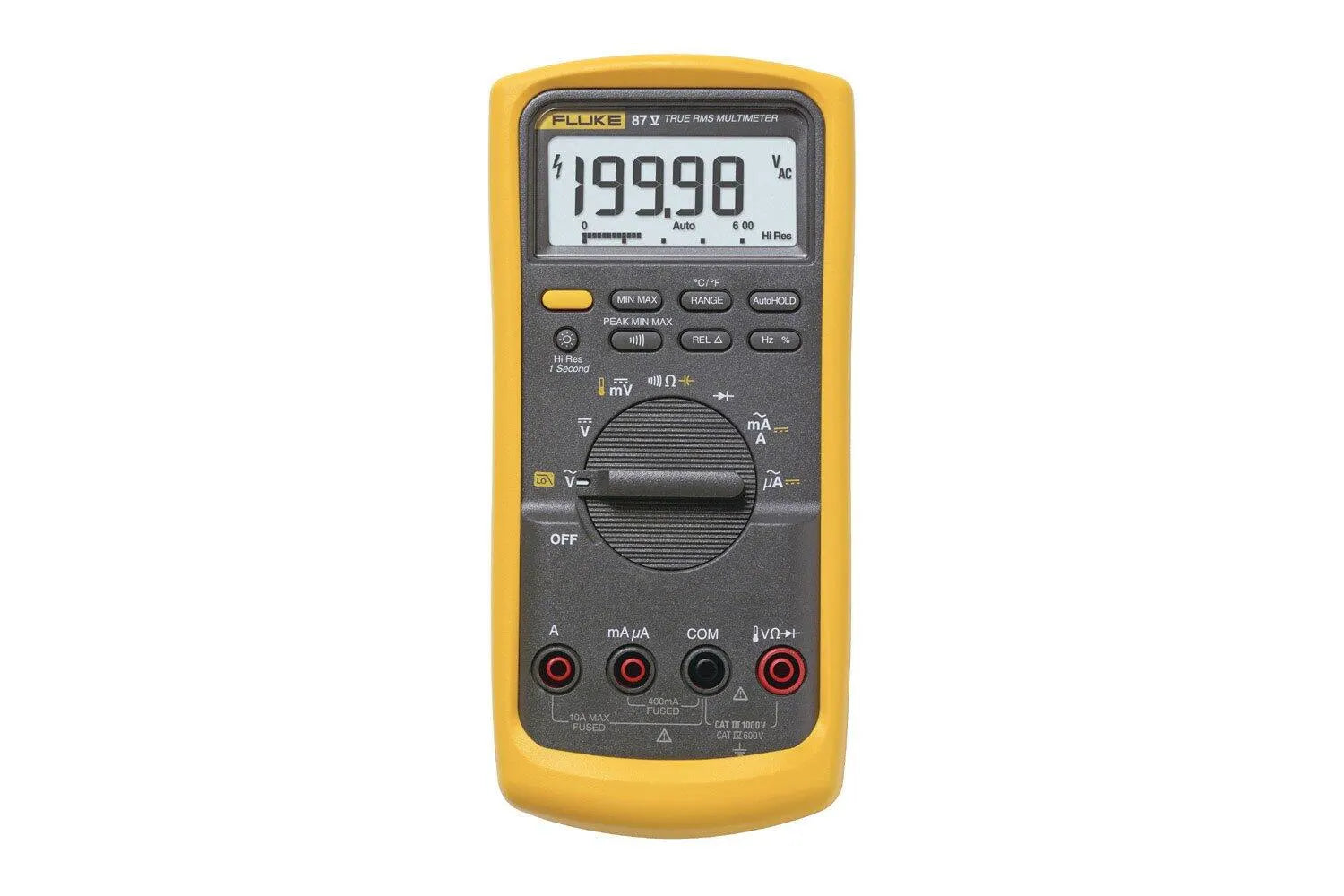

Fluke 87V True RMS Industrial Multimeter
Fluke 87V True RMS Industrial Multimeter

Fluke 87V True RMS Industrial Multimeter

por Fluke
R$ 5.100,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] True-RMS accuracy, 1000 V AC/DC, 10 A current range, VFD low-pass filter, 200 kHz frequency, CAT III 1000 V/CAT IV 600 V [/shortdesc]

[properties]

Model Fluke 87V
Product Type Industrial Digital Multimeter
True RMS Yes
Maximum Voltage (AC/DC) 1000 V
Maximum Current (AC/DC) 10 A (20 A for 30 sec)
Resistance Range Up to 50 MΩ
Capacitance Range Up to 9,999 µF
Frequency Range Up to 200 kHz
Temperature Range −200 °C to 1090 °C (probe dependent)
Conductance Up to 60.00 nS
Diode Test Range 3 V
Overvoltage Category CAT III 1000 V / CAT IV 600 V
Display 6000 counts (19,999 in high-resolution mode)
Backlight Two-level bright backlight
Power 9V battery (installed)
Battery Life ~400 hours (without backlight)
Operating Temperature −20 °C to +55 °C
Storage Temperature −40 °C to +60 °C
Humidity 0–90% (0–35 °C), 0–70% (35–55 °C)
Size (H × W × D) 201 × 98 × 52 mm (with holster)
Weight 355 g (624 g with holster)
Shock Rating 1 m drop (IEC 61010-1:2001)
Vibration MIL-PRF-28800 Class 2

[/properties]

[specifications]

DC Voltage Max 1000 V; Accuracy ±(0.05% + 1); Resolution 10 µV
AC Voltage Max 1000 V; Accuracy ±(0.7% + 2) True RMS; AC Bandwidth 20 kHz (LPF enabled); 3 dB @ 1 kHz; Resolution 0.1 mV
DC Current Max 10 A (20 A for 30 sec); Accuracy ±(0.2% + 2); Resolution 0.01 µA
AC Current Max 10 A (20 A for 30 sec); Accuracy ±(1.0% + 2) True RMS; Resolution 0.1 µA
Resistance Range up to 50 MΩ; Accuracy ±(0.2% + 1); Resolution 0.1 Ω
Capacitance Max 9,999 µF; Accuracy ±(1% + 2); Resolution 0.01 nF
Frequency Max 200 kHz; Accuracy ±(0.005% + 1); Resolution 0.01 Hz
Duty Cycle Max 99.9%; Accuracy ±(0.2% per kHz + 0.1%); Resolution 0.1%
Temperature Measurement −200 °C to 1090 °C (meter); with 80BK probe: −40 °C to 260 °C; Accuracy ±2.2 °C or 2% whichever is greater
Conductance Up to 60.00 nS; Accuracy ±(1.0% + 10); Resolution 0.01 nS
Diode Test Range 3 V; Resolution 1 mV; Accuracy ±(2% + 1)
Environmental Conditions Operating: −20 °C to 55 °C; Storage: −40 °C to 60 °C; Humidity: 0–90% (0–35 °C), 0–70% (35–55 °C); Altitude: 2000 m
Safety Approvals EN 61010-1 CAT III 1000 V / CAT IV 600 V; CE, CSA, RCM
Display Performance Digital 6000 counts (4/sec), 19,999 high-res mode; Analog bar graph 32 segments (40/sec)

[/specifications]

[accesories]

Included (Standard Package) TL75 Test Leads; AC175 Alligator Clips; Holster; 9V Battery (installed); 80BK Temperature Probe
Included (87V CAL Version) All standard items + Traceable calibration certificate with data
Optional Accessories Fluke TPAK ToolPak Magnetic Meter Hanger; Fluke TLK-225 SureGrip Master Accessory Set; Fluke CXT80 Extreme Case; Fluke Pack30 Professional Tool Backpack

[/accesories]

The Fluke 87V Industrial Multimeter delivers the accuracy and resolution required to troubleshoot motor drives, power distribution panels, automation systems and electromechanical equipment even in noisy, high-energy environments. Its advanced low-pass filter ensures precise measurements on variable frequency drives (VFDs), while Peak Capture functionality identifies fast intermittents down to 250 µs for reliable problem isolation. Built to Fluke’s highest safety standards, the 87V withstands spikes above 8000 V and operates confidently in challenging field conditions.

  • True-RMS performance: Achieves accurate readings on complex, noisy or non-linear loads common in VFD and automation systems.
  • Low-pass VFD filter: Enables stable, precise voltage measurements on motor drives by filtering high-frequency noise.
  • High-speed peak capture: Detects intermittents as short as 250 µs, essential for monitoring unstable signals.
  • Durable industrial build: Rated CAT III 1000 V and CAT IV 600 V with specially designed shielding that blocks high-energy electrical noise.
  • Enhanced visibility & usability: Features a bright two-level backlight, analog bar graph and Touch Hold for easier field work.
  • Testing and diagnosing variable-frequency motor drives
  • Industrial automation maintenance and plant operations
  • Power distribution and electrical panel troubleshooting
  • Field service in high-energy or high-altitude environments (up to 2000 m operating altitude)
  • Precision testing for electromechanical systems
  • Voltage Measurement: 1000 V AC/DC (True RMS ±0.7% + 2 AC; ±0.05% + 1 DC)
  • Current Measurement: 10 A (20 A for 30 seconds)
  • Resistance: Up to 50 MΩ
  • Capacitance: Up to 9,999 µF
  • Frequency: Up to 200 kHz (0.01 Hz resolution)
  • Duty Cycle: 0–99.9%
  • Temperature: −200 °C to 1090 °C (meter only)
  • Safety Ratings: CAT III 1000 V, CAT IV 600 V
  • Display: 6000–19,999 counts, analog bar graph
  • Battery Life: Approximately 400 hours (without backlight)

Order now and equip your toolkit with industry-leading accuracy.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] True-RMS accuracy, 1000 V AC/DC, 10 A current range, VFD low-pass filter, 200 kHz frequency, CAT III 1000 V/CAT IV 600 V [/shortdesc]

[properties]

Model Fluke 87V
Product Type Industrial Digital Multimeter
True RMS Yes
Maximum Voltage (AC/DC) 1000 V
Maximum Current (AC/DC) 10 A (20 A for 30 sec)
Resistance Range Up to 50 MΩ
Capacitance Range Up to 9,999 µF
Frequency Range Up to 200 kHz
Temperature Range −200 °C to 1090 °C (probe dependent)
Conductance Up to 60.00 nS
Diode Test Range 3 V
Overvoltage Category CAT III 1000 V / CAT IV 600 V
Display 6000 counts (19,999 in high-resolution mode)
Backlight Two-level bright backlight
Power 9V battery (installed)
Battery Life ~400 hours (without backlight)
Operating Temperature −20 °C to +55 °C
Storage Temperature −40 °C to +60 °C
Humidity 0–90% (0–35 °C), 0–70% (35–55 °C)
Size (H × W × D) 201 × 98 × 52 mm (with holster)
Weight 355 g (624 g with holster)
Shock Rating 1 m drop (IEC 61010-1:2001)
Vibration MIL-PRF-28800 Class 2

[/properties]

[specifications]

DC Voltage Max 1000 V; Accuracy ±(0.05% + 1); Resolution 10 µV
AC Voltage Max 1000 V; Accuracy ±(0.7% + 2) True RMS; AC Bandwidth 20 kHz (LPF enabled); 3 dB @ 1 kHz; Resolution 0.1 mV
DC Current Max 10 A (20 A for 30 sec); Accuracy ±(0.2% + 2); Resolution 0.01 µA
AC Current Max 10 A (20 A for 30 sec); Accuracy ±(1.0% + 2) True RMS; Resolution 0.1 µA
Resistance Range up to 50 MΩ; Accuracy ±(0.2% + 1); Resolution 0.1 Ω
Capacitance Max 9,999 µF; Accuracy ±(1% + 2); Resolution 0.01 nF
Frequency Max 200 kHz; Accuracy ±(0.005% + 1); Resolution 0.01 Hz
Duty Cycle Max 99.9%; Accuracy ±(0.2% per kHz + 0.1%); Resolution 0.1%
Temperature Measurement −200 °C to 1090 °C (meter); with 80BK probe: −40 °C to 260 °C; Accuracy ±2.2 °C or 2% whichever is greater
Conductance Up to 60.00 nS; Accuracy ±(1.0% + 10); Resolution 0.01 nS
Diode Test Range 3 V; Resolution 1 mV; Accuracy ±(2% + 1)
Environmental Conditions Operating: −20 °C to 55 °C; Storage: −40 °C to 60 °C; Humidity: 0–90% (0–35 °C), 0–70% (35–55 °C); Altitude: 2000 m
Safety Approvals EN 61010-1 CAT III 1000 V / CAT IV 600 V; CE, CSA, RCM
Display Performance Digital 6000 counts (4/sec), 19,999 high-res mode; Analog bar graph 32 segments (40/sec)

[/specifications]

[accesories]

Included (Standard Package) TL75 Test Leads; AC175 Alligator Clips; Holster; 9V Battery (installed); 80BK Temperature Probe
Included (87V CAL Version) All standard items + Traceable calibration certificate with data
Optional Accessories Fluke TPAK ToolPak Magnetic Meter Hanger; Fluke TLK-225 SureGrip Master Accessory Set; Fluke CXT80 Extreme Case; Fluke Pack30 Professional Tool Backpack

[/accesories]

Precision Diagnostics for Demanding Industrial Environments

The Fluke 87V Industrial Multimeter delivers the accuracy and resolution required to troubleshoot motor drives, power distribution panels, automation systems and electromechanical equipment even in noisy, high-energy environments. Its advanced low-pass filter ensures precise measurements on variable frequency drives (VFDs), while Peak Capture functionality identifies fast intermittents down to 250 µs for reliable problem isolation. Built to Fluke’s highest safety standards, the 87V withstands spikes above 8000 V and operates confidently in challenging field conditions.

Key Benefits & Features
  • True-RMS performance: Achieves accurate readings on complex, noisy or non-linear loads common in VFD and automation systems.
  • Low-pass VFD filter: Enables stable, precise voltage measurements on motor drives by filtering high-frequency noise.
  • High-speed peak capture: Detects intermittents as short as 250 µs, essential for monitoring unstable signals.
  • Durable industrial build: Rated CAT III 1000 V and CAT IV 600 V with specially designed shielding that blocks high-energy electrical noise.
  • Enhanced visibility & usability: Features a bright two-level backlight, analog bar graph and Touch Hold for easier field work.
Ideal Use Cases
  • Testing and diagnosing variable-frequency motor drives
  • Industrial automation maintenance and plant operations
  • Power distribution and electrical panel troubleshooting
  • Field service in high-energy or high-altitude environments (up to 2000 m operating altitude)
  • Precision testing for electromechanical systems
Technical Specifications
  • Voltage Measurement: 1000 V AC/DC (True RMS ±0.7% + 2 AC; ±0.05% + 1 DC)
  • Current Measurement: 10 A (20 A for 30 seconds)
  • Resistance: Up to 50 MΩ
  • Capacitance: Up to 9,999 µF
  • Frequency: Up to 200 kHz (0.01 Hz resolution)
  • Duty Cycle: 0–99.9%
  • Temperature: −200 °C to 1090 °C (meter only)
  • Safety Ratings: CAT III 1000 V, CAT IV 600 V
  • Display: 6000–19,999 counts, analog bar graph
  • Battery Life: Approximately 400 hours (without backlight)
Upgrade Your Test Precision Today

Order now and equip your toolkit with industry-leading accuracy.
