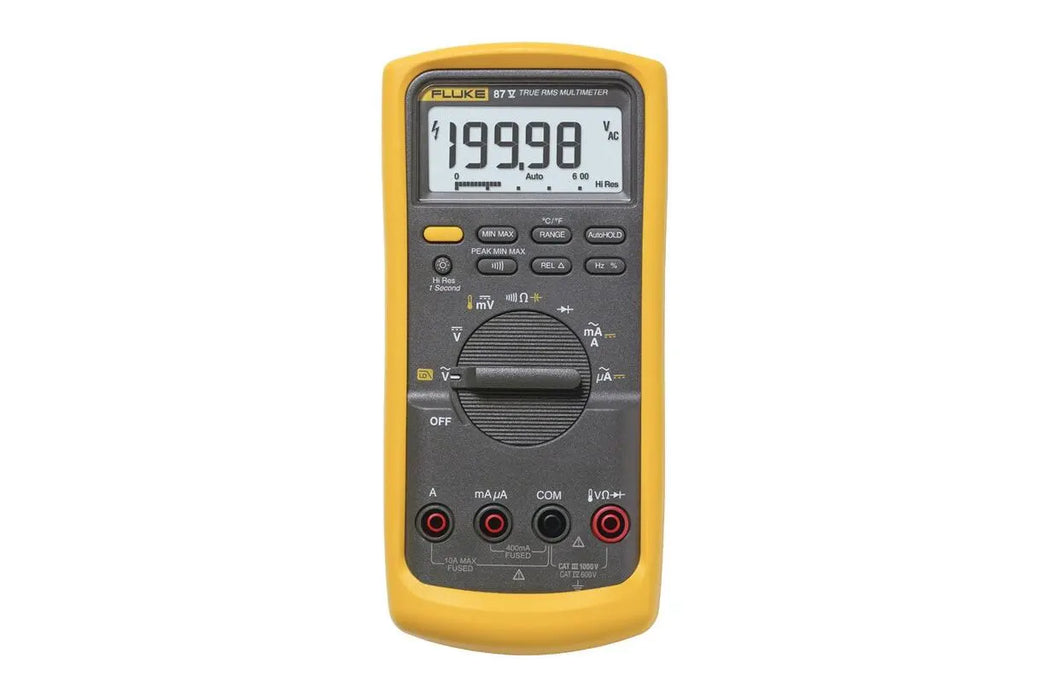

FLUKE-87-V/E2-KIT Industrial Combo Kit with Digital Multimeter
Clique ou role para ampliar
Toque ou belisque para ampliar
FLUKE-87-V/E2-KIT Industrial Combo Kit with Digital Multimeter
FLUKE-87-V/E2-KIT Industrial Combo Kit with Digital Multimeter

FLUKE-87-V/E2-KIT Industrial Combo Kit with Digital Multimeter

por Fluke
R$ 7.188,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] True RMS industrial multimeter kit, 1000V AC/DC, 20A current (short duration), built-in thermometer, and CAT IV safety rating. Includes magnetic hanger and premium accessories. [/shortdesc]

[properties]

Model Fluke 87V/E2
Product Type Industrial Digital Multimeter Combo Kit
Display 6,000 counts (3-3/4 digit) or 20,000 counts (4-1/2 digit); analog bar graph
True RMS Yes (AC Voltage and Current)
DC Voltage Up to 1000 V
AC Voltage Up to 1000 V
DC Current 10 A (20 A for 30 seconds maximum)
AC Current 10 A (20 A for 30 seconds maximum)
Resistance Up to 50 MOhm
Capacitance Up to 10,000 µF
Frequency Up to 200 kHz
Temperature Range -200 °C to 1090 °C (Meter capability)
Duty Cycle Up to 99.9%
Safety Rating CAT III 1000 V, CAT IV 600 V
Power Source 9V Battery (Included)
Battery Life ~400 hours typical (Alkaline, without backlight)
Dimensions 201 x 98 x 52 mm (with holster)
Weight 624 g (with holster)
Operating Temperature -20 °C to +55 °C
Storage Temperature -40 °C to +60 °C
Origin Assembled in USA

[/properties]

[specifications]

DC Voltage Accuracy ±(0.05% + 1); Max Resolution 10 µV
AC Voltage Accuracy ±(0.7% + 2) True RMS; Bandwidth 20 kHz (with low pass filter)
DC Current Accuracy ±(0.2% + 2); Max Resolution 0.01 µA
AC Current Accuracy ±(1.0% + 2) True RMS; Max Resolution 0.1 µA
Resistance Accuracy ±(0.2% + 1); Max Resolution 0.1 Ohm
Capacitance Accuracy ±(1% + 2); Max Resolution 0.01 nF
Frequency Accuracy ±(0.005% + 1); Max Resolution 0.01 Hz
Duty Cycle Accuracy ±(0.2% per kHz + 0.1%); Max Resolution 0.1%
80BK-A Probe Range -40.0 °C to 260 °C (-40.0 °F to 500 °F)
Conductance Max 60.00 nS; Accuracy ±(1.0% + 10)
Diode Test 3 V Range; 1 mV Resolution; ±(2% + 1) Accuracy
Peak Capture Captures intermittent signals as short as 250 µs
Humidity 0%–90% (0 °C–35 °C); 0%–70% (35 °C–55 °C)
Shock/Vibration 1 Meter drop (IEC 61010-1); MIL-PRF-28800 Class 2 instrument
Safety Certifications UL, CSA, TÜV, VDE listed; EN 61010-1

[/specifications]

[accesories]

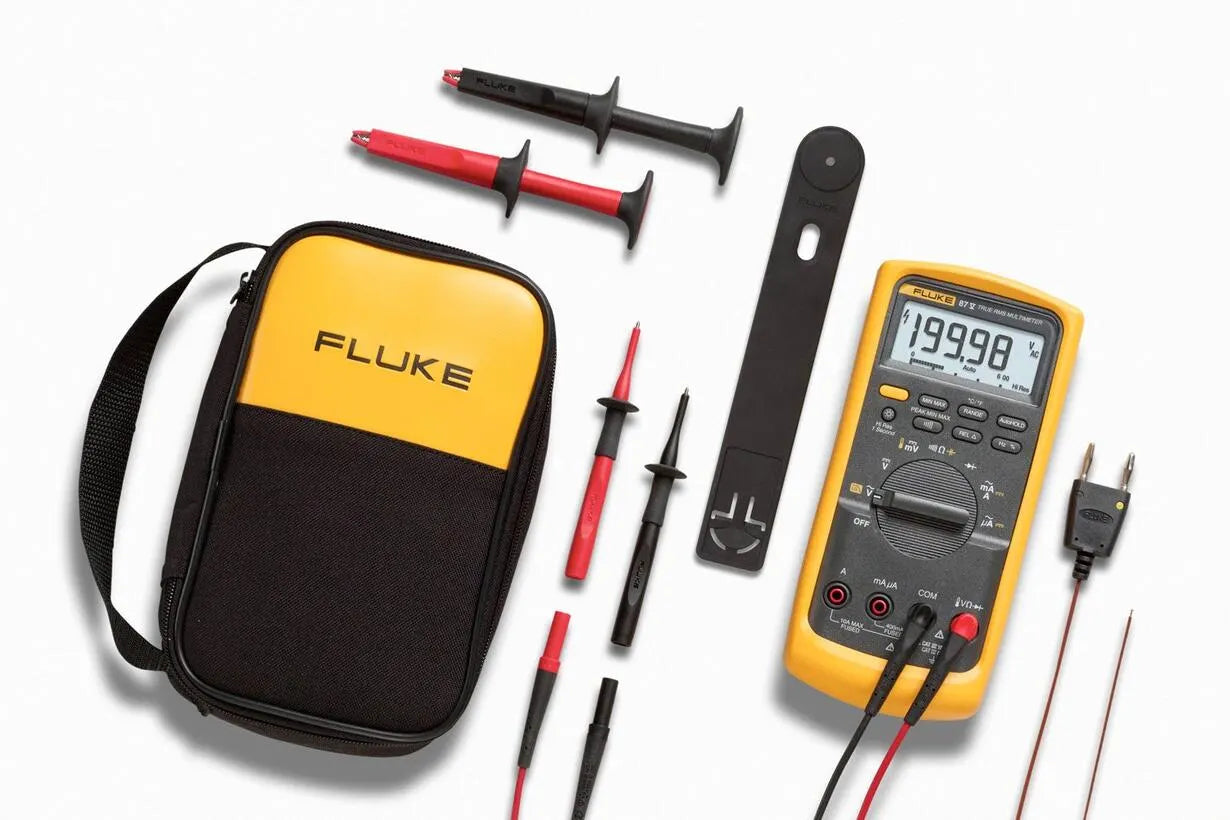

Included Items Fluke 87V Industrial Multimeter, TL224 SureGrip Insulated Test Leads, AC220 SureGrip Alligator Clips, TL238 SureGrip Test Probes, ToolPak Magnetic Meter Hanging Kit, 80BK-A DMM Temperature Probe, C35 Soft Carrying Case, 9V Battery (installed)

[/accesories]

The Fluke 87V/E2 Industrial Electrician Combo Kit is engineered for professionals who demand accuracy, reliability, and safety in high-energy environments. Built around the industry-leading Fluke 87V digital multimeter, this kit delivers advanced diagnostic capabilities and essential accessories to streamline troubleshooting and improve productivity in complex electrical systems.

  • True RMS Accuracy: Ensures precise AC voltage and current measurements on non-linear signals, critical for VFDs and industrial loads.
  • High Measurement Capability: Measures up to 1000V AC/DC and 10A current with high resolution, enabling accurate diagnostics across diverse applications.
  • Advanced Troubleshooting Tools: Peak capture, Min/Max/Avg recording, and glitch detection down to 250 µs help identify intermittent signals and spikes.
  • Integrated Temperature Measurement: Includes a dedicated thermocouple probe, making it ideal for monitoring electrical components and motor temperatures without a separate thermometer.
  • Complete Accessory Kit: Features fully insulated 3 mm exposed metal test probes, magnetic hanging strap for hands-free use, and a durable soft carrying case.
  • Industrial electrical troubleshooting and plant automation maintenance
  • VSD/VFD output side measurements at drive or motor terminals
  • Power distribution analysis and electromechanical equipment repair
  • Field service technicians requiring high-resolution (20,000 count) data
  • Checking power quality and capturing fast 250 µs glitches
  • Voltage Range: Up to 1000V AC/DC
  • Current Range: 10A (20A for 30 seconds max)
  • DC Accuracy: 0.05% DC accuracy
  • Display: 6000 counts or 20,000 counts in high-resolution mode
  • Temperature Range: -200 °C to 1090 °C (Meter); -40 °C to 260 °C (Probe)
  • Capacitance: Up to 10,000 µF
  • Frequency: Up to 200 kHz
  • Safety Rating: CAT III 1000V, CAT IV 600V
  • Operating Temperature: -20 °C to +55 °C
  • Battery Life: Approx. 400 hours (Alkaline)

Boost accuracy and efficiency with the trusted Fluke 87V/E2 kit. Order today and upgrade your measurement capabilities with the world’s most trusted industrial multimeter.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] True RMS industrial multimeter kit, 1000V AC/DC, 20A current (short duration), built-in thermometer, and CAT IV safety rating. Includes magnetic hanger and premium accessories. [/shortdesc]

[properties]

Model Fluke 87V/E2
Product Type Industrial Digital Multimeter Combo Kit
Display 6,000 counts (3-3/4 digit) or 20,000 counts (4-1/2 digit); analog bar graph
True RMS Yes (AC Voltage and Current)
DC Voltage Up to 1000 V
AC Voltage Up to 1000 V
DC Current 10 A (20 A for 30 seconds maximum)
AC Current 10 A (20 A for 30 seconds maximum)
Resistance Up to 50 MOhm
Capacitance Up to 10,000 µF
Frequency Up to 200 kHz
Temperature Range -200 °C to 1090 °C (Meter capability)
Duty Cycle Up to 99.9%
Safety Rating CAT III 1000 V, CAT IV 600 V
Power Source 9V Battery (Included)
Battery Life ~400 hours typical (Alkaline, without backlight)
Dimensions 201 x 98 x 52 mm (with holster)
Weight 624 g (with holster)
Operating Temperature -20 °C to +55 °C
Storage Temperature -40 °C to +60 °C
Origin Assembled in USA

[/properties]

[specifications]

DC Voltage Accuracy ±(0.05% + 1); Max Resolution 10 µV
AC Voltage Accuracy ±(0.7% + 2) True RMS; Bandwidth 20 kHz (with low pass filter)
DC Current Accuracy ±(0.2% + 2); Max Resolution 0.01 µA
AC Current Accuracy ±(1.0% + 2) True RMS; Max Resolution 0.1 µA
Resistance Accuracy ±(0.2% + 1); Max Resolution 0.1 Ohm
Capacitance Accuracy ±(1% + 2); Max Resolution 0.01 nF
Frequency Accuracy ±(0.005% + 1); Max Resolution 0.01 Hz
Duty Cycle Accuracy ±(0.2% per kHz + 0.1%); Max Resolution 0.1%
80BK-A Probe Range -40.0 °C to 260 °C (-40.0 °F to 500 °F)
Conductance Max 60.00 nS; Accuracy ±(1.0% + 10)
Diode Test 3 V Range; 1 mV Resolution; ±(2% + 1) Accuracy
Peak Capture Captures intermittent signals as short as 250 µs
Humidity 0%–90% (0 °C–35 °C); 0%–70% (35 °C–55 °C)
Shock/Vibration 1 Meter drop (IEC 61010-1); MIL-PRF-28800 Class 2 instrument
Safety Certifications UL, CSA, TÜV, VDE listed; EN 61010-1

[/specifications]

[accesories]

Included Items Fluke 87V Industrial Multimeter, TL224 SureGrip Insulated Test Leads, AC220 SureGrip Alligator Clips, TL238 SureGrip Test Probes, ToolPak Magnetic Meter Hanging Kit, 80BK-A DMM Temperature Probe, C35 Soft Carrying Case, 9V Battery (installed)

[/accesories]

Precision Measurement Power for Industrial Environments

The Fluke 87V/E2 Industrial Electrician Combo Kit is engineered for professionals who demand accuracy, reliability, and safety in high-energy environments. Built around the industry-leading Fluke 87V digital multimeter, this kit delivers advanced diagnostic capabilities and essential accessories to streamline troubleshooting and improve productivity in complex electrical systems.

Key Benefits & Features
  • True RMS Accuracy: Ensures precise AC voltage and current measurements on non-linear signals, critical for VFDs and industrial loads.
  • High Measurement Capability: Measures up to 1000V AC/DC and 10A current with high resolution, enabling accurate diagnostics across diverse applications.
  • Advanced Troubleshooting Tools: Peak capture, Min/Max/Avg recording, and glitch detection down to 250 µs help identify intermittent signals and spikes.
  • Integrated Temperature Measurement: Includes a dedicated thermocouple probe, making it ideal for monitoring electrical components and motor temperatures without a separate thermometer.
  • Complete Accessory Kit: Features fully insulated 3 mm exposed metal test probes, magnetic hanging strap for hands-free use, and a durable soft carrying case.
Ideal Use Cases
  • Industrial electrical troubleshooting and plant automation maintenance
  • VSD/VFD output side measurements at drive or motor terminals
  • Power distribution analysis and electromechanical equipment repair
  • Field service technicians requiring high-resolution (20,000 count) data
  • Checking power quality and capturing fast 250 µs glitches
Technical Specifications
  • Voltage Range: Up to 1000V AC/DC
  • Current Range: 10A (20A for 30 seconds max)
  • DC Accuracy: 0.05% DC accuracy
  • Display: 6000 counts or 20,000 counts in high-resolution mode
  • Temperature Range: -200 °C to 1090 °C (Meter); -40 °C to 260 °C (Probe)
  • Capacitance: Up to 10,000 µF
  • Frequency: Up to 200 kHz
  • Safety Rating: CAT III 1000V, CAT IV 600V
  • Operating Temperature: -20 °C to +55 °C
  • Battery Life: Approx. 400 hours (Alkaline)
Equip Your Toolkit with Industry-Leading Precision

Boost accuracy and efficiency with the trusted Fluke 87V/E2 kit. Order today and upgrade your measurement capabilities with the world’s most trusted industrial multimeter.
