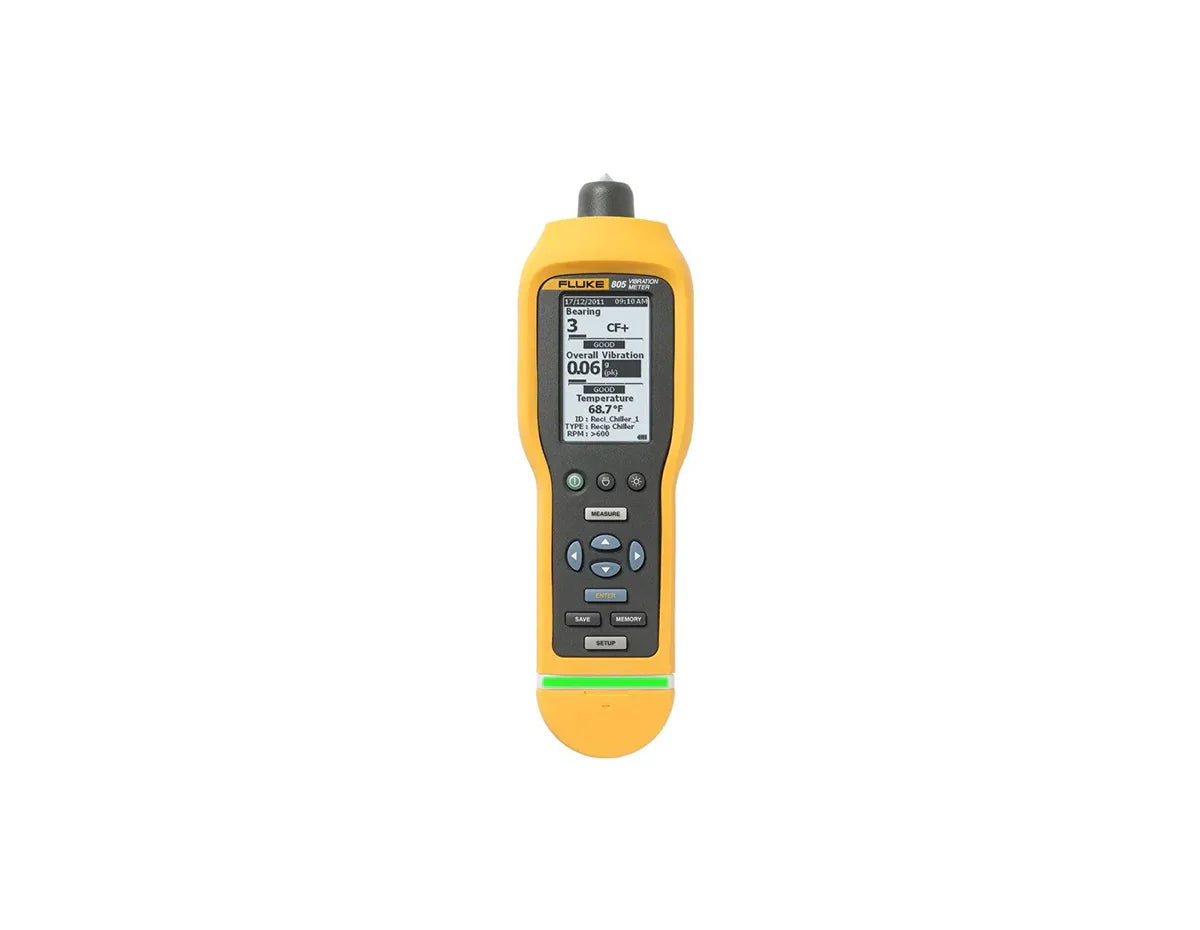

Fluke 805 FC Vibration Meter with CF+ Bearing Assessment and IR Temperature
Fluke 805 FC Vibration Meter with CF+ Bearing Assessment and IR Temperature

Fluke 805 FC Vibration Meter with CF+ Bearing Assessment and IR Temperature

por Fluke
R$ 29.400,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Vibration screening, bearing condition, IR temperature, CF+ assessment, and handheld design [/shortdesc]

[properties]

Model Fluke 805
Product Type Vibration Meter
Application Overall machine health and bearing condition checks
Low Frequency Range 10 Hz to 1,000 Hz
High Frequency Range 4,000 Hz to 20,000 Hz
Severity Levels Good, Satisfactory, Unsatisfactory, Unacceptable
Overall Vibration Measurement Acceleration, velocity and displacement units
Bearing Assessment Crest Factor+ using direct sensor tip measurements
Temperature Measurement Spot IR Sensor
Machine Categories Chillers, fans, cooling towers, centrifugal pumps, positive displacement pumps, air compressors, blowers, and machine tools
Memory Up to 3,500 measurements
IP Rating IP54
Battery Type Two AA alkaline or lithium-ion batteries
Battery Life 250 measurements
Size (L × W × H) 25.72 × 16.19 × 9.84 cm (10.13 × 6.38 × 3.875 in)
Weight 1.16 kg (2.55 lb)
Operating Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Storage Temperature -30 °C to 80 °C (-22 °F to 176 °F)
Operating Humidity 10% to 95% RH, non-condensing
Operating / Storage Altitude Sea level to 3,048 m (10,000 ft)

[/properties]

[specifications]

Vibration Meter Low frequency range 10 Hz to 1,000 Hz; High frequency range 4,000 Hz to 20,000 Hz; Vibration limit 50 g peak (100 g peak-peak)
Signal Processing 16-bit A/D converter; Signal to noise ratio 80 dB; Low frequency sampling rate 20,000 Hz; High frequency sampling rate 80,000 Hz
Sensor Sensitivity 100 mV/g ±10%
Sensor Measurement Range 0.01 g to 50 g
Sensor Resolution 0.01 g
Sensor Accuracy At 100 Hz ±5% of measured value
Amplitude Units Acceleration: g, m/sec²; Velocity: in/sec, mm/sec; Displacement: mils, mm
Infrared Thermometer Range -20 °C to 200 °C (-4 °F to 392 °F); Accuracy ±2 °C (4 °F); Fixed focal length at approximately 3.8 cm (1.5 in)
External Sensor Support Frequency range 10 Hz to 1,000 Hz; Bias voltage 20 V DC to 22 V DC; Bias current maximum 5 mA
Firmware / Data Factory calibration required; Database on internal flash memory; Upgrade through USB; Memory up to 3,500 measurements
External Interfaces USB 2.0 full speed communication
Connectors USB mini-B 7-pin, stereo audio output jack (3.5 mm audio plug), external sensor jack (SMB connector)
Radiated Emission Electrostatic discharge: EN 61000-4-2; Electromagnetic interference: EN 61000-4-3; RE: CISPR 11, Class A
Crest Factor+ CF+ values range from 1 to 16 and increase as bearing condition worsens
Pressure Indication Green and red lighting system with on-screen comments indicates how much pressure to apply during measurement
Machine Health Use Designed for frontline go or no-go vibration screening of bearings and overall machine health
Drop Test 1 meter
Environmental Vibration Limit 500 g peak

[/specifications]

[accesories]

Included 805 Vibration Meter; USB cable; Storage case; Belt holster; Quick reference guide; Two AA batteries
External Sensor External sensors are supported, but not provided by Fluke

[/accesories]

The Fluke 805 Vibration Meter gives frontline maintenance teams a reliable way to check overall machine health, bearing condition and temperature without complex vibration analysis. Designed for repeatable screening, it helps technicians make fast go or no-go decisions and safely record measurement data when working in the field.

  • Repeatable vibration screening: Innovative sensor and sensor tip design help reduce measurement variation caused by angle or contact pressure.
  • Bearing condition assessment: Crest Factor+ technology supports reliable bearing evaluation using direct sensor tip measurements from 4,000 Hz to 20,000 Hz.
  • Four-level severity scale: Good, Satisfactory, Unsatisfactory and Unacceptable ratings help teams quickly prioritize maintenance action.
  • Expanded diagnostic visibility: Spot IR temperature measurement adds thermal context to vibration and bearing readings for improved troubleshooting.
  • Data Tracking: Excel templates allow operators to transfer values over USB to easily trend diagnostic metrics and evaluate performance over time.
  • Frontline mechanical troubleshooting teams needing quick machine health checks.
  • Predictive maintenance programs tracking vibration trends over time.
  • Industrial plants monitoring bearings, pumps, fans, compressors and blowers.
  • Facilities teams making go or no-go maintenance decisions in the field.
  • Product Type: Handheld vibration meter
  • Overall Vibration Range: 10 Hz to 1,000 Hz
  • Bearing CF+ Range: 4,000 Hz to 20,000 Hz
  • Severity Levels: Good, Satisfactory, Unsatisfactory, Unacceptable
  • Measurement Range: 0.01 g to 50 g
  • Amplitude Units: Acceleration, velocity and displacement
  • IR Temperature Range: -20 °C to 200 °C
  • Memory Capacity: Up to 3,500 measurements
  • Interface: USB 2.0 full speed communication
  • IP Rating: IP54

Choose the Fluke 805 Vibration Meter to identify machine health issues earlier, improve maintenance confidence and support smarter asset decisions. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Vibration screening, bearing condition, IR temperature, CF+ assessment, and handheld design [/shortdesc]

[properties]

Model Fluke 805
Product Type Vibration Meter
Application Overall machine health and bearing condition checks
Low Frequency Range 10 Hz to 1,000 Hz
High Frequency Range 4,000 Hz to 20,000 Hz
Severity Levels Good, Satisfactory, Unsatisfactory, Unacceptable
Overall Vibration Measurement Acceleration, velocity and displacement units
Bearing Assessment Crest Factor+ using direct sensor tip measurements
Temperature Measurement Spot IR Sensor
Machine Categories Chillers, fans, cooling towers, centrifugal pumps, positive displacement pumps, air compressors, blowers, and machine tools
Memory Up to 3,500 measurements
IP Rating IP54
Battery Type Two AA alkaline or lithium-ion batteries
Battery Life 250 measurements
Size (L × W × H) 25.72 × 16.19 × 9.84 cm (10.13 × 6.38 × 3.875 in)
Weight 1.16 kg (2.55 lb)
Operating Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Storage Temperature -30 °C to 80 °C (-22 °F to 176 °F)
Operating Humidity 10% to 95% RH, non-condensing
Operating / Storage Altitude Sea level to 3,048 m (10,000 ft)

[/properties]

[specifications]

Vibration Meter Low frequency range 10 Hz to 1,000 Hz; High frequency range 4,000 Hz to 20,000 Hz; Vibration limit 50 g peak (100 g peak-peak)
Signal Processing 16-bit A/D converter; Signal to noise ratio 80 dB; Low frequency sampling rate 20,000 Hz; High frequency sampling rate 80,000 Hz
Sensor Sensitivity 100 mV/g ±10%
Sensor Measurement Range 0.01 g to 50 g
Sensor Resolution 0.01 g
Sensor Accuracy At 100 Hz ±5% of measured value
Amplitude Units Acceleration: g, m/sec²; Velocity: in/sec, mm/sec; Displacement: mils, mm
Infrared Thermometer Range -20 °C to 200 °C (-4 °F to 392 °F); Accuracy ±2 °C (4 °F); Fixed focal length at approximately 3.8 cm (1.5 in)
External Sensor Support Frequency range 10 Hz to 1,000 Hz; Bias voltage 20 V DC to 22 V DC; Bias current maximum 5 mA
Firmware / Data Factory calibration required; Database on internal flash memory; Upgrade through USB; Memory up to 3,500 measurements
External Interfaces USB 2.0 full speed communication
Connectors USB mini-B 7-pin, stereo audio output jack (3.5 mm audio plug), external sensor jack (SMB connector)
Radiated Emission Electrostatic discharge: EN 61000-4-2; Electromagnetic interference: EN 61000-4-3; RE: CISPR 11, Class A
Crest Factor+ CF+ values range from 1 to 16 and increase as bearing condition worsens
Pressure Indication Green and red lighting system with on-screen comments indicates how much pressure to apply during measurement
Machine Health Use Designed for frontline go or no-go vibration screening of bearings and overall machine health
Drop Test 1 meter
Environmental Vibration Limit 500 g peak

[/specifications]

[accesories]

Included 805 Vibration Meter; USB cable; Storage case; Belt holster; Quick reference guide; Two AA batteries
External Sensor External sensors are supported, but not provided by Fluke

[/accesories]

Make Confident Maintenance Decisions Before Failure Happens

The Fluke 805 Vibration Meter gives frontline maintenance teams a reliable way to check overall machine health, bearing condition and temperature without complex vibration analysis. Designed for repeatable screening, it helps technicians make fast go or no-go decisions and safely record measurement data when working in the field.

Key Benefits & Features
  • Repeatable vibration screening: Innovative sensor and sensor tip design help reduce measurement variation caused by angle or contact pressure.
  • Bearing condition assessment: Crest Factor+ technology supports reliable bearing evaluation using direct sensor tip measurements from 4,000 Hz to 20,000 Hz.
  • Four-level severity scale: Good, Satisfactory, Unsatisfactory and Unacceptable ratings help teams quickly prioritize maintenance action.
  • Expanded diagnostic visibility: Spot IR temperature measurement adds thermal context to vibration and bearing readings for improved troubleshooting.
  • Data Tracking: Excel templates allow operators to transfer values over USB to easily trend diagnostic metrics and evaluate performance over time.
Ideal Use Cases
  • Frontline mechanical troubleshooting teams needing quick machine health checks.
  • Predictive maintenance programs tracking vibration trends over time.
  • Industrial plants monitoring bearings, pumps, fans, compressors and blowers.
  • Facilities teams making go or no-go maintenance decisions in the field.
Technical Specifications
  • Product Type: Handheld vibration meter
  • Overall Vibration Range: 10 Hz to 1,000 Hz
  • Bearing CF+ Range: 4,000 Hz to 20,000 Hz
  • Severity Levels: Good, Satisfactory, Unsatisfactory, Unacceptable
  • Measurement Range: 0.01 g to 50 g
  • Amplitude Units: Acceleration, velocity and displacement
  • IR Temperature Range: -20 °C to 200 °C
  • Memory Capacity: Up to 3,500 measurements
  • Interface: USB 2.0 full speed communication
  • IP Rating: IP54
Strengthen Your Predictive Maintenance Workflow

Choose the Fluke 805 Vibration Meter to identify machine health issues earlier, improve maintenance confidence and support smarter asset decisions. Order today.
