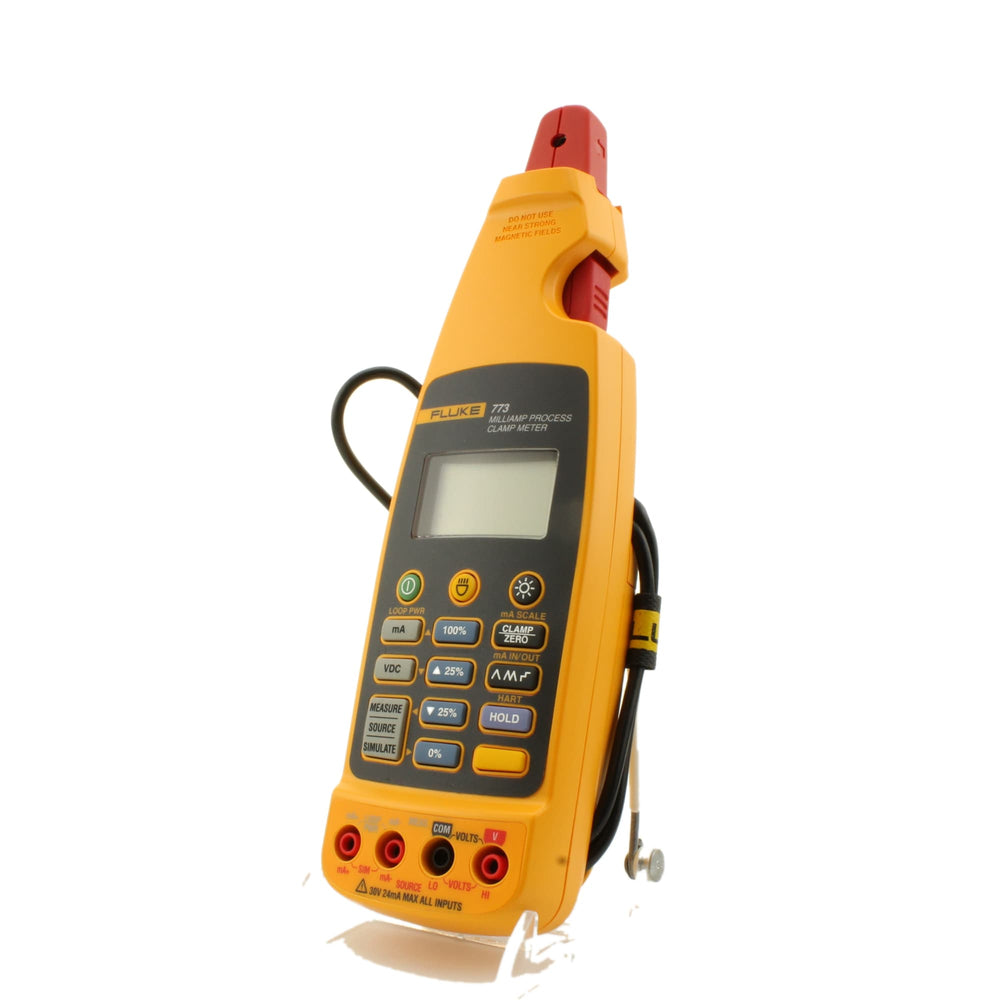

Fluke 773 Milliamp Process Clamp Meter (FLUKE-773)
Fluke 773 Milliamp Process Clamp Meter (FLUKE-773)

Fluke 773 Milliamp Process Clamp Meter (FLUKE-773)

por Fluke
R$ 16.800,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • The device features an mA measurement range of 0 to 24.00 mA with 0.2% accuracy, a DC voltage measurement range of 0 to 30.00 V with 0.2% accuracy, a voltage source range of 0 to 10.00 V DC, loop power of 24 V, a resolution of 0.01 mA, and a battery life of 12 hours at a 12 mA source into 500 ohms

[/shortdesc]

[properties]

Product Name Fluke 773 Milliamp Process Clamp Meter
Product Description Advanced clamp meter for mA measurement without breaking the loop, ideal for control systems and field device troubleshooting
DC Voltage Measurement Accurately measures DC voltages up to 30 V
DC Voltage Source Provides DC voltage output for testing devices with 1-5V or 0-10V input
mA Measurement 4-20 mA measurement in-circuit, reducing downtime by avoiding loop breaks
Simultaneous mA Measurement and Source Measure and source mA signals concurrently for testing control devices
Scaled mA Output Continuously outputs mA signal corresponding to a 4-20 mA measurement for data logging
Voltage Output Functions Includes ramp or step functions for automated remote voltage testing
Power Saving Features Auto-off and backlight timeout to extend battery life
Loop Power Provides 24 V loop power for testing field devices
Ideal Applications Industrial environments for control systems and troubleshooting field devices

[/properties]

[specifications]

mA Measurement Range 0 to 24.00 mA with 0.2% accuracy for precise current measurement
DC Voltage Measurement Range 0 to 30.00 V with 0.2% accuracy for accurate voltage testing
Voltage Source Range 0 to 10.00 V DC for output testing on input devices
Resolution 0.01 mA resolution for detailed current readings
Loop Power 24 V loop power for in-field testing
Battery Life 12 hours at 12 mA source into 500 ohms for extended use
Physical Dimensions 41.3 mm x 76 mm x 248 mm (1.625 in x 3 in x 9.75 in) for portability
Weight 415 g (14 oz) - Lightweight for easy handling
Operating Temperature -10 °C to 50 °C (14 °F to 122 °F) for a range of conditions
Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F) for secure storage
Humidity < 90% at < 30 °C, < 75% at 30 to 55 °C for use in various environments
Safety Rating CAT III 300 V for safety in industrial applications
Certifications CE, CSA, TÜV, and FCC Part 15 Class B

[/specifications]

Fluke 773 Milliamp Process Clamp Meter

The Fluke 773 Milliamp Process Clamp Meter offers advanced mA measurement without the need to break the loop, saving time and increasing efficiency. Ideal for industrial environments, it can measure, source, and simulate 4-20 mA signals. The 773 provides a convenient solution for verifying control systems and troubleshooting field devices, with added functionality like DC voltage measurement, output, and scaling features for versatile applications.

  • DC Voltage Measurement: Accurately measures DC voltages up to 30 V.
  • DC Voltage Source: Provides DC voltage output to test input devices that accept a 1-5V or 0-10V signal.
  • mA Measurement Without Breaking the Loop: Measures 4-20 mA signals in-circuit, reducing downtime.
  • Simultaneous mA Measurement and Source: Measure mA output while sourcing a signal, ideal for testing control devices like valves and isolators.
  • Scaled mA Output: Continuously outputs an mA signal corresponding to a 4-20 mA measurement, enabling data logging.
  • Voltage Output with Ramp or Step Functions: Allows automated voltage changes for remote testing.
  • Power Saving Features: Auto-off and backlight timeout extend battery life.
  • mA Measurement Range: 0 to 24.00 mA with 0.2% accuracy
  • DC Voltage Measurement Range: 0 to 30.00 V with 0.2% accuracy
  • Voltage Source Range: 0 to 10.00 V DC
  • Loop Power: 24 V
  • Resolution: 0.01 mA
  • Battery Life: 12 hours at 12 mA source into 500 ohms
  • Size: 41.3 mm x 76 mm x 248 mm (1.625 in x 3 in x 9.75 in)
  • Weight: 415 g (14 oz)
  • Operating Temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
  • Humidity: 90% at 30 °C, 75% at 30-55 °C
  • Safety Rating: CAT III 300 V

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • The device features an mA measurement range of 0 to 24.00 mA with 0.2% accuracy, a DC voltage measurement range of 0 to 30.00 V with 0.2% accuracy, a voltage source range of 0 to 10.00 V DC, loop power of 24 V, a resolution of 0.01 mA, and a battery life of 12 hours at a 12 mA source into 500 ohms

[/shortdesc]

[properties]

Product Name Fluke 773 Milliamp Process Clamp Meter
Product Description Advanced clamp meter for mA measurement without breaking the loop, ideal for control systems and field device troubleshooting
DC Voltage Measurement Accurately measures DC voltages up to 30 V
DC Voltage Source Provides DC voltage output for testing devices with 1-5V or 0-10V input
mA Measurement 4-20 mA measurement in-circuit, reducing downtime by avoiding loop breaks
Simultaneous mA Measurement and Source Measure and source mA signals concurrently for testing control devices
Scaled mA Output Continuously outputs mA signal corresponding to a 4-20 mA measurement for data logging
Voltage Output Functions Includes ramp or step functions for automated remote voltage testing
Power Saving Features Auto-off and backlight timeout to extend battery life
Loop Power Provides 24 V loop power for testing field devices
Ideal Applications Industrial environments for control systems and troubleshooting field devices

[/properties]

[specifications]

mA Measurement Range 0 to 24.00 mA with 0.2% accuracy for precise current measurement
DC Voltage Measurement Range 0 to 30.00 V with 0.2% accuracy for accurate voltage testing
Voltage Source Range 0 to 10.00 V DC for output testing on input devices
Resolution 0.01 mA resolution for detailed current readings
Loop Power 24 V loop power for in-field testing
Battery Life 12 hours at 12 mA source into 500 ohms for extended use
Physical Dimensions 41.3 mm x 76 mm x 248 mm (1.625 in x 3 in x 9.75 in) for portability
Weight 415 g (14 oz) - Lightweight for easy handling
Operating Temperature -10 °C to 50 °C (14 °F to 122 °F) for a range of conditions
Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F) for secure storage
Humidity < 90% at < 30 °C, < 75% at 30 to 55 °C for use in various environments
Safety Rating CAT III 300 V for safety in industrial applications
Certifications CE, CSA, TÜV, and FCC Part 15 Class B

[/specifications]

Fluke 773 Milliamp Process Clamp Meter

The Fluke 773 Milliamp Process Clamp Meter offers advanced mA measurement without the need to break the loop, saving time and increasing efficiency. Ideal for industrial environments, it can measure, source, and simulate 4-20 mA signals. The 773 provides a convenient solution for verifying control systems and troubleshooting field devices, with added functionality like DC voltage measurement, output, and scaling features for versatile applications.

Key Features:
  • DC Voltage Measurement: Accurately measures DC voltages up to 30 V.
  • DC Voltage Source: Provides DC voltage output to test input devices that accept a 1-5V or 0-10V signal.
  • mA Measurement Without Breaking the Loop: Measures 4-20 mA signals in-circuit, reducing downtime.
  • Simultaneous mA Measurement and Source: Measure mA output while sourcing a signal, ideal for testing control devices like valves and isolators.
  • Scaled mA Output: Continuously outputs an mA signal corresponding to a 4-20 mA measurement, enabling data logging.
  • Voltage Output with Ramp or Step Functions: Allows automated voltage changes for remote testing.
  • Power Saving Features: Auto-off and backlight timeout extend battery life.
Technical Specifications:
  • mA Measurement Range: 0 to 24.00 mA with 0.2% accuracy
  • DC Voltage Measurement Range: 0 to 30.00 V with 0.2% accuracy
  • Voltage Source Range: 0 to 10.00 V DC
  • Loop Power: 24 V
  • Resolution: 0.01 mA
  • Battery Life: 12 hours at 12 mA source into 500 ohms
  • Size: 41.3 mm x 76 mm x 248 mm (1.625 in x 3 in x 9.75 in)
  • Weight: 415 g (14 oz)
  • Operating Temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
  • Humidity: 90% at 30 °C, 75% at 30-55 °C
  • Safety Rating: CAT III 300 V
