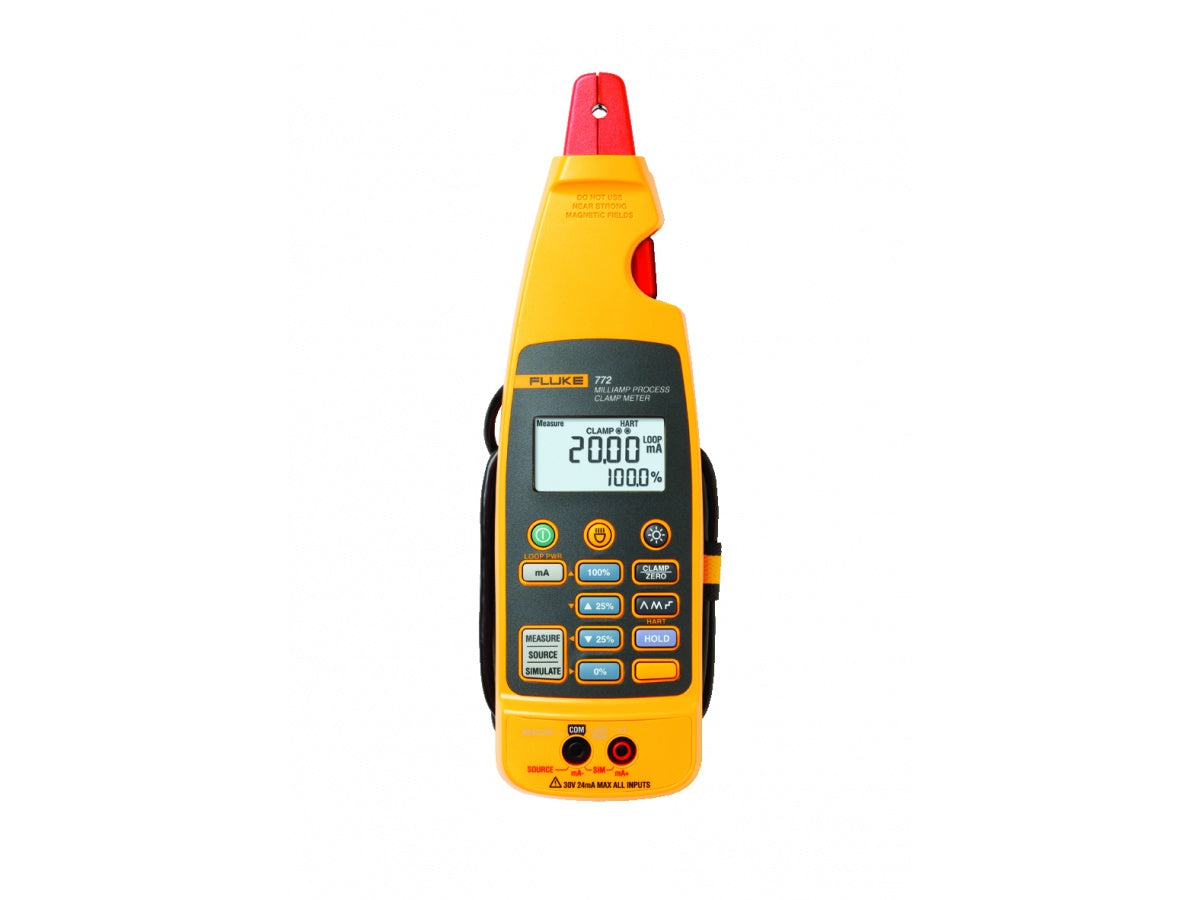

Fluke 772 Milliamp Process Clamp Meter (FLUKE-772)
Fluke 772 Milliamp Process Clamp Meter (FLUKE-772)

Fluke 772 Milliamp Process Clamp Meter (FLUKE-772)

por Fluke
R$ 14.388,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Fluke 772 Milliamp Process Clamp Meter measures 4-20 mA current without breaking the loop. Features include signal sourcing, simulation, and loop power, ideal for process control

[/shortdesc]

[properties]

Product Name Fluke 772 Milliamp Process Clamp Meter
Product Description Measures 4-20 mA current without breaking the loop. Features include signal sourcing, simulation, and loop power, ideal for process control.
Type Process Clamp Meter
Compatibility 4 to 20 mA Control Systems
Media Type Process Control Applications
Power 4 x 1.5 V Alkaline (IEC LR6) batteries, 12 hours in mA source into 500 ohms
Size 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight 410 g (14.4 oz)
Durability Rugged construction with IP40 rating and 1-meter drop test certification (except the jaw)
Operating Conditions -10°C to 50°C; < 90% humidity below 30°C, < 75% humidity at 30–55°C; 0 to 2000 m altitude
Storage Conditions -25°C to 60°C
IP Rating IP 40
Vibration Random 2 g, 5 to 500 Hz
Shock 1 meter drop test (except the jaw)

 [/properties]

[specifications]

Diameter of measurable conductor 0.177” (4.5 mm max)
Operating temperature -10°C to 50°C
Storage temperature -25°C to 60°C
Operating humidity < 90% @ <30°C; < 75% @ 30 to 55°C
Operating altitude 0 to 2000 m
IP rating IP 40
Size 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight 410 g (14.4 oz)
Vibration Random 2 g, 5 to 500 Hz
Shock 1 meter drop test (except the jaw)
EMI/RFI Meets EN61326-1; for current measurement with jaw, add 1 mA to specification for EMC field strengths of 1 V/m up to 3 V/m
Temperature coefficient 0.01%/°C (< 18°C or > 28°C)
Power (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms
mA measurement (measured by clamp) Resolution/Range: 0 to 20.99 mA; Accuracy: 0.2% + 5 counts
mA measurement (21.0 mA to 100.0 mA) Resolution/Range: 21.0 mA to 100.0 mA; Accuracy: 1% + 5 counts
mA measurement (measured in series) Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts
mA source Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts
mA simulate Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts
Loop power 24 V for powering field devices
Signal Sourcing Sources 4 to 20 mA signals to test control system inputs
Simulation Capabilities Simulates 4 to 20 mA signals for system diagnostics
Min/Max Recording Captures fluctuations in current for precise troubleshooting
Display Backlit digital LCD

[/specifications]

Fluke 772 Milliamp Process Clamp Loop Meter

The Fluke 772 Milliamp Process Clamp Loop Meter is a versatile tool designed for professionals working with 4 to 20 mA control systems. It provides a non-intrusive way to measure current without breaking the loop and includes advanced features like signal sourcing, simulation, and loop power testing, making it an essential instrument for troubleshooting and verifying process control systems.

  • Non-Intrusive Measurement: Measures 4 to 20 mA signals without breaking the loop.
  • Signal Sourcing: Sources 4 to 20 mA signals to test control system inputs.
  • Simulation Capabilities: Simulates 4 to 20 mA signals for system diagnostics.
  • Loop Power: Provides 24 V loop power to test transmitters in real-time.
  • Min/Max Recording: Captures fluctuations in current for precise troubleshooting.
  • Ergonomic Design: Compact and easy to use with a backlit display for low-light conditions.
  • Durability: Rugged construction with IP40 rating and 1-meter drop test certification.
  • mA Measurement: 0 to 24 mA, accuracy ±0.2% + 2 counts
  • mA Source/Simulate: 0 to 24 mA with accuracy ±0.2% + 2 counts
  • Loop Power: 24 V for powering field devices
  • Display: Backlit digital LCD
  • Power: 4 x 1.5 V Alkaline (IEC LR6) batteries
  • Operating Temperature: -10°C to 50°C
  • Size: 248 x 76 x 41 mm
  • Weight: 1 lb

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Fluke 772 Milliamp Process Clamp Meter measures 4-20 mA current without breaking the loop. Features include signal sourcing, simulation, and loop power, ideal for process control

[/shortdesc]

[properties]

Product Name Fluke 772 Milliamp Process Clamp Meter
Product Description Measures 4-20 mA current without breaking the loop. Features include signal sourcing, simulation, and loop power, ideal for process control.
Type Process Clamp Meter
Compatibility 4 to 20 mA Control Systems
Media Type Process Control Applications
Power 4 x 1.5 V Alkaline (IEC LR6) batteries, 12 hours in mA source into 500 ohms
Size 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight 410 g (14.4 oz)
Durability Rugged construction with IP40 rating and 1-meter drop test certification (except the jaw)
Operating Conditions -10°C to 50°C; < 90% humidity below 30°C, < 75% humidity at 30–55°C; 0 to 2000 m altitude
Storage Conditions -25°C to 60°C
IP Rating IP 40
Vibration Random 2 g, 5 to 500 Hz
Shock 1 meter drop test (except the jaw)

 [/properties]

[specifications]

Diameter of measurable conductor 0.177” (4.5 mm max)
Operating temperature -10°C to 50°C
Storage temperature -25°C to 60°C
Operating humidity < 90% @ <30°C; < 75% @ 30 to 55°C
Operating altitude 0 to 2000 m
IP rating IP 40
Size 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight 410 g (14.4 oz)
Vibration Random 2 g, 5 to 500 Hz
Shock 1 meter drop test (except the jaw)
EMI/RFI Meets EN61326-1; for current measurement with jaw, add 1 mA to specification for EMC field strengths of 1 V/m up to 3 V/m
Temperature coefficient 0.01%/°C (< 18°C or > 28°C)
Power (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms
mA measurement (measured by clamp) Resolution/Range: 0 to 20.99 mA; Accuracy: 0.2% + 5 counts
mA measurement (21.0 mA to 100.0 mA) Resolution/Range: 21.0 mA to 100.0 mA; Accuracy: 1% + 5 counts
mA measurement (measured in series) Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts
mA source Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts
mA simulate Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts
Loop power 24 V for powering field devices
Signal Sourcing Sources 4 to 20 mA signals to test control system inputs
Simulation Capabilities Simulates 4 to 20 mA signals for system diagnostics
Min/Max Recording Captures fluctuations in current for precise troubleshooting
Display Backlit digital LCD

[/specifications]

Fluke 772 Milliamp Process Clamp Loop Meter

The Fluke 772 Milliamp Process Clamp Loop Meter is a versatile tool designed for professionals working with 4 to 20 mA control systems. It provides a non-intrusive way to measure current without breaking the loop and includes advanced features like signal sourcing, simulation, and loop power testing, making it an essential instrument for troubleshooting and verifying process control systems.

Key Features:
  • Non-Intrusive Measurement: Measures 4 to 20 mA signals without breaking the loop.
  • Signal Sourcing: Sources 4 to 20 mA signals to test control system inputs.
  • Simulation Capabilities: Simulates 4 to 20 mA signals for system diagnostics.
  • Loop Power: Provides 24 V loop power to test transmitters in real-time.
  • Min/Max Recording: Captures fluctuations in current for precise troubleshooting.
  • Ergonomic Design: Compact and easy to use with a backlit display for low-light conditions.
  • Durability: Rugged construction with IP40 rating and 1-meter drop test certification.
Technical Specifications:
  • mA Measurement: 0 to 24 mA, accuracy ±0.2% + 2 counts
  • mA Source/Simulate: 0 to 24 mA with accuracy ±0.2% + 2 counts
  • Loop Power: 24 V for powering field devices
  • Display: Backlit digital LCD
  • Power: 4 x 1.5 V Alkaline (IEC LR6) batteries
  • Operating Temperature: -10°C to 50°C
  • Size: 248 x 76 x 41 mm
  • Weight: 1 lb
