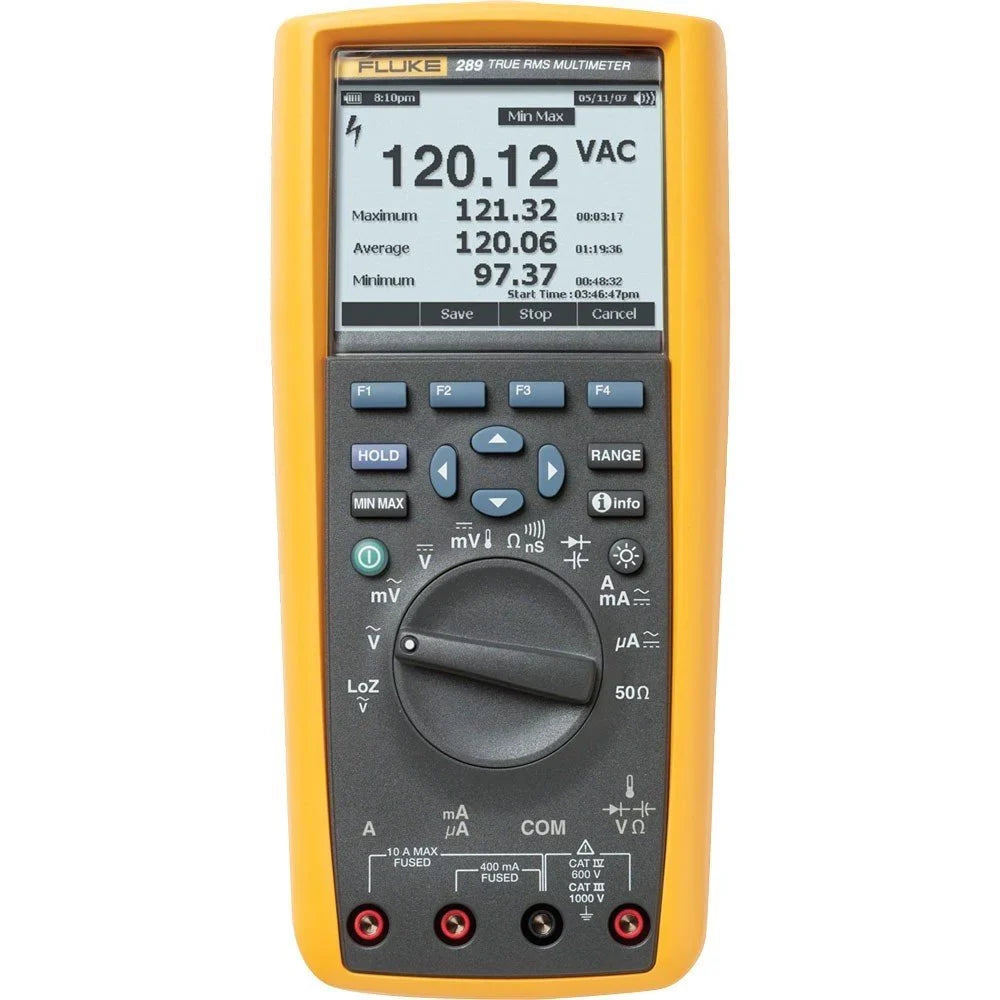

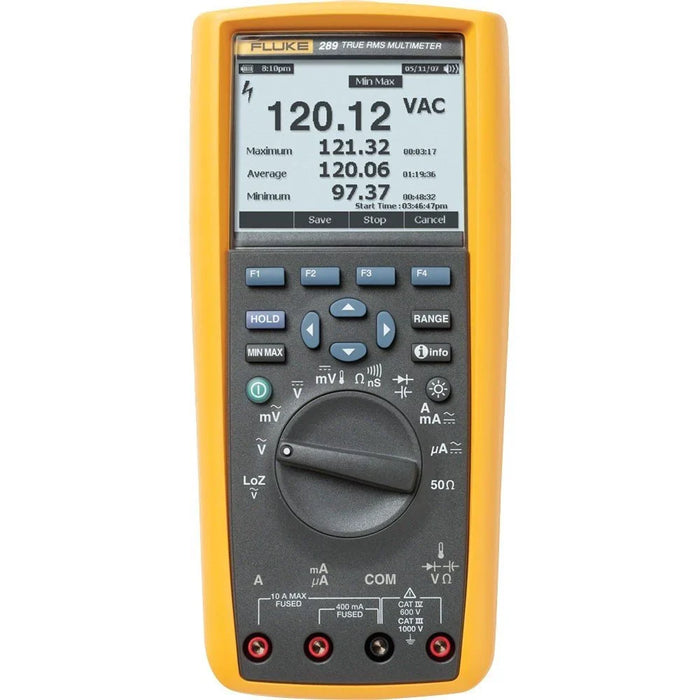

Fluke 289 TrendCapture TRMS Industrial Logging Multimeter (Fluke-289)
Fluke 289 TrendCapture TRMS Industrial Logging Multimeter (Fluke-289)

Fluke 289 TrendCapture TRMS Industrial Logging Multimeter (Fluke-289)

por Fluke
R$ 9.300,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Fluke 289 TRMS Industrial Logging Multimeter is a high-precision tool designed for troubleshooting complex electrical systems, real-time graphing with TrendCapture technology

[/shortdesc]

[properties]
Property
Model Fluke 289
Product Type True-RMS Industrial Logging Multimeter with TrendCapture
Display 50,000-count 1/4 VGA graphic display with white backlight
Data Logging Yes – up to 10,000 readings with TrendCapture
Logging Duration Over 200 hours continuous logging
Trend Analysis On-device graphical viewing of logged data
Input Impedance Mode LoZ (low impedance) to avoid ghost voltage
Low-Pass Filter For noisy environments and motor drive applications
Low Ohms Measurement 50 Ω range, 1 mΩ resolution, 10 mA source current
Interface Soft keys and scroll navigation, customizable display
Saved Measurements Yes – with field recall and naming
True-RMS Yes (AC voltage and current)
Backlight & Flashlight Backlight display only
Firmware Field-upgradable

[/properties]



[specifications]
Specification
DC Voltage Range Up to 1000 V (basic accuracy: ±0.025%)
AC Voltage Range Up to 1000 V (accuracy: ±0.4% True-RMS)
DC Current Range Up to 10 A (accuracy: ±0.15%)
AC Current Range Up to 10 A (accuracy: ±0.7% True-RMS)
Resistance Range Up to 500 MΩ (accuracy: ±0.05%)
Capacitance Range 1 nF to 100 mF (accuracy: ±1.0%)
Frequency Range Up to 999.99 kHz (accuracy: ±0.005%)
Temperature Range -200 °C to +1350 °C (accuracy: ±1% + 2 °C) (probe excl.)
Continuity / Diode Yes
Conductance 0.01 nS to 50.00 nS
Duty Cycle 1% to 99%
Peak/Crest Capture 250 μs peak min/max
Bandwidth 100 kHz

[/specifications]



[accesories]

Accessory
Test Leads (TLK289) Electronic Test Lead Kit (included in the box)
Soft Case (C781) Protective soft meter case (included in the box)
User Manual Printed documentation (included in the box)
6x AA Batteries For operation (included in the box)
FlukeView Forms Software For PC data logging and analysis
i400 Current Clamp AC current clamp accessory
TPAK Magnetic Hanger Hands-free hanging solution for meter

[/accesories]

Fluke 289 TrendCapture TRMS Industrial Logging Multimeter (Fluke-289)

The Fluke 289 is a next-generation high-performance industrial multimeter designed for troubleshooting and maintenance in plant automation, power distribution, and electro-mechanical equipment. With its advanced TrendCapture feature, users can log data and analyze it directly on the device's large 50,000-count display. The built-in low pass filter ensures accurate voltage and frequency measurements even in noisy environments, and the expanded logging memory allows for unattended monitoring over time. With real-time clock-stamped data, on-board help screens, and an optically isolated communication port, the Fluke 289 is the perfect watchdog for industrial professionals.

  • Advanced Data Logging: Stores up to 15,000 readings for long-term monitoring and analysis.
  • TrendCapture Technology: Graphically displays logged data to quickly identify anomalies.
  • High-Resolution Display: Large 50,000-count VGA display with a white backlight for easy readability.
  • True-RMS Accuracy: Provides precise AC voltage and current measurements on non-linear loads.
  • Low Impedance (LoZ) Mode: Eliminates ghost voltages and enhances testing accuracy.
  • Auto & Manual Logging: Adjustable recording and auto-hold thresholds allow for flexible data collection.
  • Industrial Durability: Meets MIL-PRF-28800F Class 2 vibration standards and withstands 1-meter drops.
  • PC Connectivity: Supports data transfer via an optically isolated USB port (software optional).
  • DC Voltage Measurement: 50.000 mV to 1000.0 V (±0.025% accuracy)
  • AC Voltage Measurement: 50.000 mV to 1000.0 V (±0.4% true-RMS accuracy)
  • DC Current Measurement: 500.00 µA to 10.000 A (±0.15% accuracy)
  • AC Current Measurement: 500.00 µA to 10.000 A (±0.7% true-RMS accuracy)
  • Resistance: 50.000 Ω to 500.0 MΩ (±0.05% accuracy)
  • Capacitance: 1.000 nF to 100 mF (±1.0% accuracy)
  • Frequency: 99.999 Hz to 999.99 kHz (±0.005% accuracy)
  • Temperature Range: -200.0°C to 1350.0°C (-328.0°F to 2462.0°F) (±1.0% accuracy, probe dependent)
  • Battery Life: 100 hours typical, 200 hours in logging mode
  • Power Supply: 6 AA alkaline batteries (NEDA 15A IEC LR6)
  • Size: 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)
  • Weight: 870.9 g (28 oz)
  • Operating Temperature: -20°C to 55°C (-4°F to 131°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Compliance: EMC EN61326-1, IEC/EN 61010-1 2nd Edition
