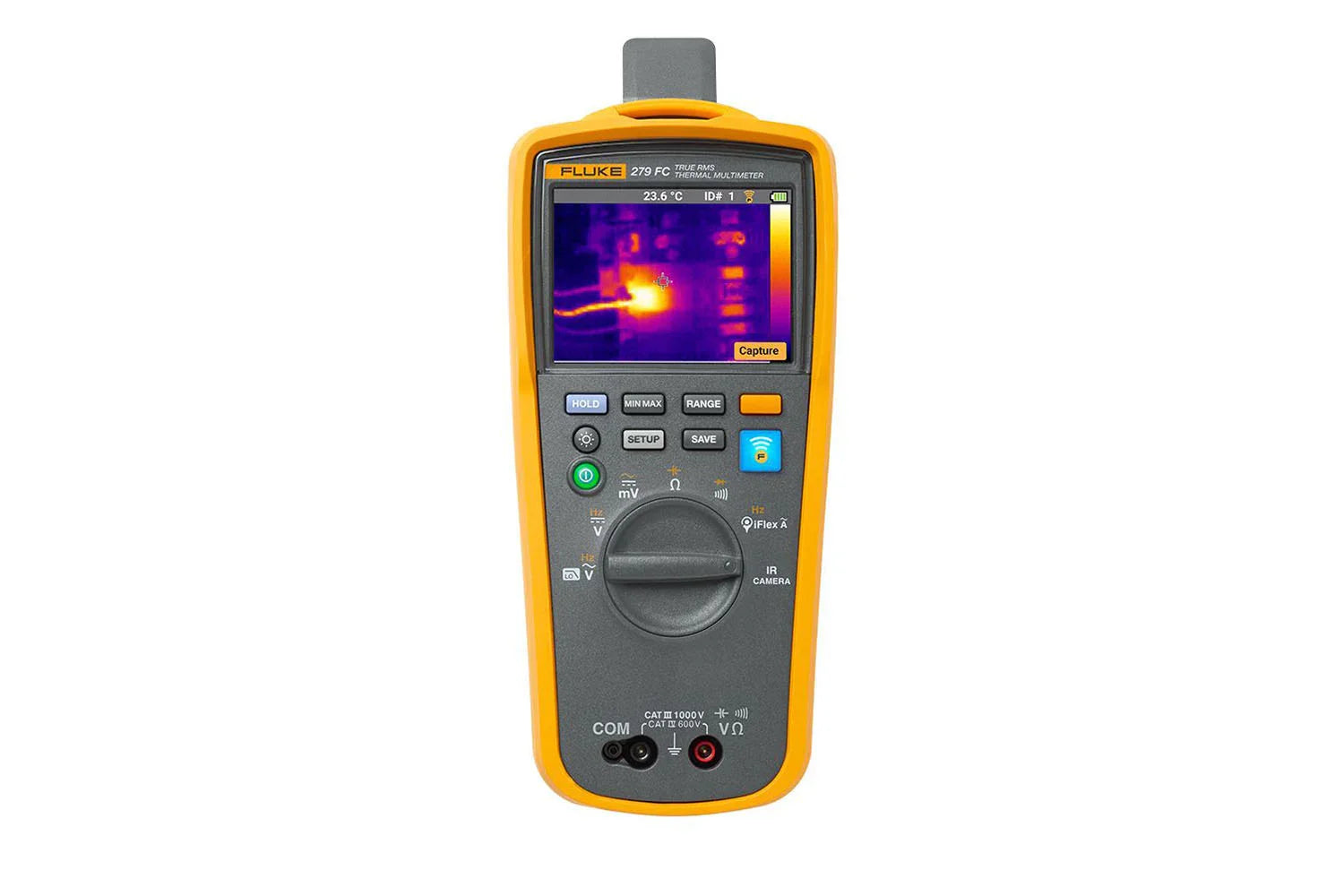

Fluke 279 FC True-RMS Thermal Multimeter

The Fluke 279 FC is a groundbreaking tool that integrates a full-featured digital multimeter with a thermal imaging camera, making it easier to detect, validate, and troubleshoot electrical problems in one device. This dual-function capability allows technicians to spot hot spots and anomalies quickly and then verify issues with precision electrical measurements—all without switching tools.

With wireless connectivity via the Fluke Connect® app, technicians can save, analyze, and share measurements and images in real time, enhancing safety and productivity. The built-in infrared camera helps locate issues faster by identifying overheating components like fuses, motors, or connections. Designed for demanding environments, the 279 FC is rugged, reliable, and ideal for industrial, HVAC, and facility maintenance professionals.

• Integrated Thermal Imager: Pinpoint electrical hot spots and anomalies with the built-in infrared camera.
• Full-Featured Multimeter: Measure voltage, current, resistance, continuity, capacitance, frequency, and more.
• Fluke Connect® Wireless: Transmit measurements and images wirelessly for remote monitoring and reporting.
• High-Resolution Display: 3.5" color LCD shows thermal images and measurements simultaneously.
• Battery Life: Up to 10 hours of operation per charge with rechargeable lithium-ion battery.
• Safety Rated: CAT III 1000 V, CAT IV 600 V for safe use in industrial and commercial environments.
• Image Storage: Store up to 100 images internally for later review and documentation.
• Optional iFlex® Probe Compatibility: Add-on current probe extends current measurement range and flexibility.

• DC Voltage: 0.1 mV to 1000 V (±0.09%)
• AC Voltage (True-RMS): 0.1 mV to 1000 V (±1%)
• DC Current: 0.1 µA to 10 A (±1%)
• AC Current (True-RMS): 0.1 µA to 10 A (±1.5%)
• Resistance: Up to 50 MΩ
• Frequency: Up to 100 kHz
• Capacitance: Up to 10,000 µF
• Display: 3.5-inch (89 mm) color LCD
• Thermal Imaging Resolution: 80 × 60 pixels
• Field of View: 38.0° × 28.5°
• Thermal Sensitivity: ≤ 0.10 °C at 30 °C
• Image Storage: Up to 100 images (.is2 format)
• Connectivity: Fluke Connect® via Bluetooth
• Battery Type: Rechargeable lithium-ion
• Battery Life: ~10 hours per charge
• Safety Rating: CAT IV 600 V / CAT III 1000 V
• Dimensions: 22.6 cm × 10 cm × 5.8 cm (8.9 in × 3.9 in × 2.3 in)
• Weight: Approx. 870 g (1.9 lb)
