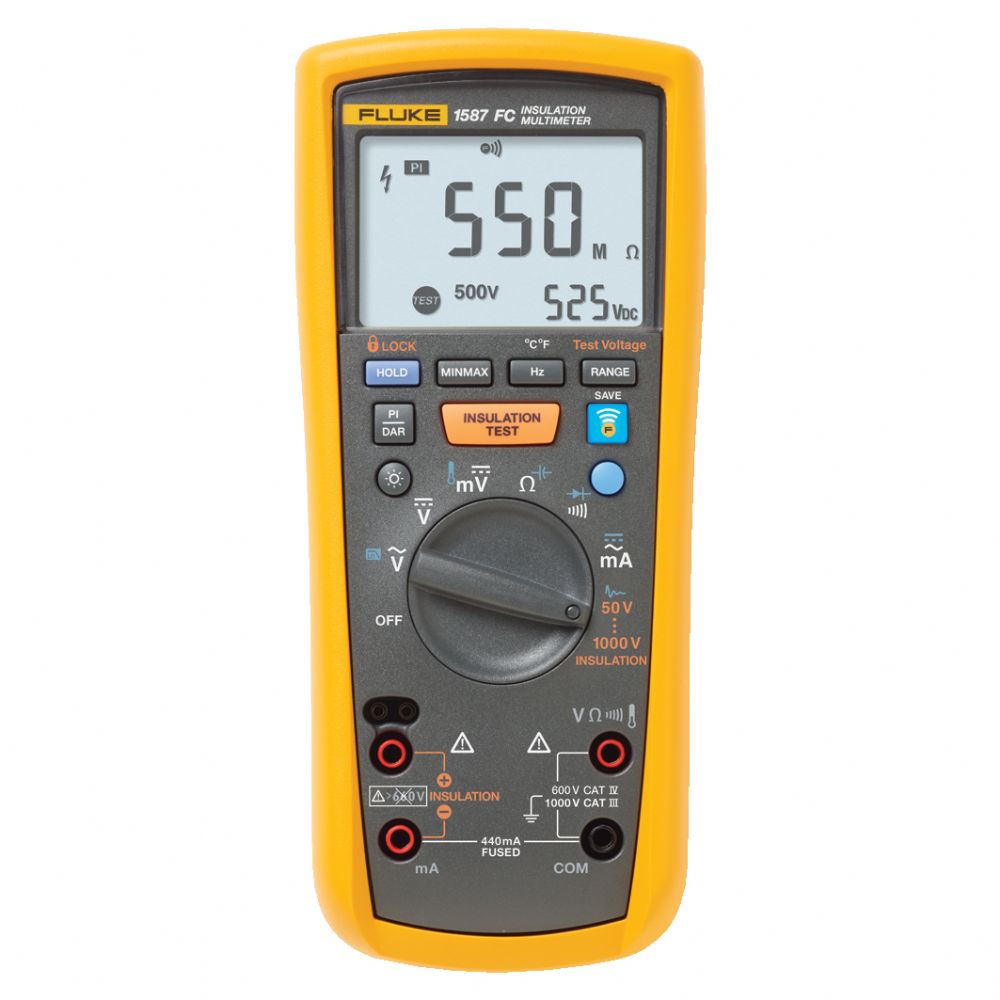

Fluke-1587-FC Insulation Multimeter
Fluke-1587-FC Insulation Multimeter

Fluke-1587-FC Insulation Multimeter

por Fluke
R$ 9.720,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Fluke 1587 FC is a high-performance insulation multimeter that combines a digital insulation tester with a full-featured, true-RMS digital multimeter, ideal for troubleshooting and preventative maintenance

[/shortdesc]

[properties]

Property
Model Fluke 1587 FC
Product Type 2-in-1 Insulation Multimeter with True-RMS DMM
Display 6000-count backlit display
Insulation Test Range 0.01 MΩ to 2 GΩ
Insulation Test Voltages 50 V, 100 V, 250 V, 500 V, 1000 V
VFD Low-Pass Filter Yes (for accurate motor drive measurements)
PI/DAR Ratio with Graphing Yes (via Fluke Connect app)
Temperature Measurement Yes
Frequency Measurement Yes
Capacitance Yes
Diode Test Yes
Continuity Test Audible tone below 25 Ω
Safety Rating CAT III 1000 V, CAT IV 600 V
Battery Type 4x AA (NEDA 15A or IEC LR6)
Battery Life 1000 hours (DMM); 1000 insulation tests (5s on/25s off)
Enclosure Protection IP40 (non-operating)
Dimensions (H x W x L) 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
Weight 550 g (1.2 lb)
Operating Temperature -20°C to +55°C (-4°F to 131°F)
Storage Temperature -40°C to +60°C (-40°F to 140°F)
Altitude (Operating / Storage) 2000 m / 12,000 m

[/properties]

[specifications]

Specification
AC Voltage Range Up to 1000 V (True-RMS)
DC Voltage Range Up to 1000 V
Millivolts (DC) 600.0 mV, ±(0.1 % + 1)
AC/DC Current 60 mA / 400 mA ranges
Resistance 0.1 Ω to 50 MΩ
Frequency Measurement Up to 99.99 kHz
Capacitance Up to 9999 μF
Temperature Measurement -40°C to +537°C / -40°F to +998°F
Test Voltage Accuracy +20%, -0%
Insulation Test Accuracy ±(1.5% + 5 counts) up to 600 MΩ, ±(10% + 3 counts) to 2 GΩ
Short Circuit Test Current 1 mA nominal
Auto Discharge <0.5 seconds (for ≤1 μF load)
Live Circuit Detection Inhibits insulation test > 30 V
Fuse Protection 0.44A, 1000 V, IR 10 kA (mA input)
Over-range Capability 110% of range (except capacitance: 100%)
Frequency Overload Protection <107 V-Hz
Input Impedance 10 MΩ (nominal)
EMC Compliance IEC 61326-1, IEC 61326-2-2, CISPR 11 Group 1 Class A
RF Communication (Wireless) 2.4 GHz ISM Band (FCC/IC Certified)



[/specifications]

Fluke 1587 FC Insulation Multimeter

The Fluke 1587 FC is a versatile 2-in-1 insulation multimeter that provides accurate insulation resistance testing along with true-RMS digital multimeter functions. With insulation test voltages ranging from 50V to 1000V, it can measure insulation resistance up to 2 GΩ, making it suitable for industrial applications. Featuring Fluke Connect compatibility, users can remotely monitor test results via a smartphone for enhanced safety and efficiency.

  • Advanced Insulation Testing: Measures insulation resistance from 0.01 MΩ to 2 GΩ with test voltages of 50V, 100V, 250V, 500V, and 1000V.
  • True-RMS Digital Multimeter: Offers AC/DC voltage, AC/DC current, resistance, continuity, capacitance, frequency, and temperature measurements.
  • Fluke Connect Wireless Compatibility: Enables remote monitoring, historical tracking, and real-time decision-making.
  • Live Circuit Detection: Prevents insulation testing if voltage is greater than 30V.
  • Low-Pass Filter (VFD Mode): Provides accurate motor drive measurements.
  • Auto-Discharge Function: Ensures user safety by automatically discharging capacitive voltage.
  • Min/Max and Auto-Hold Features: Records signal fluctuations for easy data analysis.
  • CAT IV 600V / CAT III 1000V Safety Rating: Designed for industrial and commercial applications.
  • Large Backlit Display: Provides easy visibility in low-light environments.
  • Rugged & Portable: Supplied with a hard case, remote probe, test leads, alligator clips, and K-type thermocouple for comprehensive testing.
  • AC/DC Voltage Measurement: Up to 1000V
  • Insulation Resistance: 0.01 MΩ to 2 GΩ
  • Test Voltages: 50V, 100V, 250V, 500V, 1000V
  • Capacitance Measurement: Up to 9999 μF
  • Frequency Measurement: Up to 99.99 kHz
  • Temperature Measurement: -40°C to 537°C
  • Connectivity: Fluke Connect Wireless
  • Battery Life: Up to 1000 hours of meter use
  • Display: 6000-count backlit digital display
  • Power Supply: Four AA batteries
  • Safety Ratings: CAT IV 600V / CAT III 1000V
  • Physical Dimensions: 5.0 cm H x 10.0 cm W x 20.3 cm L
  • Weight: 550g (1.2 lb)

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Fluke 1587 FC is a high-performance insulation multimeter that combines a digital insulation tester with a full-featured, true-RMS digital multimeter, ideal for troubleshooting and preventative maintenance

[/shortdesc]

[properties]

Property
Model Fluke 1587 FC
Product Type 2-in-1 Insulation Multimeter with True-RMS DMM
Display 6000-count backlit display
Insulation Test Range 0.01 MΩ to 2 GΩ
Insulation Test Voltages 50 V, 100 V, 250 V, 500 V, 1000 V
VFD Low-Pass Filter Yes (for accurate motor drive measurements)
PI/DAR Ratio with Graphing Yes (via Fluke Connect app)
Temperature Measurement Yes
Frequency Measurement Yes
Capacitance Yes
Diode Test Yes
Continuity Test Audible tone below 25 Ω
Safety Rating CAT III 1000 V, CAT IV 600 V
Battery Type 4x AA (NEDA 15A or IEC LR6)
Battery Life 1000 hours (DMM); 1000 insulation tests (5s on/25s off)
Enclosure Protection IP40 (non-operating)
Dimensions (H x W x L) 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
Weight 550 g (1.2 lb)
Operating Temperature -20°C to +55°C (-4°F to 131°F)
Storage Temperature -40°C to +60°C (-40°F to 140°F)
Altitude (Operating / Storage) 2000 m / 12,000 m

[/properties]

[specifications]

Specification
AC Voltage Range Up to 1000 V (True-RMS)
DC Voltage Range Up to 1000 V
Millivolts (DC) 600.0 mV, ±(0.1 % + 1)
AC/DC Current 60 mA / 400 mA ranges
Resistance 0.1 Ω to 50 MΩ
Frequency Measurement Up to 99.99 kHz
Capacitance Up to 9999 μF
Temperature Measurement -40°C to +537°C / -40°F to +998°F
Test Voltage Accuracy +20%, -0%
Insulation Test Accuracy ±(1.5% + 5 counts) up to 600 MΩ, ±(10% + 3 counts) to 2 GΩ
Short Circuit Test Current 1 mA nominal
Auto Discharge <0.5 seconds (for ≤1 μF load)
Live Circuit Detection Inhibits insulation test > 30 V
Fuse Protection 0.44A, 1000 V, IR 10 kA (mA input)
Over-range Capability 110% of range (except capacitance: 100%)
Frequency Overload Protection <107 V-Hz
Input Impedance 10 MΩ (nominal)
EMC Compliance IEC 61326-1, IEC 61326-2-2, CISPR 11 Group 1 Class A
RF Communication (Wireless) 2.4 GHz ISM Band (FCC/IC Certified)



[/specifications]

Fluke 1587 FC Insulation Multimeter

The Fluke 1587 FC is a versatile 2-in-1 insulation multimeter that provides accurate insulation resistance testing along with true-RMS digital multimeter functions. With insulation test voltages ranging from 50V to 1000V, it can measure insulation resistance up to 2 GΩ, making it suitable for industrial applications. Featuring Fluke Connect compatibility, users can remotely monitor test results via a smartphone for enhanced safety and efficiency.

Key Features:
  • Advanced Insulation Testing: Measures insulation resistance from 0.01 MΩ to 2 GΩ with test voltages of 50V, 100V, 250V, 500V, and 1000V.
  • True-RMS Digital Multimeter: Offers AC/DC voltage, AC/DC current, resistance, continuity, capacitance, frequency, and temperature measurements.
  • Fluke Connect Wireless Compatibility: Enables remote monitoring, historical tracking, and real-time decision-making.
  • Live Circuit Detection: Prevents insulation testing if voltage is greater than 30V.
  • Low-Pass Filter (VFD Mode): Provides accurate motor drive measurements.
  • Auto-Discharge Function: Ensures user safety by automatically discharging capacitive voltage.
  • Min/Max and Auto-Hold Features: Records signal fluctuations for easy data analysis.
  • CAT IV 600V / CAT III 1000V Safety Rating: Designed for industrial and commercial applications.
  • Large Backlit Display: Provides easy visibility in low-light environments.
  • Rugged & Portable: Supplied with a hard case, remote probe, test leads, alligator clips, and K-type thermocouple for comprehensive testing.
Technical Specifications:
  • AC/DC Voltage Measurement: Up to 1000V
  • Insulation Resistance: 0.01 MΩ to 2 GΩ
  • Test Voltages: 50V, 100V, 250V, 500V, 1000V
  • Capacitance Measurement: Up to 9999 μF
  • Frequency Measurement: Up to 99.99 kHz
  • Temperature Measurement: -40°C to 537°C
  • Connectivity: Fluke Connect Wireless
  • Battery Life: Up to 1000 hours of meter use
  • Display: 6000-count backlit digital display
  • Power Supply: Four AA batteries
  • Safety Ratings: CAT IV 600V / CAT III 1000V
  • Physical Dimensions: 5.0 cm H x 10.0 cm W x 20.3 cm L
  • Weight: 550g (1.2 lb)
