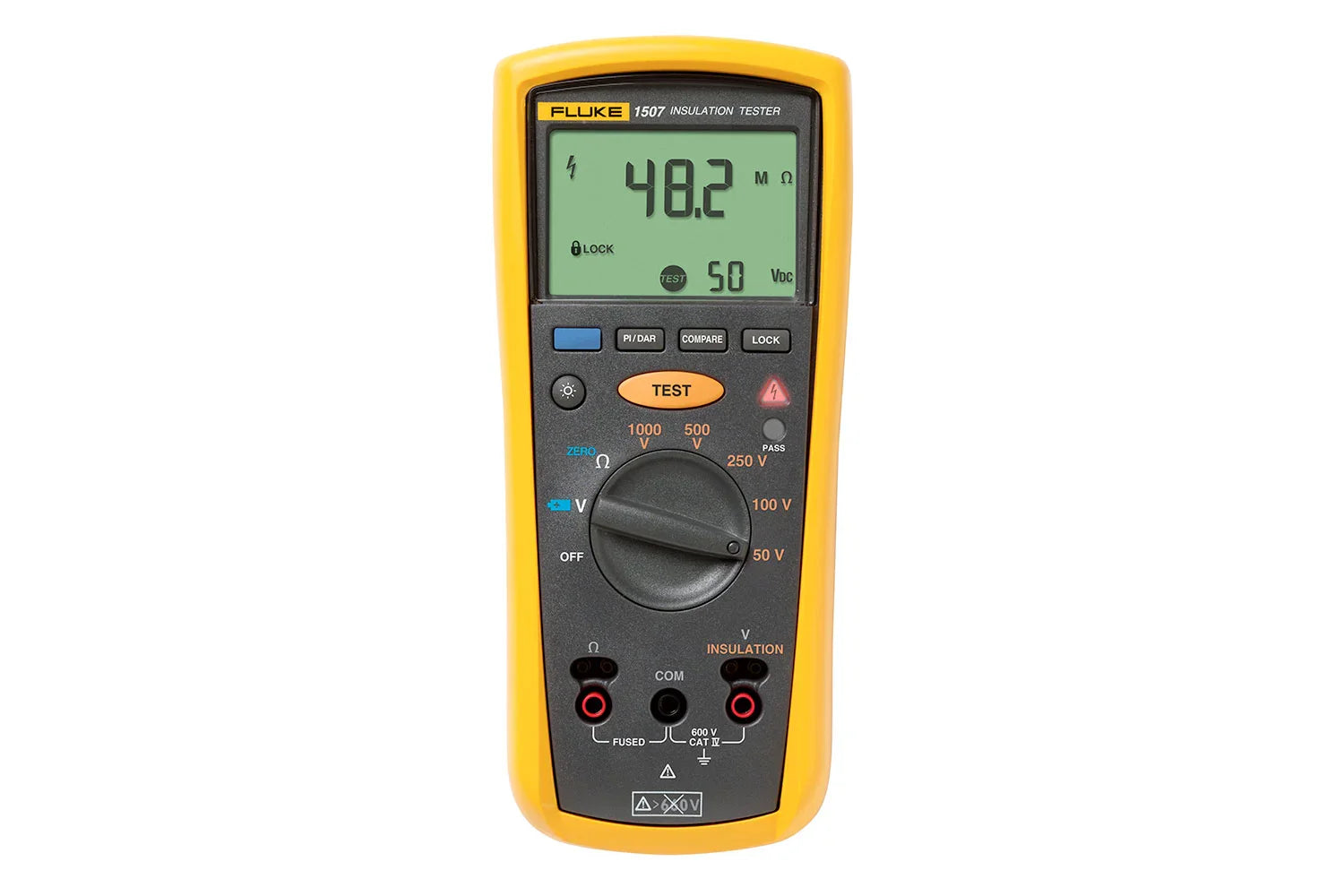

FLUKE-1507 Insulation Resistance Tester
FLUKE-1507 Insulation Resistance Tester

FLUKE-1507 Insulation Resistance Tester

por Fluke
R$ 8.340,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Fluke 1507 insulation tester with 50–1000 V test voltages, PI/DAR calculations, AC/DC measurement to 600 V, and resistance range 0.01 MΩ–10 GΩ. CAT IV 600 V rated. [/shortdesc]

[properties]

Model Fluke 1507
Product Type Insulation Resistance Tester
Insulation Test Voltages 50 V, 100 V, 250 V, 500 V, 1000 V
Insulation Measurement Range 0.01 MΩ to 10 GΩ
AC/DC Voltage Range 0.1 V to 600 V
Continuity Test Current 200 mA (lo-ohms)
Overvoltage Category CAT IV 600 V
IP Rating IP40
Power Four AA batteries (NEDA 15A or IEC LR6)
Battery Life ≥1000 insulation tests; ≥2500 continuity tests
Size (H × W × L) 5.0 × 10.0 × 20.3 cm (1.97 × 3.94 × 8.00 in)
Weight 550 g (1.2 lb)
Operating Temperature −20 °C to 55 °C (−4 °F to 131 °F)
Storage Temperature −40 °C to 60 °C (−40 °F to 140 °F)
Operating Altitude 2000 m (CAT IV 600 V), 3000 m (CAT III 600 V)

[/properties]

[specifications]

AC/DC Voltage Measurement Range 600 V; Resolution 0.1 V; 50–400 Hz; Accuracy ±(2% + 3); Input impedance 3 MΩ (<100 pF); CMRR > 60 dB; Overload protection 600 V rms/DC
Continuity / Resistance 20.00 Ω / 0.01 Ω; 200.0 Ω / 0.1 Ω; 2000 Ω / 1.0 Ω; 20.00 kΩ / 0.01 kΩ; Accuracy ±(1.5% + 3); Short-circuit current >200 mA
Insulation Test Current/Voltage 50 V, 100 V, 250 V, 500 V, 1000 V; Short-circuit current 1 mA nominal; Accuracy +20%, −0%
Insulation Accuracy 50 V ±(3% + 5); 100 V ±(3% + 5); 250 V ±(1.5% + 5); 500 V ±(1.5% + 5); 1000 V ±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ
Live Circuit Indicator Test inhibited if voltage >30 V detected
Auto Discharge Discharge <0.5 s for C ≤ 1 µF; operable up to 1 µF load
Relative Humidity 0–95% @ 10–30 °C; 0–75% @ 30–40 °C; 0–40% @ 40–55 °C
Vibration / Shock Random 2 g, 5–500 Hz (MIL-PRF-28800F Class 2); 1 m drop test
EMC Accuracy maintained in 3 V/m RF field (EN 61326-1)
Safety / Certifications ANSI/ISA 82.02.01, CAN/CSA-C22.2 No. 61010-1, IEC/EN 61010-1 2nd Ed; CAT IV 600 V; CSA & TUV certified
Over-range Capability 110% of range

[/specifications]

[accesories]

Included TL224 Test Leads; TP74 Test Probes; Alligator clips PN 1958654 (red) & PN 1958646 (black); Holster; Remote probe; User documentation
Optional – Cases Fluke C101 Hard Case; Fluke C25 Large Soft Case; Fluke CAMO-C25 Camouflage Case; Fluke CXT170 Extreme Case
Optional – Test Lead Kits Fluke TL81A Deluxe Electronic Test Lead Kit; Fluke TL225 SureGrip™ Stray Voltage Adapter Kit

[/accesories]

Fluke 1507 Insulation Resistance Tester

The Fluke 1507 is a compact, rugged insulation resistance tester designed for electrical contractors, industrial maintenance, and commercial electricians. With multiple test voltages (50–1000 V), PI/DAR calculations, and built-in safety functions, it ensures reliable diagnostics in commissioning, troubleshooting, and preventive maintenance.

  • Wide Measurement Range: Insulation resistance 0.01 MΩ to 10 GΩ, with selectable test voltages from 50 V to 1000 V.
  • Safety Built-in: Live circuit detection inhibits tests above 30 V; auto-discharge protects users from residual voltage.
  • Multi-Function Tester: Measures AC/DC voltage to 600 V, resistance 0.01 Ω–20 kΩ, and continuity with 200 mA test current.
  • Efficiency: Remote probe simplifies repetitive or hard-to-reach testing; large backlit display improves visibility.
  • Portable & Durable: Lightweight (550 g), IP40 rated, and delivers over 1000 insulation tests per set of AA batteries.
  • Routine insulation verification for electrical contractors
  • Motor, cable, and switchgear testing in industrial maintenance
  • Commissioning compliance testing in new installations
  • Solar and renewable energy insulation safety checks
  • Preventive maintenance in commercial facilities

Engineered for professionals who demand accuracy, safety, and reliability, the Fluke 1507 is the trusted choice for insulation testing. Buy today to upgrade your testing capability.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Fluke 1507 insulation tester with 50–1000 V test voltages, PI/DAR calculations, AC/DC measurement to 600 V, and resistance range 0.01 MΩ–10 GΩ. CAT IV 600 V rated. [/shortdesc]

[properties]

Model Fluke 1507
Product Type Insulation Resistance Tester
Insulation Test Voltages 50 V, 100 V, 250 V, 500 V, 1000 V
Insulation Measurement Range 0.01 MΩ to 10 GΩ
AC/DC Voltage Range 0.1 V to 600 V
Continuity Test Current 200 mA (lo-ohms)
Overvoltage Category CAT IV 600 V
IP Rating IP40
Power Four AA batteries (NEDA 15A or IEC LR6)
Battery Life ≥1000 insulation tests; ≥2500 continuity tests
Size (H × W × L) 5.0 × 10.0 × 20.3 cm (1.97 × 3.94 × 8.00 in)
Weight 550 g (1.2 lb)
Operating Temperature −20 °C to 55 °C (−4 °F to 131 °F)
Storage Temperature −40 °C to 60 °C (−40 °F to 140 °F)
Operating Altitude 2000 m (CAT IV 600 V), 3000 m (CAT III 600 V)

[/properties]

[specifications]

AC/DC Voltage Measurement Range 600 V; Resolution 0.1 V; 50–400 Hz; Accuracy ±(2% + 3); Input impedance 3 MΩ (<100 pF); CMRR > 60 dB; Overload protection 600 V rms/DC
Continuity / Resistance 20.00 Ω / 0.01 Ω; 200.0 Ω / 0.1 Ω; 2000 Ω / 1.0 Ω; 20.00 kΩ / 0.01 kΩ; Accuracy ±(1.5% + 3); Short-circuit current >200 mA
Insulation Test Current/Voltage 50 V, 100 V, 250 V, 500 V, 1000 V; Short-circuit current 1 mA nominal; Accuracy +20%, −0%
Insulation Accuracy 50 V ±(3% + 5); 100 V ±(3% + 5); 250 V ±(1.5% + 5); 500 V ±(1.5% + 5); 1000 V ±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ
Live Circuit Indicator Test inhibited if voltage >30 V detected
Auto Discharge Discharge <0.5 s for C ≤ 1 µF; operable up to 1 µF load
Relative Humidity 0–95% @ 10–30 °C; 0–75% @ 30–40 °C; 0–40% @ 40–55 °C
Vibration / Shock Random 2 g, 5–500 Hz (MIL-PRF-28800F Class 2); 1 m drop test
EMC Accuracy maintained in 3 V/m RF field (EN 61326-1)
Safety / Certifications ANSI/ISA 82.02.01, CAN/CSA-C22.2 No. 61010-1, IEC/EN 61010-1 2nd Ed; CAT IV 600 V; CSA & TUV certified
Over-range Capability 110% of range

[/specifications]

[accesories]

Included TL224 Test Leads; TP74 Test Probes; Alligator clips PN 1958654 (red) & PN 1958646 (black); Holster; Remote probe; User documentation
Optional – Cases Fluke C101 Hard Case; Fluke C25 Large Soft Case; Fluke CAMO-C25 Camouflage Case; Fluke CXT170 Extreme Case
Optional – Test Lead Kits Fluke TL81A Deluxe Electronic Test Lead Kit; Fluke TL225 SureGrip™ Stray Voltage Adapter Kit

[/accesories]

Fluke 1507 Insulation Resistance Tester

The Fluke 1507 is a compact, rugged insulation resistance tester designed for electrical contractors, industrial maintenance, and commercial electricians. With multiple test voltages (50–1000 V), PI/DAR calculations, and built-in safety functions, it ensures reliable diagnostics in commissioning, troubleshooting, and preventive maintenance.

Key Features & Benefits
  • Wide Measurement Range: Insulation resistance 0.01 MΩ to 10 GΩ, with selectable test voltages from 50 V to 1000 V.
  • Safety Built-in: Live circuit detection inhibits tests above 30 V; auto-discharge protects users from residual voltage.
  • Multi-Function Tester: Measures AC/DC voltage to 600 V, resistance 0.01 Ω–20 kΩ, and continuity with 200 mA test current.
  • Efficiency: Remote probe simplifies repetitive or hard-to-reach testing; large backlit display improves visibility.
  • Portable & Durable: Lightweight (550 g), IP40 rated, and delivers over 1000 insulation tests per set of AA batteries.
Typical Applications
  • Routine insulation verification for electrical contractors
  • Motor, cable, and switchgear testing in industrial maintenance
  • Commissioning compliance testing in new installations
  • Solar and renewable energy insulation safety checks
  • Preventive maintenance in commercial facilities
Order with Confidence

Engineered for professionals who demand accuracy, safety, and reliability, the Fluke 1507 is the trusted choice for insulation testing. Buy today to upgrade your testing capability.
