EMC VNX8000 Disk Processor Enclosure (DPE)
Clique ou role para ampliar
Toque ou belisque para ampliar
EMC VNX8000 Disk Processor Enclosure (DPE)
Clique ou role para ampliar
Toque ou belisque para ampliar
EMC VNX8000 Disk Processor Enclosure (DPE)
Clique ou role para ampliar
Toque ou belisque para ampliar
EMC VNX8000 Disk Processor Enclosure (DPE)
Clique ou role para ampliar
Toque ou belisque para ampliar
EMC VNX8000 Disk Processor Enclosure (DPE)
Clique ou role para ampliar
Toque ou belisque para ampliar
EMC VNX8000 Disk Processor Enclosure (DPE)
EMC VNX8000 Disk Processor Enclosure (DPE)

EMC VNX8000 Disk Processor Enclosure (DPE)

por EMC
R$ 0,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
Quick Specs Form Factor:

4U no Dives

Max Drives:

1500 | SAS, NL-SAS and Flash

RAID:

RAID 0 / 1 / 3 / 5 / 6 / 10

I/O Supported:

Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object

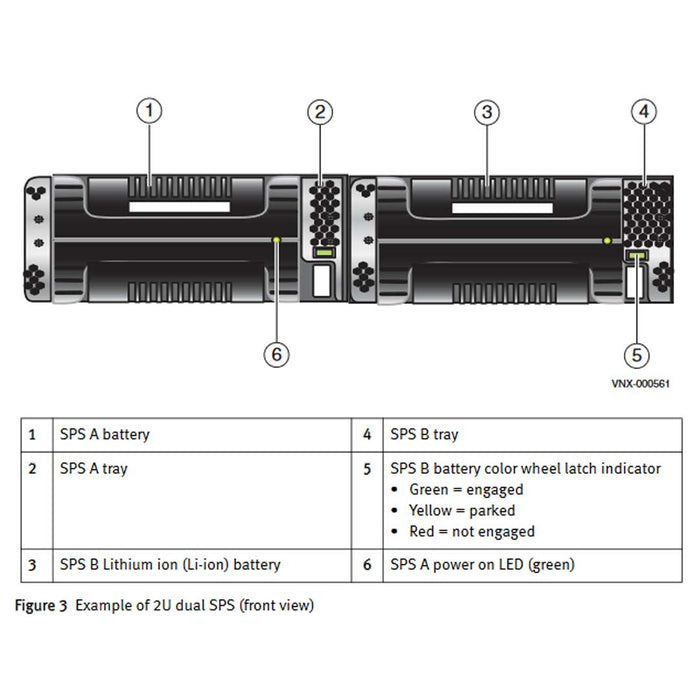

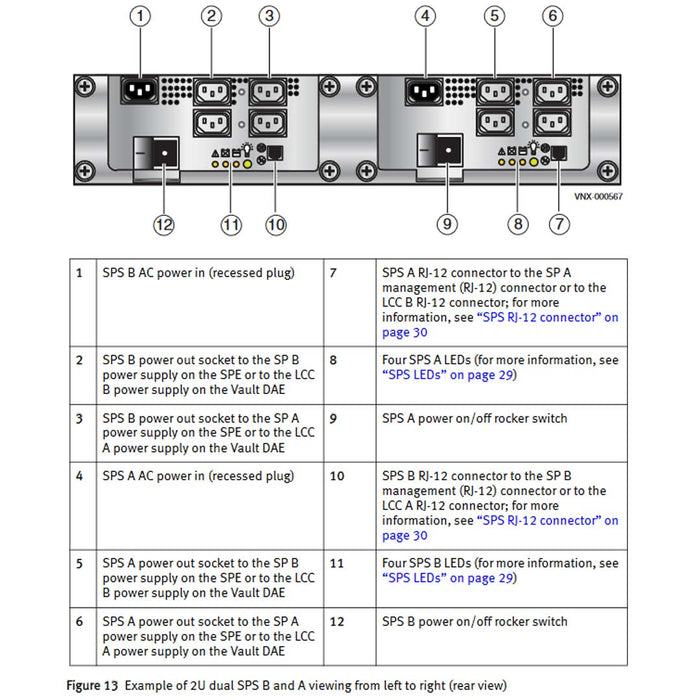

Standby Power Supply (SPD)

2U PSU supported.

Supported Disk Array Enclosures (DAE):

2U 25 (2.5”) | 3U 15 (3.5”) | 3U 120 (2.5”) | 4U 60 (3.5”)

 VNX Gen 2 Controllers:
  • VNX5200
  • VNX5400
  • VNX5600
  • VNX5800
  • VNX7600
  • VNX8000
 Ideal for:
  • Corporate IT
  • Data Analytics
  • Database
  • Virtual Desktop Interface (VDI)
  • Virtualization

The EMC VNX5600 Disk Processor Enclosure (DPE) is built for mid-tier enterprises that demand scalable and flexible storage. Designed with a modular architecture, the VNX5600 supports unified configurations that deliver file, block, and object-level storage in one system. It accommodates up to 500 drives across various DAE types, including 2.5" and 3.5" SAS, NL-SAS, and Flash drives. With RAID support for levels 0, 1, 3, 5, 6, and 10, and support for NAS, iSCSI, FC, and FCoE protocols, this system allows for tailored data protection and high-performance access across diverse workloads.

Equipped with a 4-core Intel Xeon processor and scalable up to 24 GB DDR3 per Storage Processor, the VNX5600 delivers both speed and efficiency. The system supports up to five I/O modules per SP, including options for 8/16 Gb/s FC, 10 Gb/s iSCSI, and FCoE, enabling high-throughput connectivity. Its compatibility with up to 19 DAEs and a variety of DAE types ensures massive storage growth potential, while support for up to four Data Movers and two Control Stations makes it ideal for unified deployments. The VNX5600 excels in virtualization, database, and analytics environments that require high-capacity, low-latency performance.
Data Movers Enclosure (DME):

On the front, the VNX8000 has from one to four DMEs having two to eight Data Movers (DMs). Each DM consists of One CPU module consisting of one Intel Xeon 6-core 2.8-GHz processor. The CPU modules in the DME contain the power, fault, and unsafe-to-remove LEDs. Six DDR3 synchronous dynamic RAM (SDRAM) slots supporting up to 24 GB per CPU module using 2 or 4 GB DIMMs.

The maximum number of I/O modules for the VNX8000 is five per DM. One FC I/O module and up to three other I/O modules. Five PCI Gen 2, 8x lane I/O module slots (0 – 4) available for use, supporting
1x FC I/O module
  • Four-port 8-Gb/s optical (running at 2, 4, or 8 Gb/s); in slots A0 and B0 only;
3x I/O modules

Any combination of these I/O modules must be the same for both Data Movers.

  • Four-port 1-Gb/s copper I/O module
  • Two-port 10-Gb/s optical I/O module
  • T wo-port 10-Gb/s RJ-45 Base-T iSCSI/IP I/O module
Storage Processor I/O Supported:

Two CPU modules with an Intel Xeon 8-core 2.7-GHz processor facilitating Simultaneous Multi-Threading (SMT). Sixteen Double Data Rate Three (DDR3) synchronous dynamic RAM (SDRAM) slots support up to 128 GB of SDRAM per CPU module or SP using 8 GB DIMMs. Ten PCI Gen 3, 8x lane I/O module slots (A0 – A9 and B0 – B9) and one PCI Gen 3, 16x lane I/O module slot (A10 and B10) are available for use, supporting:

  • Four-port 8-Gb/s FC optical (running at 2, 4, or 8 Gb/s); labeled 8 GbE Fibre on the latch handle
  • Four-port 16-Gb/s FC I/O module
  • Four-port 1-Gb/s copper iSCSI I/O module
  • Two-port 10-Gb/s optical or active Twinax Fibre Channel over Ethernet (FCoE) I/O module
  • Two-port 10-Gb/s RJ-45 Base-T iSCSI/IP I/O module
  • Two-port 10-Gb/s optical I/O module
  • Four-port 6-Gb/s SAS I/O module
Control Station (CS):

The VNX8000 platform supports a 4U SPE, from one to two 1U Control Stations (CS0 and CS1)
Disk Array Enclosure (DAE)

Expansion of up to

  • 60x 2U, 25 DAEs
    (a maximum of 1,500 2.5-inch disk drives)
  • 100x 3U, 15 DAEs
    (a maximum of 1,500 2.5- or 3.5-inch disk drives)
  • 12x 3U, 120 DAE
    (a maximum of 1,440, 2.5-inch disk drives)
  • 25x 4U, 60 DAEs
    (a maximum of 1,500 2.5- or 3.5-inch disk drives)

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
Quick Specs Form Factor:

4U no Dives

Max Drives:

1500 | SAS, NL-SAS and Flash

RAID:

RAID 0 / 1 / 3 / 5 / 6 / 10

I/O Supported:

Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object

Standby Power Supply (SPD)

2U PSU supported.

Supported Disk Array Enclosures (DAE):

2U 25 (2.5”) | 3U 15 (3.5”) | 3U 120 (2.5”) | 4U 60 (3.5”)

 VNX Gen 2 Controllers:
  • VNX5200
  • VNX5400
  • VNX5600
  • VNX5800
  • VNX7600
  • VNX8000
 Ideal for:
  • Corporate IT
  • Data Analytics
  • Database
  • Virtual Desktop Interface (VDI)
  • Virtualization

The EMC VNX5600 Disk Processor Enclosure (DPE) is built for mid-tier enterprises that demand scalable and flexible storage. Designed with a modular architecture, the VNX5600 supports unified configurations that deliver file, block, and object-level storage in one system. It accommodates up to 500 drives across various DAE types, including 2.5" and 3.5" SAS, NL-SAS, and Flash drives. With RAID support for levels 0, 1, 3, 5, 6, and 10, and support for NAS, iSCSI, FC, and FCoE protocols, this system allows for tailored data protection and high-performance access across diverse workloads.

Equipped with a 4-core Intel Xeon processor and scalable up to 24 GB DDR3 per Storage Processor, the VNX5600 delivers both speed and efficiency. The system supports up to five I/O modules per SP, including options for 8/16 Gb/s FC, 10 Gb/s iSCSI, and FCoE, enabling high-throughput connectivity. Its compatibility with up to 19 DAEs and a variety of DAE types ensures massive storage growth potential, while support for up to four Data Movers and two Control Stations makes it ideal for unified deployments. The VNX5600 excels in virtualization, database, and analytics environments that require high-capacity, low-latency performance.
Data Movers Enclosure (DME):

On the front, the VNX8000 has from one to four DMEs having two to eight Data Movers (DMs). Each DM consists of One CPU module consisting of one Intel Xeon 6-core 2.8-GHz processor. The CPU modules in the DME contain the power, fault, and unsafe-to-remove LEDs. Six DDR3 synchronous dynamic RAM (SDRAM) slots supporting up to 24 GB per CPU module using 2 or 4 GB DIMMs.

The maximum number of I/O modules for the VNX8000 is five per DM. One FC I/O module and up to three other I/O modules. Five PCI Gen 2, 8x lane I/O module slots (0 – 4) available for use, supporting
1x FC I/O module
  • Four-port 8-Gb/s optical (running at 2, 4, or 8 Gb/s); in slots A0 and B0 only;
3x I/O modules

Any combination of these I/O modules must be the same for both Data Movers.

  • Four-port 1-Gb/s copper I/O module
  • Two-port 10-Gb/s optical I/O module
  • T wo-port 10-Gb/s RJ-45 Base-T iSCSI/IP I/O module
Storage Processor I/O Supported:

Two CPU modules with an Intel Xeon 8-core 2.7-GHz processor facilitating Simultaneous Multi-Threading (SMT). Sixteen Double Data Rate Three (DDR3) synchronous dynamic RAM (SDRAM) slots support up to 128 GB of SDRAM per CPU module or SP using 8 GB DIMMs. Ten PCI Gen 3, 8x lane I/O module slots (A0 – A9 and B0 – B9) and one PCI Gen 3, 16x lane I/O module slot (A10 and B10) are available for use, supporting:

  • Four-port 8-Gb/s FC optical (running at 2, 4, or 8 Gb/s); labeled 8 GbE Fibre on the latch handle
  • Four-port 16-Gb/s FC I/O module
  • Four-port 1-Gb/s copper iSCSI I/O module
  • Two-port 10-Gb/s optical or active Twinax Fibre Channel over Ethernet (FCoE) I/O module
  • Two-port 10-Gb/s RJ-45 Base-T iSCSI/IP I/O module
  • Two-port 10-Gb/s optical I/O module
  • Four-port 6-Gb/s SAS I/O module
Control Station (CS):

The VNX8000 platform supports a 4U SPE, from one to two 1U Control Stations (CS0 and CS1)
Disk Array Enclosure (DAE)

Expansion of up to

  • 60x 2U, 25 DAEs
    (a maximum of 1,500 2.5-inch disk drives)
  • 100x 3U, 15 DAEs
    (a maximum of 1,500 2.5- or 3.5-inch disk drives)
  • 12x 3U, 120 DAE
    (a maximum of 1,440, 2.5-inch disk drives)
  • 25x 4U, 60 DAEs
    (a maximum of 1,500 2.5- or 3.5-inch disk drives)
