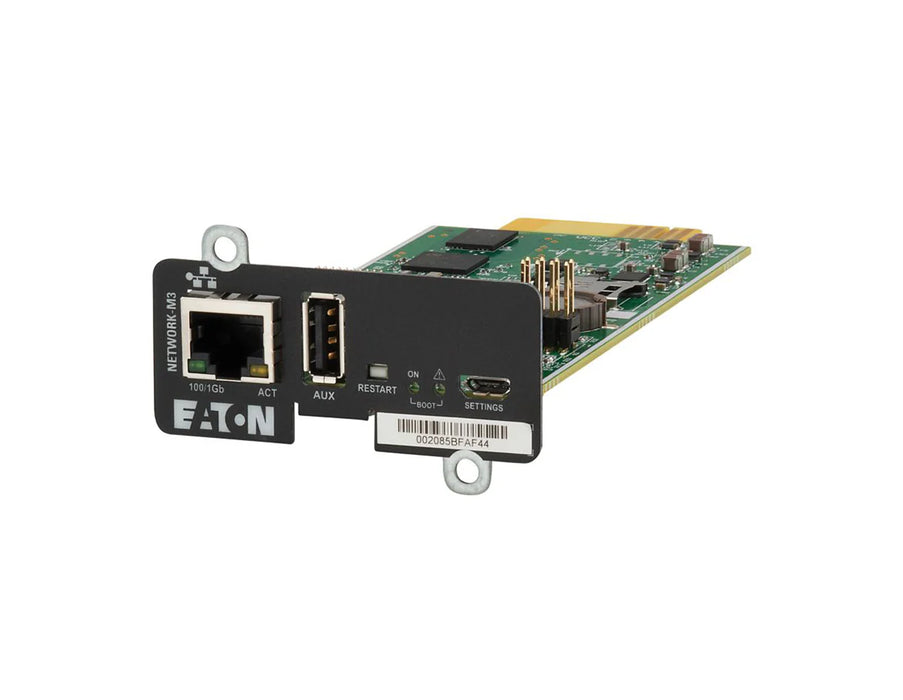

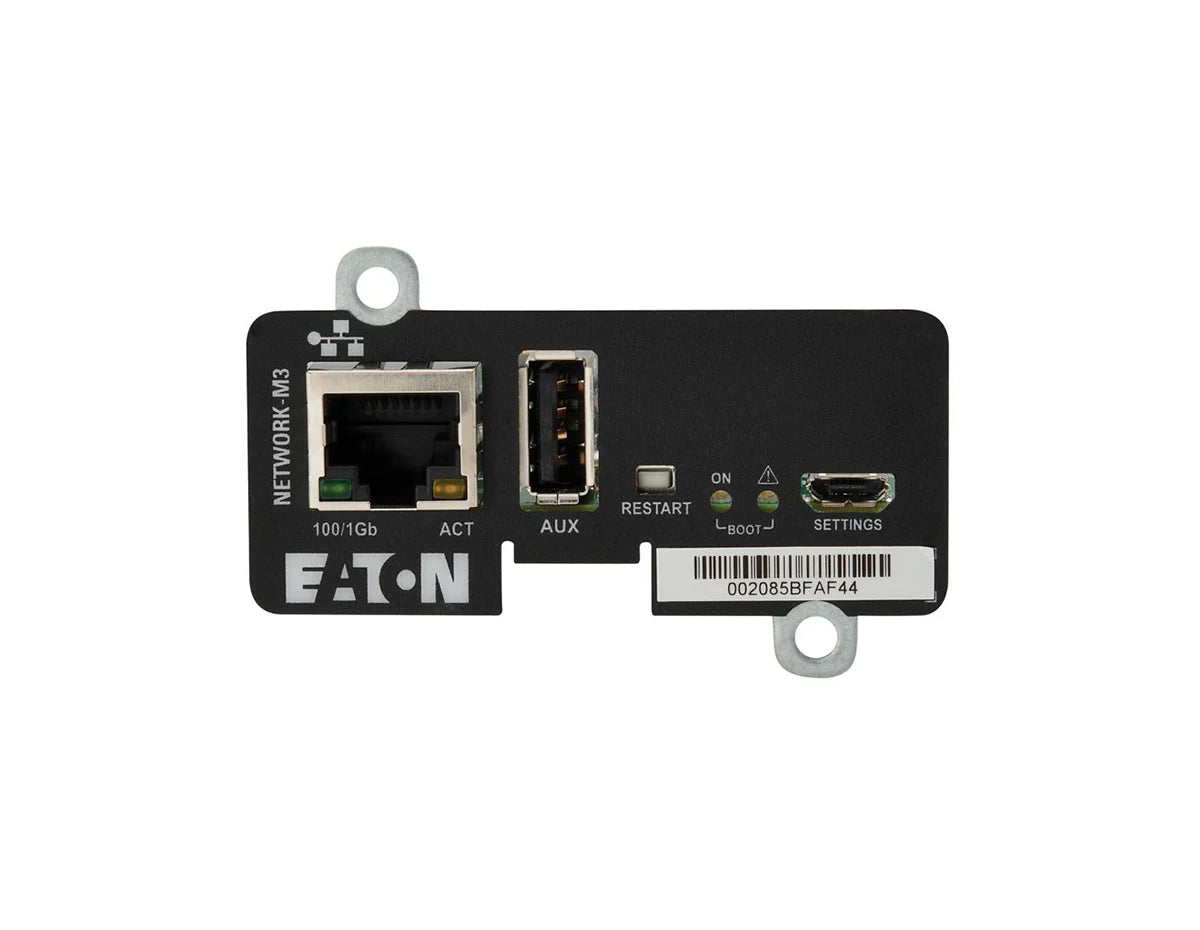

Eaton Network-M3 Gigabit UPS Network Card

[shortdesc]10/100/1000BaseT Ethernet, Web/SNMP communications, IPv4/IPv6 support, TLS 1.2, zero-touch provisioning, mini-slot design[/shortdesc]

[properties]

Brand	Eaton
SKU	NETWORK-M3
Catalog Number	NETWORK-M3
Product Type	Gigabit Network Card
Function	Web/SNMP communications
UPS Slot Type	Mini-slot
Interface	Ethernet 10/100/1000BaseT, USB for accessories, USB configuration port
Power Input	5 V – 12 V
Dimensions (H x W x D)	5.2 x 2.6 x 1.7 in. (132.08 x 66.04 x 43.18 mm)
Weight	2.3 oz. (65 g)
Operating Temperature	32 to 104°F (0 to 40°C)

[/properties]

[specifications]

Hardware Compatibility	UPS: 5P, 5PX, 5PX G2, 5SC Rack, 9PX, 9PXM, 9SX, 9130, FERRUPS FX, 9E, 93PS (fw 2.50 or later), 91PS, 91PS Monoblock, 93E 15-80 EMEA (fw 8.00.01 or later), 93E G2 EMEA (fw 4.0.20 or later); PDU: EATS115, EATS120, EATS220
Network Compatibility	IPv4/v6, TLSv1.2, HTTP(S)v1.1, NTP, SMTP(S), BOOTP/DHCP, SSH, SysLog(S), LDAP, AD, RADIUS
Protocol Support	HTTPS1.1, MQTTS, TLS1.2, SNMPv1, SNMPv3, NTP, SMTPS, BOOTP/DHCP, CLI, SSH, ARP and Syslog
Security Features	Zero-trust architecture, hardware root of trust, secure boot, complete chain of trust and user-configurable firewall
Provisioning	Zero-touch provisioning
API	REST API for integration with native systems and automated M2M interactions
Supported Software	Brightlayer Data Centers suite: Data Center Performance Management (DCPM), Distributed IT Performance Management (DITPM), Intelligent Power Manager (IPM) disaster avoidance software, and Cyber Secured Monitoring (CSM) in EMEA
Supported MIB	MIB II – Standard IETF UPS MIB (RFC 1628) – Eaton xUPS MIB
Supported Browsers	Chrome, Edge
Local Language Support	English, French, German, Italian, Spanish, Chinese Simplified, Chinese Traditional, Japanese
Temperature & Humidity Monitoring	Requires Eaton Environmental Monitoring Probe (EMP) Gen 2 (EMPDT1H1C2)
Operating Humidity	90% RH max. without condensation
Current Consumption	500/1000mA max. depending on UPS

[/specifications]

[accessories]

Compatible Accessories

Eaton Environmental Monitoring Probe (EMP) Gen 2 (EMPDT1H1C2), supporting temperature, humidity and dry-contact monitoring; daisy-chainable up to 3 per host

[/accessories]

The Eaton Network-M3 Gigabit Network Card adds network-based monitoring, management, and control to compatible Eaton UPS and PDU systems. Built for medium-sized and enterprise IT environments, it combines Web/SNMP communications with a zero-trust architecture, user-configurable firewall, and hardware root of trust. Support for Eaton Brightlayer Data Centers software enables centralized visibility, remote response, and automated actions during power events.

• Zero-Trust Architecture: Supports secure boot and a complete chain of trust to reduce cybersecurity vulnerabilities.
• Zero-Touch Provisioning: Accelerates network card configuration across large-scale deployments.
• User-Configurable Firewall: Helps reduce the attackable surface area and address specific network or security requirements.
• REST API Support: Simplifies integration with native systems and automation of machine-to-machine interactions.
• Brightlayer Integration: Brightlayer Data Centers software can monitor card fleets and trigger actions such as graceful shutdown or virtual machine reallocation.

• Remote monitoring and control of compatible Eaton UPS systems.
• Enterprise and distributed IT power management deployments.
• Automated response workflows for power events and business continuity.
• Integration with network management, authentication, and logging services.

• Catalog Number: NETWORK-M3
• Function: Web/SNMP communications
• Hardware Compatibility: Eaton 5P, 5PX, 5PX G2, 5SC Rack, 9PX, 9PXM, 9SX, 9130, FERRUPS FX, 9E, 93PS with firmware 2.50 or later, 91PS, 91PS Monoblock, 93E 15-80 EMEA with firmware 8.00.01 or later, 93E G2 EMEA with firmware 4.0.20 or later; EATS115, EATS120 and EATS220 PDUs
• UPS Slot Type: Mini-slot
• Common Connectors: Ethernet 10/100/1000BaseT, USB for accessories, USB configuration port
• Network Compatibility: IPv4/IPv6, TLS 1.2, HTTP(S) 1.1, NTP, SMTP(S), BOOTP/DHCP, SSH, Syslog(S), LDAP, AD and RADIUS
• Protocol Support: HTTPS 1.1, MQTTS, TLS 1.2, SNMPv1, SNMPv3, NTP, SMTPS, BOOTP/DHCP, CLI, SSH, ARP and Syslog
• Power Input and Consumption: 5 V to 12 V; 500/1000 mA maximum depending on UPS
• Operating Environment: 32 to 104°F (0 to 40°C); 90% RH maximum without condensation
• Dimensions and Weight: 5.2 x 2.6 x 1.7 in. (132.08 x 66.04 x 43.18 mm); 2.3 oz. (65 g)

Choose the Eaton Network-M3 to add Gigabit network connectivity, centralized power visibility, and automation capabilities to supported Eaton equipment. Confirm hardware and firmware compatibility for your UPS or PDU model before ordering.
