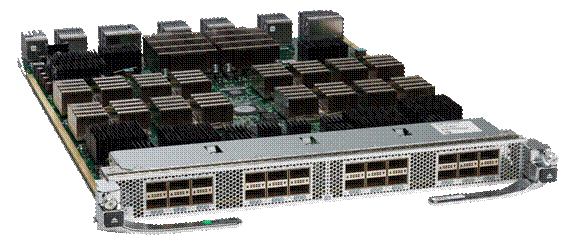

The Cisco MDS 9700 Series DS-X9824-960K9 is a high-performance 24-Port 40-Gbps Fibre Channel over Ethernet (FCoE) switching module engineered for large-scale, mission-critical SAN (Storage Area Network) environments. Delivering line-rate 40-Gbps throughput per port with an aggregate capacity of 960 Gbps, this module ensures ultra-low latency, lossless transport, and seamless scalability for modern data centers.
Designed for converged infrastructure and unified fabric architectures, the DS-X9824-960K9 provides unmatched flexibility with QSFP+ transceiver support, compatibility with breakout cables (4x10G FC or 4x10G Ethernet), and support for both direct attach and optical modules.
Compatibility & Deployment
The DS-X9824-960K9 is supported on Cisco MDS 9706, 9710, and 9718 chassis, requiring the appropriate Cisco NX-OS software release. It also interoperates seamlessly with Cisco Nexus switches and UCS fabric, making it ideal for converged infrastructure deployments.
Why Choose the Cisco DS-X9824-960K9?
This switching module is purpose-built for organizations that require scalable, resilient, and secure SAN performance. Whether deployed in enterprise data centers or large-scale cloud environments, it delivers the high-speed connectivity, advanced features, and operational efficiency needed for next-generation workloads.
👉 Perfect for: Enterprises, cloud providers, and large-scale SAN environments needing high-speed FCoE, Fibre Channel, and Ethernet integration.
⚡ Scale your SAN infrastructure with the Cisco DS-X9824-960K9 for unmatched performance and reliability.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications – Cisco MDS 9700 Series DS-X9824-960K9
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Model Number |
DS-X9824-960K9 |
| Description |
24-Port 40-Gbps FCoE Switching Module for Cisco MDS 9700 Series. Provides ultra-low latency, lossless transport, and high scalability for SAN environments and converged infrastructure. |
| Ports & Interfaces |
- 24 x 40-Gbps FCoE (Fibre Channel over Ethernet) ports
- QSFP+ transceiver support
- Compatible with breakout cables (4x10G FC or 4x10G Ethernet)
- Supports direct attach and optical modules |
| Performance & Throughput |
- Line-rate 40-Gbps performance per port
- Aggregate throughput: 960 Gbps per module
- Ultra-low latency switching fabric
- Designed for lossless FCoE traffic using Data Center Bridging (DCB) |
| Features & Capabilities |
- Full support for FCoE, Fibre Channel, and Ethernet switching
- Virtual SAN (VSAN) support and zoning
- Advanced traffic engineering and bandwidth control
- End-to-end congestion management
- Integration with Cisco Data Center Network Manager (DCNM)
- Role-based access control (RBAC) and Secure Boot |
| Compatibility |
- Supported on Cisco MDS 9706, 9710, and 9718 chassis
- Requires appropriate Cisco NX-OS software release
- Interoperable with Cisco Nexus switches and UCS fabric |
| Power & Environmental |
- Typical power consumption: ~200W
- Hot-swappable for operational continuity
- Operating temperature: 0°C to 40°C
- NEBS and ETSI compliant |
| Additional Specifications |
- Chassis slot requirements: 1 slot in Cisco MDS 9700 chassis
- Redundant path support for HA deployments
- Designed for mission-critical data center SANs |
FAQs for DS-X9824-960K9:
What type of networks is this module ideal for?
It’s designed for high-performance, converged data center environments requiring unified SAN over Ethernet infrastructure.
Does this module support native Fibre Channel?
Yes, it supports both native Fibre Channel and Fibre Channel over Ethernet (FCoE), offering flexibility in SAN deployments.
Can I use 10G Fibre Channel with this module?
Yes, with breakout cables, each 40G port can be divided into 4 x 10G lanes, supporting 10G FC or Ethernet.
Is the module hot-swappable?
Yes, it can be inserted or removed without interrupting chassis operations, ensuring maximum uptime.
Which Cisco chassis is this module compatible with?
The module is compatible with Cisco MDS 9706, 9710, and 9718 series director-class chassis.
