2U Rack Server
Processor | Max: 32 Cores2x 4th Generation Intel® Xeon® Scalable processors with up to 32 cores per processor
Memory | Max: 2TB16x DDR5 RDIMM 4800Mhz
Storage | Max: 61.44TB4x 2.5" SAS/SATA/NVMe (HDD/SSD) Max: 61.44TB
8x E3.S NVMe Max: 51.2TB
S160
H355, H755, H965i, HBA355i, HBA355e
BOSS-N1, Internal USB
Lom / OCP:4 x 25 GbE SFP+ LOM
1 x OCP card 3.0 (Optional)
iDRAC9 with Lifecycle Controller
PCIe Slots:Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4)
GPU:Up to 5 x 75 W SW
Up to 2 x 300 W DW
Other XR Versions:
- Dell PowerEdge XR12
- Dell PowerEdge XR4000
- Dell PowerEdge XR5610
- Dell PowerEdge XR7620
- Dell PowerEdge XR8000
(Click to View)
Ideal for:- Artificial Intelligence (AI)
- Data Analytics
- Edge Servers
- Point-of-Sale (POS)
- Video Analytics

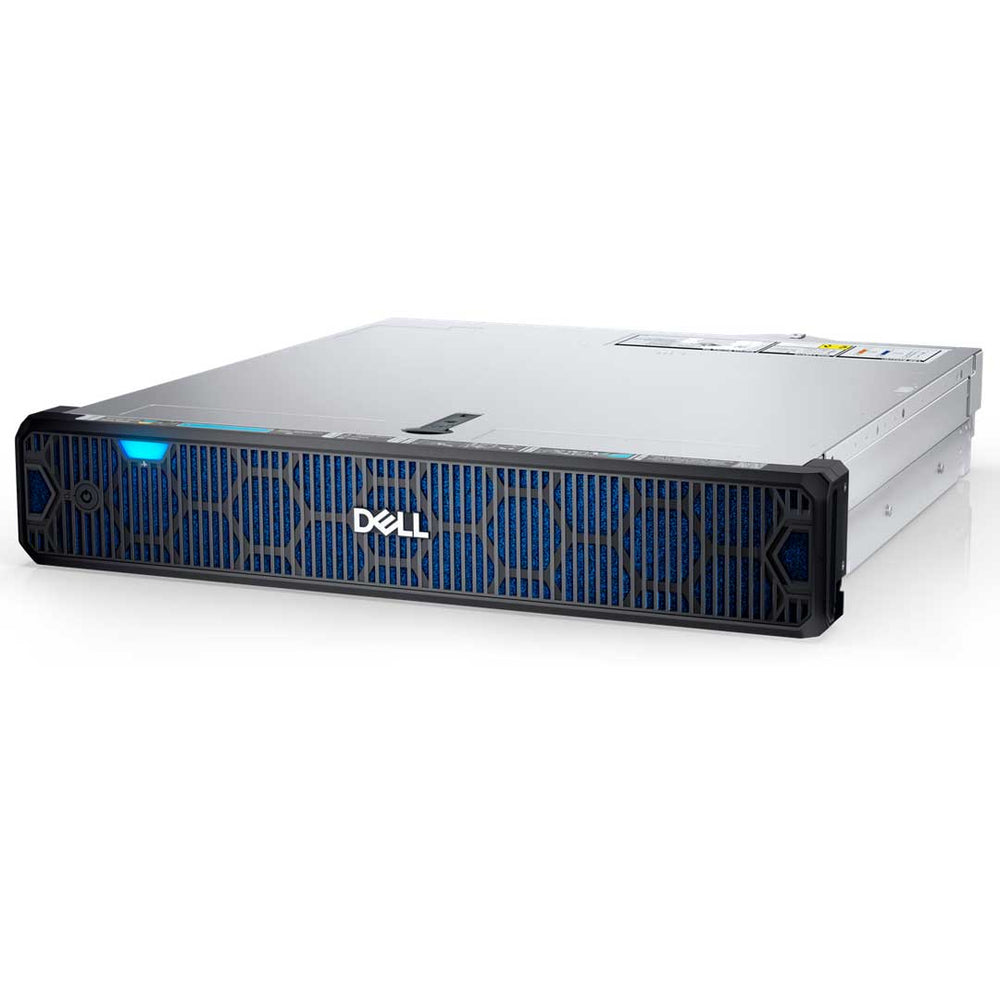

The new Dell PowerEdge XR7620 is a short-depth 2U, 2-socket server with datacenter-level compute delivering high-performance, high-capacity and reduced latency. Purpose-built for the edge, the PowerEdge XR7620 is designed for the most demanding workloads including industrial automation, video analytics, point of sale analytics, AI inferencing and edge point device aggregation.
Built to endure
Designed to bring acceleration to the edge.
- Operates in temperatures ranging from -5 ° C to 55 ° C, is MIL and NEBS tested
- Easily serviceable with rear/front facing I/O and power options
- Short-depth design allows flexibility in tight edge environments
- Built rugged to withstand dusty, harsh environments along with additional security from the optional lockable intelligent bezel
Purpose-built for the Edge
- Built rugged to operate in temperatures from -5°C to 55°C; MIL 810H* and NEBS Level 3* tested
- Offers easy serviceability with reversible I/O & power
- Short-depth (472 mm) chassis to fit in space constrained environments

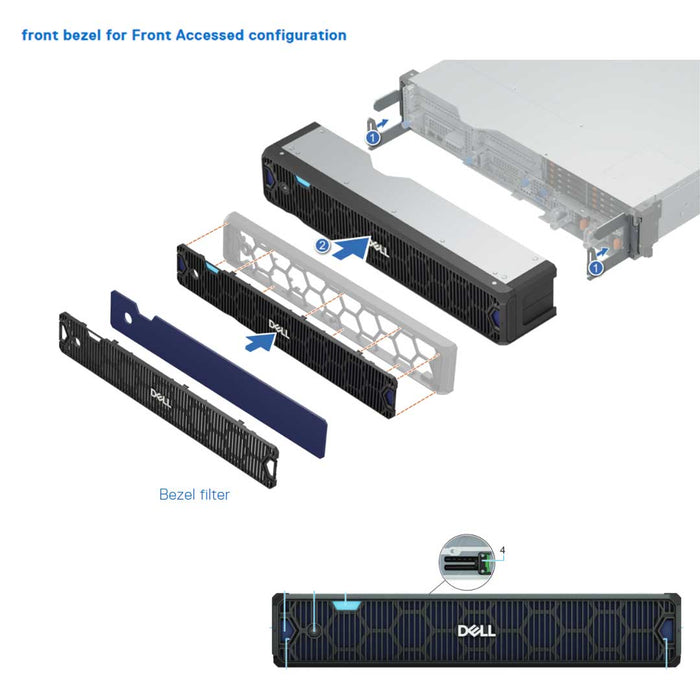

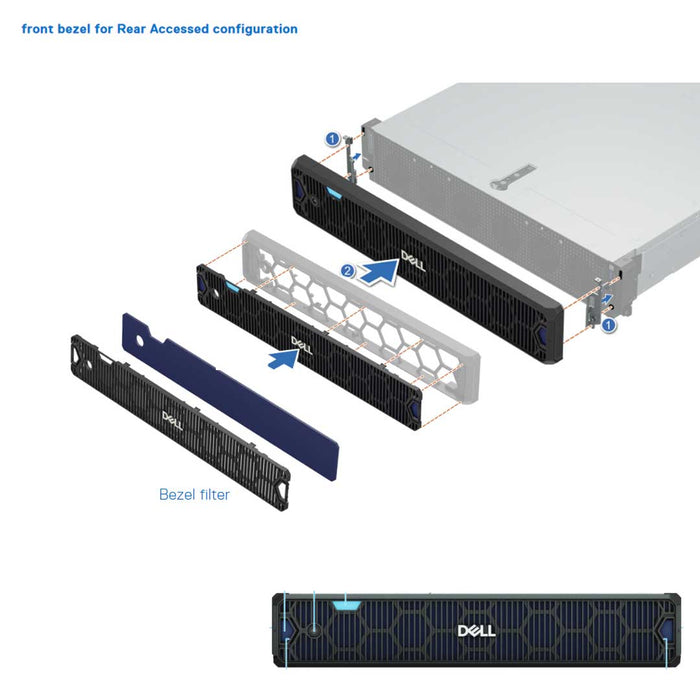

- Withstand dusty and harsh environments with an optional lockable smart filtered bezel for extra physical security
Datacenter-level compute
- Two Intel® Xeon® Scalable Processors with up to 32 cores per processor for ultimate edge performance
- Integration with PCIe Gen5 doubles the data transfer rate from PCIe Gen4 for faster more efficient data transfer
- Includes latest memory DDR5, 50% memory capacity over DDR4, increasing bandwidth.
- Up to two double-wide GPU accelerators to support demanding workloads
- E3 NVME storage utilizes a limited-space design with more storage density, making it ideal for data-intensive workloads at the edge

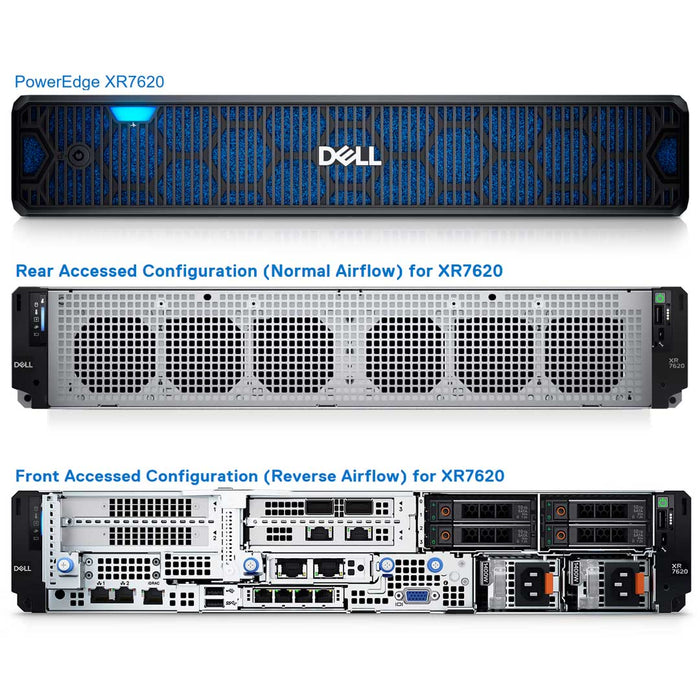

The airflow in this XR7620 Rack server from Dell is the main difference between each option in this system. The Black band on the PSU indicates it’s a normal airflow and the blue band on the PSU is a reverse airflow system. The next major difference in the Dell XR7620 Rack Server is the Drives Supported.
Internal storage configuration:
- 8 x E3.s NVMe direct
- 8 x E3.s NVMe RAID
- 4 x 2.5" SAS\SATA RAID
- 4 x 2.5" U.2 NVMe direct
NOTE: The system with E3.S and U.2 NVMe drives can support up to Gen4 only.
Memory
The Dell XR7620 Rack Server supports up to 16x ECC DDR5 RDIMM only, with a max of 2TB at speeds up to 4800 MT/s. Do not mix DIMM module types or mix x4 and x8 DIMMs within a memory channel.
| DIMM type | Rank | Capacity | DIMM rated voltage and speed | Operating Speed |
|---|---|---|---|---|
| 1 DIMM per channel (DPC) | ||||
| RDIMM | 1 R | 16 GB | DDR5 (1.1 V), 4800 MT/s | 4800 MT/s |
| 2 R | 32 GB, 64 GB, 128 GB | DDR5 (1.1 V), 4800 MT/s | 4800 MT/s |
With Single Wide and Double Wide GPU support, you will need a few risers. With 2 similar configurations up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4) you will have all the options you need to install up to 5 SW GPUs or up to 2 DW GPUs.
Riser Configuration 2 offers the XR7620 GPU Ready option.| Config No. | Riser configuration | No. of Processors | PERC type supported |
|---|---|---|---|
| 1 | R1B+R2B+R3 | 2 | fPERC |
| 2 | R1A+R2A+R3 | 2 | fPERC |
Riser 1A & 1B
Riser 2A & 2B
Riser 3
GPU
This system can support up to 5 x 75 W (Single Width Full Height/Half Length, Low Profile) GPU or up to 2 x 300 W (Double Width Full Height/Full Length). Below are all the GPUs supported by the Dell XR7620 Rack Server.
NOTE: Riser Configuration 2 offers the XR7620 GPU Ready option.
| Platform support details | GPU details | ||||
|---|---|---|---|---|---|
| GPU Name | Maximum Qty. | Riser configuration support | PCIe | Form Factor | Power |
| NVIDIA A2 | 5 | Riser Config 1 | x8 | SW | 60 W |
| 1 | Riser Config 2 | x8 | SW | 60 W | |
| NVIDIA L4 | 5 | Riser Config 1 | x16 | SW | 70 W |
| 1 | Riser Config 2 | x16 | SW | 70 W | |
| NVIDIA A30 | 2 | Riser Config 2 | x16 | DW | 165 W |
| NVIDIA A100 | 2 | Riser Config 2 | x16 | DW | 300 W |
| NVIDIA A800 (China Only) | 2 | Riser Config 2 | x16 | DW | 300 W |
| Intel PVC 300 W | 2 | Riser Config 2 | x16 | DW | 300 W |
Like most Gen 16 Dell servers the system comes with 2 x 1 GbE LOM and an optional 1 x OCP card 3.0 slot. The OCP slot can support up to 4 ports at 25GbE. You also can install NIC Adapters in one of the 5 PCIe slots depending on the Riser Configuration you install.
The PowerEdge XR7620 system supports two 10/100/1000 Mbps Network Interface Controller (NIC) ports embedded on the LAN on Motherboard (LOM) and up to four ports integrated on the Open Compute Project (OCP) cards.
| Feature | Specifications |
|---|---|
| LOM | 1 Gb x 2 |
| (Optional) OCP card (OCP 3.0) | 1GbE x 4, 10 GbE x 2, 10 GbE x 4, 25 GbE x 2 SFP28, 25 GbE x 4 SFP28 |
|
NOTE:
On the system board, the supported OCP PCIe width is x8; when x16 PCIe width is installed, it is downgraded to x8. |
|
Boot Optimized Storage Solution (BOSS)
BOSS is a RAID solution that is designed to boot operating systems and segregate operating system boot drives from data on server-internal storage. The BOSS-N1 has its own dedicated slot on the system board.
M.2 devices are read intensive with 480 GB or 960 GB capacity
Storage ControllersThe Gen 16 Dell XR7620 Rack server supports PERC11 and PERC12 controllers. The system supports fPERC style of controllers for RAID and SAS control. The PERC12 controllers are the only controllers to support NVMe and E3.S drives.
| Performance Level | Controller and Description |
|---|---|
| Entry | S160 |
| Value | H355, HBA355i |
| Value Performance | H755 |
| Premium Performance | H965i |
Rugged Military Kit
Purpose-built for the Edge
- Built rugged to operate in temperatures from -5°C to 55°C; MIL 810H* and NEBS Level 3* tested
- Offers easy serviceability with reversible I/O & power
- Short-depth (472 mm) chassis to fit in space constrained environments
- Withstand dusty and harsh environments with an optional lockable smart filtered bezel for extra physical security
MIL Drive Bracket
Align and slide the storage MIL bracket on the drive cage. Using a Phillips 1 screwdriver, tighten the screws securing the storage MIL bracket on the drive cage.
Power Supply Bracket
Align the power supply bracket to the rear of the power supply cage and slide it in to secure it in place. Using a Phillips 1 screwdriver, secure the power supply rugged bracket.
System Cover
Align the tabs on the system cover with the guide slots on the system. Close the system cover release latch. Using a Phillips 1 screwdriver, tighten the screw to secure the system cover.

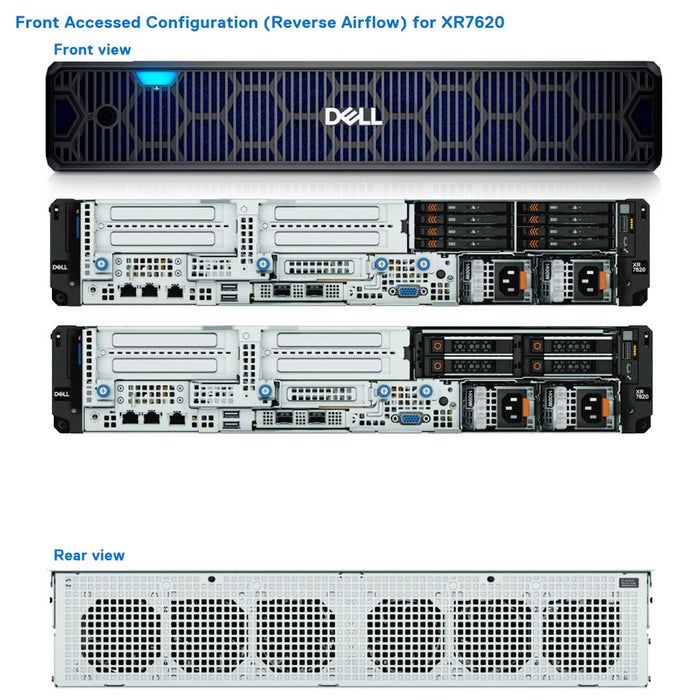

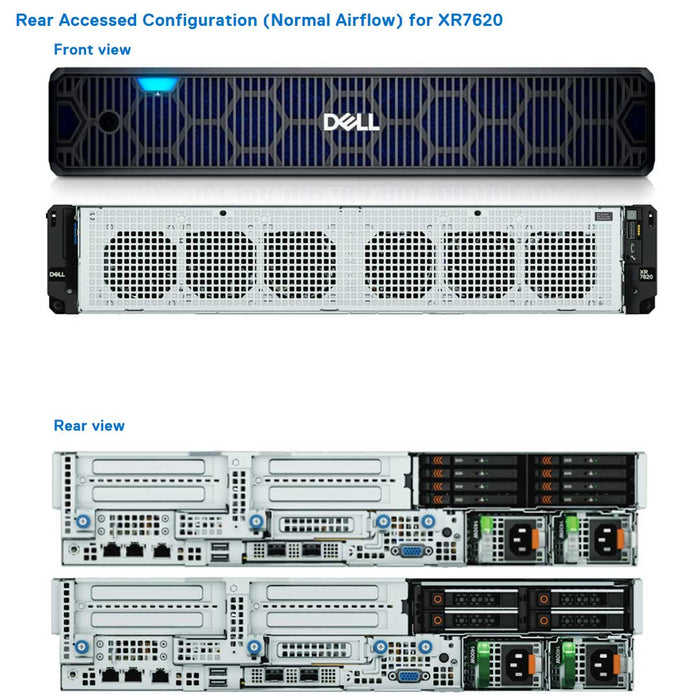

Power & DimensionsSupports up to 2 Hot Swap Power Supplies. If only one is installed the PSU blank will be installed for the second PSU. Front Access Reverse Airflow Config has a BLUE band on the PSU while the Rear Access Normal Flow Config has a black/red band.
Rear Accessed configuration:- Width: 6 mm (19")
- Height: 8 mm (3.41")
- Length: 8 mm (17.6") Ear to rear wall
- Length: 3 mm (19.53") with bezel
- Length: 8 mm (18.57") without bezel
- Weight: Max 21.16 kg (46.64lbs)
- Width: 6 mm (19")
- Height: 8 mm (3.41")
- Length: 572 mm (22.51") with bezel
- Length: 8 mm (18.57") without bezel
- Weight: Max 21.16 kg (46.64lbs)
