1U (XR4510c) Node Server REVERSE AIR FLOW (RAF)
Processor | Max: 20 Cores1x 3rd Gen Intel Xeon D Scalable
Memory | Max: 256GB RDIMM | 512GB LRDIMM4x DDR4 RDIMM/LRDIMM 2933Mhz
Storage | Max: N/A4 x M.2 NVMe SSDs on M.2 riser module
RAID Controller:S150, H345, H355, H755, H840, 12G SAS HBA, HBA355i, HBA355e
Boot Options:BOSS-N1, USB
Networking:4 x 10GbE SFP (max 50 Gb)
4 x 25GbE SFP (max 100 Gb)
iDRAC9 with Lifecycle Controller
PCIe Slots:XR4520c ONLY
GPU:XR4520c ONLY
Other XR Versions: Ideal for:
- Point-of-Sale (POS)
- Video Analytics
- Virtual Desktop Interface (VDI)
- Virtual Machines (VM)
Experience ultimate flexibility with Dell’s shortest depth edge server
Dell Technology’s shortest-depth edge server
The new Dell PowerEdge XR4000 is a 2U server with an innovative sled-based design. Dell’s shortest depth server to date is purpose-built for the edge; delivering high-performance compute and ultimate deployment flexibility in two new chassis form factors.Process and analyze data at the point of capture. Designed for workloads at the Edge including virtual desktop integration (VDI), Machine vision, Video surveillance, vSAN/VM, Point-of-sale and Data compression.
High-density, short-depth server designed and optimized for the edgeThe PowerEdge XR4000, powered by Intel® Xeon® D processors, enables scalability and flexibility with a sled-based architecture and multiple mounting options.
- Expand as needed with options for 1U or 2U compute sleds and up to 4 servers in single 2U chassis
- Flexible mounting options: rack or wall-mountable chassis
- Operate in environments outside of traditional data centers with -5 to 55c operating temperatures
- Ideal for analytics, AI inferencing, IoT, vSAN, MEC, point of sale
Purpose built for the edge
- Can operate in temp ranges from -5C to 55C and is rated to MIL 810H and NEBS Level 3
- Gain ultimate deployment flexibility with optional ‘stackable’ and ‘rackable’ chassis with options to mount on walls or place on shelves when space is at a premium
- Withstand dusty and harsh environments while providing extra physical security with an optional lockable intelligent filtered bezel
New Nano Server
- Create a self-contained 2-node VM cluster in a footprint not much larger than a shoebox with dell Nano Witness Server included in-chassis
- Rackable chassis supports up to 4 separate server nodes in a single 2U chassis
- Storage up to 12 x M.2 NVMe for total capacity of 45Tb per sled
- Uses Intel® Xeon D® with up to 20 cores per node for ultimate edge performance
- Reduce service complexity with a sled-based chassis that allows for a ‘pull replace-repair’ model
- Scale when you need it by adding sleds as your operation demands grow.
Dell PowerEdge XR4000 Chassis Options
This Server Series has 2 Chassis options, 2 Node options, and a special Witness Sled that can be installed in any configuration.
XR4000 Chassis
XR4000r
Installation Manual
The XR4000r is the "rackable" version of the XR4000 chassis options. The chassis itself has no compute capacity; it consists of a power module assembly which consists of PDB, PIB, a chassis manager, and a witness fan module. The chassis supports two AC or DC power supplies within both normal airflow (NAF) and reverse airflow (RAF). XR4000r can support four 1U sleds, two 2U sleds, or two 1U sleds plus one 2U sled. All these configurations can be matched with one optional witness sled. The witness sled slides in next to the Power Supply Units.
Node Manuals
-
XR4510c Installation Manual
-
XR4520c Installation Manual
-
XR4000w Installation Manual
XR4000z Chassis
XR4000z
Installation Manual
The XR4000z is the "stackable" version of the XR4000 chassis options. The XR4000z is smaller in width than the XR4000r; and intended to be mounted on walls and ceilings, or stacked on each other on the shelf or under a desk. The XR4000z has no compute capacity; it consists of a power module assembly that holds a PDB, PIB, chassis manager, and a witness fan module. XR4000z supports both AC or DC power supplies with Reverse airflow (RAF) only. It supports two 1U sleds or one 2U sled. Both configurations can be matched with one optional witness sled.
Rail Kit Manuals
-
Ceiling Mount
-
Din Mount
-
Pelican Mount
-
Table w/ Brackets Mount
-
Table w/o Brackets Mount
-
Wall Mount

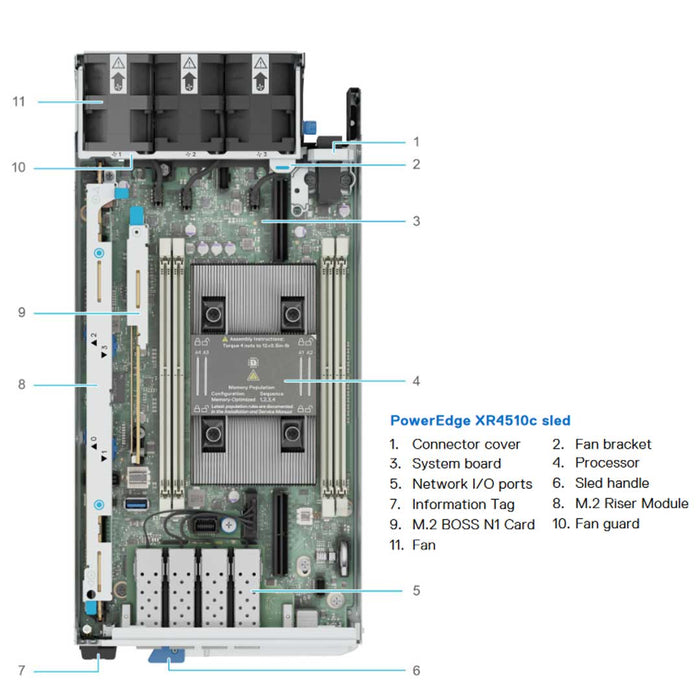

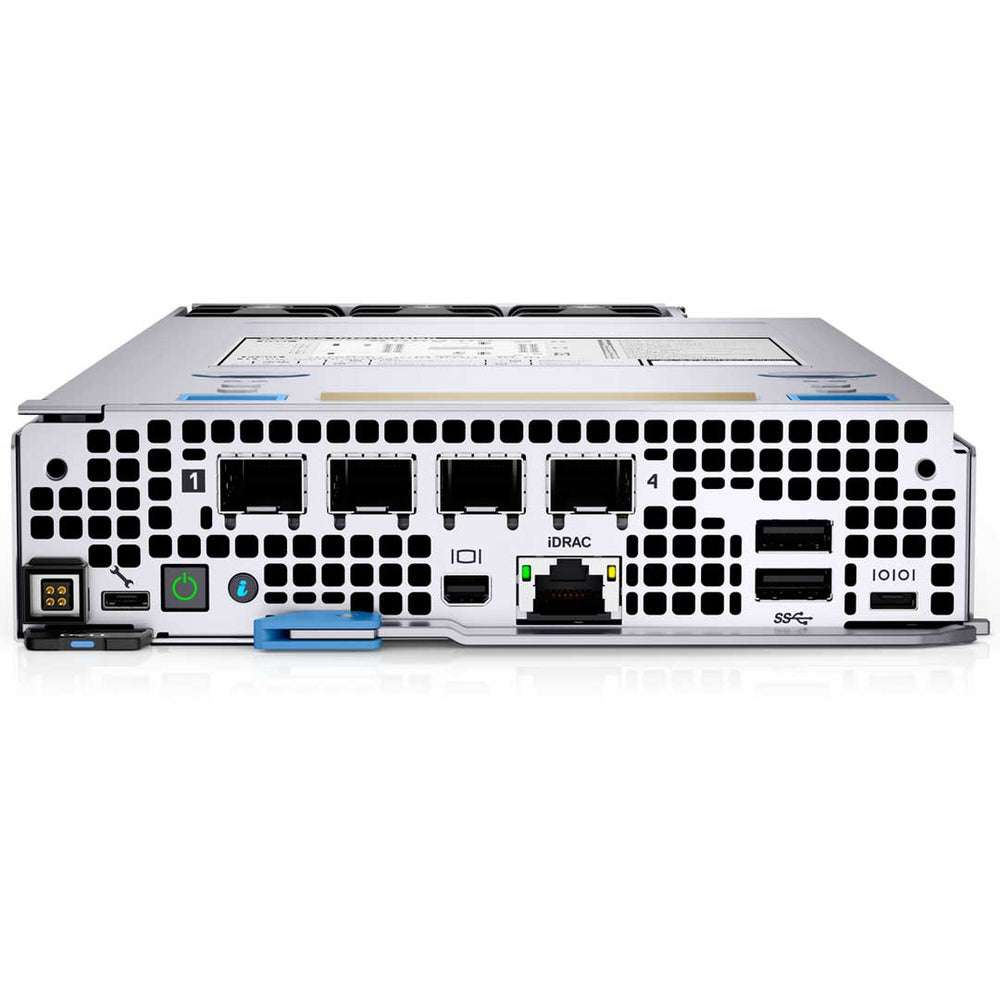

XR4510C 1U Sled Highlights
Built for unpredictable, rugged deployments, the dense 1U, PowerEdge XR4510c enables scalability at the edge. The short depth server can fit in the rackable or stackable chassis and save much needed floor space.
- Up to 4 x M.2 NVMe drives, from 480GB up to 3.84TB/ea
- Up to 2 x M.2 NVMe BOSS N1 ET
- 4 x memory slots; up to 512GB total
- 4 x SFP from CPU
XR4520C 2U Sled Highlights
Built for the edge, the 2U high-density PowerEdge XR4520c supports GPUs, NIC and extra storage capacity. Designed for deployment flexibility, it can fit in the rackable or stackable chassis and save much needed floor space.
- Up to 4 x M.2 NVMe drives, from 480GB up to 3.84TB/ea
- Up to 2 x M.2 NVMe BOSS N1 ET
- 4 x memory slots; up to 512GB total
- 4 x SFP from CPU
- 2 x 16 PCIe Gen 4 Lanes; 2 FHFL cards; up to 250W combined; NVIDIA A2, A30 support; SFP & BaseT NIC Options
- Optional 4 x M.2 NVMe storage Adapter (can support 2 adapters on riser 1C); 12 x M.2 NVMe total = 1 Riser card + 2 PCIe Riser AIC.

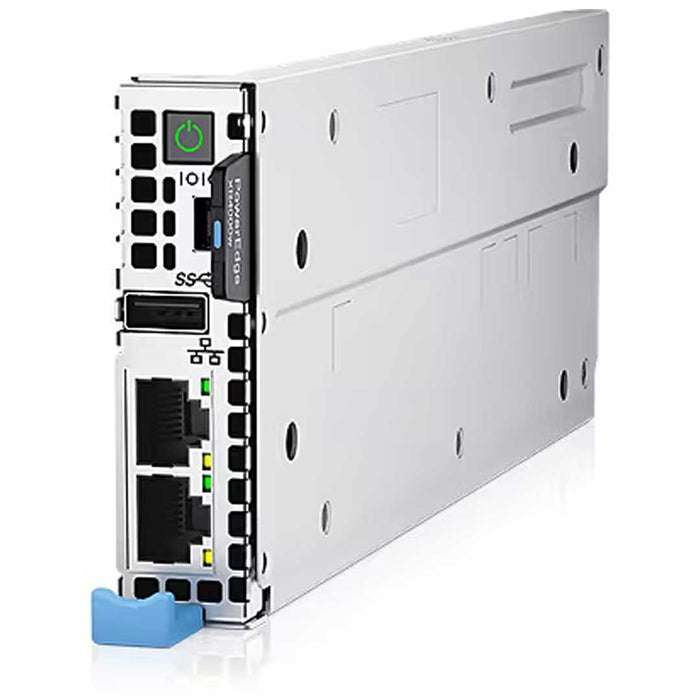

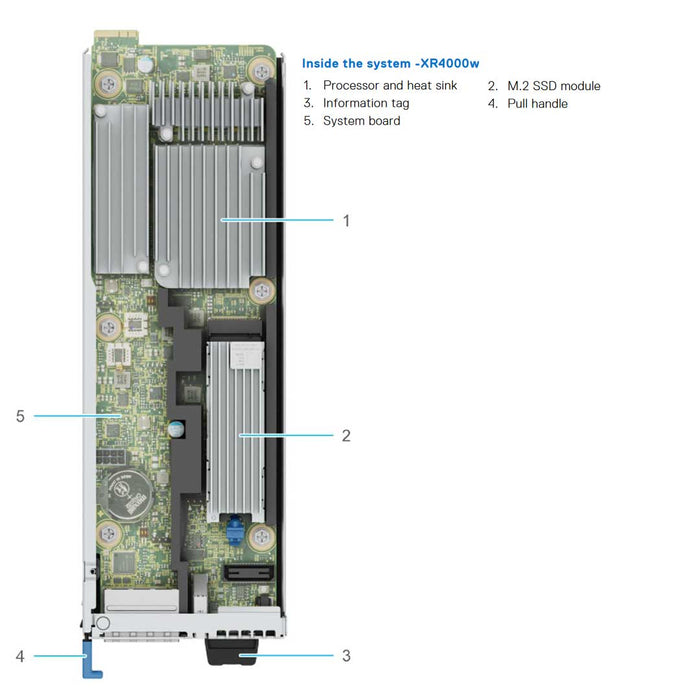

XR4000w Witness Sled Highlights
The optional Nano Server functions as an in-chassis witness node for a native, 2-node vSAN. The witness node fits even the 14" x 12" stackable server chassis and allows for virtual machine deployments where the option was previously out of the question.
- Intel® Atom® C3508 CPU
- 16GB ECC memory
- 2 x i210 NIC
- M.2 NVMe drive for OS and storage
- Micro Controller Unit (MCU) for management
- Secure boot
The airflow direction will be chosen when selecting the chassis. All Nodes/Sleds will come automatically with that flow direction.

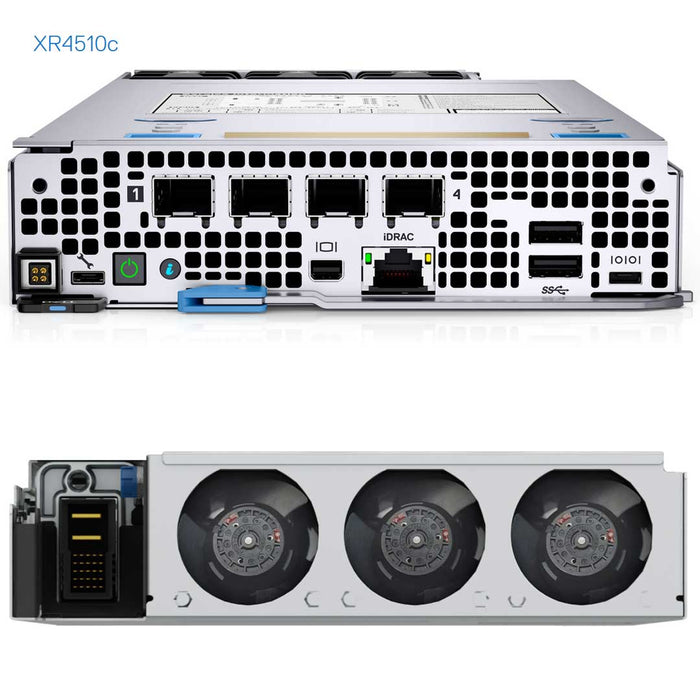

The XR4510c is a 1U server with only 1 row of Fans.
XR4000r: Normal airflow (NAF) and Reverse airflow (RAF)
XR4000z: Reverse airflow (RAF) only.
Memory
Sled - XR4510c - XR4520c4 x DDR4 RDIMM or LRDIMM slots, 288-pin Up to 3200 MT/s
| Feature | XR4000 (DDR4) |
|---|---|
| DIMM Type | RDIMM and LRDIMM |
| Transfer Speed | 3200 MT/s |
| Voltage | 1.2V (DDR4) |
Networking
The XR4510c & XR4520c Sleds- 10GbE x 4 (max 50Gb)
For processors with up to 8 cores. - 25GbE x 4 (max 100Gb)
For processors with 12-20 cores or more.
Only the 2U XR4520c can support an extra NIC on the Riser Kit R1C.
Storage
XR4510c & XR4520c:4x M.2 NVMe SSDs (M.2 2280 and M.2 22110) on M.2 riser module
Power Supply Units (PSU)
The system supports up to 2 PSUs per server (not node/sled). You will choose the Airflow for the sleds at the top of the CTO. All other components will come with the correct airflow desired for the configuration.
XR4000r: Normal airflow (NAF) and Reverse airflow (RAF).
XR4000z: Reverse airflow (RAF) only.
(RAF - Blue)
RAF design is also called Reverse Airflow (RAF). RAF pulls air into the I/O side and exhausts to the side of the chassis without I/O. This allows for cold-aisle serviceability.
(NAF - Red or Black)NAF design is also called Normal Airflow (NAF.) NAF pulls air into the non-I/O side and exhausts to the side of the chassis with I/O. This is the 'standard' way most data center servers are configured for hot-aisle serviceability.
Dimensions & WeightXR4510c – Node/Sled
- Height: 41.25 mm (1.62 inches)
- Width: 167.2 mm (6.58 inches)
- Depth: 342.5 mm (13.48 inches)
- Weight: 2.46 kg (5.42 pound)
