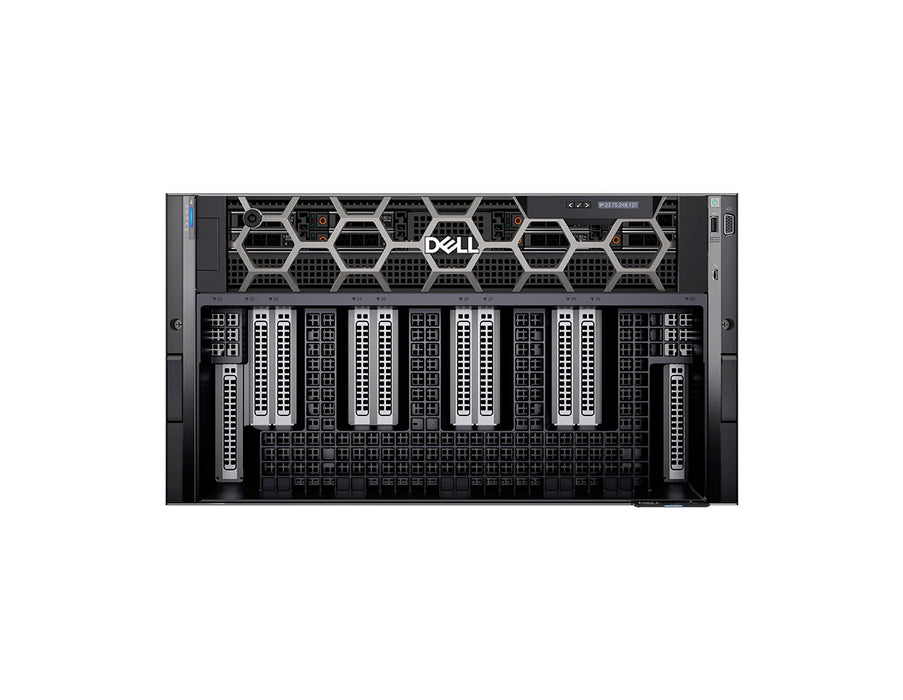

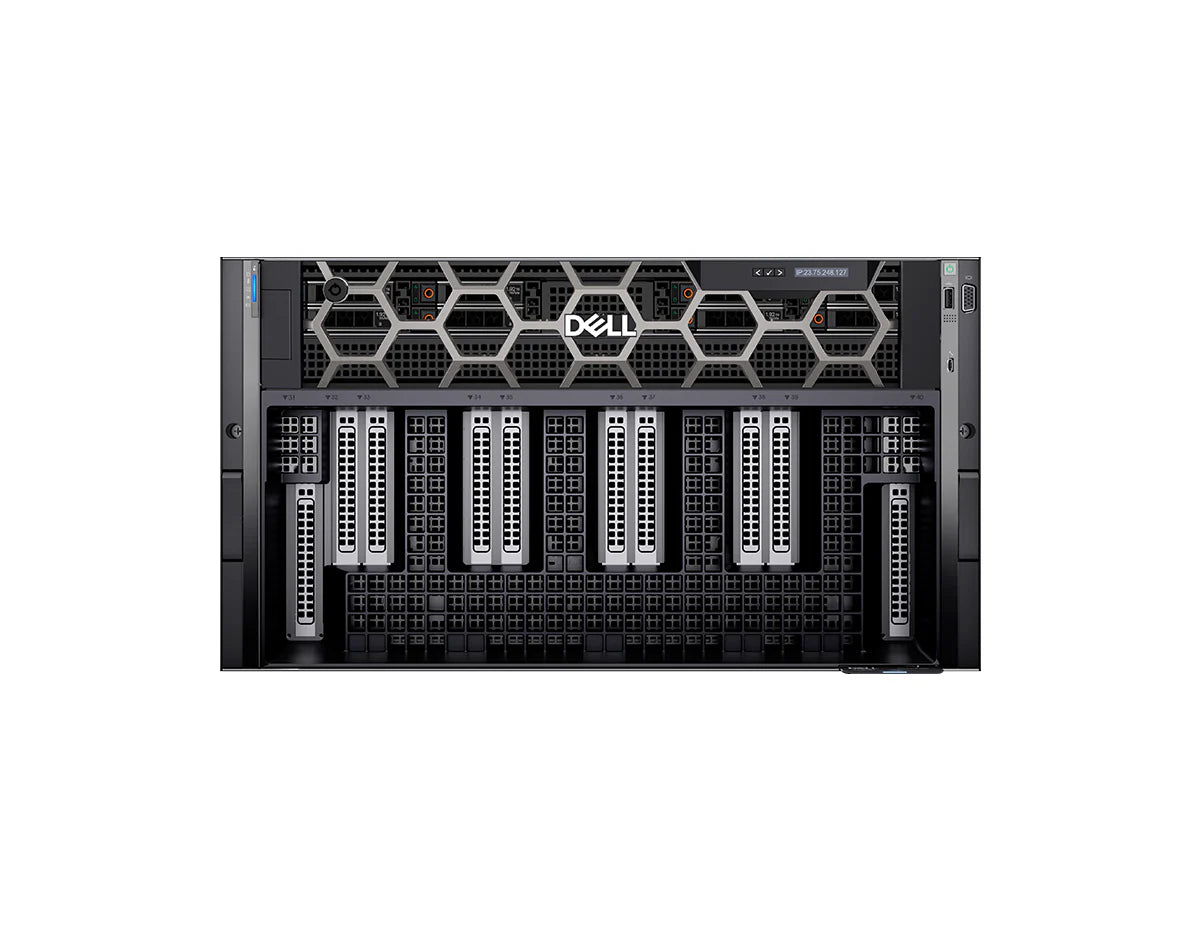

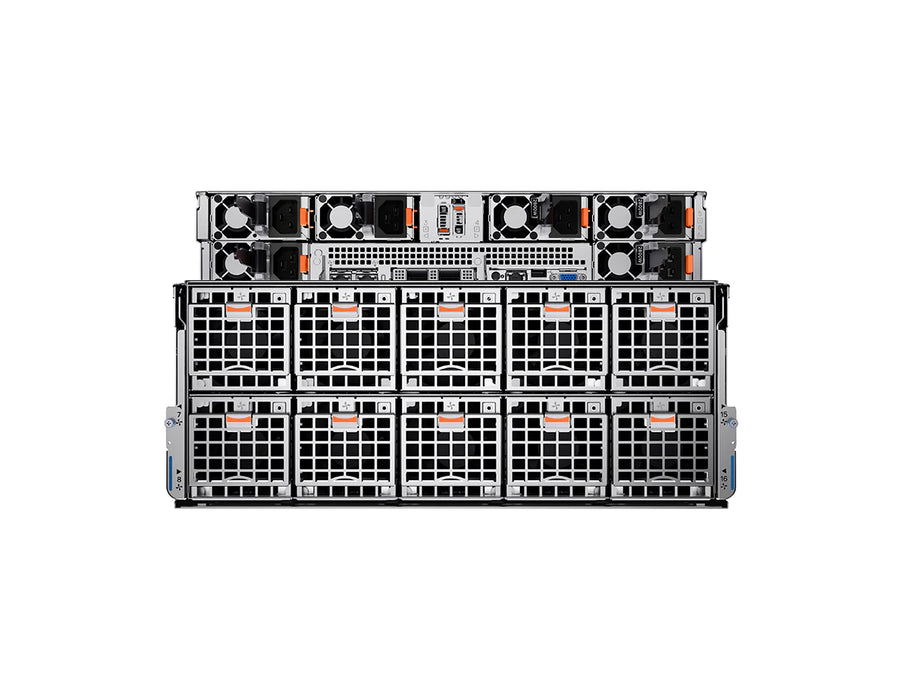

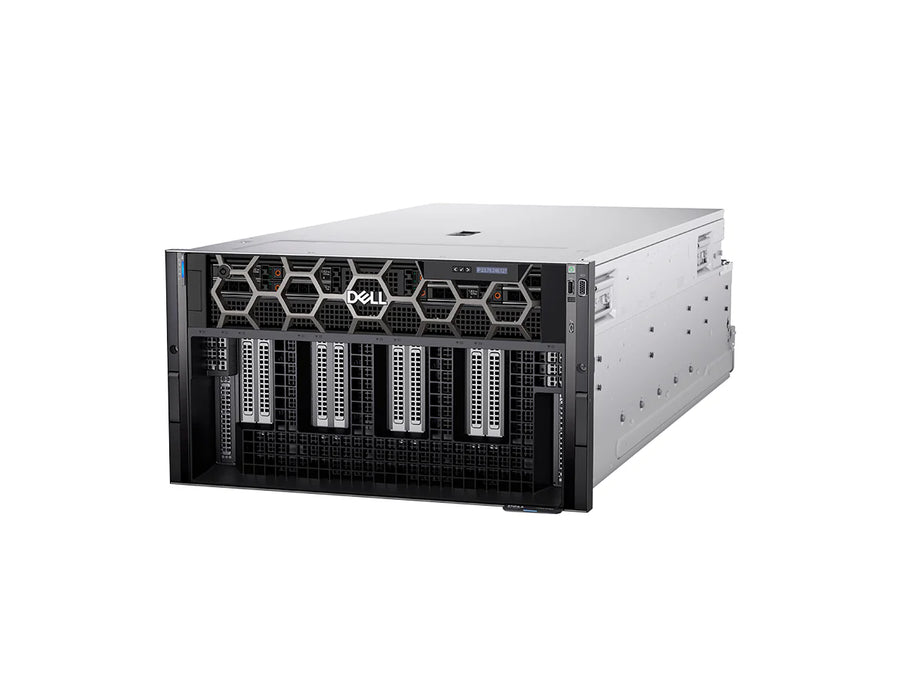

Dell PowerEdge XE9680 6U High-Density 8-GPU Server
Clique ou role para ampliar
Toque ou belisque para ampliar
Dell PowerEdge XE9680 6U High-Density 8-GPU Server
Clique ou role para ampliar
Toque ou belisque para ampliar
Dell PowerEdge XE9680 6U High-Density 8-GPU Server
Dell PowerEdge XE9680 6U High-Density 8-GPU Server

Dell PowerEdge XE9680 6U High-Density 8-GPU Server

por Dell
R$ 0,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 6U rack server, 8 GPU platform, Intel Xeon Scalable, DDR5, PCIe Gen5, NVMe storage [/shortdesc]

[properties]

Brand Dell
Model PowerEdge XE9680
SKU XE9680
Product Type GPU Server
Series PowerEdge
Form Factor 6U rack server
Processor Two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
Memory 32 DDR5 DIMM slots, supports RDIMM 4 TB max
GPU Support Up to 8 GPUs
Front Bays Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives or up to 16 x E3.S NVMe direct drives
Power Supplies 3200W Titanium, 3000W Titanium, or 2800W Titanium
Dimensions 263.2 mm x 482.0 mm x 1008.77 mm with bezel
Weight Up to 114.05 kg

[/properties]

[specifications]

Processor Options Two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor or two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor
Memory Speed Up to 5600 MT/s on 5th Generation Intel Xeon Scalable processors, up to 4800 MT/s on 4th Generation Intel Xeon Scalable processors
Memory Type Registered ECC DDR5 DIMMs only
GPU Options 8 NVIDIA HGX H100 80GB 700W SXM5, 8 NVIDIA HGX H200 141GB 700W SXM5, 8 NVIDIA HGX H20 96GB 500W SXM5, 8 AMD Instinct M1300X 192GB 750W OAM, or 8 Intel Gaudi 3 128GB 900W OAM
Storage Controllers PERC H9651 (Not supported with Intel Gaudi 3), NVMe BOSS-N1 HWRAID 1 with 2 x M.2 SSDs, S160
Storage Capacity Up to 122.88 TB (Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi 3)
Power Supplies 3200W Titanium 277 VAC or 260-400 VDC (only available in the US & Canada); 3000W Titanium 200-240 VAC or 240 VDC (Multi-rated, available only with Intel Gaudi 3); 2800W Titanium 200-240 VAC or 240 VDC; hot-swap redundant
Cooling Air cooling
Chipset Intel C741 chipset
PCIe Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi 3)
Embedded NIC 2 x 1 GbE
Embedded OSFP 6 x 800 Gb (available only with Intel Gaudi 3)
Network Options 1 x OCP 3.0 (x8 PCIe lanes)
Fans Up to six high performance (HPR) gold grade fans installed in mid tray; up to ten high performance (HPR) gold grade fans installed on the rear of the system (up to 12 fans with Intel Gaudi 3)
Embedded Management iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
Security Features Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secured Component Verification, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China
Front Ports 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
Rear Ports 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x RJ45 iDRAC9 ethernet port
Operating Systems Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

[/specifications]

The Dell PowerEdge XE9680 is a 6U rack server engineered for demanding Generative AI, machine learning, deep learning, and high-performance computing workloads. As Dell’s first 8-way GPU platform, it is designed to handle large models, complex datasets, and accelerated enterprise infrastructure requirements.

  • Supports up to eight high-performance GPU or accelerator modules for AI training and HPC workloads.
  • Uses DDR5 memory, PCIe Gen5, and NVMe SSD technologies to support high-throughput data movement.
  • Offers up to 10 front-facing PCIe Gen5 slots and up to 16 drives for expansion.
  • Includes Dell OpenManage and iDRAC management options for centralized server administration.
  • Built with silicon root of trust, Secure Boot, and signed firmware security capabilities.
  • Generative AI infrastructure for large model training.
  • Machine learning and deep learning workloads.
  • High-performance computing environments.
  • Large language models and recommendation engines.
  • Molecular dynamics and genome sequencing applications.
  • Brand: Dell
  • Model: PowerEdge XE9680
  • SKU: XE9680
  • Form Factor: 6U rack server
  • Processor: Two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
  • Memory: 32 DDR5 DIMM slots, RDIMM support up to 4 TB maximum
  • GPU Options: Eight NVIDIA H100, H200, H20, AMD Instinct M1300X, or Intel Gaudi 3 accelerators depending on configuration
  • Front Bays: Up to 8 x 2.5-inch NVMe, SAS, or SATA SSD drives, or up to 16 x E3.S NVMe direct drives
  • Embedded NIC: 2 x 1 GbE
  • Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, and iDRAC Service Module

Choose the Dell PowerEdge XE9680 for dense GPU acceleration, scalable I/O, and enterprise server management in AI, ML, DL, and HPC environments.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 6U rack server, 8 GPU platform, Intel Xeon Scalable, DDR5, PCIe Gen5, NVMe storage [/shortdesc]

[properties]

Brand Dell
Model PowerEdge XE9680
SKU XE9680
Product Type GPU Server
Series PowerEdge
Form Factor 6U rack server
Processor Two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
Memory 32 DDR5 DIMM slots, supports RDIMM 4 TB max
GPU Support Up to 8 GPUs
Front Bays Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives or up to 16 x E3.S NVMe direct drives
Power Supplies 3200W Titanium, 3000W Titanium, or 2800W Titanium
Dimensions 263.2 mm x 482.0 mm x 1008.77 mm with bezel
Weight Up to 114.05 kg

[/properties]

[specifications]

Processor Options Two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor or two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor
Memory Speed Up to 5600 MT/s on 5th Generation Intel Xeon Scalable processors, up to 4800 MT/s on 4th Generation Intel Xeon Scalable processors
Memory Type Registered ECC DDR5 DIMMs only
GPU Options 8 NVIDIA HGX H100 80GB 700W SXM5, 8 NVIDIA HGX H200 141GB 700W SXM5, 8 NVIDIA HGX H20 96GB 500W SXM5, 8 AMD Instinct M1300X 192GB 750W OAM, or 8 Intel Gaudi 3 128GB 900W OAM
Storage Controllers PERC H9651 (Not supported with Intel Gaudi 3), NVMe BOSS-N1 HWRAID 1 with 2 x M.2 SSDs, S160
Storage Capacity Up to 122.88 TB (Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi 3)
Power Supplies 3200W Titanium 277 VAC or 260-400 VDC (only available in the US & Canada); 3000W Titanium 200-240 VAC or 240 VDC (Multi-rated, available only with Intel Gaudi 3); 2800W Titanium 200-240 VAC or 240 VDC; hot-swap redundant
Cooling Air cooling
Chipset Intel C741 chipset
PCIe Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi 3)
Embedded NIC 2 x 1 GbE
Embedded OSFP 6 x 800 Gb (available only with Intel Gaudi 3)
Network Options 1 x OCP 3.0 (x8 PCIe lanes)
Fans Up to six high performance (HPR) gold grade fans installed in mid tray; up to ten high performance (HPR) gold grade fans installed on the rear of the system (up to 12 fans with Intel Gaudi 3)
Embedded Management iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
Security Features Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secured Component Verification, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China
Front Ports 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
Rear Ports 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x RJ45 iDRAC9 ethernet port
Operating Systems Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

[/specifications]

Dell PowerEdge XE9680 for AI and HPC Acceleration

The Dell PowerEdge XE9680 is a 6U rack server engineered for demanding Generative AI, machine learning, deep learning, and high-performance computing workloads. As Dell’s first 8-way GPU platform, it is designed to handle large models, complex datasets, and accelerated enterprise infrastructure requirements.

Key Benefits and Features
  • Supports up to eight high-performance GPU or accelerator modules for AI training and HPC workloads.
  • Uses DDR5 memory, PCIe Gen5, and NVMe SSD technologies to support high-throughput data movement.
  • Offers up to 10 front-facing PCIe Gen5 slots and up to 16 drives for expansion.
  • Includes Dell OpenManage and iDRAC management options for centralized server administration.
  • Built with silicon root of trust, Secure Boot, and signed firmware security capabilities.
Ideal Use Cases
  • Generative AI infrastructure for large model training.
  • Machine learning and deep learning workloads.
  • High-performance computing environments.
  • Large language models and recommendation engines.
  • Molecular dynamics and genome sequencing applications.
Technical Specifications
  • Brand: Dell
  • Model: PowerEdge XE9680
  • SKU: XE9680
  • Form Factor: 6U rack server
  • Processor: Two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
  • Memory: 32 DDR5 DIMM slots, RDIMM support up to 4 TB maximum
  • GPU Options: Eight NVIDIA H100, H200, H20, AMD Instinct M1300X, or Intel Gaudi 3 accelerators depending on configuration
  • Front Bays: Up to 8 x 2.5-inch NVMe, SAS, or SATA SSD drives, or up to 16 x E3.S NVMe direct drives
  • Embedded NIC: 2 x 1 GbE
  • Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, and iDRAC Service Module
Build Your AI Infrastructure with Dell XE9680

Choose the Dell PowerEdge XE9680 for dense GPU acceleration, scalable I/O, and enterprise server management in AI, ML, DL, and HPC environments.
