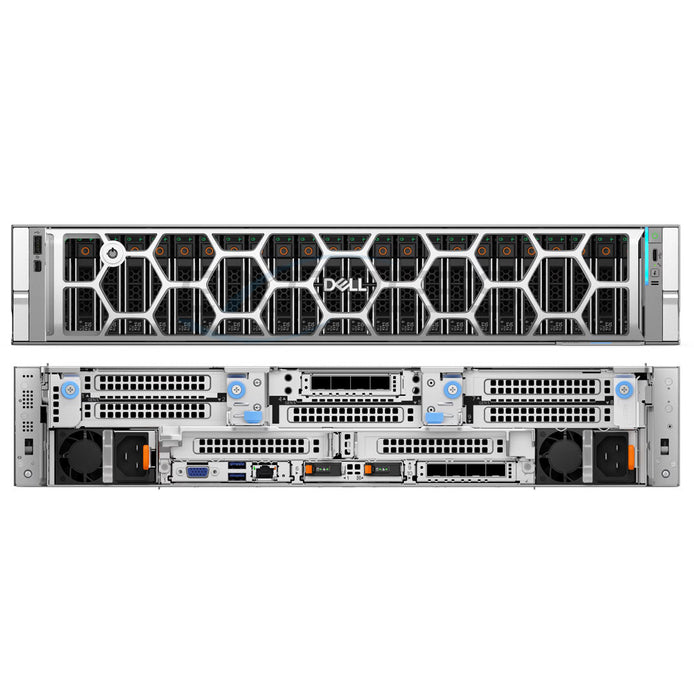

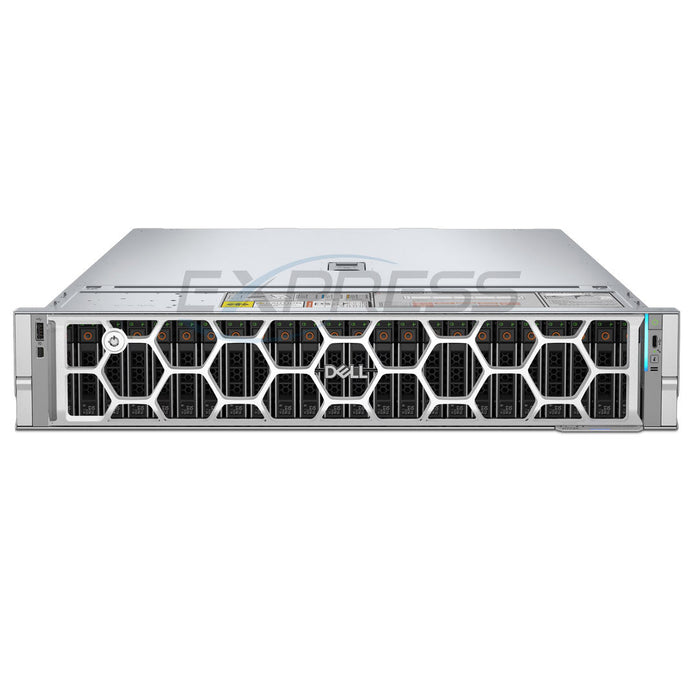

2U rack server
Processor | Max: 160 Cores2x AMD EPYC 9005 Series
Memory | Max: 6TB24 ECC DDR5 RDIMM 5200Mhz
Supports registered ECC DDR5 DIMMs only

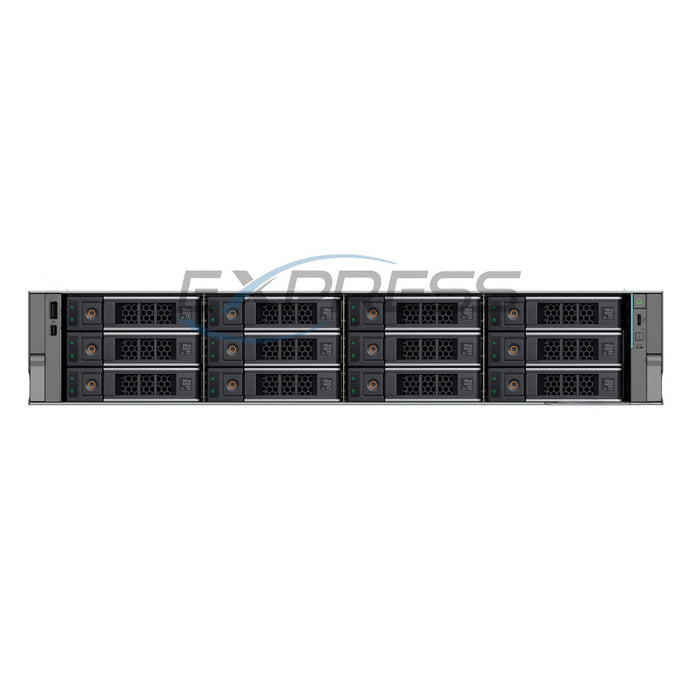

12 x 3.5" SAS/SATA

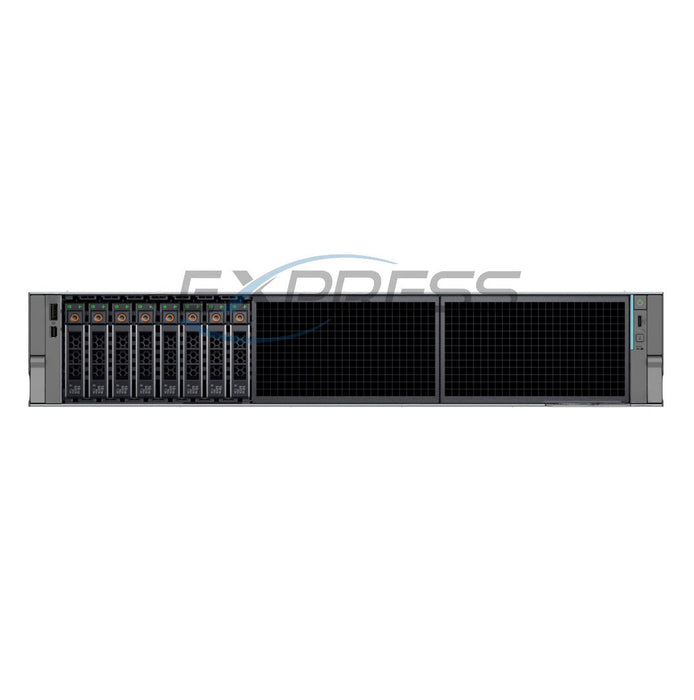

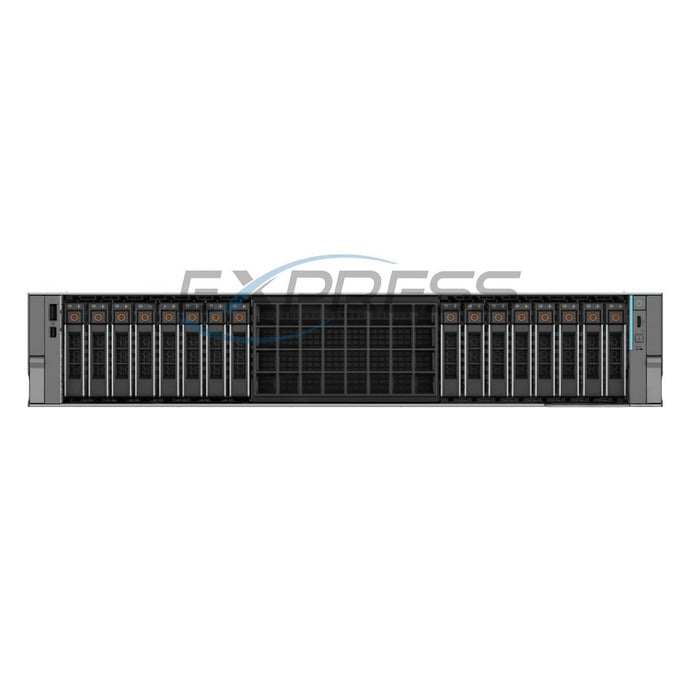

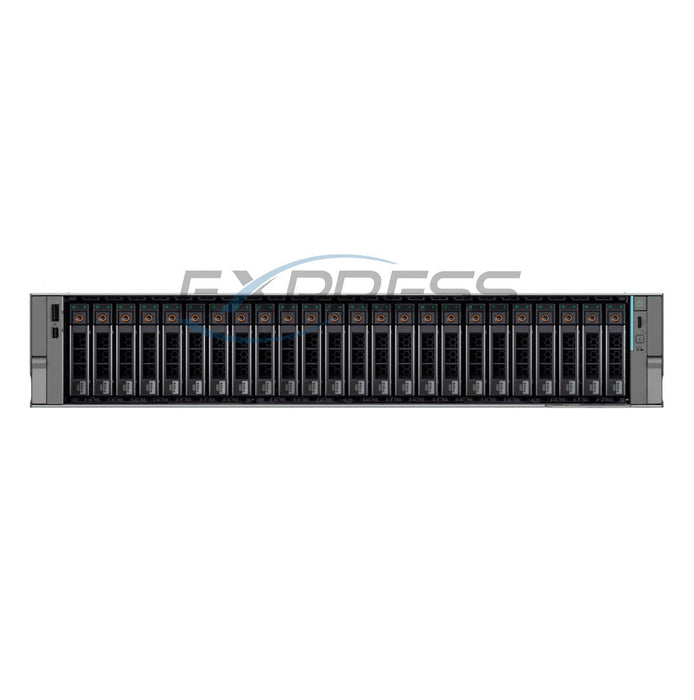

8 x 2.5 Universal/ 16 x 2.5" SAS/SATA / 24 x 2.5" SAS/SATA
16 x 2.5"SAS/SATA SSD + 8 x U.2 NVMe drives

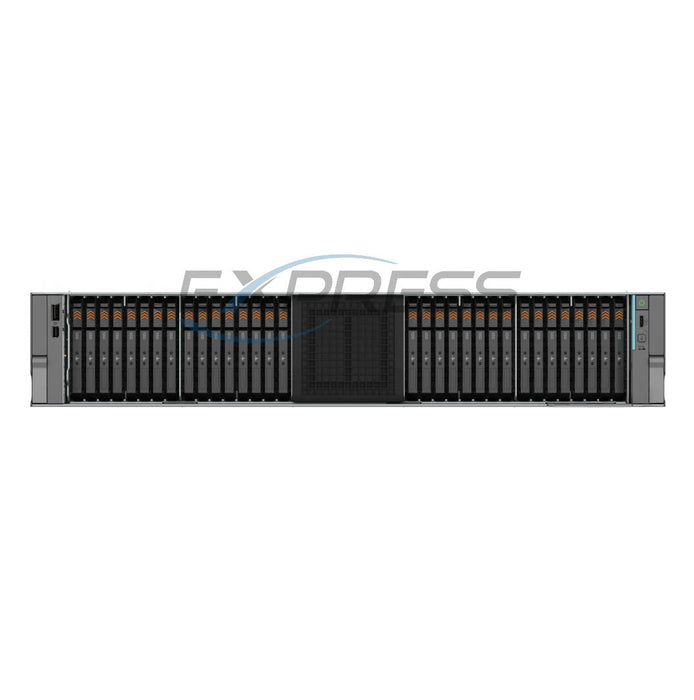

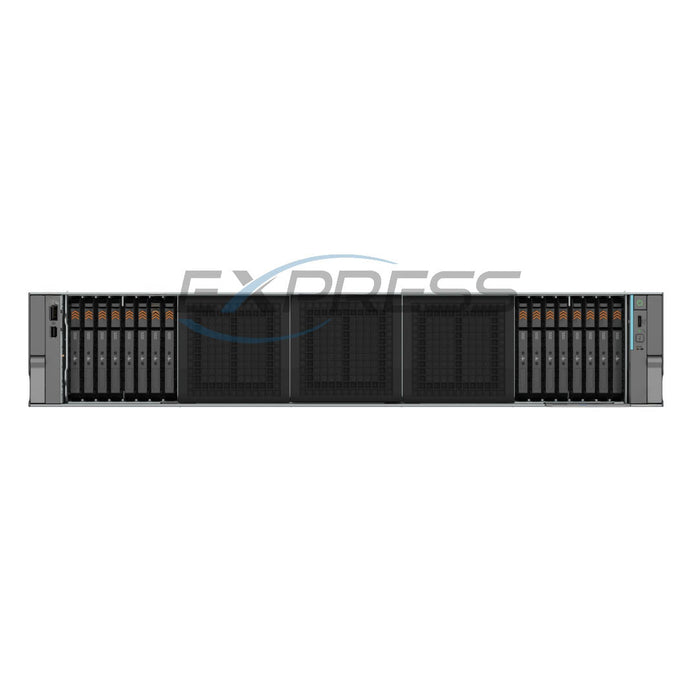

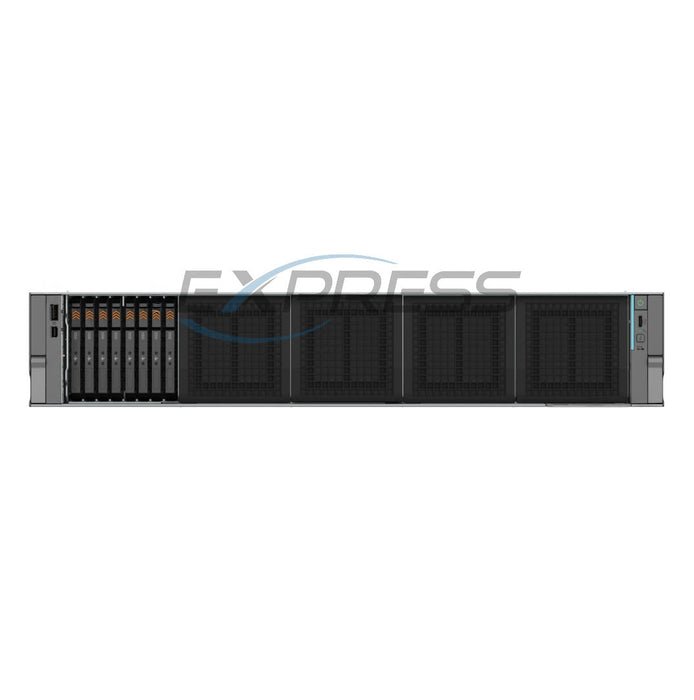

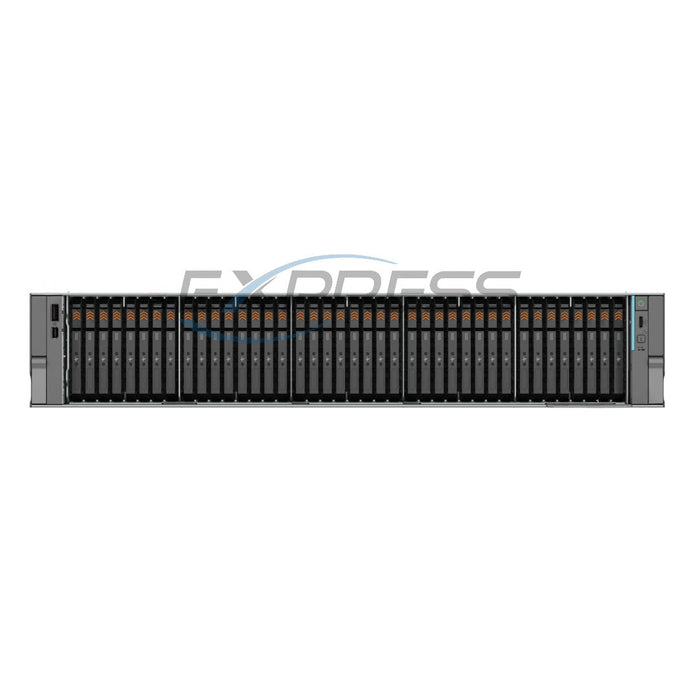

8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S / 40 x EDSFF E3.S
H365i, H965i, H975i
H965e, HBA465e
BOSS-N1 DC-MHS
USB
Rear I/O Supports 2x OCP 3.0
Remote Management:iDRAC10
PCIe Slots:8x G5
GPU:Up to 6x 75W SW
or 2x 450W DW
Other Versions
(Click to View)
Ideal for:- AI
- Big Data
- Data Analytics
- HPC
- Machine Learning

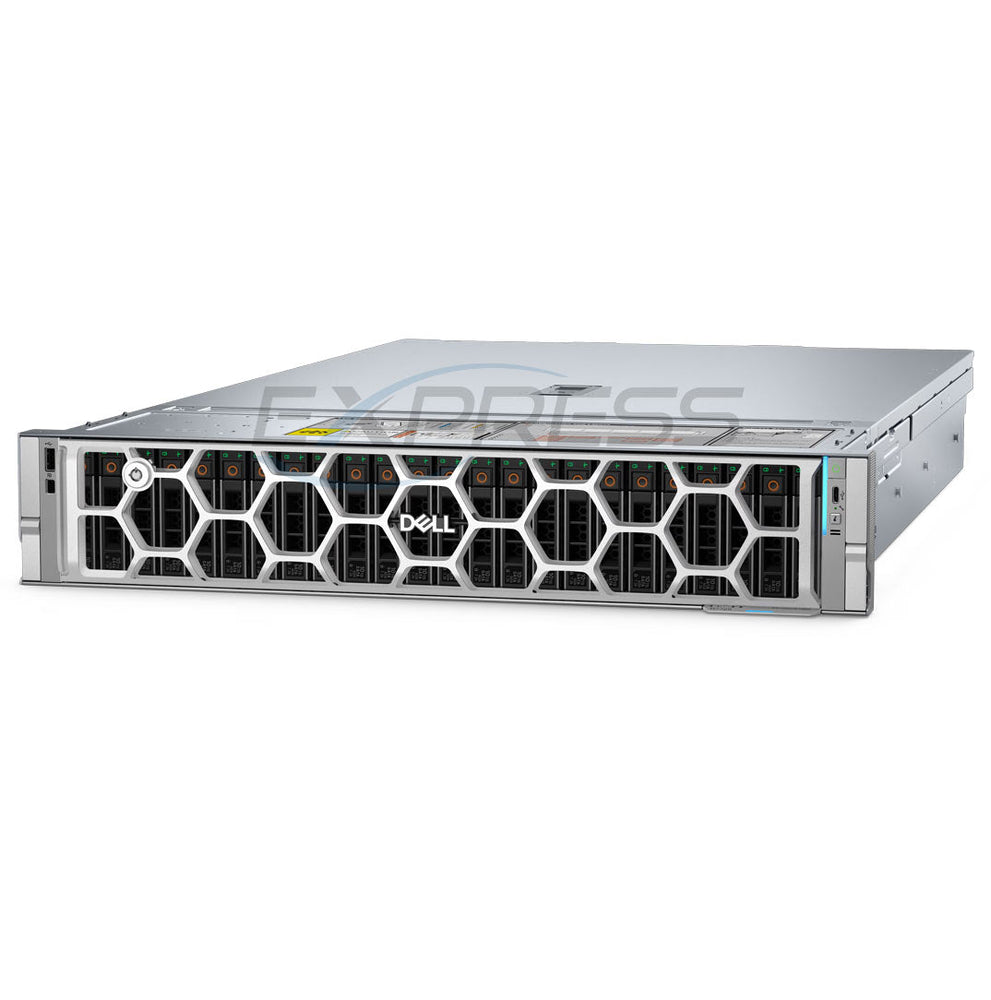

The new Dell PowerEdge R7725 is designed to be the foundation of your data center. This exceptionally powerful server provides excellent performance, flexibility and low-latency storage options in an air-cooled configuration.
Breakthrough performance that scales:
Our partnership with AMD allows us to provide customers with a powerful 2-socket 2U server that can handle a variety of workloads. The PowerEdge R7725 is perfect for high-requirement data applications with greater flexibility and multiple configuration options to suit diverse customer needs.
Energy Efficiency through consolidation
Lower your total cost of ownership while reducing energy consumption and make the best use of existing data center space.
• Smart Cooling design allows most configurations to be air-cooled
• Improved heat sinks for better thermal performance
AMD EPYC 9005 Series
Two 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor.
Multi-Chip Design
- New ‘Zen 5’ and ‘Zen 5c’ cores to address data center challenges such as delivering leadership performance.
- All processors in the series have support for up to 12 DDR5- 6400 memory channels.
- 128 PCIe® Gen 5 I/O lanes (up to 160 in 2-socket servers.
ⓘ PDF View AMD 9005 Series PDF here
Cooling Options
STD Heatsink
2U HSK
1U T-Wing HSK

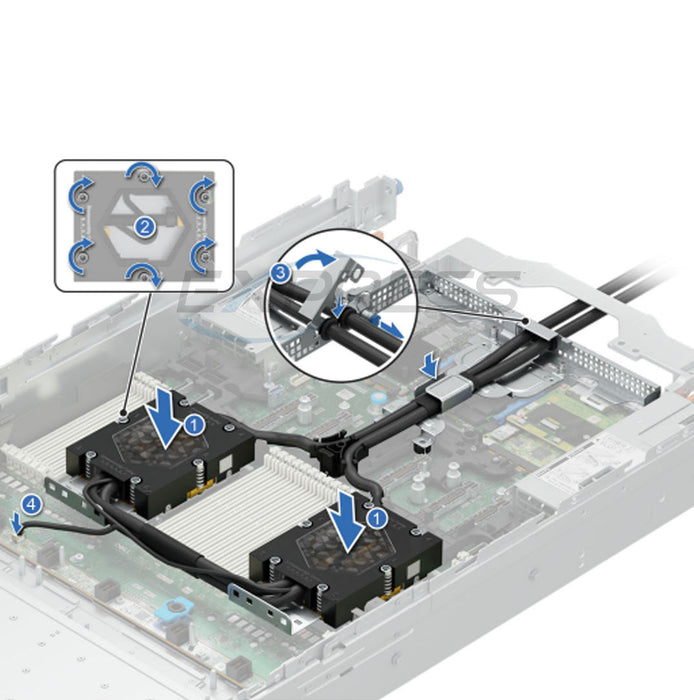

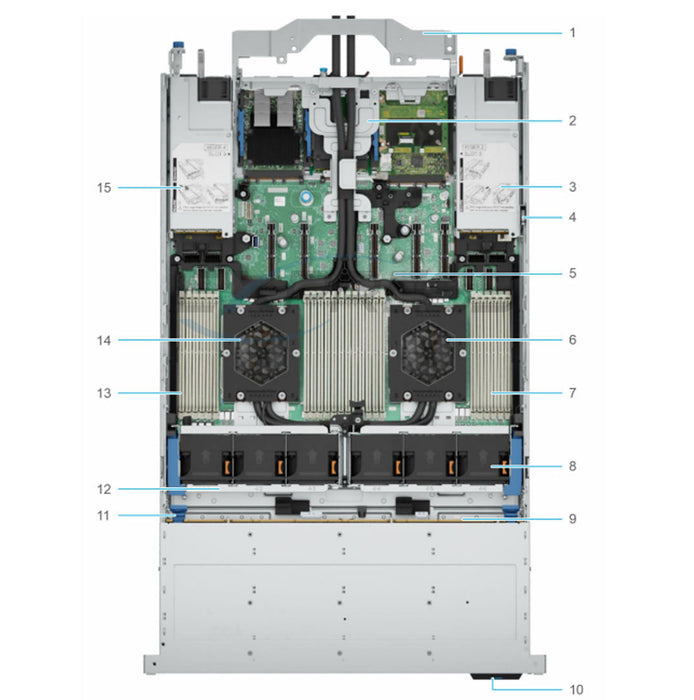

DLC Module
Air Shroud
High-Performance (Silver) Fan | 6R09C
- Supports up to 6 set Standard (STD) hot-swappable cooling fans, each consisting of a dual fan module.
- The High-Performance (Gold) Fan is required for TDP > 300 W, also for CPU 9175F and 9275
- The High-Performance (Platinum) Fan required for GPU Air Cooled Systems.
ⓘ Fans The PowerEdge r7725 supports up to 6 standard (STD) cooling fans.
Memory Options | 24x DDR5| DIMM type | Rank | Capacity | DIMM voltage and speed |
Operating Speed | |
|---|---|---|---|---|---|
| 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | ||||
| RDIMM | 1R | 16 GB | DDR5 (1.1 V), 6400 MT/s |
5200 MT/s | 4400 MT/s |
| 2R | 32 GB | DDR5 (1.1 V), 6400 MT/s |
5200 MT/s | 4400 MT/s | |
| 64 GB | DDR5 (1.1 V), 6400 MT/s |
5200 MT/s | 4400 MT/s | ||
| 96 GB | DDR5 (1.1 V), 6400 MT/s |
5200 MT/s | 4400 MT/s | ||
| 128 GB | DDR5 (1.1 V), 6400 MT/s |
5200 MT/s | 4400 MT/s | ||
| 8R | 256 GB | DDR5 (1.1 V), 6400 MT/s |
5200 MT/s | 4400 MT/s | |
Front H965i
- RAID: 0, 1, 5, 6, 10, 50, and 60
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x16
- Processor: Broadcom RAID-on-chip, SAS4116W chipset
- Power Backup unit: Battery
- Cache memory: 8 GB DDR4 3200 MT/s cache
- Cache function: Write-back, read-ahead, write-through, always write-back, no read-ahead
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
maximum SAS/SATA: w/o SAS Expander: 16 drives per controller
With SAS Expander: 240 SAS/SATA -
maximum NVMe: w/o PCIe Switch Expander: 8 drives per controller
With PCIe Switch Expander: 24 NVMe
Dual Front H975i
- Per Controller
- RAID: 0, 1, 5, 6, 10, 50, and 60
- Non–RAID: Yes
- Host bus type: PCIe 5.0 x16
- Processor: Broadcom RAID-on-chip, SAS5132W chipset
- Power Backup unit: Supercapacitor
- Cache memory: Integrated RAID cache
- Cache function: Write-back, write-through, always write-back, no read-ahead
- Supported Drive Types: Gen3 (8 GT/s), Gen4 (16 GT/s), and Gen5 (32 GT/s) NVMe
- maximum SAS/SATA: Not supported
- maximum NVMe: 32 drives
Front H365i
- RAID: 0, 1, and 10
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x8 @ 16Gbps
- Processor: Broadcom RAID-on-chip, SAS4016 chipset
- Power Backup unit: No
- Cache memory: No
- Cache function: Write-through
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
Maximum SAS/SATA: w/o SAS Expander: 16 drives
w/ SAS Expander: Depends on your PowerEdge server model. -
Maximum NVMe: w/o PCIe Switch Expander: 8/16 drives
w/ PCIe Switch Expander: 32 drives
Riser Cards
Riser (R1a)
Riser (R1b)
Riser (R2a)
Riser (R2b)
Riser (R3a)
Riser (R3b)
Riser (R3e)
Riser (R4a)
Riser (R4b)
Riser (R5a)
Riser (R5b)
Riser (R5e)
| Config No. | Riser configuration | No. of Processors | PERC type supported | Rear storage possible |
|---|---|---|---|---|
| RC 2: | R1b+R5b | 2 | Front PERC | No |
| RC 3: | R1b+R2b+R3e+R4b+R5b | 2 | Front PERC | No |
| RC 4: | R1b+R2a+R3e+R4a+R5b | 2 | Front PERC | No |
| RC 5: | R1b+R2b+R3b+R4b+R5e | 2 | Front PERC | No |
| RC 7: | R1a+R2b+R3a+R4b+R5a | 2 | Front PERC | No |
| RC 8: | R1b+R3e+R5b | 2 | Front PERC | No |
| Recommended System Memory Range (1.5x - 2x GPU Memory) | |||||||
|---|---|---|---|---|---|---|---|
| GPU Name | GPU Memory | x1 GPU | x2 GPUs | x3 GPUs | x4 GPUs | x5 GPUs | x6 GPUs |
| NVIDIA L4 | 24 GB | 36 - 48 GB | 72 - 96 GB | 108 - 144 GB | 144 - 192 GB | 180 - 240 GB | 144 - 288 GB |
| NVIDIA L40S | 48 GB | 72 - 96 GB | 144 - 192 GB | 216 - 288 GB | N/A | N/A | N/A |
| NVIDIA A16 | 64 GB | 96 - 128 GB | 192 - 256 GB | 288 - 384 GB | N/A | N/A | N/A |
| NVIDIA H100NVL | 94 GB | 141 - 188 GB | 282 - 376 GB | 423 - 564 GB | N/A | N/A | N/A |
| RTX Pro 6000 BSE | 96 GB | 144 - 192 GB | 288 - 384 GB | N/A | N/A | N/A | N/A |
| NVIDIA H200NVL | 141 GB | 212 - 282 GB | 423 - 564 GB | 635 - 846 GB | N/A | N/A | N/A |
NVIDIA BlueField-3 2x200 GbE B3220
NVIDIA BlueField-3 1x400GbE B3140H
What is a DPU?
A Data Processing Unit (DPU) is a specialized processor designed to handle data movement, networking, storage, and security tasks in servers and data centers. It functions as a programmable SmartNIC with its own Arm CPU cores, hardware accelerators, and high-speed networking capabilities. DPUs offload heavy infrastructure workloads from the main CPU, freeing it up for application-level work. They are commonly used in modern cloud and AI environments to improve efficiency and performance at scale. Popular examples include NVIDIA’s BlueField series of DPUs.
Why is a DPU different from a GPU?A DPU is different from a GPU because it is optimized for moving, securing, and processing data in transit (networking & storage), whereas a GPU is built for performing massive parallel mathematical computations such as AI training and graphics rendering.
Key Differences Between DPU and GPU
- Purpose: DPU handles data movement, networking, encryption, and storage offloading;
- Workload: DPU excels at infrastructure tasks (packets, security, telemetry);
- Location & Role: DPU sits on the data path as a SmartNIC;
- Efficiency Goal: DPU improves overall server efficiency by freeing CPU cycles;
- Purpose: GPU focuses on heavy parallel math and compute workloads.
- Workload: GPU excels at AI/ML training, simulations, and rendering.
- Location & Role: GPU acts as a compute accelerator.
- Efficiency Goal: GPU increases raw computational power.
BOSS-N1 DC-MHS
Internal USB Boot
Control Panel Options (LCP)
Secondary blank (Default)
Secondary with optional KVM
Secondary with optional Quick Sync 2.0
Power Supply Units (PSU)
Not sure what power supply to use. Dell has a calculator for you - Click Here
| Form factor | Output | Power cord |
|---|---|---|
| 60 mm | 800 W Titanium mixed mode | C13 |
| 800 W Platinum mixed mode | C13 | |
| 1100 W Platinum mixed mode | C13 | |
| 1100 W Titanium mixed mode | C13 | |
| 1400 W Telco | DC power cable | |
| 1500 W Titanium mixed mode | C13 | |
| 1500 W 277 Vac and HVDC | APP/Saf-D-Grid | |
| 1800 W Titanium mixed mode* | C13 | |
| 73.5 mm | 2400 W Titanium mixed mode | C19 |
| 3200 W Titanium mixed mode | C19 | |
| 3200 W 277 Vac and HVDC | APP/Saf-D-Grid |
- Width: 482.0mm (18.97")
- Length: 771.62mm (30.38") Ear to PSU handle
- Height: 86.8mm (3.41")

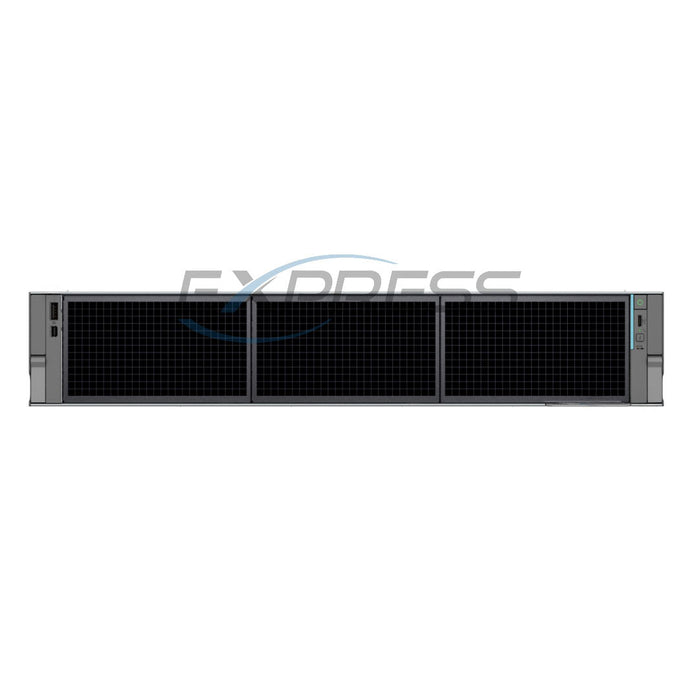

- No backplane configuration 22.93 kg (50.55 lbs)

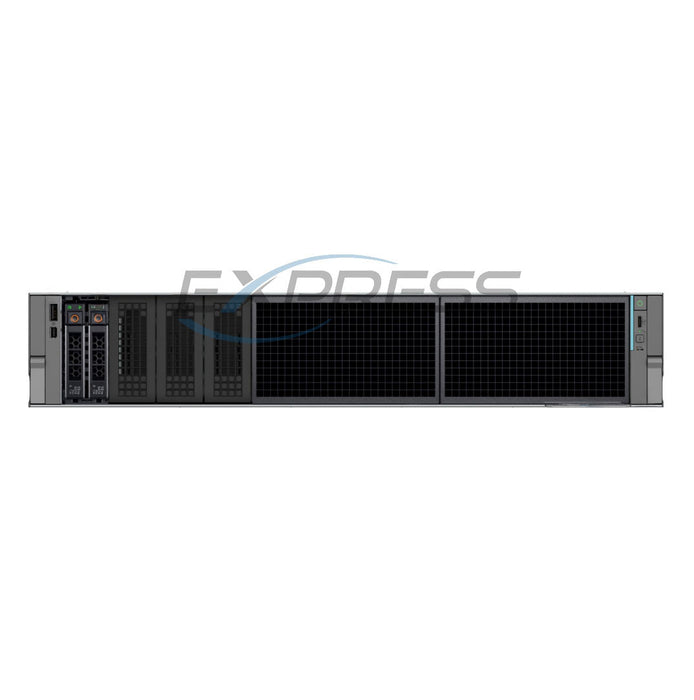

- 2 x U.2 SSD 20.24 kg (44.62 lbs)
- 8 x 2.5" Universal 26.26 kg (57.89 lbs)
- 8 x EDSFF E3.S Gen5 NVMe 27.33 kg (60.25 lbs)
- 12 x 3.5" SAS/SATA 26.85 kg (59.19 lbs)
- 16 x 2.5" SAS/SATA + 8 x U.2 26.58 kg (58.59 lbs)
- 16 x 2.5" SAS/SATA 26.81 kg (59.10 lbs)
- 16 x EDSFF E3.S Gen5 NVMe 28.68 kg (63.22 lbs)
- 24 x 2.5" SAS/SATA 27.67 kg (61.00 lbs)
- 32 x EDSFF E3.S Gen5 NVMe 26.68 kg (58.81 lbs)
- 40 x EDSFF E3.S Gen5 NVMe 28.38 kg (62.56 lbs)
