Quick Specs
Form Factor:1U rack server
Processor | Max: 160 Cores1x AMD EPYC 9005 Series 5th Generation
Memory | Max: 6TB24 ECC DDR5 RDIMM 5200Mhz
Supports registered ECC DDR5 DIMMs only
Air cooling, Direct Liquid Cooling (DLC)
Up to four sets (dual fan module) hot plug fans
4x 3.5" (SAS/SATA)
8x 2.5" (SAS/SATA/NVMe) Uni
10x 2.5" (SAS/SATA)
10x 2.5" with 4 x Universal
16x EDSFF E3.S NVMe (G5)
20x EDSFF E3.S + Rear 2 x EDSFF E3.S
Up to 2 x EDSFF E3.S (20x EDSFF E3.S)
Storage Controller:H365i, H965i, H975i,
HBA465e
BOSS-N1 DC-MHS
Networking Options (NOC):2 x OCP card 3.0 (optional) up to 400GbE
- Slot 2: 1 x16 Gen5 OCP 3.0
- Slot 5: 1 x16 Gen5 OCP 3.0
iDRAC10
PCIe Slots:Up to three PCIe slots (x16 connector)
- Slot 1 1 x16 Gen5 Full Height or Low Profile
- Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0
- Slot 4: 1 x16 Gen5 Full Height or Low profile
Up to 3 x 75W SW
DPU Options:NVIDIA BlueField-3 2x200 GbE B3220
NVIDIA BlueField-3 1x400 GbE B3140H *
Other Versions
- Dell PowerEdge R610
- Dell PowerEdge R620
- Dell PowerEdge R630
- Dell PowerEdge R640
- Dell PowerEdge R6415
- Dell PowerEdge R650
- Dell PowerEdge R650XS
- Dell PowerEdge R6515
- Dell PowerEdge R6525
- Dell PowerEdge R660
- Dell PowerEdge R660XS
- Dell PowerEdge R6615
- Dell PowerEdge R6625
- Dell PowerEdge R6715
- Dell PowerEdge R6725
(Click to View)
Ideal for:
- Data Analytics
- Virtualization

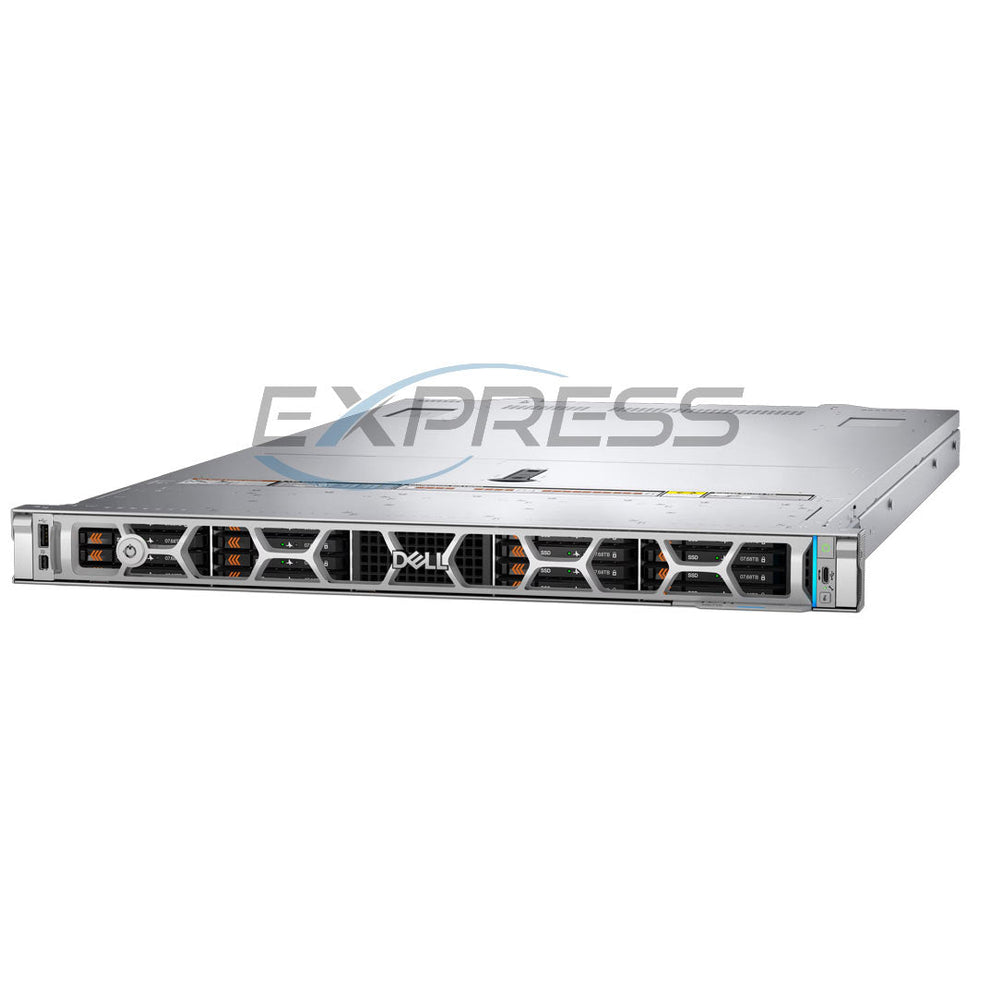

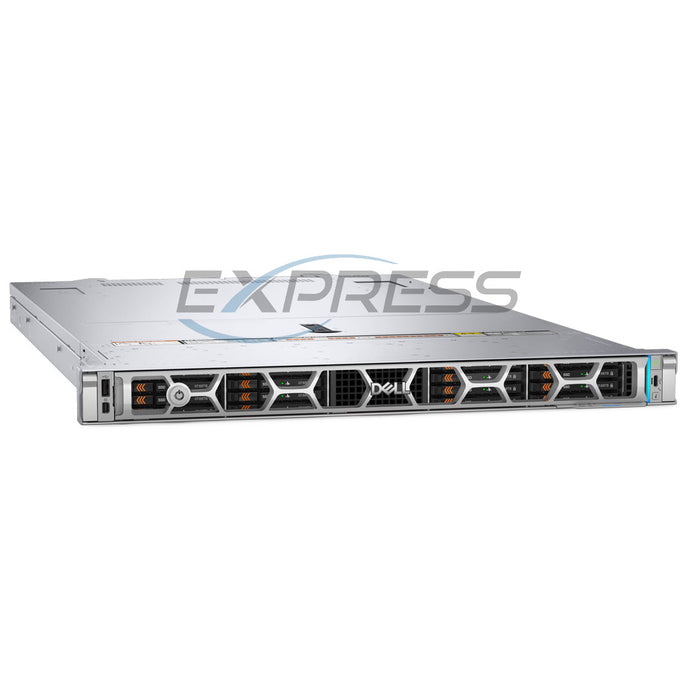

The PowerEdge R6715 server is a single-socket optimized solution designed to deliver high performance, flexibility, and efficiency for a variety of applications. It is powered by 5th generation AMD EPYC™ processors and offers cutting-edge features that dynamically scale to push the upper limits of application performance.
Next level compute in your data center:
Our partnership with AMD allows us to provide customer with a powerful 1U server that can handle a variety of multi-core workloads.
- The 5th generation AMD EPYC™ processor in the PowerEdge R6715 can deliver up to two-times better performance compared to previous generations.
- With dual OCP and DDR5 memory support, effciently address I/O and richer storage needs in a single-socket design.
The PowerEdge R6715 offers great flexibility with multiple configuration options to suit diverse customer needs.
- With support for up to 3 PCIe slots in a compact 1U form factor, it can easily adapt to different workload requirements.
- An ideal choice for businesses looking for a versatile server that can grow with their evolving needs.
Cyber Resilient Architecture for Zero Trust IT environment & operations
The Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor
Authentication (MFA) and role-based access controls safeguard trusted operations.
C-Type
Direct Liquid Cooling
Standard fans
HPR Silver Fan
Memory Options
The Dell PowerEdge R6715 holds up to 24x DDR5 DIMMs
| DIMM type | Rank | Capacity | DIMM voltage and speed | Operating Speed | |
|---|---|---|---|---|---|
| 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | ||||
| RDIMM | 1R | 16 GB | DDR5 (1.1 V), 6400 MT/s | 5200 MT/s | 4400 MT/s |
| 2R | 32 GB | DDR5 (1.1 V), 6400 MT/s | 5200 MT/s | 4400 MT/s | |
| 64 GB | DDR5 (1.1 V), 6400 MT/s | 5200 MT/s | 4400 MT/s | ||
| 96 GB | DDR5 (1.1 V), 6400 MT/s | 5200 MT/s | 4400 MT/s | ||
| 128 GB | DDR5 (1.1 V), 6400 MT/s | 5200 MT/s | 4400 MT/s | ||
| 8R | 256 GB | DDR5 (1.1 V), 6400 MT/s | 5200 MT/s | 4400 MT/s | |
H965i
- RAID: 0, 1, 5, 6, 10, 50, and 60
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x16
- Processor: Broadcom RAID-on-chip, SAS4116W chipset
- Power Backup unit: Battery
- Cache memory: 8 GB DDR4 3200 MT/s cache
- Cache function: Write-back, read-ahead, write-through, always write-back, no read-ahead
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
maximum SAS/SATA: w/o SAS Expander: 16 drives per controller
With SAS Expander: 240 SAS/SATA -
maximum NVMe: w/o PCIe Switch Expander: 8 drives per controller
With PCIe Switch Expander: 24 NVMe
H975i
- Per Controller
- RAID: 0, 1, 5, 6, 10, 50, and 60
- Non–RAID: Yes
- Host bus type: PCIe 5.0 x16
- Processor: Broadcom RAID-on-chip, SAS5132W chipset
- Power Backup unit: Supercapacitor
- Cache memory: Integrated RAID cache
- Cache function: Write-back, write-through, always write-back, no read-ahead
- Supported Drive Types: Gen3 (8 GT/s), Gen4 (16 GT/s), and Gen5 (32 GT/s) NVMe
- maximum SAS/SATA: Not supported
- maximum NVMe: 32 drives
H365i
- RAID: 0, 1, and 10
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x8 @ 16Gbps
- Processor: Broadcom RAID-on-chip, SAS4016 chipset
- Power Backup unit: No
- Cache memory: No
- Cache function: Write-through
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
Maximum SAS/SATA: w/o SAS Expander: 16 drives
w/ SAS Expander: Depends on your PowerEdge server model. -
Maximum NVMe: w/o PCIe Switch Expander: 8/16 drives
w/ PCIe Switch Expander: 32 drives
Riser 2q and Riser 4b supports DPU cards
R2r
R2k
R2q
R2s
R4a
R4b
| Config No. | Riser configuration | No. of Processors | PERC type supported | Rear storage possible |
|---|---|---|---|---|
| RC 2 | R2r | 1 | Front PERC | No |
| RC 3 | R2q+R4b | 1 | Front PERC | No |
| RC 4 | R2r+R4a | 1 | Front PERC | No |
| RC 5 | R2k+R4a | 1 | Front PERC | No |
| RC 6 | R2s+R4a | 1 | Front PERC | Yes |
Riser 2q and Riser 4b supports DPU cards
Open Compute Project (OCP 3.0) PCIe 5.0 x8/x16

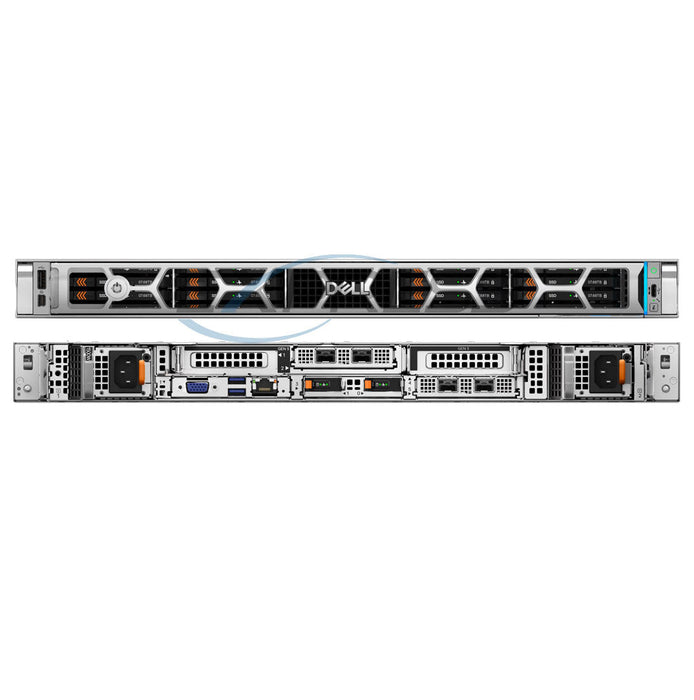

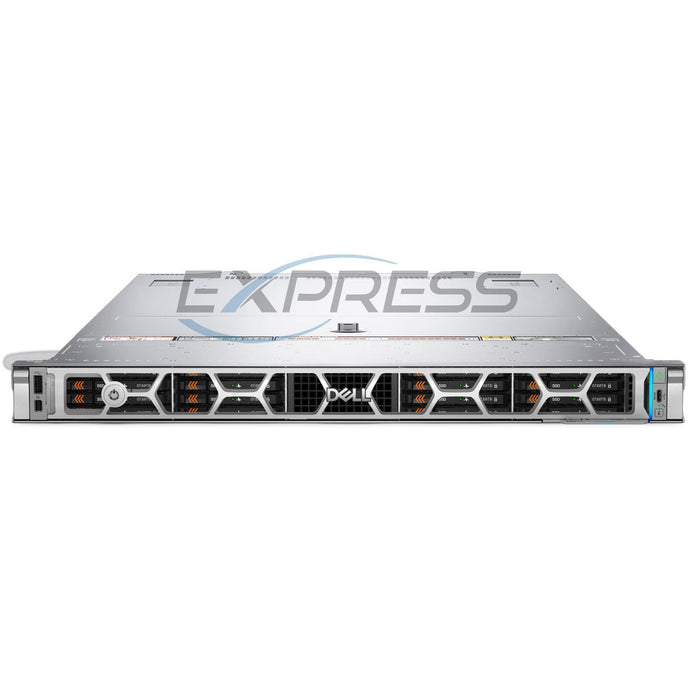

Front I/O
- 1 x USB 2.0 Type-C port (HOST/BMC Direct)
- 1 x USB 2.0 Type-A port (optional LCP KVM)
- 1 x Mini-DisplayPort (optional LCP KVM)
- 1 x USB 3.1 Type-A
- 1 x Dedicated BMC 1Gb Ethernet port
- 2 x USB 3.1 Type A port
- 1 x VGA
- 2 x OCP card 3.0 (optional)
- OCP Speeds: 1GbE, 10GbE, 25GbE,100GbE and 400GbE
- Slot 2: 1 x16 Gen5 OCP 3.0
- Slot 5: 1 x16 Gen5 OCP 3.0
Boot Options
BOSS-N1 DC-MHS
Internal USB Boot
Supported GPU / DPU
L4 24GB GPU
NVIDIA BlueField-3 2x200 GbE B3220
NVIDIA BlueField-3 1x 400GbE B3140H
What is a DPU?
A Data Processing Unit (DPU) is a specialized processor designed to handle data movement, networking, storage, and security tasks in servers and data centers. It functions as a programmable SmartNIC with its own Arm CPU cores, hardware accelerators, and high-speed networking capabilities. DPUs offload heavy infrastructure workloads from the main CPU, freeing it up for application-level work. They are commonly used in modern cloud and AI environments to improve efficiency and performance at scale. Popular examples include NVIDIA’s BlueField series of DPUs.
Why is a DPU different from a GPU?A DPU is different from a GPU because it is optimized for moving, securing, and processing data in transit (networking & storage), whereas a GPU is built for performing massive parallel mathematical computations such as AI training and graphics rendering.
Key Differences Between DPU and GPU
- Purpose: DPU handles data movement, networking, encryption, and storage offloading;
- Workload: DPU excels at infrastructure tasks (packets, security, telemetry);
- Location & Role: DPU sits on the data path as a SmartNIC;
- Efficiency Goal: DPU improves overall server efficiency by freeing CPU cycles;
- Purpose: GPU focuses on heavy parallel math and compute workloads.
- Workload: GPU excels at AI/ML training, simulations, and rendering.
- Location & Role: GPU acts as a compute accelerator.
- Efficiency Goal: GPU increases raw computational power.
| Form factor | Output | Power cord |
|---|---|---|
| 60 mm | 800 W mixed mode | C13 |
| 1100 W mixed mode | C13 | |
| 1400 W -48 VDC | LOTES APOWA048 | |
| 1500 W mixed mode | C13 | |
| 1500 W mixed mode 277V | APP2006G1/2006G3 | |
| 1800 W mixed mode | C13 |
- Width: 482.0 mm (18.97")
- Length: 786.14 mm (30.95") with bezel
- Height: 42.8 mm (1.68")
- 4 x 3.5-inch SAS/SATA drives 19.41 kg (42.79 pounds)
- 8 x 2.5-inch Universal SSDs 19.96 kg (44.00 pounds)
- 8 x U.2 SSDs 20.78 kg ( 45.81 pounds)
- 10 x 2.5-inch SAS/SATA drives 21.19 kg ( 46.71 pounds)
- 10 x 2.5-inch with 4 x Universal drives 21.09 kg ( 46.49 pounds)
- 16 x EDSFF E3.S Gen5 NVMe drives 21.09 kg (46.49 pounds)
- 20 x EDSFF E3.S Gen5 NVMe + rear 2 x EDSFF E3.S Gen5 NVMe drives 20.25 kg ( 46.64 pounds)
