Quick Specs
Form Factor:2U rack server
Processor | Max: 144 E-Cores / 88 P-Cores with R1S option1x Intel Xeon 6 E-Core / P-Core
Memory | Max: 8TB16 ECC DDR5 RDIMM 6400Mhz
Supports registered ECC DDR5 DIMMs only

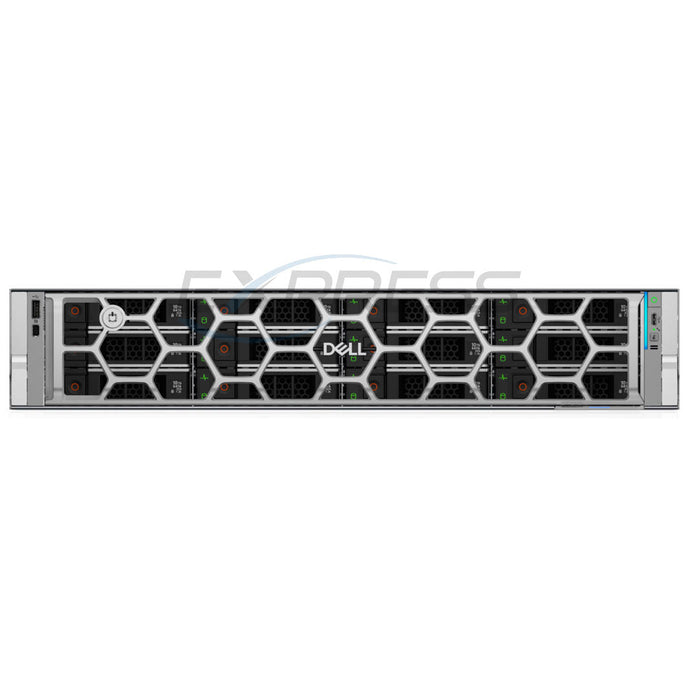

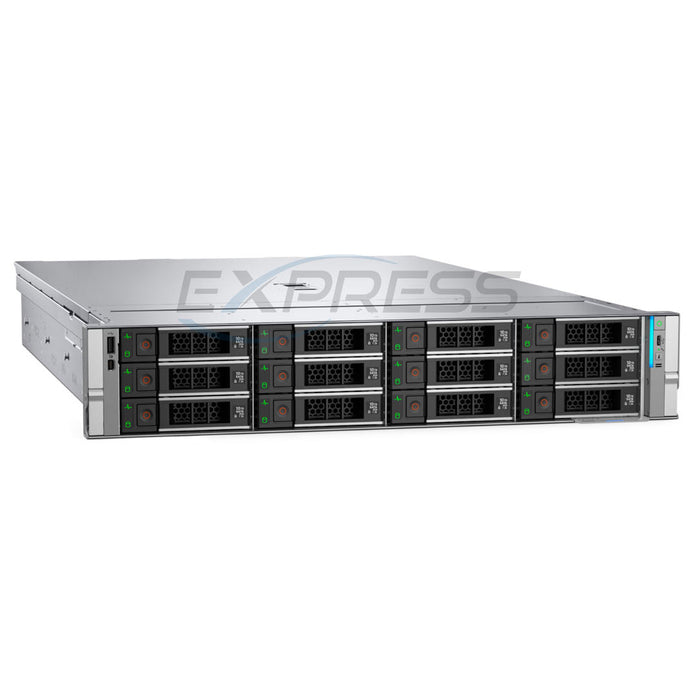

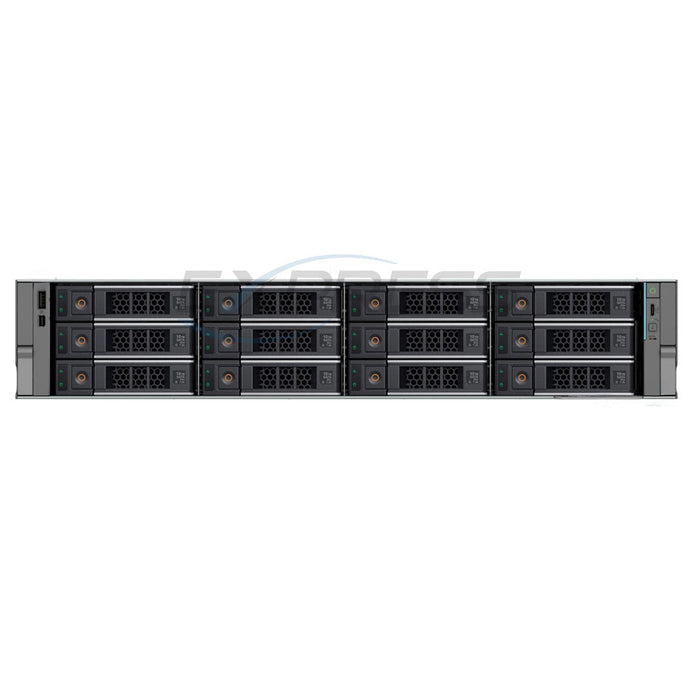

12x 3.5" (SATA) Max: 384TB
8x 2.5" (SAS/SATA/NVMe)

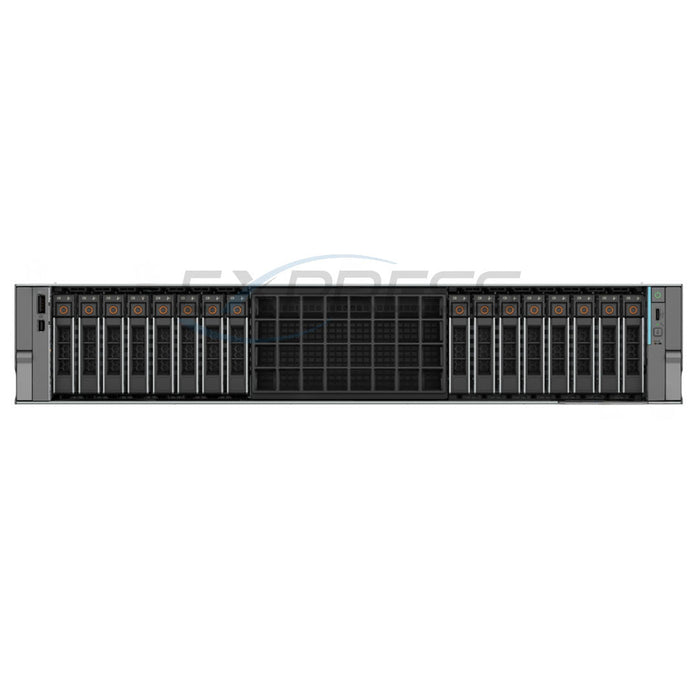

16x 2.5" (SAS/SATA)
24x 2.5" (SAS/SATA)
8x EDSFF E3.S NVMe (G5) Max: 491.52TB
16x EDSFF E3.S NVMe (G5) Max: 983.04TB
32x EDSFF E3.S NVMe (G5) Max: 1966.08TB
Up to 4 x EDSFF E3.S Gen5 NVMe (12 x 3.5-inch)
Storage Controller:H365i, H965i,
H965e, HBA465e
M.2 interposer
BOSS-N1 DC-MHS
USB
Front I/O supports 2x OCP 3.0
Rear I/O Supports 2x OCP 3.0 + 2x 1GbE LOM
iDRAC
PCIe Slots:Front OCP 3.0; 2 x16 PCI-e (G5) FH; HL
Rear OCP 3.0; BOSS; 5 x16 PCI-e (G5)
Up to 3 x 400W DW; or 4 x 75W SW
Other Versions
(Click to View)
Ideal for:
- Medium VM Density or VDI
- Database
- Virtualization

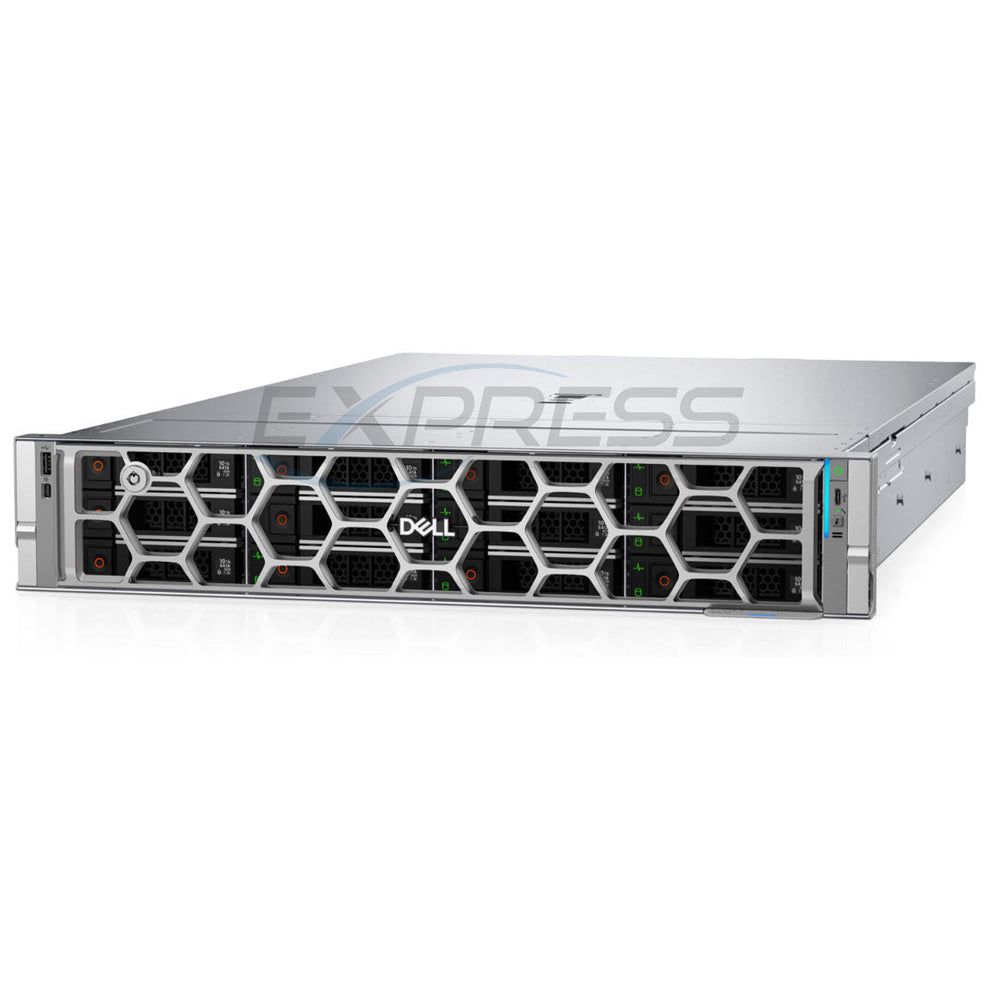

The Dell PowerEdge R570 is a powerful 2U, single-socket rack server designed to deliver high performance while maintaining exceptional energy efficiency. Its advanced design helps drive cost savings and improve data center productivity. This makes it perfect for workloads like virtualization, medium-density VMs, scale-out databases, VDI, and software-defined storage.
Max Performance:
The PowerEdge R570 seamlessly integrates into current environments. Designed for diverse performance and expandability needs, it is powered by an Intel® Xeon® 6
processor and offers advanced GPU support. This boosts computational capabilities and accelerates inferencing power, making it suitable for demanding business applications.

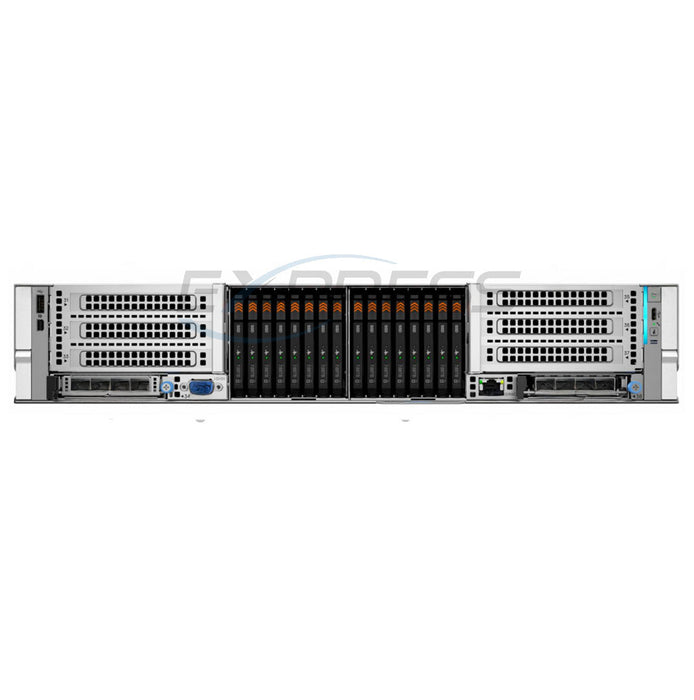

The server is available in rear I/O hot aisle and front I/O cold aisle configurations. The front I/O cold aisle option enhances serviceability, reduces maintenance downtime, and improves overall system reliability.
Cyber Resilient Architecture for Zero Trust IT environment & operations
The Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor
Authentication (MFA) and role-based access controls safeguard trusted operations.
The Intel® Xeon® 6 series of processors offers both E-Core and P-Core processors. Mixing of CPUs is not supported.
Xeon E-Cores
The Intel® Xeon® 6 series single threaded processor stack is comprised entirely of efficiency cores (E-Cores) providing ultra-high core counts optimized for power efficient operations.
• Optimized for single-threaded workloads
• Up to 144 cores at 330 W TDP
• 6400 MT/s DDR5 memory
• Up to four 24 GT/s UPI 2.0
• PCIe 5.0 with up to 88 lanes per CPU
• Security features (SGX)
Xeon P-Cores with R1S option
The Intel® Xeon® 6 series processor stack is comprised entirely of performance cores (P-Cores), providing high core counts optimized for power and performance.
• Optimized for multi-threaded applications and workloads
• Up to 86 cores at 350 W TDP
• 6400 MT/s DDR5 memory
• Up to four 24 GT/s UPI 2.0
• PCIe 5.0 with up to 88 lanes per CPU
• R1S: Up to 136 PCIe 5.0 lanes
• Security features (SGX)
Cooling Options
HPR HSK TDP > 150W
2U HSK TDP ≤150W
Standard Air Shroud
GPU Air Shroud
High-Performance (Silver) Fan
- Supports up to 4 set high-performance silver (HPR SLVR) hot-swappable cooling fans, each consisting of a dual fan module.
High-Performance (Gold) Fan
- Supports up to 6 set Standard (STD) hot-swappable cooling fans, each consisting of a dual fan module.

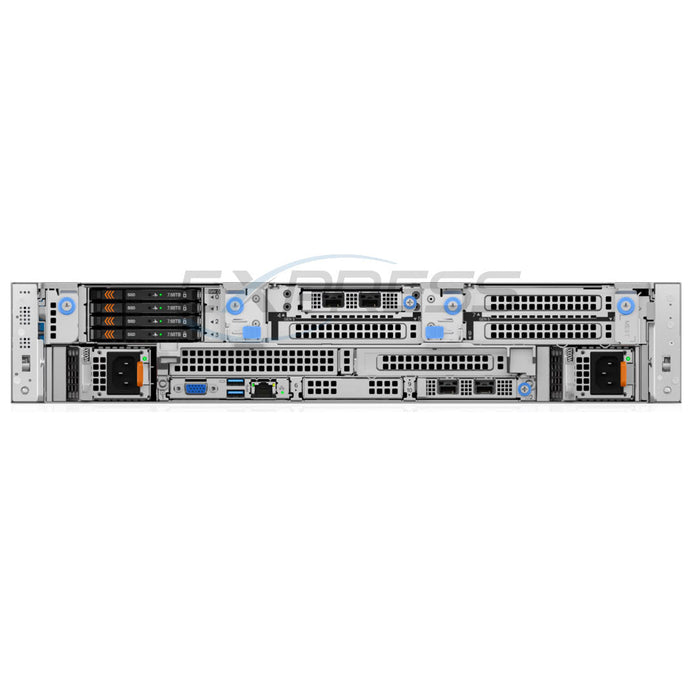

Rear Drive Cage E3.S Fan
- Supports 1 fan to cool the rear drive down.
The Dell PowerEdge R570 holds up to 16x DDR5 DIMMs
| DIMM type | Rank | Capacity | DIMM voltage and speed | E-core processor | P-core processor | ||
|---|---|---|---|---|---|---|---|
| 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | ||||
| RDIMM | 1R | 16 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | Up to 6400 MT/s | N/A |
| 2R | 32 GB | DDR5 (1.1 V), 6400 MT/s | Up to 6400 MT/s | N/A | Up to 6400 MT/s | Up to 5200 MT/s | |
| 64 GB | DDR5 (1.1 V), 6400 MT/s | Up to 6400 MT/s | Up to 5200 MT/s | Up to 6400 MT/s | Up to 5200 MT/s | ||
| 96 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | Up to 6400 MT/s | Up to 5200 MT/s | ||
| 128 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | Up to 6400 MT/s | Up to 5200 MT/s | ||
| 8R | 256 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | N/A | Up to 5200 MT/s | |
Front H965i DC-MHS
- RAID: 0, 1, 5, 6, 10, 50, and 60
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x16
- Processor: Broadcom RAID-on-chip, SAS4116W chipset
- Power Backup unit: Battery
- Cache memory: 8 GB DDR4 3200 MT/s cache
- Cache function: Write-back, read-ahead, write-through, always write-back, no read-ahead
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
maximum SAS/SATA: w/o SAS Expander: 16 drives per controller
With SAS Expander: 240 SAS/SATA -
maximum NVMe: w/o PCIe Switch Expander: 8 drives per controller
With PCIe Switch Expander: 24 NVMe
Dual Front H975i DC-MHS
- Per Controller
- RAID: 0, 1, 5, 6, 10, 50, and 60
- Non–RAID: Yes
- Host bus type: PCIe 5.0 x16
- Processor: Broadcom RAID-on-chip, SAS5132W chipset
- Power Backup unit: Supercapacitor
- Cache memory: Integrated RAID cache
- Cache function: Write-back, write-through, always write-back, no read-ahead
- Supported Drive Types: Gen3 (8 GT/s), Gen4 (16 GT/s), and Gen5 (32 GT/s) NVMe
- maximum SAS/SATA: Not supported
- maximum NVMe: 32 drives
Front H365i DC-MHS
- RAID: 0, 1, and 10
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x8 @ 16Gbps
- Processor: Broadcom RAID-on-chip, SAS4016 chipset
- Power Backup unit: No
- Cache memory: No
- Cache function: Write-through
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
Maximum SAS/SATA: w/o SAS Expander: 16 drives
w/ SAS Expander: Depends on your PowerEdge server model. -
Maximum NVMe: w/o PCIe Switch Expander: 8/16 drives
w/ PCIe Switch Expander: 32 drives
The system supports either Front I/O configuration (system with front risers) or Rear I/O configuration (system with rear risers).
RF1a Riser
RF2a Riser
RF3c Riser
RF3d Riser
RF4a Riser
RF4b Riser
RF4c Riser
R1x Riser
R2t Riser
R3b Riser
R3e Riser
R3f Riser
R4b Riser
R5b Riser

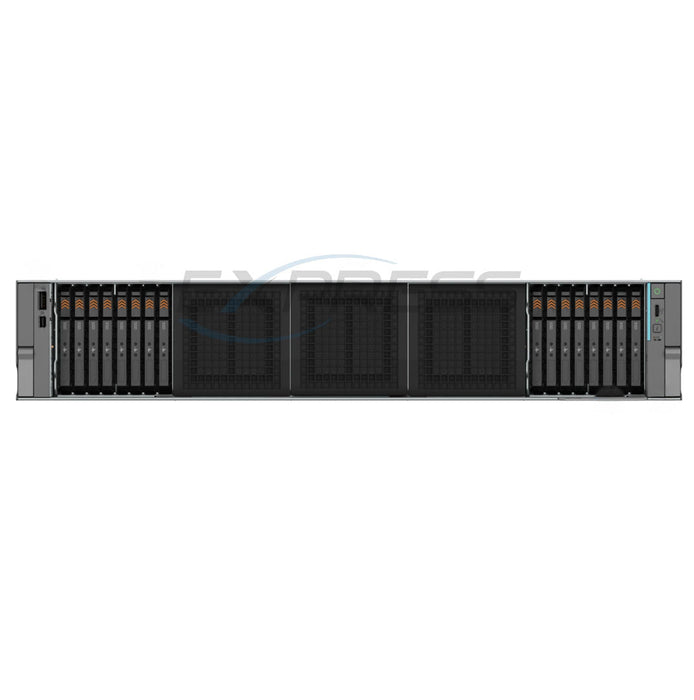

EDSFF Rear Cage
| Config No. | Riser configuration | No. of Processors | PERC type supported | Rear storage possible |
|---|---|---|---|---|
| RC 0 | NO RSR | 1 | Front PERC | No |
| RC 1 | R1x+R2t+R3e+R4b+R5b | 1 | Front PERC | No |
| RC 2 | RF2a+RF4b | 1 | N/A | No |
| RC 3 | RF1a+RF3c | 1 | N/A | No |
| RC 4 | RF1a+RF2a+RF3d+RF4a | 1 | N/A | No |
| RC 5 | R3f+R4b+R5b | 1 | Front PERC | No |
| RC 6 | R1x+R3b+R4b+R5b | 1 | N/A | No |
| RC 7 | R3f+R4b+R5b | 1 | PERC Adapter | Yes |
| RC 8 | RF1a+RF4c+R1x+R3b+R5b | 1 | N/A | No |
| RC 9 | R4b+R5b | 1 | Front PERC | No |
| RC 10 | R2t+R3e+R4b+R5b | 1 | PERC Adapter | No |
| RC 11 | R3e+R4b+R5b | 1 | N/A | No |
Intel Xeon 6 processor P-core R1S processors provide a higher number of PCIe lanes compared to standard Intel® Xeon 6 processor P-core processors.
Notes:
- Risers RC1, RC4, RC6, RC8, RC10, and RC11 support only R1S processors.
- Risers RC2 and RC9 support both R1S and standard single-processor configurations.
- Riser 5b and riser F1a support DPU cards.
Front I/O
- 1 x USB 2.0 Type - C port (HOST/BMC Direct)
- 1 x USB 2.0 Type A port (optional LCP KVM)
- 1 x Mini-DisplayPort (optional LCP KVM)
- 1 x DB9 Serial
(with front I/O configuration) - 1 x Dedicated BMC Ethernet port
(with front I/O configuration)
- 1 x Dedicated BMC Ethernet port
- 2 x USB 3.1 Type A port
- 1 x VGA
- Up to two OCP NIC card 3.0: 2 slots on the front or 1 slot at the rear
- OCP Speeds: 100 GbE x 2, 25 GbE x 2, 25 GbE x 4, 10 GbE x 2, 10 GbE x 4, 1 GbE x 4
I/O supports either front or back, not both.
OCP is also supported in front of the system for some configurations, called the Floating OCP Paddle Card (FLOP). Additionally, the Front I/O OCP supports both internal latch and thumbscrew versions, providing flexibility in installation and maintenance.
Boot Options
BOSS-N1 DC-MHS
BOSS-N1 Interposer
Internal USB Boot
Supported GPU
L4
L40S
H100NVL
Power Supply Units (PSU)
| Form factor | Output | Power cord |
|---|---|---|
| 60 mm | 800 W mixed mode | C13 |
| 1100 W mixed mode | C13 | |
| 1400 W -48 VDC | LOTES APOWA048 | |
| 1500 W mixed mode | C13 | |
| 1500 W mixed mode 277V | APP2006G1/2006G3 | |
| 1800 W mixed mode | C13 |
- Width: 19"
- Length: 32.09"
- Height: 1.69"
- Diskless 17 kg (37 lbs) 25.2 kg (55.5 lbs)

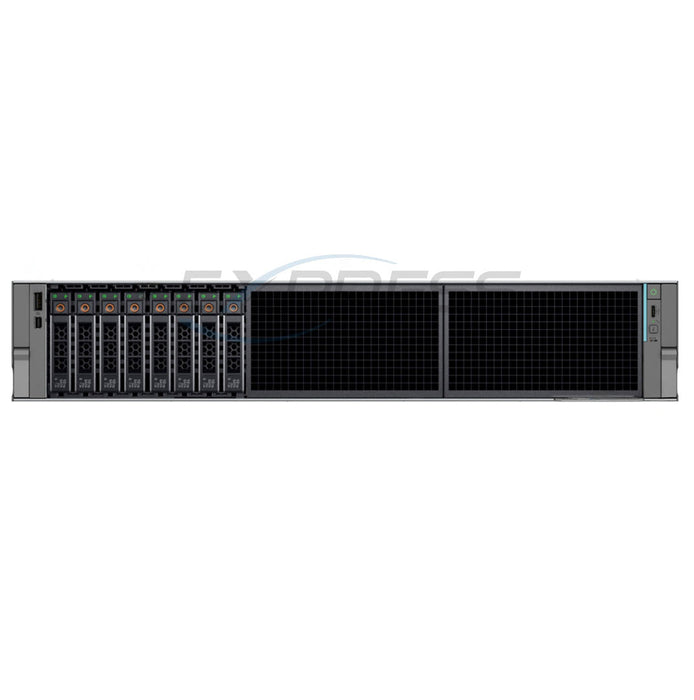

- 8 x 2.5-inch SATA (HDD/SSD) 25.2 kg (55.5 lbs)
- 16 x 2.5-inch SATA (HDD/SSD) 27.1 kg (59.7 lbs)
- 24 x 2.5-inch SATA (HDD/SSD) 28.6 kg (63.05 lbs)
- 12 x 3.5-inch SATA (HDD/SDD) 31 kg (68.3 lbs)

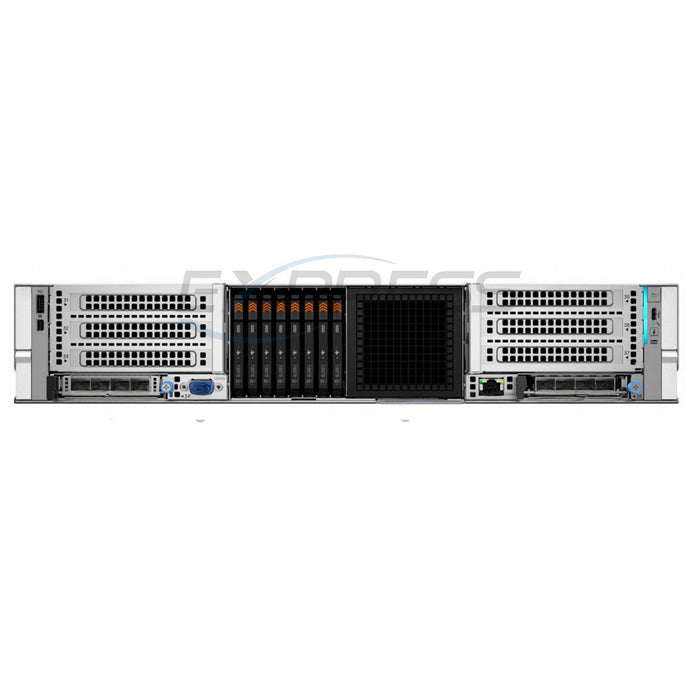

- 8 x EDSFF E3.S Gen5 NVMe cold aisle configuration. 27.8 kg (61.28 lbs)

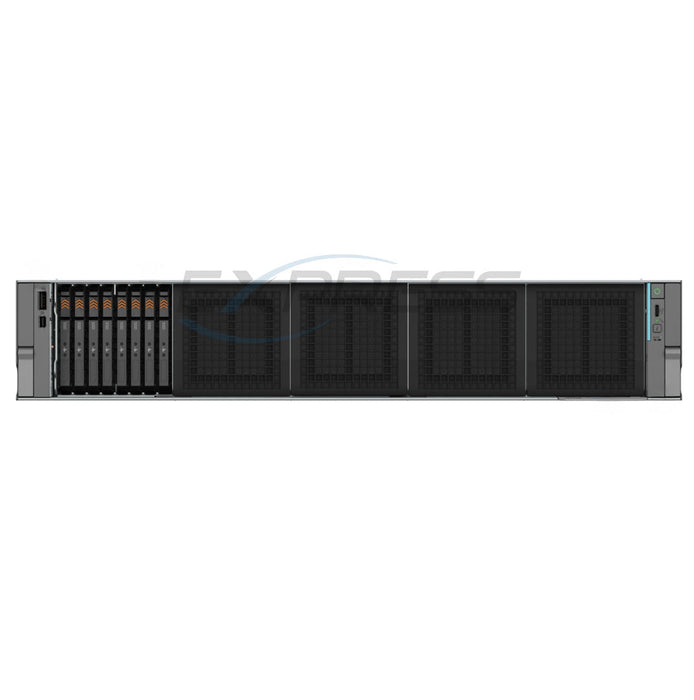

- 8 x EDSFF E3.S Gen5 NVMe hot aisle configuration 22.3 kg (49.16 lbs)
- 16 x EDSFF E3.S Gen5 NVMe cold aisle configuration 22.9 kg (50.48 lbs)

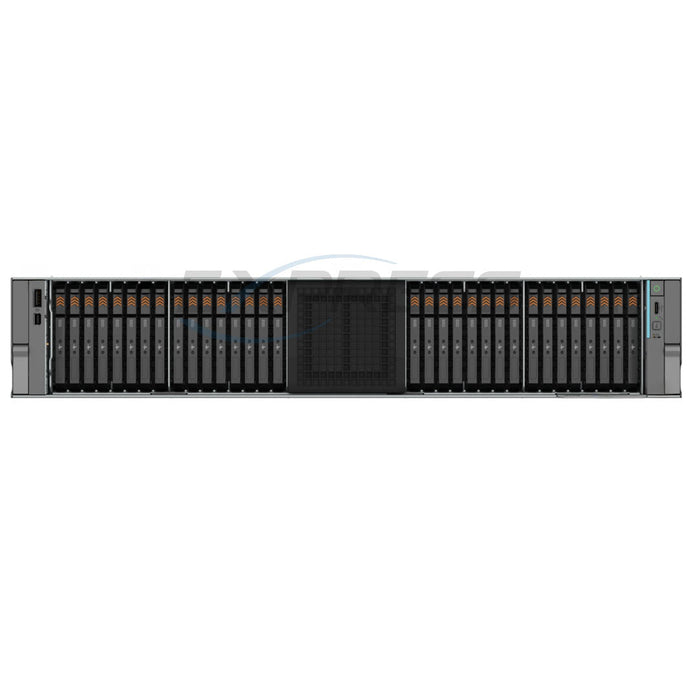

- 32 x EDSFF E3.S Gen5 NVMe hot aisle configuration 24.2 kg (53.35 lbs)
